Influence of tropospheric temperature on the formation and aging of secondary organic aerosol from biogenic vapor mixtures

Atmospheric temperature and composition variations significantly influence secondary organic aerosol (SOA) formation and aging, and thus fine particulate matter levels and properties relevant for climate, air quality, and human health. However, the temperature dependence of SOA formation and aging from mixed volatile organic compounds (VOCs) remains insufficiently understood. Therefore, we investigated SOA formation from the oxidation of isoprene and α-pinene mixtures covering the range of tropospheric temperatures (213–313 K). We further examine the aging of the resulting SOA by gradually warming to mimic their atmospheric transport and diurnal aging processes. Notably, at 213 K, isoprene most strongly suppresses α-pinene dimer (C_18–20) formation, with isoprene-α-pinene cross dimers appearing 3.5 times more frequently than at 273 K, while the suppression is not temperature-sensitive above 273 K. Upon subsequent warming, particles formed at different temperature ranges undergo distinct aging processes including aerosol evaporation and water uptake. Surprisingly, particles formed at higher temperatures are more oxidized yet more volatile than those formed at lower temperatures and subsequently warmed. Chemical transport modeling accounting for temperature-depended simultaneous oxidation of isoprene and α-pinene predicts higher SOA levels across Europe, aligning more closely with observations. These findings highlight the need to consider both temperature and the interaction of biogenic VOCs to accurately describe SOA formation, aging, and global burden.

1 Introduction

Aerosol particles are ubiquitous in the atmosphere, significantly impacting climate and having adverse effects on air quality and human health (Paasonen et al., 2013; Mahowald, 2011; Aubry et al., 2021). Organic aerosol (OA) makes up 20 %–90 % of the total fine particulate mass in the troposphere (Jimenez et al., 2009). An important contributor to the global OA burden is secondary organic aerosol (SOA), which emerges from the condensation of organic compounds formed by the oxidation of volatile organic compounds (VOCs) (Kroll and Seinfeld, 2008). Generally, the key precursors for global SOA are biogenic VOCs, of which isoprene (C₅H₈) and monoterpenes (C₁₀H₁₆) are the most abundant (Kanakidou et al., 2005). Consequently, large efforts (Kanakidou et al., 2005; Carlton et al., 2009; Kroll and Seinfeld, 2008; Zhang et al., 2015; Hallquist et al., 2009; Lopez-Hilfiker et al., 2014; McFiggans et al., 2019; Takeuchi et al., 2022) have been put into investigating their formation chemistry and particle physicochemical properties of biogenic SOA.

Most of these studies were done at or near room temperature (Zhang et al., 2015; Lopez-Hilfiker et al., 2015; Kourtchev et al., 2015; Takeuchi et al., 2022; McFiggans et al., 2019). The troposphere however covers a wide temperature range between 310 to 200 K. In the near-surface atmosphere, VOCs can be oxidized at varying ambient temperatures throughout the day, depending on the season and region. By convective systems, VOCs could reach to higher altitudes where they can be oxidized at lower temperatures (Schulz et al., 2018; Liu et al., 2023). This is important for the prediction of SOA levels especially in the free troposphere. Temperature affects the reaction rates and pathways (Bilde et al., 2015; Bianchi et al., 2019) of VOCs oxidation as well as the gas-to-particle partitioning of oxidation products (Sheehan and Bowman, 2001; Donahue et al., 2006; Jonsson et al., 2008; Simon et al., 2020), thereby altering the formation, chemical composition, and physicochemical properties of aerosol particles. Thus, developing a comprehensive study covering tropospheric conditions is essential for understanding SOA formation and aging processes in the real atmosphere.

Isoprene makes up the largest portion of the global biogenic VOC emissions (Owen et al., 2003; Sindelarova et al., 2014), making it an important SOA precursor despite its relatively low individual mass yield of < 5 % (Xu et al., 2014; Lamkaddam et al., 2021; Carlton et al., 2009). Previously, Kiendler-Scharr et al. (2009) and McFiggans et al. (2019) found that at room temperature, the presence of isoprene reduces SOA formation from the oxidation of α-pinene. This is due to the competition of isoprene and α-pinene for reacting with hydroxyl radicals (OH) (McFiggans et al., 2019) and the formation of more volatile C₁₅ dimers from the reaction of C₁₀ peroxy radicals (RO₂) of α-pinene and C₅ RO₂ of isoprene, instead of less volatile C₂₀ dimers from self-reactions of C₁₀ RO₂ from α-pinene alone. However, the temperature dependence of RO₂ cross reactions in the isoprene and α-pinene systems as well as the effects of temperature changes on SOA aging during atmospheric processes such as transport and diurnal aging remains to be fully understood. This knowledge gap is critical given the varying atmospheric abundances of these compounds across different ecosystems. For instance, in the Amazonian rainforest, summertime isoprene mixing ratios range from 0.1 to 20 ppb (Yáñez-Serrano et al., 2020; Yáñez-Serrano et al., 2018), while monoterpenes are typically below 1 ppb but can reach up to 5.5 ppb. In contrast, European forests exhibit lower isoprene levels, typically below 1 ppb but reaching up to ∼5 ppb during warm daytime periods (Li et al., 2021; Petersen et al., 2023). Monoterpene concentrations in these forests are also generally below 1 ppb but can reach several tenths of ppb during summer across a typical temperature range of 10–35 °C (Li et al., 2021). Therefore, investigating the impact of temperature on the oxidation of isoprene and α-pinene mixtures at atmospherically relevant concentrations is essential to accurately predict SOA formation in diverse environmental conditions (Tripathi et al., 2025; Curtius et al., 2024).

We thoroughly investigated the temperature-dependent formation and the properties of SOA from the oxidation of the mixture of isoprene and α-pinene at 213 K (SOA_213 K), 243 K (SOA_243 K), 273 K (SOA_273 K), 298 K (SOA_298 K), and 313 K (SOA_313 K). The SOA formed at each temperature was subsequently warmed with increments of 15–30 K over 10 h to investigate the aging processes (e.g., diurnal cycle) of SOA over a wider tropospheric temperature range (i.e., SOA_{213→243 K}, SOA_{243→273 K}, SOA_{273→298 K}, and SOA_{298→313 K}). A series of cross dimers from the two precursor VOCs were identified by making use of carbon isotope (¹³C) labelling experiments, as well as by comparison with the sole α-pinene oxidation experiment. We demonstrated the effect of temperature on the suppression of α-pinene dimers by isoprene and the formation of two-precursor cross dimers. By studying the effect of warming on aged particles, we distinguished the impact of temperature on both the chemistry and phase partitioning of organic molecules and provided evidence that particles at different temperature ranges undergo distinct aging processes (i.e., evaporation and water uptake) during warming.

2 Methods

2.1 Simulation Chamber Experiments

The data presented here was measured in two campaigns in 2019 (SOA19b) and 2021 (SOA21a) covering 213–313 K in the Aerosol Interaction and Dynamics in the Atmosphere (AIDA) aerosol and cloud simulation chamber at the Karlsruhe Institute of Technology (KIT). The chamber is an 84.5 m³ aluminium vessel equipped with a LED solar radiation simulator and with precisely controlled temperature, humidity, and gas mixtures. A fan allows all components to be mixed well within 90 s (Saathoff et al., 2009). Details about the AIDA chamber are given by previous studies (Möhler et al., 2003; Vallon et al., 2022; Wagner et al., 2006).

Two types of SOA were generated in batch mode from dark oxidation of: (1) sole α-pinene at 273 K (SOA_ap-273), (2) isoprene mixed with α-pinene at 213, 243, 273, 298, and 313 K (SOA_213 K, SOA_243 K, SOA_273 K, SOA_298 K, SOA_313 K), respectively. The experimental conditions are summarized in Table 1. Well defined amounts of isoprene and α-pinene were added to the AIDA chamber with a flow of 10 L min⁻¹ of synthetic air. Ozone was injected subsequently after the biogenic VOC were mixed well inside the chamber, followed by the continuous addition of tetramethyl ethylene (TME) generating OH radicals by its reaction with ozone. The OH concentrations were (0.8–1.5) × 10⁷ molecules cm⁻³ in all experiments. The initial concentration ratios of isoprene to α-pinene were kept at 1.0±0.1 for all two-precursor experiments, while the ratios of O₃ to α-pinene were 14±3 among all experiments with the exception of Exp 1 at 213 K (O₃: α-pinene = 38). At 213 K, the initial concentrations of isoprene and α-pinene of 6.7 ppb led to a relatively small amount of SOA mass. To generate sufficient SOA mass for the longer warming experiment we generated more SOA mass in a second oxidation step with about twice the VOC concentrations of 13.5 ppb. We note that the two times of injections of precursors may have impact on the chemical regimes during the SOA formation at 213 K compared to other experiments. Seed particles and OH scavengers were not used in this work. Additionally, to investigate the cross-dimers formed from the oxidation of α-pinene and isoprene, we used ¹³C-labelled isoprene (> 98 %, Merck) in Experiments 6 and 7 (Table 1). This isotopic labelling enabled us to identify products with a shift of one nominal mass-to-charge unit (i.e., $m/z+\mathrm{1}$), which unambiguously marks those dimers containing one skeleton from the labelled isoprene.

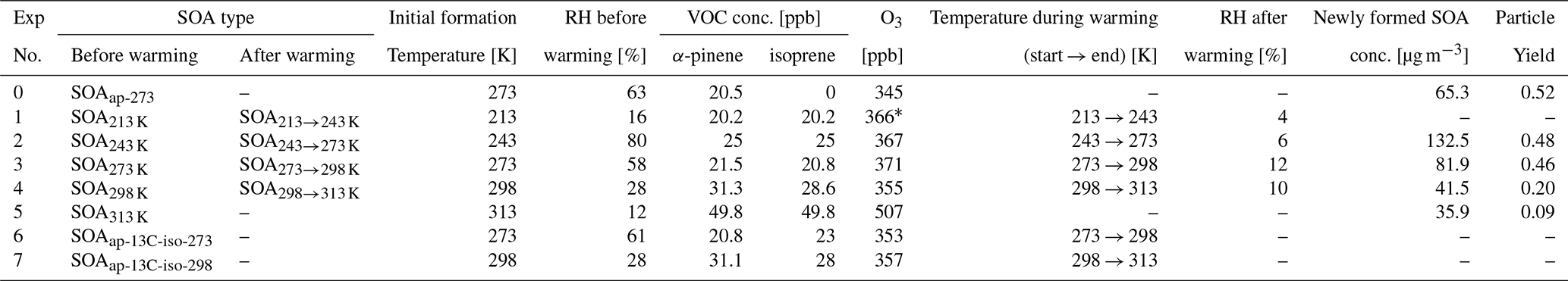

Table 1 Experimental conditions for SOA from sole α-pinene and mixtures of isoprene and α-pinene.

^* Total amount of O₃ of 366 ppb is summed from two rounds of injections: 253 ppb at the first injection, and 113 ppb at the second injection.

The initial reaction lasted 90 min, then the VOC precursors were depleted. The subsequent course of the experiment consisted of one hour of photochemical aging by illumination and then 14 h of warming the entire chamber at a constant rate. The increment of temperature before and after warming is shown in Table 1. To evaluate the effect of dilution, we injected CO₂ which is a chemistry bystander before warming. The loss of CO₂ was less than 4 % for all experiments after 14 h of warming. Therefore, the dilution effect is neglectable.

2.2 Instrumentation

The concentrations of VOC and semi-volatile organic particles were measured by a Proton-Transfer-Reaction-Time-of-Flight-Mass-Spectrometer coupled with a Chemical Analysis of Aerosol Online (CHARON-PTR-ToF-MS, Ionicon Analytik GmbH) particle inlet.

Bulk SOA was online detected by a high-resolution time-of-flight Aerosol Mass Spectrometer (HR-AMS, Aerodyne Inc.), while the particle-phase chemical composition of SOA at molecular level was detected by a chemical ionization mass spectrometer (CIMS) coupled with a filter inlet for gas and aerosols (FIGAERO) using iodide (I⁻) as reagent ions with 1 Hz time resolution (Lopez-Hilfiker et al., 2014; Lee et al., 2014). The CIMS data presented in this work stems from offline analysis. The filter samples were analyzed using a FIGAERO-iodide-CIMS. We also note that the sensitivity of FIGAERO-iodide-CIMS is highly dependent on the functionalities of the organic compounds and can vary by orders of magnitudes (Lopez-Hilfiker et al., 2016; Lee et al., 2014; Riva et al., 2019). Therefore, the results shown in this work are based on signal intensities but not mass concentrations. The detailed description of instruments, filter sample collection, and data analysis are described in Sect. S1 and Fig. S1 in the Supplement.

O₃ was detected by a gas monitor (O₃41M, Environment SA). Particle size distributions and number concentrations were measured by a scanning mobility particle sizer (SMPS) utilizing a differential mobility analyzer (DMA, 3071 TSI Inc.) connected to a condensation particle counter (CPC, 3772, TSI Inc.). The total particle number concentrations were monitored by two condensation particle counters (CPC, 3776 and 3022A, TSI Inc.).

Typically, background measurements for both gas and particle phase are done before and after the addition of VOC to identify any contaminations inside the chamber. Gas background confirms that there were no significant gas-phase contaminations for all the experiments. Most of the particle background signals were coming from filter matrix contaminations mainly due to fluorinated constituents of low relevance. Please note that the background in all experiments was measured in the same way as described previously (Gao et al., 2022).

2.3 Determination of SOA particle volatility and glass transition temperature (T_g)

The large number of organic compounds detected in the particle phase are presented in a one-dimensional volatility basis set (1D-VBS) (Donahue et al., 2006), based on the effective saturation concentration (C_sat, µg m⁻³). In this work, 298 K C_sat (C_sat,298 K, µg m⁻³) values of individual compounds are determined according to their measured elemental formulas applying a parameterization using molecular corridors (Li et al., 2016). The saturation concentration of species at other temperatures (C_sat,T, µg m⁻³) can be derived from C_sat,298 K according to the Clausius-Clapeyron relation:

$$\begin{array}{}\text{(1)}& C_{\mathrm{sat},T}=C_{\mathrm{sat},\mathrm{298}\mathrm{K}}\exp \left({\displaystyle \frac{\mathrm{\Delta }{H}_{\mathrm{vap}}}{R}}\left({\displaystyle \frac{\mathrm{1}}{\mathrm{298}}}-{\displaystyle \frac{\mathrm{1}}{T}}\right)\right)\end{array}$$

where T is the experimental temperature in K; ΔH_vap is the evaporation enthalpy in kJ mol⁻¹, which can be estimated based on C_sat,298 K by Stark et al. (2017)

$$\begin{array}{}\text{(2)}& \mathrm{\Delta }{H}_{\mathrm{vap}}=-\mathrm{5.7}\times {\log }_{\mathrm{10}}{C}_{\mathrm{sat},\mathrm{298}\mathrm{K}}+\mathrm{129}\end{array}$$

In the volatility basis set, we use the following volatility classes: ultra-low VOC (ULVOC, log₁₀C_sat<−8.5), extremely low VOC (ELVOC, $-\mathrm{8.5}\mathit{<}{\log }_{\mathrm{10}}{C}_{\mathrm{sat}}\mathit{<}-\mathrm{4.5}$), low VOC (LVOC, $-\mathrm{4.5}\mathit{<}{\log }_{\mathrm{10}}{C}_{\mathrm{sat}}\mathit{<}-\mathrm{0.5}$), semi VOC (SVOC, −0.5<log ₁₀C_sat<2.5), intermediate VOC (IVOC, 2.5<log ₁₀C_sat<6.5), and VOC (log₁₀C_sat>6.5).Based on the same dataset as the volatility prediction, the glass transition temperature (T_g) of CHO compounds is estimated by the parameterization method expressed by the Eq. (3) (DeRieux et al., 2018):

$$\begin{array}{}\text{(3)}& \begin{array}{rl}{T}_{\mathrm{g}}& =\left(n_{\mathrm{C}}^{\mathrm{0}}+\ln \left(n_{\mathrm{C}}\right)\right)b_{\mathrm{C}}+\ln \left(n_{\mathrm{H}}\right)b_{\mathrm{H}}+\ln \left(n_{\mathrm{C}}\right)\ln \left(n_{\mathrm{H}}\right)b_{\mathrm{CH}}\\ & +\ln \left(n_{\mathrm{O}}\right)b_{\mathrm{O}}+\ln \left(n_{\mathrm{C}}\right)\ln \left(n_{\mathrm{O}}\right)b_{\mathrm{CO}}\end{array}\end{array}$$

where n_C, n_H, n_O are the number of molecular C, H, O atoms, respectively; $n_{\mathrm{C}}^{\mathrm{0}}$ is the reference carbon number; b_C, b_H and b_O refers to the contribution of each atom to T_g; and b_CH and b_CO are coefficients reflecting contributions from carbon–hydrogen and carbon–oxygen bonds, respectively. The values of all parameters used can be found in the published paper (DeRieux et al., 2018).

2.4 Transport Model Simulations

The simulation chamber results are implemented to PMCAMx (Murphy and Pandis, 2009), a chemical transport model (CTM) which utilizes the SOA volatility bases set approach (Lane et al., 2008) to simulate the formation of secondary aerosol from biogenic and anthropogenic VOCs. A brief description of PMCAMx is provided in Sect. S2 of the Supplement. The model-incorporated stoichiometric yields are based on the molecular composition of the particles measured by FIGARO-CIMS. The volatility of the produced aerosol is determined following the approach described in Sect. 2.3, however, to minimize the computational cost the species are re-distributed to four VBS bins (10⁰, 10¹, 10², 10³ µg m⁻³) rather than using the whole volatility range. The stoichiometric yields of both isoprene and α-pinene are temperature dependent based on the parameterization of Exp 1–5. Specifically: T<243 K, parameters based on Exp 1 (213 K); 243 K ≤ T<273 K, parameters from Exp 2 (243 K); 273 K ≤T<298 K, parameters from Exp 3 (273 K); 298 K ≤ T<313 K, parameters from Exp 4 (298 K); T≥313 K, parameters from Exp 5 (313 K). For the partitioning of the secondary organic species between the gas and the aerosol phase, PMCAMx assumes that there is equilibrium between the two phases and that the organic compounds form a pseudo-ideal solution. Specifically, in the model the partitioning of the organics between the gas and the aerosol phase depends on two parameters, the temperature and the total OA concentration of the simulated cell. Therefore, the model can replicate the concentration changes that occur in the atmosphere due to both warming and cooling. Utilizing the experimental data after warming rather than before warming commenced inside the chamber would result in the same predicted SOA concentrations by PMCAMx. Nevertheless, the warming stage of the experiments is better represented in the model by adopting the mass-stoichiometric yields derived from the initial temperatures. Values for the Base and New cases are provided in Table S1 and S2 in the Supplement. Utilizing the stoichiometric yields of Table S2, Fig. S2 depicts the secondary organic aerosol mass fraction derived as a function of the total organic aerosol mass together with the experimentally measured values.

The period considered in this model application is 5 June–8 July 2012 (PEGASOS campaign) in a European domain (5400×5832 km², Figs. S3 and S4) with 36×36 km grid resolution, and 14 vertical layers extending up to 7.5 km above ground. The temperature together with other metrological parameters are provided by the Weather Research and Forecasting meteorological model (WRF). Biogenic emissions are calculated by the MEGAN model (Guenther et al., 2006), while anthropogenic and wildfire emissions are based on the GEMS (Visschedijk et al., 2007) and IS4FIRES (Sofiev et al., 2008) inventories, respectively. In our application, the domain average concentrations of isoprene and terpene in the simulated European domain are 0.15 and 0.04 ppb, respectively, with maximum predicted values of 2.8 and 0.5 ppb. The spatial distributions of their average ground-level concentrations over Europe are showed in Fig. S3.

3 Results

3.1 Influence of temperature on particle-phase chemical composition

In each experiment, the molecular composition of fresh SOA particles was characterized by FIGAERO-iodide-CIMS using iodide as the reagent ion. The evolution of trace gases as well as particle mass and size distribution for the oxidation of isoprene α-pinene mixture at all temperatures are shown in Fig. 1. The beginning of the ozone addition is considered time zero for each experiment. The addition of ozone and the subsequent production of OH radicals, resulted in the complete depletion of the initial α-pinene and isoprene. The SOA particle diameters increased typically to 65–100 nm and the mass concentrations of the newly formed SOA ranged between 33–133 µg m⁻³ (mass yield: 9 %–52 %) depending on temperature. Subsequently, the fresh SOA was exposed to simulated solar radiation for 1 h. This photochemical aging resulted in no significant chemical change (cf. Fig. S9). This aging age was followed by 10–12 h of warming, which will be discussed in Sect. 3.2.

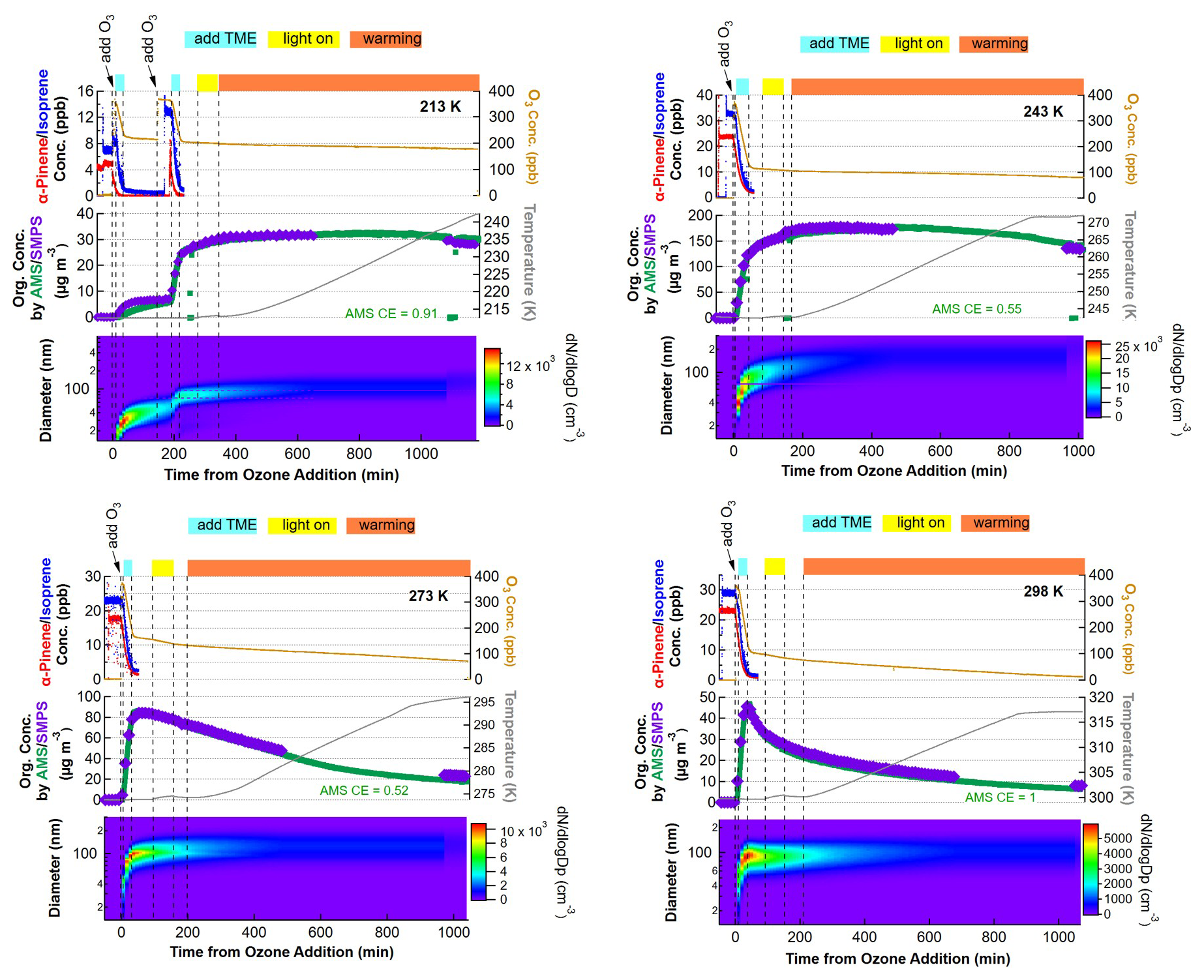

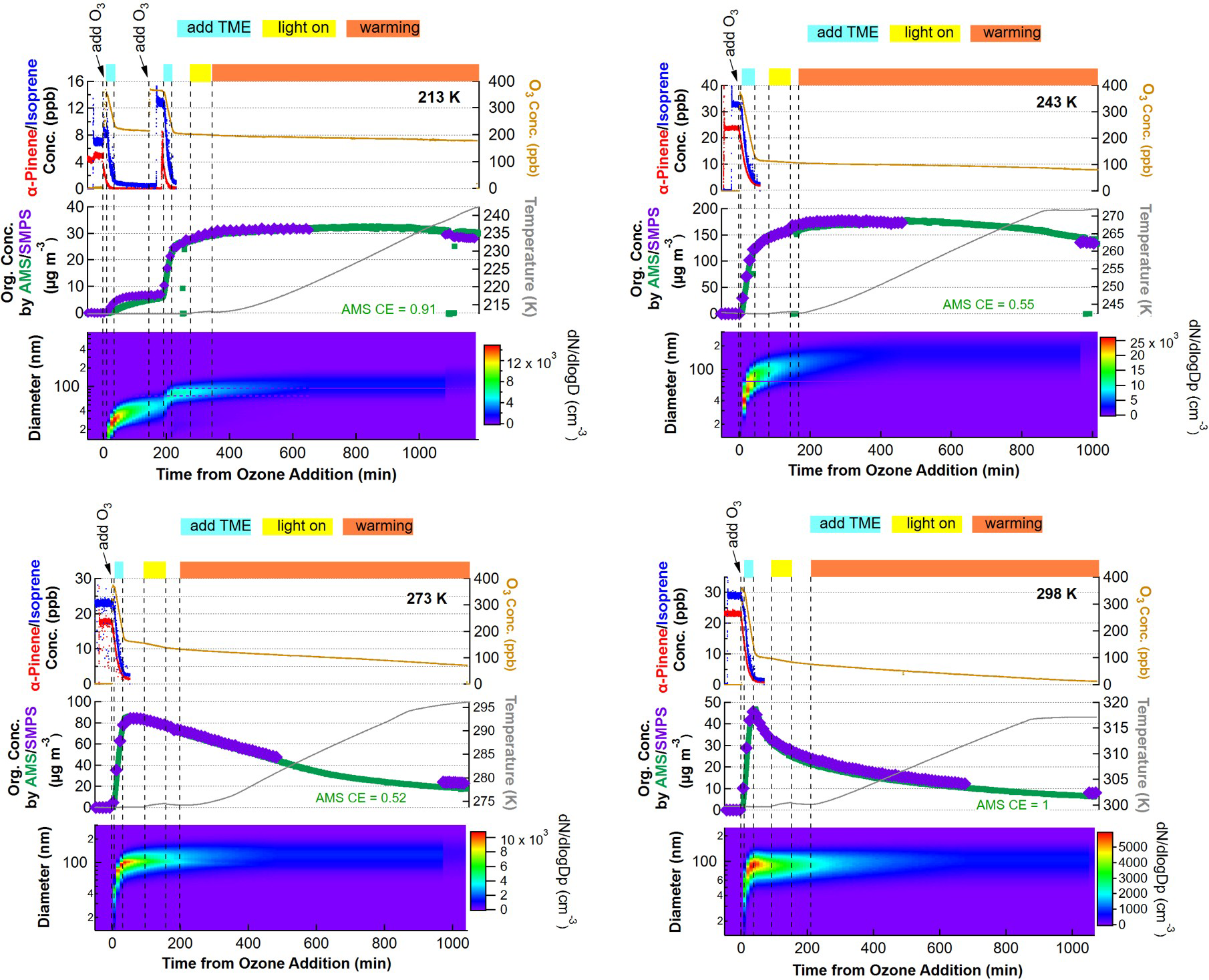

Figure 1 Evolution of trace gases as well as particle mass and size for the oxidation of isoprene and α-pinene mixtures at 213, 243, 273, and 298 K. The time axis is relative to the first addition of ozone. The top shaded area of each plot shows the addition of TME to form OH radicals (blue), light on (yellow), as well as warming period (orange).

We present first the identified cross dimers formed from concurrent oxidation of isoprene and α-pinene (hereafter “ISO-AP dimers”) at 273 K. By comparison of the particle-phase chemical composition among the experiment for sole α-pinene (Exp 0), α-pinene and isoprene mixture at an equal concentration (Exp 3), and α-pinene and ¹³C labelled isoprene mixture at an equal concentration (Exp 6) shown in Table 1, we identified ISO-AP dimers such as C₁₅H₂₀O_3–7, C₁₅H₂₂O_3–9, C₁₅H₂₄O_4–9, C₁₅H₂₆O_5–9, C₁₅H₂₈O_5–9, C₁₄H₂₀O_6–8, C₁₄H₂₂O_5–9, and C₁₄H₂₄O_6–8. The identification of these cross dimers with 3–9 oxygen atoms completes the list of highly oxygenated cross dimers with 9–13 oxygen atoms, which were previously identified by a CIMS using nitrate as the regent ion (McFiggans et al., 2019; Heinritzi et al., 2020). Among all identified ISO-AP C_14–15 cross dimers in Exp 3, C₁₅H₂₄O_4–9 and C₁₄H₂₂O_5–9 contribute most to the total signals (21 %), followed by C₁₅H₂₆O_5–9, C₁₅H₂₈O_5–9, and C₁₅H₂₂O_3–9 with signal fractions of 16 %, 11 %, and 11 %, respectively. The relative abundances of these cross dimers in Exp 0 and Exp 6 are given in Figs. S5–S6. Due to the scavenging of OH and RO₂ radicals in the presence of isoprene, the relative contribution of solely α-pinene derived C₁₈₋₂₀ dimers from ozonolysis increases, while the contribution of dimers formed via OH radical reactions decrease (Fig. S7). This is qualitatively consistent with previous studies (McFiggans et al., 2019; Heinritzi et al., 2020; Wang et al., 2021) performed at ∼298 K.

As shown in Fig. 2, particle-phase C_14–15 ISO-AP cross dimers show higher signal fractions at lower temperatures (in all detected compounds, 16 % and 11 % in total for 213 and 243 K, respectively) compared to those formed at higher temperatures (<4 % for 273, 298, and 313 K). For the dimers formed from α-pinene oxidation alone (C_18–20, hereafter “AP-AP dimers”), including those from self- (i.e., both RO₂ involved in the dimerization originate either from O₃ oxidation or from OH oxidation.) and cross-dimerization (i.e., between the two RO₂ radicals involved in the dimerization, one originates from O₃ oxidation, while the other originates from OH oxidation) of RO₂ derived from α-pinene oxidation initiated by both O₃ and OH radicals, lower temperatures exhibit slightly higher fractions with 8 %–9 % at 213–243 K compared to 4 %–6 % at 273–313 K, consistent with previous observations (Zhang et al., 2015). Most interestingly, the ratio of ISO-AP dimers to AP-AP dimers is 3.5 times higher at 213 K (the ratio is 2) than that at 273–313 K (the ratios are 0.6, Fig. 2f). This indicates that the production of ISO-AP dimers plays a progressively more important role in SOA formation at lower temperatures. Shown as Figs. 2g and 1h, the higher ratio of ISO-AP dimers to AP-AP dimers at 213 K than 313 K is mainly contributed by the greater formation of C_14–15 compounds. The volatility (expressed by the saturation concentration at 298 K, $C_{\mathrm{298}\mathrm{K}}^{*}$) of ISO-AP dimers (C${}_{\mathrm{298}\mathrm{K}}^{*}$: 10^−3.6–10^2.2 µg m⁻³) is generally higher than that of AP-AP dimers (C${}_{\mathrm{298}\mathrm{K}}^{\ast }$: 10^−4.8–10^0.6 µg m⁻³), indicating that ISO-AP dimers are more volatile than AP-AP dimers when formed at the same low temperatures. The difference in volatility between both groups of dimers is also shown by their desorption temperature of maximum signal in the FIGAERO thermograms (hereafter “T_max”) (Lopez-Hilfiker et al., 2014), which is an independent and qualitative indicator of effective volatility compared to the volatility estimated by the parameterization approach (Li et al., 2016) used in this work (Sect. S3, Fig. S8).

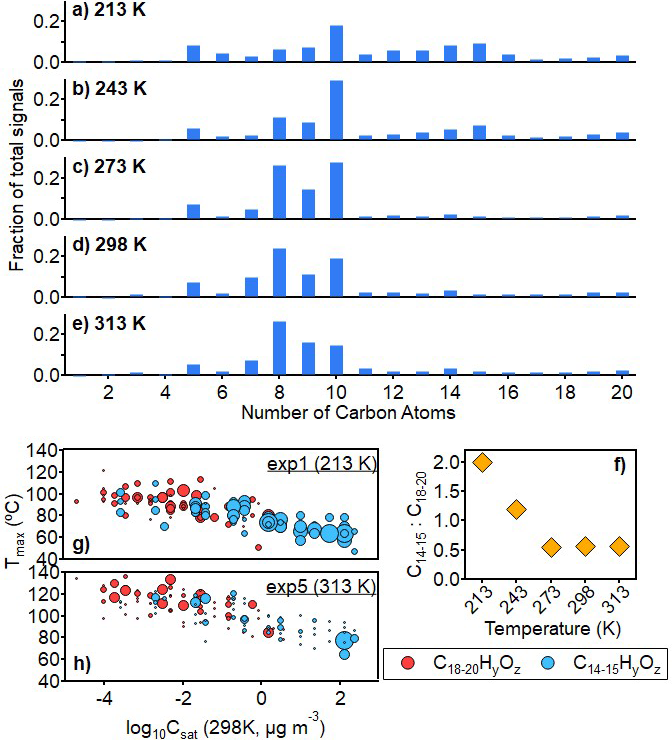

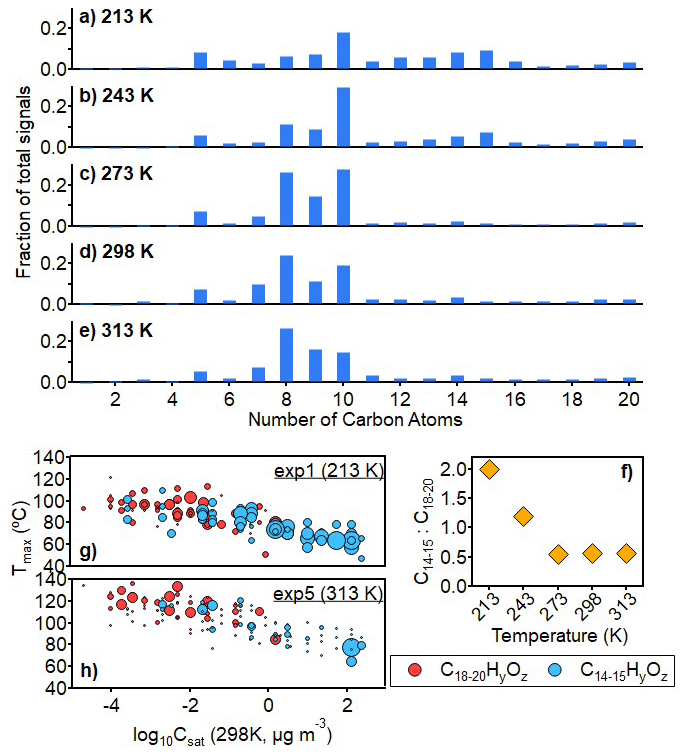

Figure 2 Chemical composition of SOA derived from the mixture of isoprene and α-pinene at all temperatures (Exp 1–5): 213 K (a), 243 K (b), 273 K (c), 298 K (d), and 313 K (e); the ratio of C_14–15 compound signals to C_18–20 compound signals as a function of temperature (f); the distribution of C₁₄₋₁₅ compounds and C_18–20 compounds with molecular T_max corresponding to molecular logarithmic 298 K saturation concentration for Exp 1 at 213 K (g) and Exp 5 at 313 K (h). Sizes of symbols in (g) and (h) correspond to the normalised signal abundance of molecules.

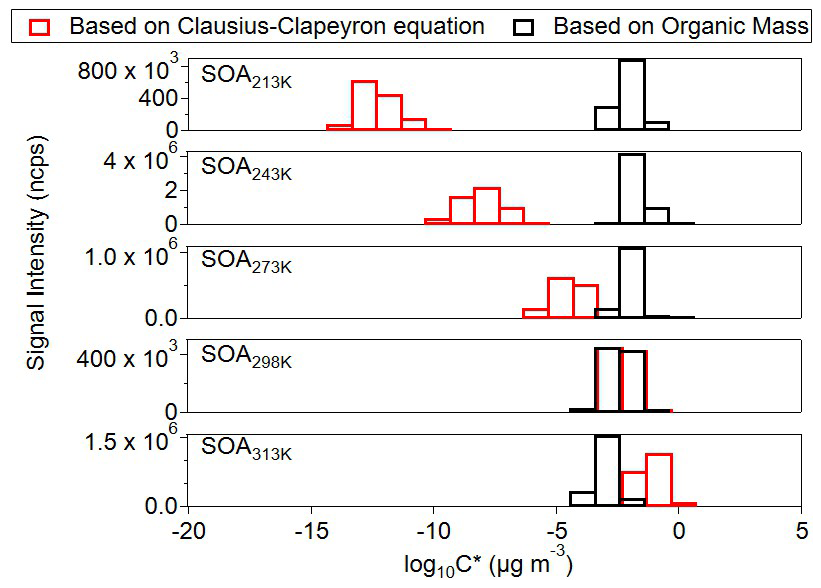

Figure 3 Volatility of C_14–15 cross dimers formed at all temperatures calculated based on two approaches: $C_{\mathrm{OA}}\frac{G_i}{P_i}$ (Gkatzelis et al., 2018) and Clausius-Clapeyron equation. The volatility of the bins is at their experiment temperatures.

Figure 3 shows the comparison of the particle volatility distribution at different temperatures. This comparison integrates two approaches: gas- and particle-phase measurements at each temperature (i.e., $C^{*}=C_{\mathrm{OA}}\frac{G_i}{P_i}$ (Gkatzelis et al., 2018)) and the Clausius–Clapeyron equation. C_14–15 dimers span in the less volatile bins from Clausius-Clapeyron equation at temperatures below 273 K, exhibiting a strong temperature dependence, compared with the volatility based on the measured organic mass. This dependence is suggested to be chemistry-driven rather than governed solely by phase partitioning. We interpret this as follows. First, the gas-phase production rates of the two types of dimers may be temperature dependent due to the temperature-affected concentrations of RO₂ radicals. The gas-phase dimer formation rate via the bimolecular termination of RO₂+ R^′O₂→ ROOR^′ rises strongly with temperature (Quéléver et al., 2019). At lower temperatures, the lower rate coefficient of α-pinene + O₃ (Khamaganov and Hites, 2001; Bernard et al., 2012) and higher rate coefficient of isoprene + OH (Campuzano-Jost et al., 2000; Campuzano-Jost et al., 2004; Dillon et al., 2017) lead to higher differential between the concentrations of C₁₀ RO₂ from α-pinene and C₅ RO₂ from isoprene. Therefore, at lower temperatures, higher [C₅ RO₂][C₁₀ RO₂] results in larger production of ISO-AP dimers compared with less formation of C₂₀ AP-AP dimers due to lower [C₁₀ RO₂][C₁₀ RO₂]. Besides, the other well-established dimer formation pathway for α-pinene derived dimers, condensed-phase combination of acetyl peroxy radicals yielding diacyl peroxides and their subsequent decomposition (Zhang et al., 2015) to produce esters, carboxylic acids, and alcohols, is affected by temperature as well (Leffler and More, 1972; Lamb et al., 1965). Our observation suggests that the formation of ISO-AP dimers via the diacyl peroxides pathway may be faster than that of AP-AP dimers at lower temperatures. Second, previous studies (Trump and Donahue, 2014; Morino et al., 2020) have shown that the decomposition rates of dimers depend on temperature and the type of dimers. Therefore, we cannot exclude that AP-AP dimers decompose faster than ISO-AP dimers at lower temperature, leading to higher condensed-phase ratios of C₁₄₋₁₅ $/$ C₁₈₋₂₀.

It should be noted that the sensitivity of iodide chemical ionization exhibits substantial variability in detecting organic compounds with different functional groups. As a result, signal-based analyses may not accurately represent the actual abundances of these species. Nevertheless, comparing signal fractions across different experiments can provide valuable insights into product distributions and underlying reaction mechanisms.

Overall, the nonmonotonic temperature dependence (Fig. 2f) of the ratio of C_14–15 to C_18–20 dimers between 213–313 K highlights the importance of the AP-AP dimer suppression by the ISO-AP cross dimers. This is particularly relevant for biogenic particle formation and growth in the real atmosphere especially at lower temperatures (Fu et al., 2009; Andreae et al., 2018).

3.2 Influence of temperature on SOA aging

To study the influence of temperature change on SOA formed at a specific temperature, we warmed the fresh SOA particles up by 1.4–2.4 K h⁻¹ over 10–12 h, which resembles the ambient temperature changing rate (∼0.1–2 K h⁻¹) in the real atmosphere (Hansen et al., 2006). The illumination has no significant effect on the bulk O : C, H : C and OS_C (Fig. S9). The molecular chemical composition and volatility of fresh particles before warming are described in the Sect. S3. Most interestingly, by warming, SOA particles formed initially at different temperatures showed distinct increments and/or decrements in bulk O : C and H : C ratios as well as oxidation states (OS_C) as measured by HR-AMS (Figs. 4, S10, and Table S3). It indicates these SOA particles underwent distinct aging processes including water uptake and evaporation when being warmed up.

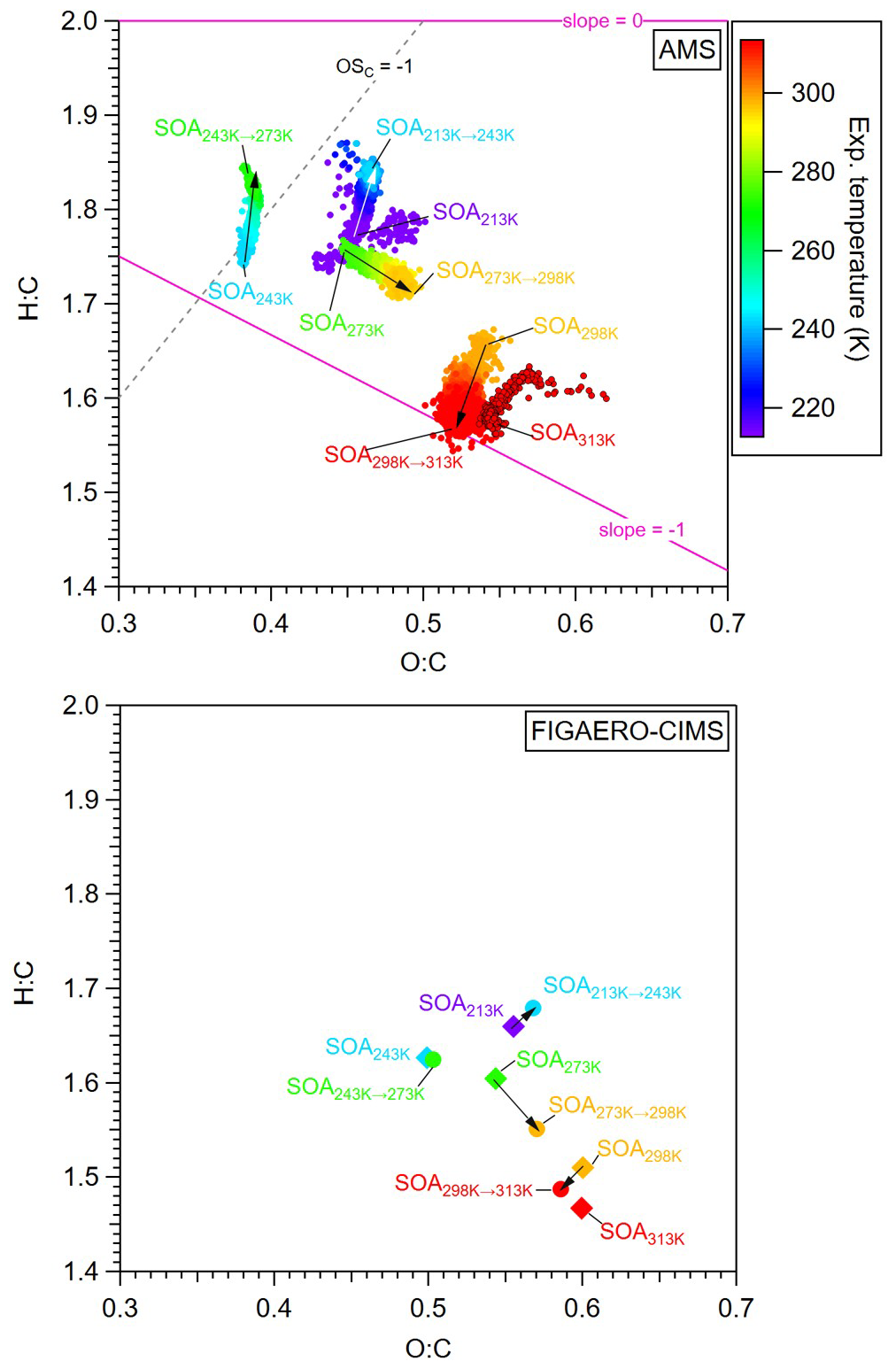

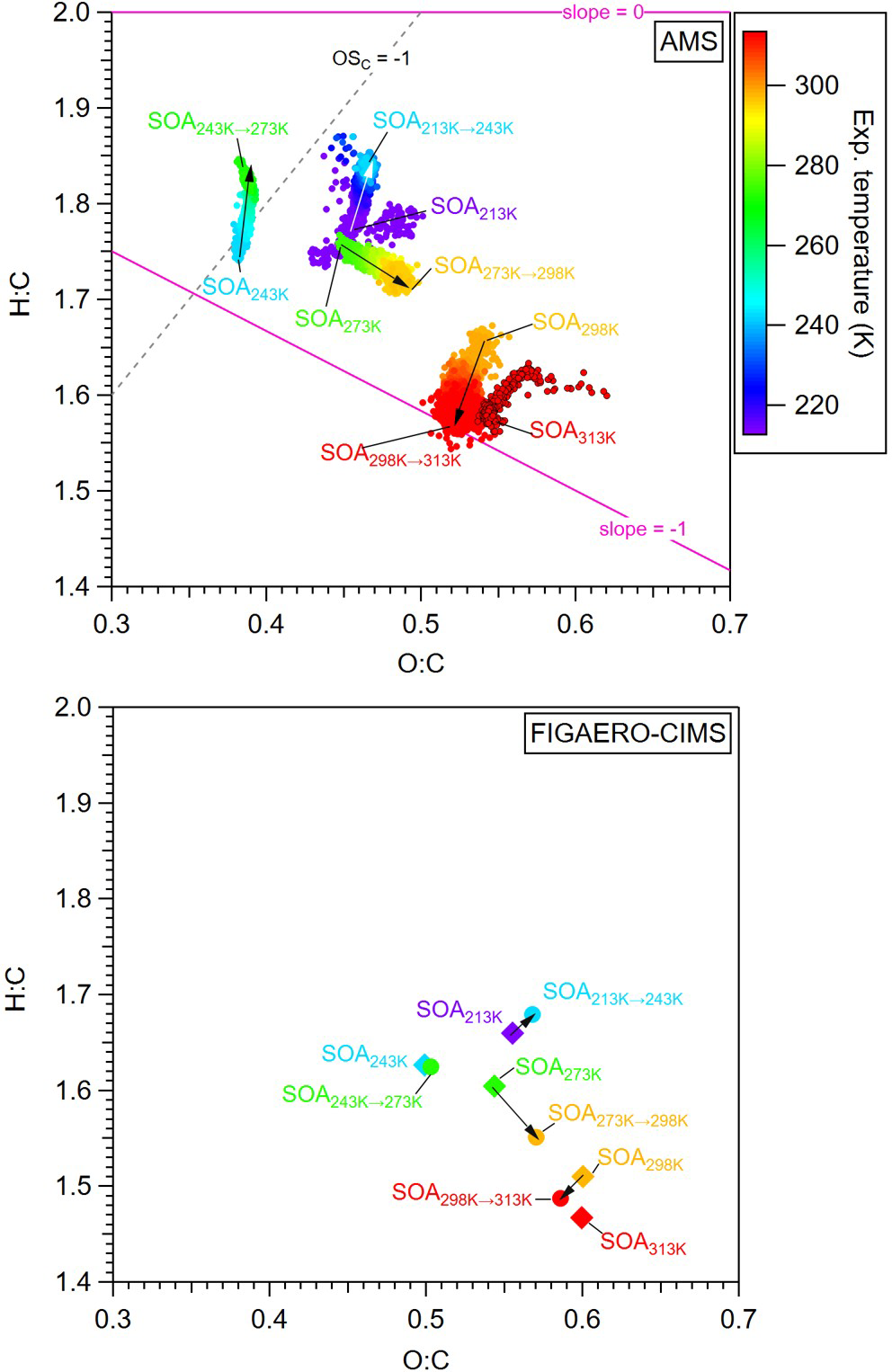

Figure 4 Van-Krevelen diagram for SOA particles during the warming periods of Exp 1 (213 to 243 K), Exp 2 (243 to 273 K), Exp 3 (273 to 298 K), Exp 4 (298 to 313 K), and Exp 5 (313 K) from HR-AMS measurements (left) and FIGAERO-iodide-CIMS measurements mean values (right, symbols of diamonds and circles for warming start and end, respectively). Arrows are for guiding from the start to end of the warming periods. Symbols are coloured by temperatures. The carbon oxidation state (OS_C= 2 O : C – H : C) is shown with a grey dashed line. The pink lines with different slopes represent various reaction pathways: slope = 2 (hydration); slope = 0 (formation of hydroxy/peroxy groups); slope $=-$1 (formation of carboxylic acids, or addition of both hydroxy and carbonyl groups).

We observed a clear increase of O : C ratios (from 0.36 to 0.54 from HR-AMS measurements, from 0.5 to 0.6 from FIGAERO-iodide-CIMS measurements) of fresh SOA particles formed between 243 and 313 K (Fig. 4). One exception is the particles formed at 213 K. The O : C ratio of the fresh SOA_213 K (0.45 from HR-AMS measurement, 0.55 from FIGAERO-iodide-CIMS measurement) is higher than that of SOA_243 K, contrary to the lower O : C ratios of particles formed at lower temperatures. This may result from the higher ratios of initial O₃ to VOCs concentrations (∼19) in Exp 1 at 213 K compared to other experiments (∼7) (details in Method).

According to the HR-AMS measurements, the bulk O : C and H : C ratios of SOA particles formed at 243 K (SOA_243 K) increases from 0.36 to 0.4 and from 1.69 to 1.82, respectively, during gradual warming to 273 K (SOA_{243→273 K}). Although the incremental O : C change is small, the online HR-AMS measurements showed a significant trend during the warming process (Fig. 4). The ratio (= 3.25) of the H : C increment and O : C increment in the Van-Krevelen diagram indicates hydration reactions during warming (Schilling Fahnestock et al., 2015; Heald et al., 2010). Correspondingly, the oxidation state (OS_C) of bulk SOA_243 K decreases from −0.97 to −1.02 for SOA_{243→273 K} (Fig. S10), while the organic particle mass decayed 17 % as measured by HR-AMS. According to the FIGAERO-iodide-CIMS measurements, 18 % fraction of the particle-phase C_xH_yO_z signals are lost during warming of SOA from 243 K (SOA_243 K) to 273 K (SOA_{243→273 K}) (Fig. 5d). The loss of oxygenated organic compounds mainly involves C₅, C_8–10, and C_14–15 compounds (Fig. 5h), which are identified as monomeric products from sole isoprene and sole α-pinene, and their ISO-AP dimers, respectively. However, the loss of these oxygenated organic compounds leads to no significant change in the H : C ratio (from 1.63 to 1.62) and O : C ratio (from 0.50 to 0.50) of the particle-phase C_xH_yO_z measured by FIGAERO-iodide-CIMS. Therefore, the increase in bulk O : C and H : C ratios of SOA measured by HR-AMS indicates not only hydration reactions (Schilling Fahnestock et al., 2015; Heald et al., 2010) but also potential losses of more oxidized compounds with low H : C ratios. The bulk SOA aging towards higher H : C and O : C ratios during warming is likely due not only to sample evaporation but also to the change in the particle phase state.

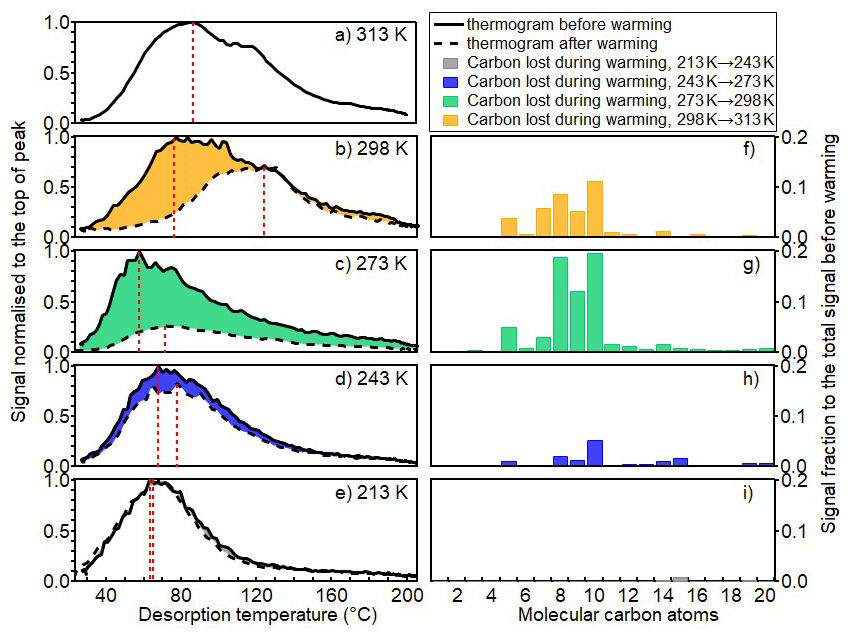

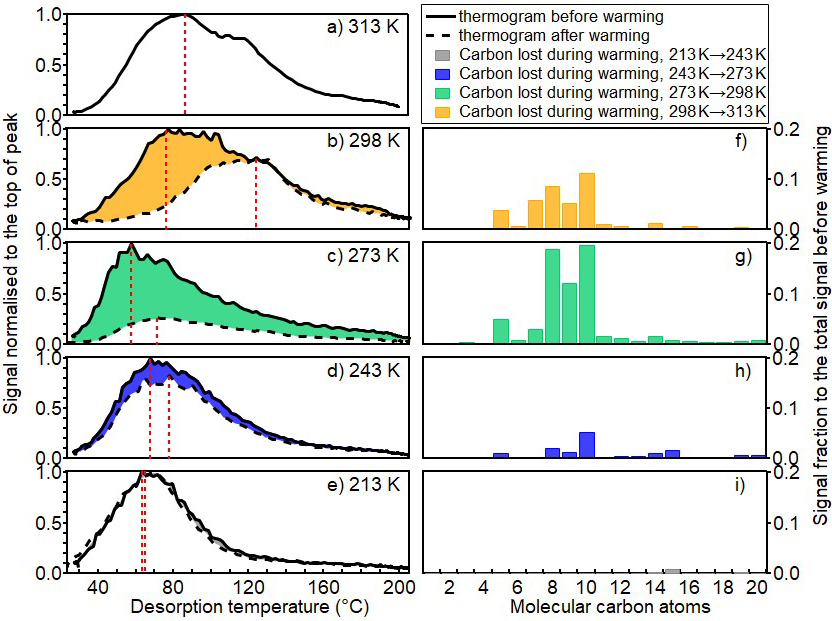

Figure 5 FIGAERO-iodide-CIMS thermograms of particles before and after warming process for all experiments ((a) for 313 K, (b) for 298 K, (c) for 273 K, (d) for 243 K, and (e) for 213 K), and the corresponding carbon distributions of molecules lost during warming (f–i). Black solid and dashed lines show the thermograms of particles sampled before and after warming, respectively. The thermograms are normalized to the peak signals of each thermogram before warming. Red vertical dashed lines indicate the T_max.

Similar changes of O : C and H : C ratios were observed for SOA_213 K warmed to SOA_{213→243 K}. Therefore, the SOA_213 K warmed to SOA_{213→243 K} seems to undergo similar aging processes like SOA_243 K being warmed to SOA_{243→273 K}.

We characterized the viscosity of SOA particles by using the glass transition temperature, T_g which is defined as the temperature at which an amorphous material transitions from a liquid-like or semi-solid state to a glassy solid state. As the ambient temperature approaches or drops below the T_g of a particle, its viscosity increases dramatically, often by several orders of magnitude. Therefore, the phase state and viscosity of SOA can be inferred by characterizing the T_g values. T_g was calculated for all detected organic compounds by FIGAERO-iodide-CIMS using a parameterization approach (DeRieux et al., 2018). In this study, SOA_243 K is estimated to be in a glassy solid state with a T_g of 289 K, comparable to the T_g values for sole isoprene- or α-pinene-derived SOA reported in previous studies (DeRieux et al., 2018; Ladino et al., 2014). We note that the T_g values may be underestimated, as the water content in the particles was not taken into account due to a lack of measurements. The high viscosity at low temperature kinetically inhibits the diffusion of water and large organic molecules within the particle. Upon warming, the particle transitions from a glassy to a semi-solid or liquid state, which facilitates the uptake and internal mixing of water. This process can promote aqueous-phase reactions (e.g., hydrolysis, oxidation) that alter the organic composition, increasing the H : C and O : C ratios. Therefore, water uptake and the potential change of particle hygroscopicity (Shiraiwa et al., 2017; Pajunoja et al., 2015; Shiraiwa et al., 2011) may contribute to increasing H : C and O : C ratios of bulk SOA_243 K during warming from 243 to 273 K.

In contrast, from the HR-AMS measurement, the bulk SOA_273 K loses 75 % of mass, and show a significant increase of OS_C (from −0.87 to −0.75) and O : C ratios (from 0.44 to 0.48) but a decrease of H : C ratios (from 1.76 to 1.73) during warming to 298 K (Fig. 4). This tendency is consistent with the changes of O : C ratios and H : C ratios for the oxygenated constitutes measured by FIGAERO-iodide-CIMS. During warming of SOA_273 K to 298 K, 72.5 % of all particle-phase C_xH_yO_z compounds are lost, with OS_C increasing from −0.52 to −0.41, O : C from 0.54 to 0.57, and H : C ratios decreasing from 1.60 to 1.55. This indicates that evaporation is the main loss process with higher losses of less oxidized compounds. This is consistent with the analysis of HR-AMS spectra before and after warming (Fig. S11) The T_g we estimated for SOA_273 K is 278 K, which is in between the temperatures of warming at the start (273 K) and at the end (298 K). Therefore, the diffusion and evaporation of organic molecules are gradually less hindered when particle phase state transits from solid/semi-solid to liquid.

For the bulk SOA_298 K, its estimated T_g is 283 K, which is evidently lower than the temperatures during warming from 298 to 313 K. This indicates that the SOA_298 K remain in the liquid phase during the whole warming process. As illustrated in Fig. 4, warming of all SOA compounds formed at 298 K leads to lower H : C (from 1.63 to 1.57) and O : C ratios (weekly from 0.53 to 0.52), resulting in slightly higher OS_C values (from −0.57 to −0.53). During warming from 298 to 313 K, 40.2 % of all particle-phase C_xH_yO_z compounds and 71 % of organic particle mass were lost, by substantial evaporation. However, the evaporation induces only small changes of O : C ratio from 0.60 (SOA_298 K) to 0.59 (SOA_{298→313 K}), H : C ratio from 1.51 to 1.49, and OS_C from −0.31 to −0.32 for oxygenated organics, even though the trend is clear as shown in Fig. 4. As the reduction in H : C ratio is around 2 times higher than the reduction in O : C ratio for bulk SOA_298 K particles during the warming to 313 K, we infer that there might be water evaporation due to the potential particle-phase dehydration reactions involving elimination of H₂O.

As illustrated in Fig. 5, before warming, volatility indicated by the T_max of the fresh particles showed a non-monotonic trend. This is similar with previous findings in the β-caryophyllene system (Gao et al., 2023), which is due to favoured condensation or oligomerization reactions at lower temperature and less production of low volatile HOMs which show larger fractions at warmer temperatures. During warming, the volatility of the particles is influenced by changes in their chemical composition as the gas-particle equilibrium is re-established through phase partitioning. As the temperature increases, more volatile organic compounds evaporate from the particle phase. Consequently, the particle composition becomes enriched in the remaining lower-volatile organic species. This is corroborated by the higher T_max values observed in the thermograms: SOA_{243→273 K} (78 °C) compared to SOA_243 K (68 °C), SOA_{273→298 K} (71 °C) compared to SOA_273 K (57 °C), and SOA_{298→313 K} (124 °C) compared to SOA_298 K (77 °C), as illustrated in Fig. 5b–d. The results indicate that the overall effect of warming on the SOA particle volatility is governed by the initial temperature-dependent chemical composition and the corresponding glass transition temperature.

Further support comes from the distribution of volatility groups estimated by the parameterization approach (Li et al., 2016) based on measured numbers of molecular carbon, hydrogen, and oxygen atoms. During warming, evaporation leads to compositional changes that enrich the relatively lower-volatility compounds. Concurrently, rising temperatures shift the entire VBS toward higher apparent volatility, following the Clausius-Clapeyron relation. For instance, despite the evaporation of some volatile components during warming from 243 to 273 K, the resulting SOA_{243→273 K} particles exhibit higher overall apparent volatility, containing only 35 % of LVOC/ELVOC/ULVOC (Figs. S12 and 6). Similarly, in the warming experiment from 273 to 298 K, the fraction of LVOC/ELVOC/ULVOC decreased slightly from 16 % to 15 %, and from 18 % to 14 % in the case of SOA_{298→313 K} compared to SOA_298 K. These results underscore the significant role of ambient temperature on the apparent volatility of SOA particles.

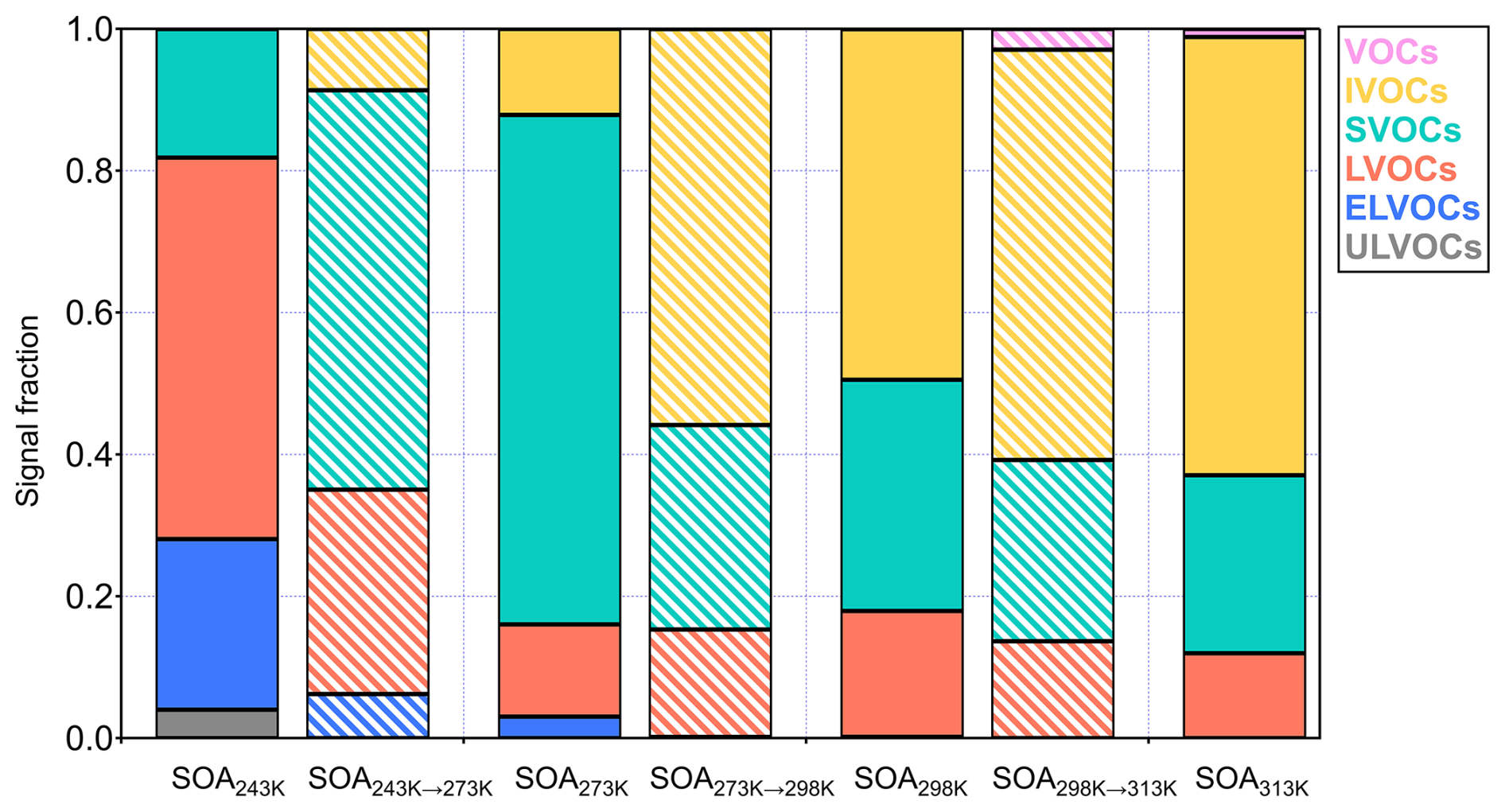

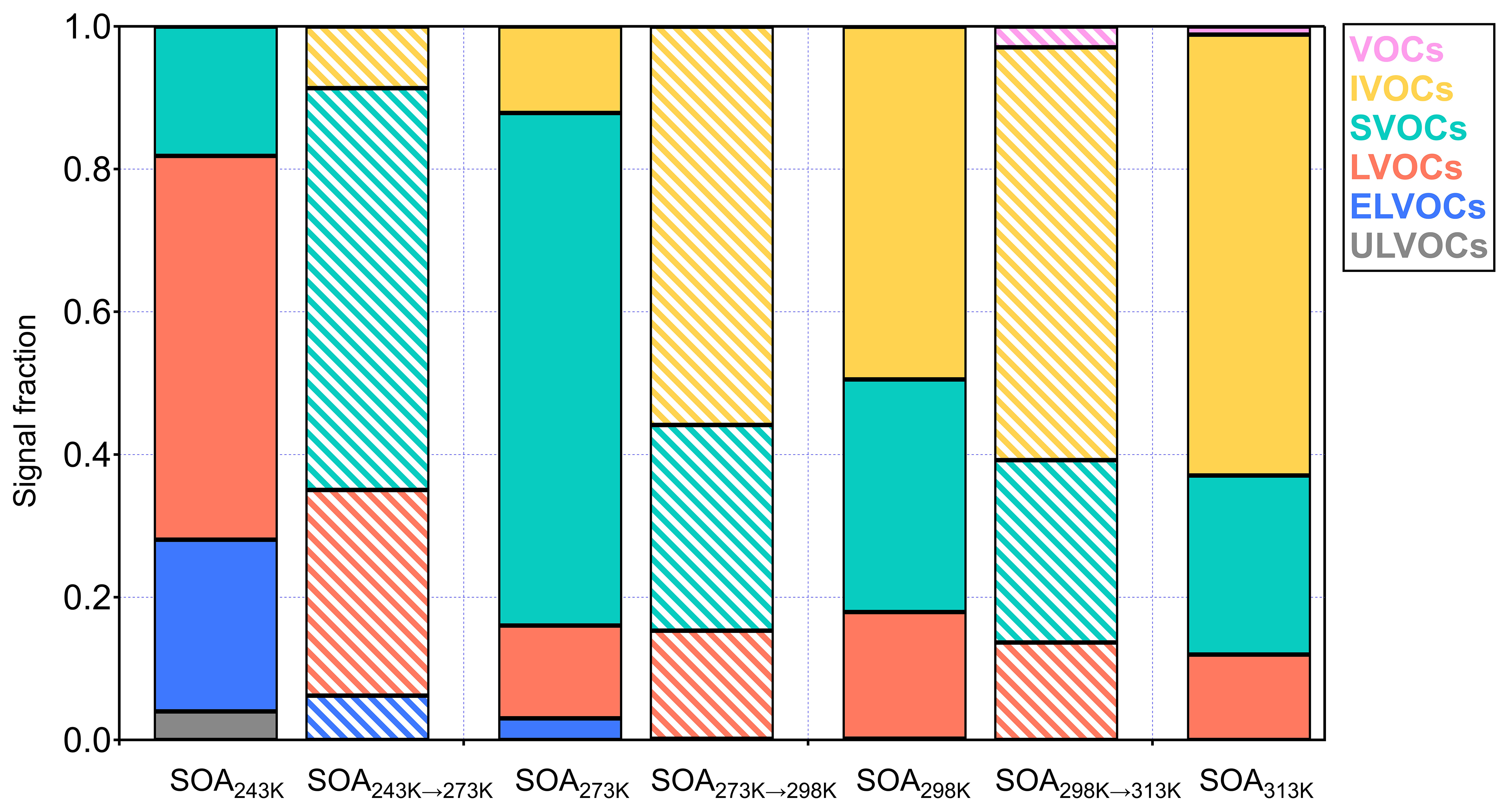

Figure 6 Signal fraction of volatility groups (ULVOC, ELVOC, LVOC, SLVOC, IVOC, and VOC) in the SOA particles before (solid bars) and after (striped bars) warming process, respectively. Colors refer to the volatility groups. Volatility groups are identified based on the saturation concentrations as described in the Method. Please note that the volatility groups in this Figure are related to their chamber temperatures but not 298 K.

It should be noted that the FIGAERO-iodide-CIMS exhibits higher sensitivity toward moderate oxygenated compounds (e.g., 2–9 oxygen atoms) (Riva et al., 2019), which may introduce bias in the VBS. Nevertheless, comparisons of signal-weighted VBS distributions across different experimental conditions remain indicative of the effects of temperature and warming on particle volatility and the related chemical processes. Here, we note that the precursor concentrations used in this study are substantially higher than typical atmospheric levels. While such conditions are typical in chamber experiments to generate sufficient particle mass for instrument detection and > 10 h aging by warming, they may influence the underlying chemical processes. Specifically, elevated VOC and O₃ concentrations can enhance the rates of bimolecular reactions, potentially favoring radical–radical recombination, accelerating oligomer formation (Zhao et al., 2023), and increasing SOA yields relative to ambient conditions. These conditions may also shift the partitioning of semi-volatile species toward the particle phase. Consequently, the volatility distributions reported here likely represent an upper bound of reactivity and should be interpreted with caution when extrapolating to atmospheric conditions.

Please note, that other condensed-phase chemical reactions may play a role during warming process as well, e.g., dimers may decompose due to their chemical instability (Pospisilova et al., 2020; Surdu et al., 2024), and the formation and condensation of molecules such as peroxyhemiacetal and aldol has been found to be reversible and temperature-dependent. However, it requires further studies to address this question systematically.

Furthermore, the oxidation states (OS_C) of SOA particles after warming were lower than that of the particles formed directly at these temperatures. As mentioned above, increasing temperatures during warming facilitate the evaporation of more volatile compounds. This results in the organic components remaining in the particles being generally less volatile and higher oxidized corresponding to a higher oxidation state of bulk SOA as measured by the HR-AMS.

However, it cannot compensate for the composition difference (e.g., due to autoxidation (Bianchi et al., 2019)) between SOA_243 K and SOA_273 K caused by different reaction pathways and product distributions at the different formation temperatures. For example, the saturation concentrations of the same compounds in SOA_{243→273 K} and SOA_273 K systems are the same because they are both at 273 K. We compared the molecular chemical composition of SOA_{243→273 K} and SOA_273 K (Fig. S13c and g). The C_11–20 products make up a higher signal fraction in SOA_{243→273 K} (66 %) compared to the corresponding compound groups in the SOA_273 K (43 %), and vice versa for C_4–10 products. Higher mean OS_C values are found for dimeric groups of C_13–15 as well as C₂₀, and other products of C₆ and C₁₆ in SOA_273 K, leading to higher OS_C for bulk SOA particles. Thus, we emphasize that, besides promoting the condensation of condensable components, lower temperatures chemically enhance the formation of ISO-AP cross dimers, while higher temperatures may favor the formation of higher oxidized products, e.g., via the autoxidation mechanism (Bianchi et al., 2019).

For instance, SOA_{298→313 K} has OS_C values of −0.53 (HR-AMS) and −0.31 (FIGAERO-iodide-CIMS), much lower than those of SOA_313 K (−0.49 by HR-AMS and −0.27 by FIGAERO-iodide-CIMS). By comparing the molecular chemical composition of both particles at 313 K (Fig. S13a and e), the higher mean OS_C values for carbon groups of C_4–10 in SOA formed directly at 313 K cause the increase of overall OS_C of oxygenated products. This confirms again that higher temperatures favour the formation of higher oxidized products.

In addition, C₈₋₁₀ compounds (mean formula C_8.4H_12.4O_5.0) in SOA_{298→313 K} have a T_max of 100 °C. However, C_8–10 compounds have a similar mean formula (C_8.5H_12.5O_5.3) in SOA_313 K but have a lower T_max of 82 °C. This implies that C_8–10 compounds consist of varying monomeric isomers with significantly different volatilities, being less volatile in SOA_{298→313 K} and more volatile in SOA_313 K.

Besides, although SOA_{273→298 K} has the largest OS_C increment (−0.75 for bulk, −0.41 for oxygenated constitutes) from its initial particles before warming among all particles discussed, its oxidation state is still significantly lower than SOA_298 K (−0.56 for bulk, −0.31 for oxygenated constituents). This is consistent with the somewhat higher volatility of SOA_{273→298 K} (T_max of 71 °C) than SOA_298 K (T_max of 77 °C, Fig. 5b and c) observed. All compound groups remaining after warming have higher mean OS_C except for C₄ (Fig. S13). This means that the compounds in most compound groups are more oxidized when formed at 298 K. Thus, we conclude that besides promoting the evaporation of particle-phase compounds, higher temperatures also enhance the formation of higher oxidized products in SOA from oxidation of α-pinene and isoprene mixtures.

3.3 Modelling the impact of cross dimers for real world scenarios

The relevance of these findings is corroborated by model simulations that incorporates the new VBS parameterization derived below, including mixed dimers. The results discussed above are based on experiments with equal initial amounts of α-pinene and isoprene. However, in the natural atmosphere, the α-pinene to isoprene ratios can vary substantially for different temperatures (seasons, day $/$ night) and in different regions, e.g., boreal forest, tropical forest, and temperate regions. The averaged ratio of isoprene to terpenes (including other monoterpene compounds) over Europe during the simulation period is predicted to be 3.75 (Fig. S3). With α-pinene representing terpenes, simulations using the PMCAMx chemical transport model (Tsimpidi et al., 2010; Fountoukis et al., 2011; Murphy and Pandis, 2009) show that when the C_14–15 ISO-AP dimers are considered under different temperatures, the predicted mass concentration of organics over Europe is significantly enhanced. The mean ground-level PM₁ biogenic SOA mass concentrations over Europe for the simulated period are found to increase by 47 % from 0.23 µg m⁻³ with the original setup (Base case, Table S1) to 0.41 µg m⁻³ by utilizing the new VBS parameterization including the temperature dependent C_14–15 ISO-AP cross dimers (New case, Table S2) (Fig. 7a, b, c). The contribution of biogenic SOA to the total OA mass increased from 9 % to 14 % (Fig. 7d, e). Specifically, in the New case, the predicted ground-level OA mass concentrations are on average higher by 0.6 µg m⁻³ for four measuring stations located in Italy (Fig. S4), as shown in Fig. S14.

During the simulated period, the isoprene emissions are greater over Croatia than other European areas. As a result, the difference in monthly averaged ground-level biogenic SOA concentrations between the two simulations is larger in Croatia (0.9 µg m⁻³) than the domain average (0.4 µg m⁻³). Figure S15 shows the correlation between isoprene concentrations and the enhancement of biogenic SOA mass predicted in the New case compared to the Base case over Croatia. In addition, due to the synergetic effect of relatively high concentrations of biogenic precursors and higher temperatures (Fig. 7g–h), the simulated biogenic SOA concentrations at the site of Monte Cimone (2165 m a.s.l.) show a better fit with the observed values compared to the Base case (Fig. 7f).

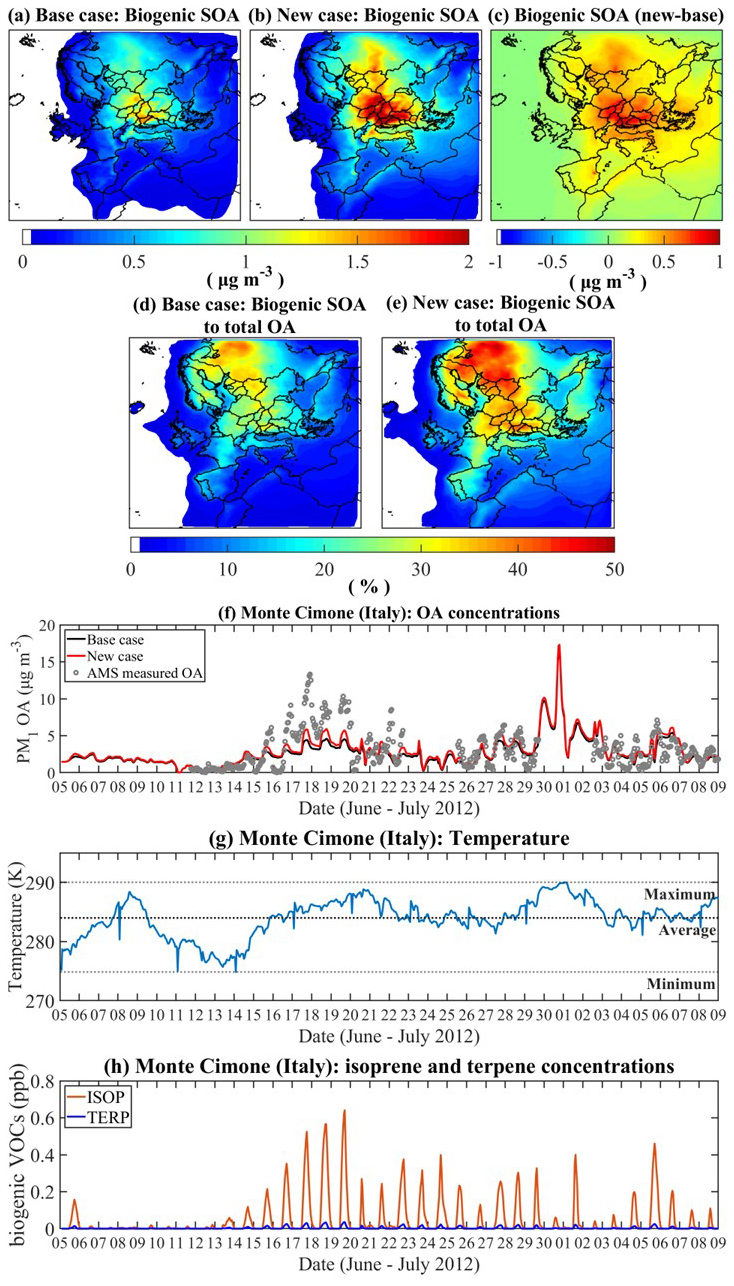

Figure 7 The effect of the newly developed VBS parametrization on the predicted ground-level concentrations of biogenic SOA and total OA in PM₁ over Europe. Spatial distribution of the domain average biogenic SOA concentrations predicted utilizing (a) the original parametrization (Base case); (b) the new parameters derived considering the temperature dependent ISO-AP cross dimers (New case) and (c) the difference between the two simulations (New case – Base case); the contribution of the predicted biogenic SOA to the total OA concentrations over Europe in (d) the Base case and (e) the New case; (f) hourly ground-level OA concentrations predicted by the two simulations and measured by HR-AMS in the measuring site of Monte Cimone (Italy) during the PEGASUS campaign (June–July 2012); (g) the simulated hourly temperature profile (1st simulation layer) and (h) the predicted isoprene (ISOP) and terpene (TERP) ground-level concentrations over the measuring site for the simulated period.

4 Conclusions

This study utilized ¹³C-labeled isoprene to identify cross-dimeric products from parallel oxidation of isoprene and α-pinene while examining SOA composition and volatility covering most tropospheric conditions with temperatures between 213 and 313 K. The identified C_14–15 ISO-AP cross dimers suppress the formation of the α-pinene self-dimers (AP-AP). This is achieved by competing with α-pinene-derived peroxy radicals (which are generated via OH-oxidation), thereby inhibiting their reactions. This suppression effect is more pronounced at lower temperatures between 213–273 K, while it is not temperature-sensitive above 273 K. SOA components observed are more oxidized at higher temperatures which is consistent with previous studies, potentially driven by a larger contribution from autoxidation pathways (Gao et al., 2022; Bianchi et al., 2019; Ye et al., 2019). Warming experiments reveal significant volatility changes: SOA formed at 243 K is and remains solid/semi-solid, losing only 18 % of particle-phase compounds upon warming to 273 K. In contrast, SOA formed at 273 K undergoes substantial transition from a semi-solid to a liquid phase when being warmed to 298 K, losing 72.5 % of all the particle-phase CxHyOz compounds detected by FIGAERO-CIMS. At 298 K, SOA shows lower O : C ratios and a 42 % loss of oxygenated organics when warmed to 313 K. Except for particles formed at 273 K and subsequently warmed to 298 K, in all other temperature regimes, SOA formed directly at higher temperatures is both more oxidized and more volatile than SOA formed at lower temperatures and then warmed. This observation has implications for SOA evolution over diurnal cycles. For example, in mid-latitude or tropical environments, SOA formed during warmer daytime hours may be more oxidized yet more volatile to reversible evaporation. In contrast, SOA generated during cooler nighttime periods would be less oxidized but more persistent, forming a low-volatility reservoir. This daily alternation could significantly influence the overall lifetime, chemical aging, and mass yield of SOA particles on a regional scale.

Implementing this new mechanistic and volatility information in the PMCAMx model resulted in higher predicted SOA over Europe. Future studies should extend this modelling to a broader ground-level temperature range and evaluate it with extensive field data. Furthermore, although this study focuses on isoprene and α-pinene mixtures, other biogenic and anthropogenic VOC mixtures may exhibit similar temperature-sensitive behaviour. Therefore, further studies are warranted to elucidate the impact of temperature on SOA formation from diverse VOC mixtures, which will extend our understanding and improve predictions in the context of a warming climate.
