A satellite observation-based analysis of cirrus ice crystal number concentrations and underlying cirrus formation mechanisms over the Tibetan Plateau

Cirrus clouds typically form in the upper troposphere and play an important role in the Earth's energy balance and the atmospheric water cycle. This study utilizes DARDAR-Nice data within June to August from 2006 to 2016 (except 2011), combined with CloudSat cloud products and other related aerosol products, to analyze the distribution characteristics and some possible formation mechanisms of ice crystal number concentration (N_i) in cirrus clouds over the Tibetan Plateau (TP). The results indicate that N_i over the northern TP is generally lower than that over the southern TP. This contrast shows a certain connection with differences in aerosol occurrence and the intensity of convective activity between the two regions. The vertical distribution of N_i over the TP exhibits a V-shaped structure. When deep convective activity occurs, N_i tends to increase at the same altitude compared to non-convective conditions. In contrast, under dust- and smoke-influenced conditions, N_i is generally lower, which may be related to ice formation via heterogeneous nucleation. In addition, weak vertical motion near 400 hPa over the northern TP is linked to an earlier appearance of the N_i peak at altitudes below the homogeneous freezing threshold temperature (−38 °C).

1 Introduction

Cloud is the key link in the energy and water vapor balance of the earth-atmosphere system and plays an important role in global weather and climate change (Wang and Zhao, 1994; Stephens, 2005). Cirrus clouds are composed of a large number of non-spherical ice crystal particles with a wide range coverage of Earth surface (Guignard et al., 2012; Baran, 2012), which can reflect solar short-wave radiation and absorb terrestrial long-wave radiation, affect the energy balance of the upper troposphere and stratosphere and play an important role in the global water cycle and climate change (Kienast-Sjögren et al., 2016). A definite knowledge of cirrus microphysical properties and their formation mechanism is an important prerequisite for deepening the understanding of global climate change.

The Tibetan Plateau (TP) is a highest and largest plateau of the world, known as the “roof of the world”, affects significantly the climate patterns in eastern and southwestern China, and even global, as well as the global water circulation system, due to the unique dynamic and thermal effects. In summer, South Asian high controls the TP, where the cirrus clouds show different characteristics from that in other regions along the same latitude. On the one hand, the TP and its southern slope serves as an important windows for troposphere-stratosphere material exchange, where the frequent deep convective activities in summer have transported water vapor and anthropogenic aerosol pollutants to the upper troposphere-lower stratosphere (UTLS) (Fu et al., 2006; Randel et al., 2010; Chen et al., 2019). On the other hand, the substantial elevation difference over the southern part of the TP and the topographic uplift movement promote warm and humid airmass rising into the upper troposphere, which is conducive to the occurrence and development of cirrus clouds (Zhao et al., 2019; Yang et al., 2020). Also, the accumulation of aerosols is conducive to the formation of cirrus ice crystals by heterogeneous nucleation.

So far, the study on cirrus clouds over the TP mainly focused on the spatiotemporal variation characteristics, cloud height, and cirrus cloud formation mechanism. Xue et al. (2018) found that the occurrence frequence, average effective radius of ice particles and cloud top height reached the maximum in summer over the TP using Moderate-Resolution Imaging Spectroradiometer (MODIS). Gao et al. (2003) found that the occurrence frequency of cirrus clouds reached a maximum in April and a minimum in November by MODIS data. Chen and Liu (2005) found that the occurrence of cirrus clouds over the TP in March and April was closely related to the slow uplift of warm and humid airmass to the tropopause due to topographic effect. Li et al. (2005) found that deep convection activities affected by Asian Summer Monsoon (ASM) were closely related to cirrus cloud formation over the TP using satellite observations. Zhang et al. (2020) used Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observations (CALIPSO) to investigate the generation mechanism of plateau cirrus clouds, revealing that large-scale orographic uplift, temperature fluctuations, and deep convection play crucial roles in their formation.

Previous studies have shown that the formation of cirrus ice crystals is primarily governed by two mechanisms: homogeneous nucleation and heterogeneous nucleation (Wang et al., 1997; Chen et al., 2000; Cantrell and Heymsfield, 2005). The homogeneous freezing of supercooled water droplets or aqueous aerosol particles to form ice crystals requires temperatures below approximately −38 °C and sufficiently high ice supersaturation (Duft and Leisner, 2004; Murray et al., 2010a). While heterogeneous nucleation to form ice crystals requires relatively higher ambient temperature but insoluble aerosol particles (such as black carbon, dust) as ice-nucleating particles (INPs) (Morris et al., 2004; Murray et al., 2010b; Shi et al., 2015; Fan et al., 2019).

Different formation mechanisms result in different effects on the microphysical characteristics of cirrus ice crystals, in which ice crystal number concentration (N_i) plays a crucial role in understanding and characterizing cirrus clouds (Comstock et al., 2008). N_i is widely used as a key variable in cloud forecasting to predict cloud evolution and is potentially closely linked to aerosol concentrations, making it an important indicator for studying the impact of aerosols on ice cloud formation (Khain et al., 2000; Kay and Wood, 2008; Hendricks et al., 2011). However, current climate models and satellite observations face significant limitations in obtaining and utilizing N_i, which can lead to substantial biases in simulating cloud microphysical processes, evaluating aerosol-cloud interactions, and calculating indirect radiative effects (Zhang et al., 2013; Sourdeval et al., 2018). It is generally recognized that homogeneous nucleation is the dominant mechanism contributing to N_i (Cantrell and Heymsfield, 2005). When enough INPs occurs in the atmosphere, heterogeneous nucleation precedes homogeneous nucleation to form ice crystals, resulting in a consumption of a large amount of water vapor and a decrease in the ambient supersaturation. Suppressed homogeneous nucleation will further impede the increase in the N_i (Chen et al., 2000; Kärcher and Lohmann, 2003; Shi et al., 2017). In the region of less convective activities, the effective radius of ice particles increases with the increase of INPs. Jin et al. (2007) used a three-dimensional storm cloud model (IAP-CSM3D) to analyze the relation between convective activity and cirrus cloud, found that the number concentration of ice crystal formed by deep convective cloud anvil overflow decreases with a decrease in water vapor from the convective activity transports.

However, the 3D-distribution characteristics of N_i and the corresponding contribution from deep convective cloud anvil overflow, homogeneous nucleation and heterogeneous nucleation over the TP is not very clear. This study uses liDAR-raDAR-Number concentration of ICE particles (DARDAR-Nice) data to analyze the spatial distribution characteristics of medium-upper cirrus clouds in summer from 2006 to 2016 (except 2011), over the TP. The formation mechanism of ice particles also be explored in combination of CALIPSO satellite aerosol products with reanalysis data. Furthermore, this also sheds light on the role of aerosols in the upper atmosphere of the TP in the process of cirrus ice crystal formation. The results will contribute to a deeper understanding of the thermodynamic effects of the TP and further improve the accuracy of climate simulations.

2 Data and methods

2.1 Satellite observations

This study uses ten summers (June–July–August, JJA) of multi-satellite observations during 2006 to 2016, except for 2011 due to data gaps, to investigate the distribution characteristics and formation mechanism of ice crystal particles over the TP. The primary dataset is the DARDAR-Nice product, complemented by additional retrievals from CloudSat and CALIPSO observations.

The DARDAR-Nice PRO product provides high-vertical-resolution estimates of N_i retrieved along the A-Train satellite track. The retrievals are based on the VarCloud algorithm (Delanoë and Hogan, 2008, 2010), which combines observations from the Cloud Profiling Radar onboard CloudSat and the cloud-aerosol Lidar with Orthogonal Polarization (CALIOP) lidar on CALIPSO. DARDAR-Nice profiles are provided with a vertical resolution of 60 m. The product includes N_i values and corresponding uncertainty estimates for particle with size larger than 5, 25 and 100 µm. In this study, the standard error of N_i is derived directly from the icnc_5um_error variable, ensuring that the uncertainty associated with each profile is properly represented in the analysis. This production has been systematically and comprehensively evaluated based on theoretical considerations and a large body of in situ observations (Sourdeval et al., 2018). However, it tends to overestimate ice crystal number concentrations in cloud parcels warmer than −30 °C, due to the assumption of a monomodal particle size distribution in the retrieval algorithm. To ensure the reliability of the results, this study focuses exclusively on clouds with temperatures below −30 °C and discusses the N_i of ice crystals with sizes larger than 5 µm.

In addition to N_i (>5 µm), N_i (>25 µm) was also analyzed to evaluate the sensitivity of the results to the particle size threshold. Given that the DARDAR-Nice dataset predominantly samples mature or aged cirrus layers, larger ice crystals (>25 µm) may better represent the evolved stage of cloud microphysical development. Therefore, examining N_i (>25 µm) provides complementary information and helps indicate the plausible range of N_i values.

The spatial distribution and vertical structure derived from N_i (>5 µm) and N_i (>25 µm) are largely consistent, indicating that the main structural features of cirrus over the Tibetan Plateau are robust across size thresholds. The primary difference lies in the absolute magnitude: N_i (>5 µm) values are systematically higher by approximately a factor of 2–3 compared to N_i (>25 µm), reflecting the contribution of smaller ice crystals to the total population. Since N_i (>5 µm) captures a broader fraction of the total ice crystal population, it is retained as the primary variable in this study. The corresponding N_i (>25 µm) results are presented in the Supplement to illustrate the range of N_i values and to demonstrate that the main conclusions are not sensitive to the selected particle size threshold.

In addition, although ice water content (IWC) is also provided in the DARDAR-Nice product, it has not been specifically validated. Therefore, this study uses IWC data from the CloudSat 2B-CWC-RO product (https://www.icare.univ-lille.fr/asd-content/archive, last access: 2 April 2025), for which the retrieval quality and accuracy have been discussed in detail by Austin (2007) and Austin et al. (2009). Besides 2B-CWC-RO, the CloudSat 2B-CLDCLASS-LIDAR product is employed, which classifies clouds into eight types across ten vertical layers with a horizontal resolution of 2.5 km×1.4 km. Its classification algorithm integrates vertical and horizontal cloud structures, precipitation features, cloud temperature, and MODIS radiative measurements to enhance classification accuracy. These CloudSat products provide critical microphysical parameters and cloud classification necessary for understanding ice cloud properties.

CALIPSO can monitor the vertical distribution characteristics of clouds and aerosols, automatically identify aerosol types, and provide global aerosol horizontal distribution characteristics and vertical distribution information (Zheng et al., 2018). Liu et al. (2008) also conducted aerosol detection using CALIPSO, further confirming its effective aerosol detection capabilities.

Dust aerosols exhibit strong ice-nucleating activity and represent an important global source of INPs (Hoose and Möhler, 2012; Murray et al., 2012; Ladino Moreno et al., 2013). Meanwhile, sampling studies during biomass burning conducted by Prenni et al. (2012) and McCluskey et al. (2014) indicate that particles from biomass combustion constitute a significant regional source of INPs, particularly when other effective INPs are scarce. In addition, recent observational analyses by Mamouri et al. (2023) and Ansmann et al. (2025) suggest that smoke aerosols can exert a substantial influence on ice crystal formation at altitudes while temperatures fall below −45 °C. Therefore, this study primarily focuses on the role of dust and smoke aerosols. This study employs information from the Level-2 Version 5 kmCLay standard products of the CALIPSO satellite data spanning from 2006 to 2016 (except 2011) to assess the impact of dust and smoke aerosols on the formation of cirrus clouds.

In this study, both daytime and nighttime satellite observations are included, the aerosol information is used to characterize climatological, grid-cell-averaged aerosol occurrence rather than instantaneous cloud-aerosol collocation.

2.2 Reanalysis Data

To investigate meteorological conditions for the satellite observations, this study utilizes ERA5 reanalysis data from the European Centre for Medium-Range Weather Forecasts (ECMWF). ERA5 provides hourly global data at a spatial resolution of 0.25°×0.25° across 37 vertical pressure levels, covering the period from 1979 to the present (Xie et al., 2021). The key variables used in this study are specific humidity and vertical wind velocity from ERA5, as well as temperature from satellite observations. Together, these three variables are essential for analyzing meteorological conditions related to cirrus cloud formation and deep convective vertical transport. All datasets and corresponding variables used in this study are summarized in Table 1.

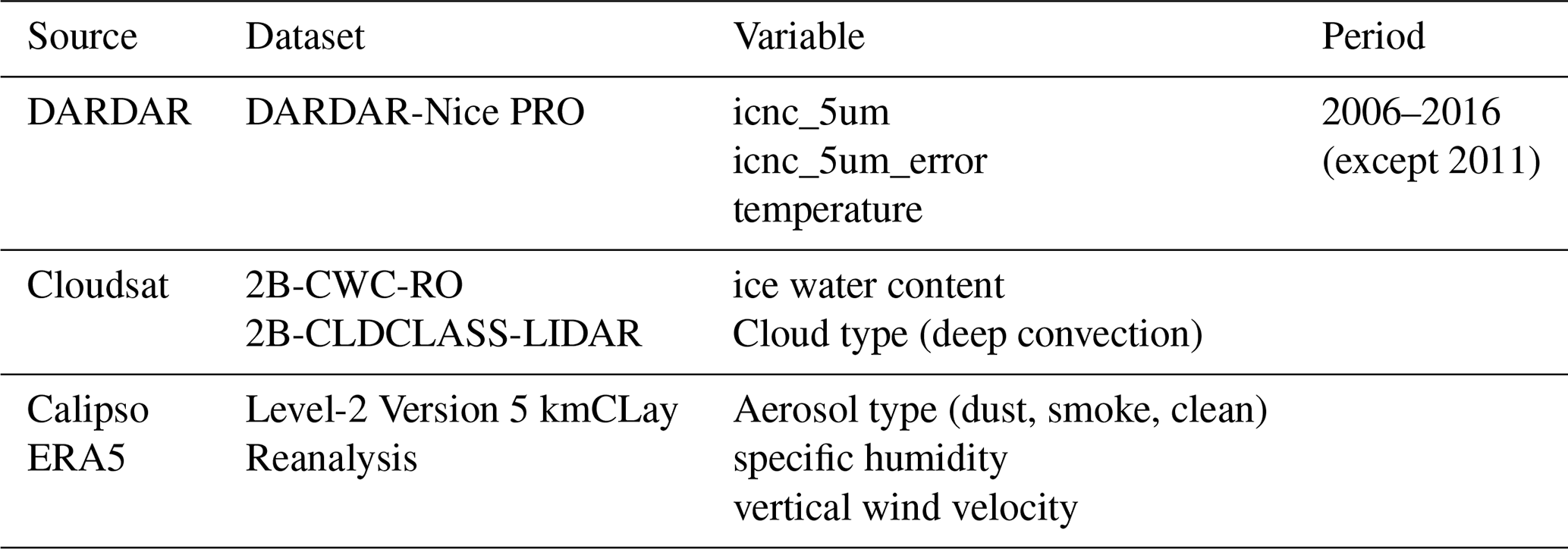

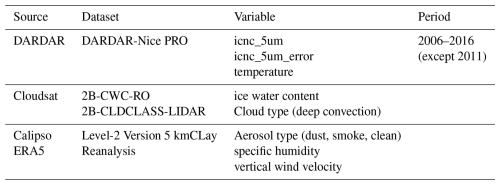

Table 1 Overview of the satellite datasets and data products used in this study.

2.3 Research Methods

The focus area of this study is the TP and its surrounding regions, spanning from 66 to 106° E and 24 to 40° N. The original orbital data of the DARDAR-Nice PRO product, 2B-CLDCLASS-LIDAR classification product and 2B-CWC-RO cloud product are interpolated into grid point data with a resolution of 2°×2° based on the method outlined in Wang et al. (2023). The overall data processing workflow adopted in this study is illustrated in Figs. S1 and S2 in the Supplement. Figure S1 outlines the procedure used to derive N_i statistics, including calculations in both the horizontal and vertical directions. Figure S2 illustrates how aerosol classification data from CALIPSO are combined with cirrus cloud properties retrieved from the DARDAR-Nice product. These schematics provide a transparent overview of the integration and processing of the various satellite datasets used in this study.

The 2B-CLDCLASS-LIDAR deep convective cloud product was used to quantify deep convection. For each grid cell and time interval, the presence of one or more deep convective clouds was counted as a single event, irrespective of the number of profiles exhibiting convection. These events were then summed over all intervals to yield the total number of deep convection occurrences per grid cell. For the investigation of N_i, statistical analysis was conducted at intervals of 60 m, based on the vertical resolution of the DARDAR-Nice PRO product. Data points with large uncertainties were set to NaN to minimize bias in the statistics.

The horizontal distribution of N_i may be influenced by uneven sample distribution resulting from the varying occurrence frequency of ice particles across different layers. To address this, we normalized N_i for each grid during the ten summer seasons over the TP, to obtain the horizontal distribution of N_i for cirrus clouds. The normalization process is presented in Eq. (1):

$$\begin{array}{}\text{(1)}& y={\displaystyle \frac{\sum _{i=\mathrm{1}}^{\text{Num}}{x}_i}{\sum _{i=\mathrm{1}}^{\text{Num}}{m}_i}}\end{array}$$

where x_i is the sum of N_i where the temperature is below −30 °C. Num is the total number of profiles included in the analysis. m_i is the effective layers within the corresponding grid cell for which N_i is greater than 0. y is the normalized N_i in the corresponding gird.

To compute the vertical distribution of N_i, each profile is analyzed layer by layer. For each profile, if N_i is present in any layer, the profile is counted as 1; this count is used for normalizing the total number of profiles. For each layer, the N_i from all profiles are summed and then divided by the total number of counted profiles, yielding the normalized N_i for that layer. The detailed calculation method is given in Eq. (2):

$$\begin{array}{}\text{(2)}& \stackrel{\mathrm{‾}}{a_n}={\displaystyle \frac{\sum _{i=\mathrm{1}}^{\text{Num}}{a}_{i,n}}{\sum _{i=\mathrm{1}}^{\text{Num}}{C}_i}}\end{array}$$

where $\stackrel{\mathrm{‾}}{a_n}$ represents the normalized N_i for layer n, a_i,j is the N_i in layer n of profile i, C_i is the profile count (C_i=1 if N_i is present in at least one layer of profile i, and C_i=0 otherwise).

In the absence of INPs in the atmosphere, ice crystal formation occurs primarily through homogeneous nucleation.It is generally acknowledged that temperatures near −38 °C represent the threshold for homogeneous freezing of supercooled water droplets and aqueous aerosol particles under sufficiently high ice supersaturation (Duft and Leisner, 2004; Murray et al., 2010a; Koop and Murray, 2016). Traditionally, the identification of homogeneous nucleation has relied primarily on temperature thresholds. However, due to the continuous dynamic growth of ice particles through condensation, accurate simulation remains challenging.

A novel approach is proposed to identify homogeneous nucleation by leveraging aerosol classification data from the CALIPSO satellite over the TP during the summer from 2006 to 2016. Specifically, when aerosol types are classified as “clean”, it indicates a low concentration of INPs, favoring the dominance of homogeneous nucleation in ice crystal formation. Kim et al. (2018) performed a statistical analysis of different aerosol types in this product and found that “clean” aerosols account for only about 1 % of occurrences in the CALIPSO column-level aerosol product, representing background aerosol with very low concentration, which further supports the validity of this assumption. Grid points identified exclusively with “clean” aerosol conditions are therefore interpreted as environments in which homogeneous freezing may be more likely to dominate. However, clean conditions do not imply purely homogeneous nucleation, and uncertainties remain regarding the relative contributions of different ice formation mechanisms.

Although CALIPSO provides detailed vertical profiles of aerosols, this study does not explicitly use the height-resolved information. Instead, the aerosol occurrence is analyzed at the grid-cell level without distinguishing altitude. This approach is adopted for two main reasons. First, CALIPSO's aerosol detection is most reliable in the lower troposphere, while its sensitivity decreases significantly at higher altitudes due to signal attenuation and the difficulty of distinguishing aerosols from thin cirrus clouds (Mao et al., 2022). Therefore, focusing on overall aerosol occurrence within each grid ensures better data consistency and avoids potential misclassification errors. Second, the N_i analyzed in this study corresponds to temperatures below −30 °C, the relevant aerosols are those that can influence cloud formation through vertical transport or large-scale dynamical processes, rather than being co-located at the same altitude. Hence, by integrating aerosol occurrence over the entire column within the same grid, the analysis effectively captures the overall influence of low-level dust or smoke aerosols on upper-tropospheric ice clouds, without introducing additional uncertainty from vertical matching. Therfore, the overall comparison, statistical results, and main conclusions remain robust.

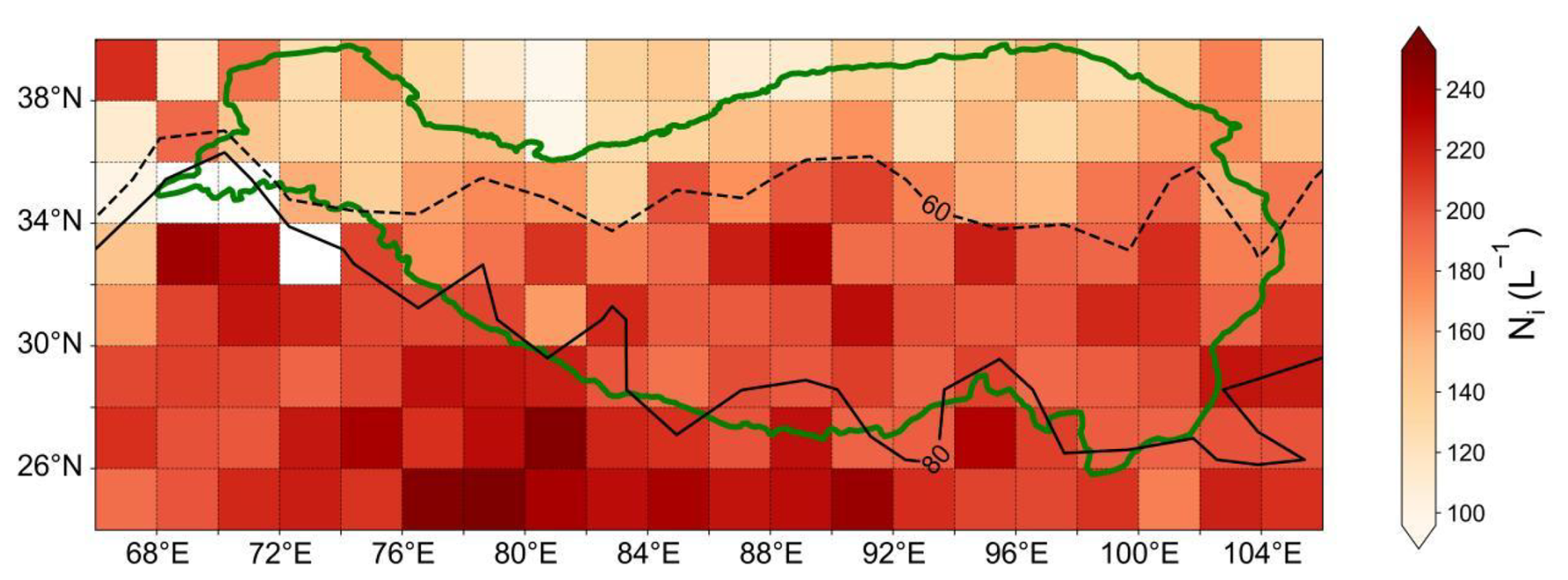

Figure 1 Horizontal distribution of the averaged N_i during the summer from 2006 to 2016 (except 2011) over the TP. The green line is the border of the TP. The black solid lines represent the standard error of 80 L⁻¹ and the black dotted line represents the value of 60 L⁻¹.

3 Results and Discussion

3.1 Distribution characteristics of N_i over the TP

Based on the DARDAR-Nice PRO product, this study analyzes the spatial variation of N_i across all layers where the temperature is below −30 °C during the study period. The horizontal distribution of N_i (>5 µm) in Fig. 1 demonstrates that the average concentration over the TP is 187 L⁻¹ during the study period. The corresponding average concentration for N_i (>25 µm) is 87 L⁻¹, which is less than half of N_i (>5 µm) (Fig. S3). The average N_i (>5 µm) reported here is higher than the approximately 150 L⁻¹ over the TP reported by Gryspeerdt et al. (2018), who used DARDAR-Nice data from 2006 to 2013 to study global N_i (>5 µm) but focused only on cloud-top statistics. Considering that our analysis includes all layers below −30 °C, the higher N_i (>5 µm) is reasonable and consistent with physical expectations, which also indirectly supports the reliability of our results. The average concentration in the south (24–30° N, 66–106° E) is significantly higher than other areas, reaching 213 L⁻¹, with the maximum value located in the north-central region of India (24–26° N, 78–80° E), reaching 253 L⁻¹. Over the north, including the Xinjiang, Inner Mongolia, the north of the Qilian Mountains and the Kunlun Mountains, N_i is only 143 L⁻¹, only two-thirds of N_i compared with that in the southern region. For N_i (>25 µm), the corresponding average concentrations are 94 L⁻¹ in the southern region, 112 L⁻¹ in the north-central region of India, and 70 L⁻¹ in the northern areas. Compared with N_i (>5 µm), the spatial distribution remains generally consistent, although the absolute concentrations are systematically lower.

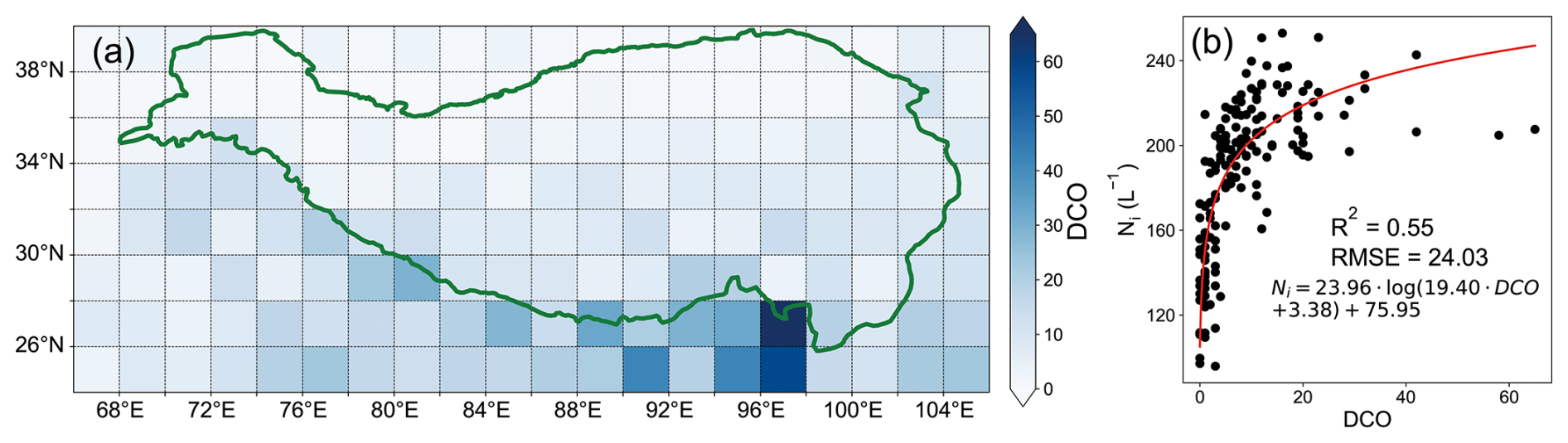

Figure 2 (a) Horizontal distribution of DCO and (b) the relationship with N_i during the summer from 2006 to 2016 (except 2011) over the TP.

We investigated the relationship between the incidence of deep convective clouds, INPs, and N_i at all grid points over the TP based on the different formation mechanisms of cirrus clouds. As shown in Fig. 2a, deep convection occurrences (DCO) is significantly higher in the southern and southeastern regions of the Plateau, where the N_i tend to be elevated (Fig. 1). Also, N_i revealed a positive nonlinear relationship with DCO, with a coefficient of determination (R²) of 0.55 (p<0.01) and a root mean square error (RMSE) of 24.03 L⁻¹, indicating that deep convective activity plays a significant role in modulating N_i over the TP. During the ASM, frequent deep convection in the southern TP facilitates the transport of warm, moist air and water droplets from the Indian Ocean and the Bay of Bengal to higher altitudes (He et al., 2019). Under moist conditions, ascending air parcels are more likely to experience a prolonged period of ice supersaturation, thereby increasing the probability of exceeding the supersaturation threshold required for homogeneous ice nucleation. In humid environments, air parcels can therefore maintain supersaturated conditions for a longer duration, making homogeneous nucleation more likely to dominate under such circumstances (Zhao et al., 2018). By contrast, heterogeneous nucleation is initiated by INPs and typically requires a lower ice supersaturation threshold, allowing it to occur earlier during ascent (DeMott et al., 2010). As a result, in environments with abundant water vapor, homogeneous nucleation may gain a relative advantage in competition with heterogeneous nucleation, favouring the formation of higher N_i.

This interpretation is consistent with the relatively high N_i observed over the southern TP during summer. However, within an observational framework alone, the respective contributions of dynamical conditions, aerosol properties, and thermodynamic processes cannot be fully disentangled. The interpretation presented here should therefore be regarded as a qualitative explanation based on physical consistency rather than a definitive attribution.

In addition to convective activity, the presence of INPs also plays a critical role in modulating N_i over the TP. Zhao et al. (2018), using nine years of satellite observations, demonstrated that ice crystal formation is regulated not only by the availability of INPs but also by ambient water vapor conditions. This highlights the important role of moisture as a prerequisite for cirrus cloud evolution, while emphasizing that high water vapour availability alone is not sufficient to guarantee ice formation. Ice nucleation can only occur when the ice saturation ratio exceeds the threshold required for freezing; without reaching this threshold, no ice formation is possible (Gettelman et al., 2010). As a result, moisture should be regarded as a necessary background condition rather than a direct or sufficient driver of ice crystal formation.

Consequently, when investigating the relationship between INPs and N_i, directly comparing INPs and N_i across all grid cells may lead to misleading interpretations. This is because differing atmospheric conditions, particularly variations in moisture and the development of ice supersaturation, can strongly influence whether ice formation occurs. For example, high N_i in one grid cell may primarily reflect favourable moisture conditions that allow supersaturation to be achieved, rather than an enhanced influence of INPs, whereas in another grid cell the potential effect of INPs may be masked if the supersaturation threshold is not exceeded.

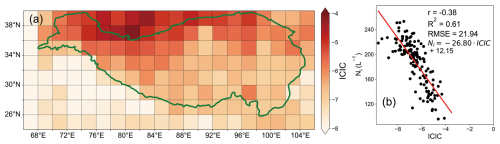

Figure 3 (a) Horizontal distribution of the ICIC and (b) the relationship with N_i during the summer from 2006 to 2016 (except 2011) over the TP. r(−0.38) in this figure is the partial correlation coefficient between INPs and N_i after removing the effect of IWC.

In principle, restricting the analysis to grid cells with broadly similar atmospheric conditions would allow a more direct comparison. However, the TP exhibits pronounced spatial heterogeneity, especially between its northern and southern regions. To partially account for differences in moisture-related thermodynamic conditions, this study introduces the IWC confined INPs concentration (ICIC), defined as the logarithm of the ratio between the occurrence number of smoke (or dust) particles and IWC within each grid cell (Eq. 3). This formulation aims to reduce the confounding influence of IWC on the apparent N_i-INPs relationship. To further demonstrate the robustness of this normalization, we compute the partial correlation between INPs and N_i after removing the effect of IWC. Specifically, the partial correlation coefficient is calculated by statistically removing the linear effect of IWC from both N_i and ICIC across all grid cells and then computing the correlation between the residuals. This approach does not eliminate the physical influence of IWC on N_i, but allows an evaluation of the N_i-INPs relationship independent of the first-order linear contribution of IWC. The resulting partial correlation coefficient ($r=-\mathrm{0.38}$) indicates that a relationship between ICIC and N_i remains after accounting for IWC, although IWC itself continues to exert a strong influence.

$$\begin{array}{}\text{(3)}& \text{ICIC}\left(\text{type}\right)=\log \left({\displaystyle \frac{{\text{type}}_{\text{event}}}{\text{IWC}}}\right)\end{array}$$

where type is dust or smoke, type_event is the number of events of that aerosol type, and ICIC(type) is the ICIC value corresponding to that aerosol type in the corresponding gird.

Figure 3a shows the spatial distribution of this metric, revealing that ICIC is predominantly concentrated in the northern part of the Plateau, with significantly lower values in the south. Moreover, an inverse nonlinear relationship is observed between ICIC and N_i, with a coefficient of determination (R²) of 0.61 (p<0.01) and a root mean square error (RMSE) of 22 L⁻¹, indicates that the quantity of ICIC has a significant impact on the N_i over the TP. While the N_i mainly arises from homogenization nucleation, heterogeneous nucleation of INPs promotes the formation of ice crystals (Khvorostyanov et al., 2006; DeMott et al., 2010) by absorbing a large amount of water vapor and destroying the conditions for homogeneous nucleation. The inhibitory effect of heterogeneous nucleation on homogeneous nucleation becomes more pronounced with an increase in INPs content, leading to a lower N_i. These two factors, namely the increased convective cloud frequency in the south and the elevated INPs levels in the north, are the primary contributors to the observed spatial pattern of N_i, which tends to be higher in the south and lower in the north.

3.2 Generation mechanism of ice crystal formation

3.2.1 Contribution of the homogeneous nucleation

Due to the condensation growth of cirrus cloud ice crystals in the upper atmosphere after nucleation, the observed ice crystal particle size in the satellite observation dataset only represents the post-growth effect, rendering it impossible to distinguish the contribution of different nucleation mechanisms to ice crystal size. Thus, this study considered the contribution of different nucleation mechanisms to the formation of cirrus cloud ice crystals by examining changes in the N_i.

N_i for each vertical layer is calculated using Eq. (2), and Fig. 4 depicts the vertical distribution of the N_i for all satellite-retrieved cases (“all”) and for clean aerosol conditions (“clean”). Here, “all” refers to N_i retrieved from all available satellite observations regardless of aerosol type, whereas “clean” refers to cases where CALIOP does not indicate the presence of dust or smoke and the aerosol type is classified as “clean”. Under clean conditions, ice formation is interpreted as being more likely influenced by homogeneous freezing. However, in this situation, purely homogeneous nucleation cannot be assumed, and uncertainties remain regarding the relative contributions of different ice formation pathways.

The satellite observations indicate that the N_i initially slowly increases with height and reaches its maximum of 68 L⁻¹ at 14 km, and follows a decreasing trend with height up to 19 km. The vertical variation of N_i under clean conditions and for all satellite-retrieved cases both show an overall “V” shaped distribution. However, N_i under clean conditions is generally higher than that for all satellite-retrieved cases at corresponding altitudes. Specifically, the N_i under clean conditions peaks at 14 km with a value of 94 L⁻¹, which coincides with the altitude of the observed peak.

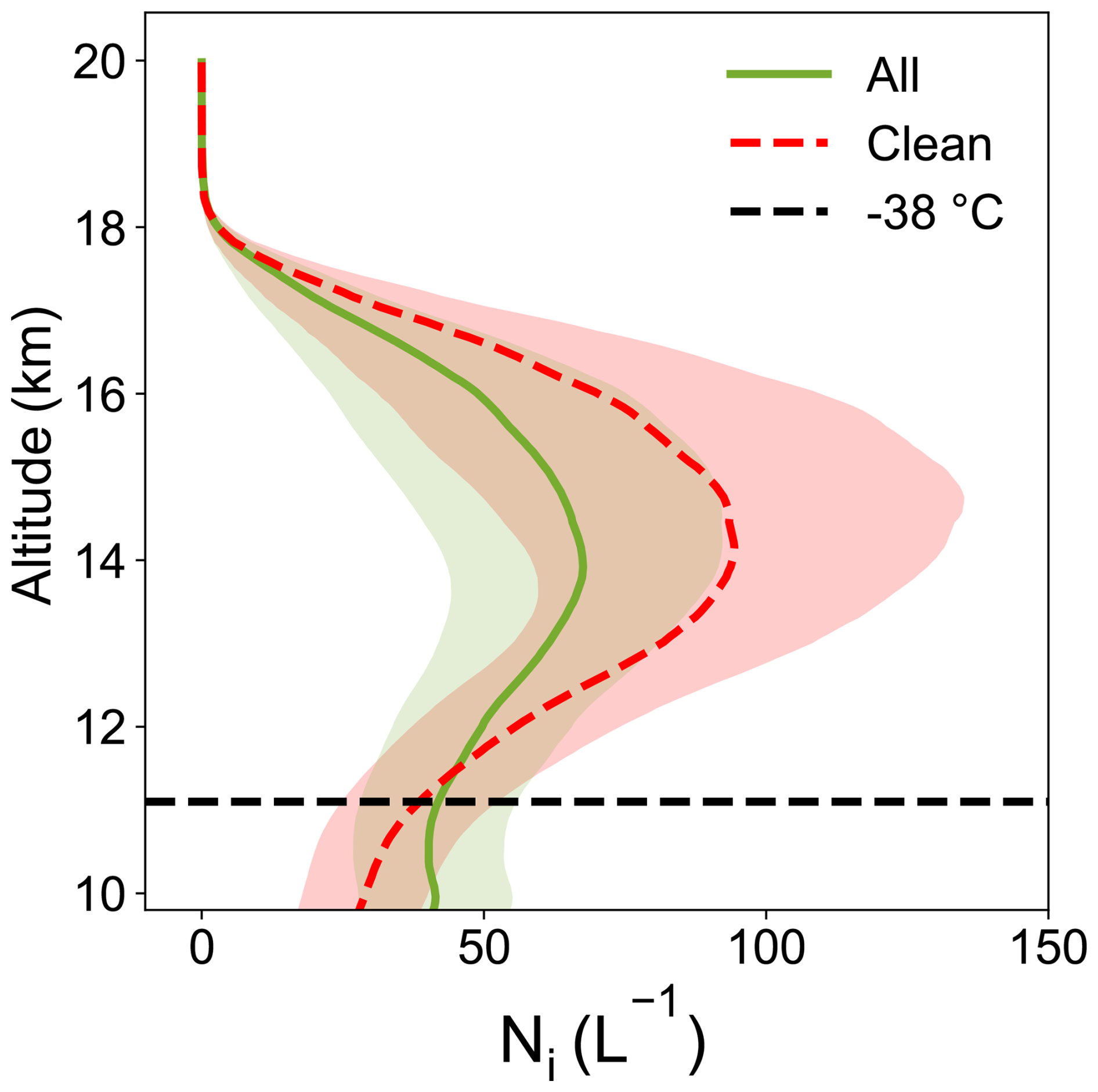

Figure 4 Vertical profiles of N_i for all satellite-retrieved cases (“all”) and for clean aerosol conditions (“clean”), with light shading indicating the standard error range.

It is widely accepted that the formation of larger ice crystals through heterogeneous nucleation processes takes precedence over homogeneous nucleation (Shi et al., 2017; Barahona and Nenes, 2009). In fact, heterogeneous nucleation is the dominant ice formation mechanism at temperatures above −38 °C, whereas homogeneous nucleation occurs only when the temperature drops below −38 °C and when there are no INPs. Although homogeneous freezing may represent an important contributor under sufficiently cold and supersaturated conditions (Cantrell and Heymsfield, 2005), heterogeneous nucleation has lower activation requirements and may occur earlier, potentially consuming water vapor and influencing subsequent ice formation. Under this interpretation, the N_i for all satellite-retrieved cases being lower than that expected under conditions more likely influenced by homogeneous freezing could be consistent with the influence of heterogeneous nucleation. However, alternative explanations cannot be excluded. For example, lower N_i may also reflect weaker or less frequent updrafts, which would limit the development of high ice supersaturation, or differences in cloud origin, such as a predominance of in-situ cirrus with limited contribution from liquid-origin ice detrained from deep convective updrafts (Gryspeerdt et al., 2018; Lyu et al., 2025).

Additionally, it is also worth noting that the N_i for all satellite-retrieved cases slightly exceeds the values from N_i under clean conditions below approximately 12 km. This is likely because homogeneous nucleation has not yet become dominant in this layer, while the observed N_i reflects prior heterogeneous nucleation events that produced a relatively large number of ice crystals. Once homogeneous nucleation becomes active with decreasing temperature, it rapidly generates N_i values substantially higher than all satellite-retrieved cases. From a trend perspective, the “V” shape vertical distribution and the peak position of N_i is likely determined by the role of homogeneous nucleation, while the specific values at different altitudes likely reflects the combined and interacting effects of homogeneous nucleation and heterogeneous nucleation.

To further investigate the vertical distribution characteristics of N_i, this study analyzes its spatial distribution across different latitudes and longitudes based on Fig. 5. In the zonal cross-section (Fig. 5a), the N_i exhibits a pronounced maximum near 14 km altitude between 28 and 33° N, exceeding 120 L⁻¹. Additionally, in the meridional cross-section (Fig. 5b), a peak N_i of over 90 L⁻¹ is observed near 90° E, also centered at 14 km altitude.

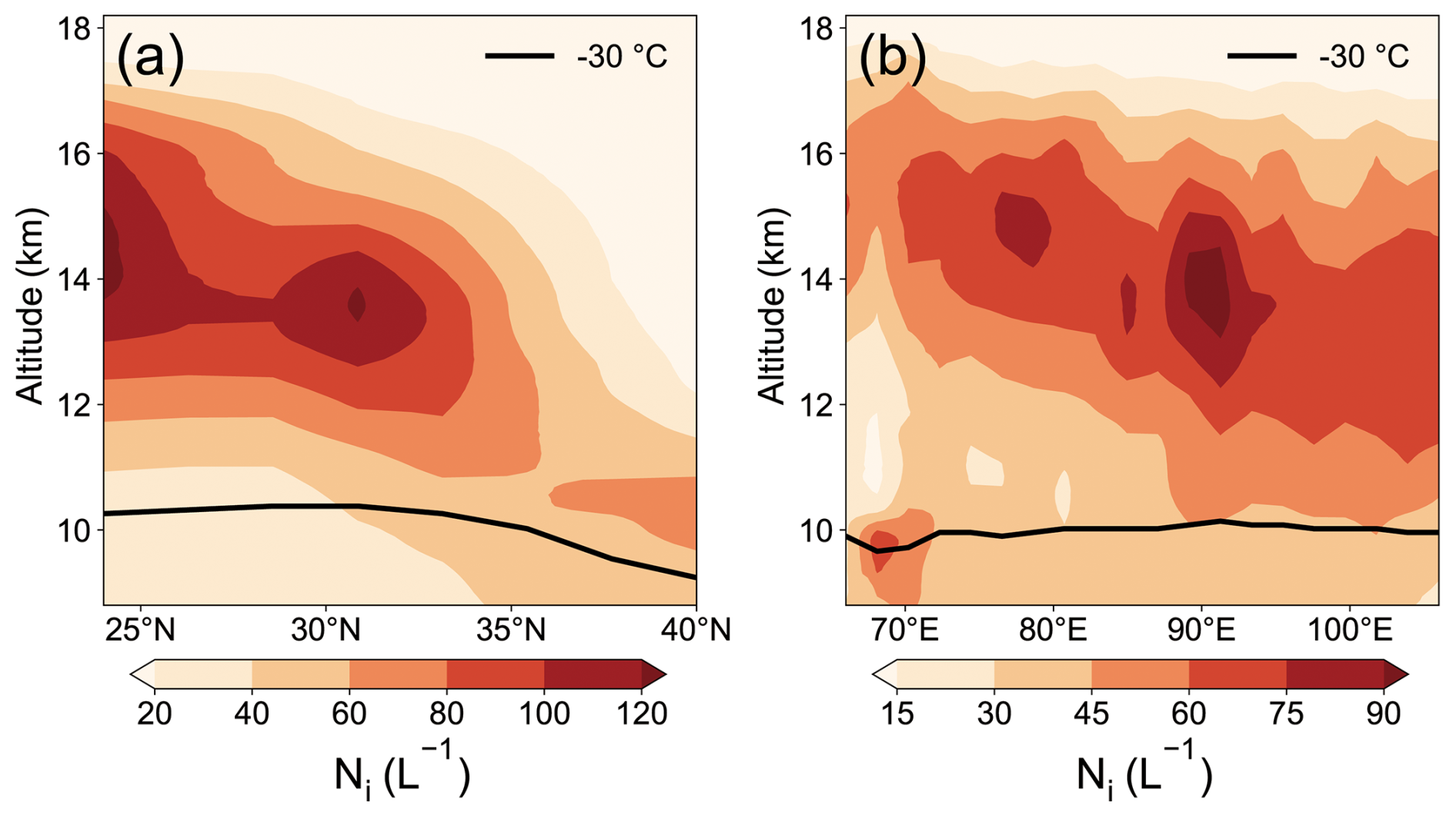

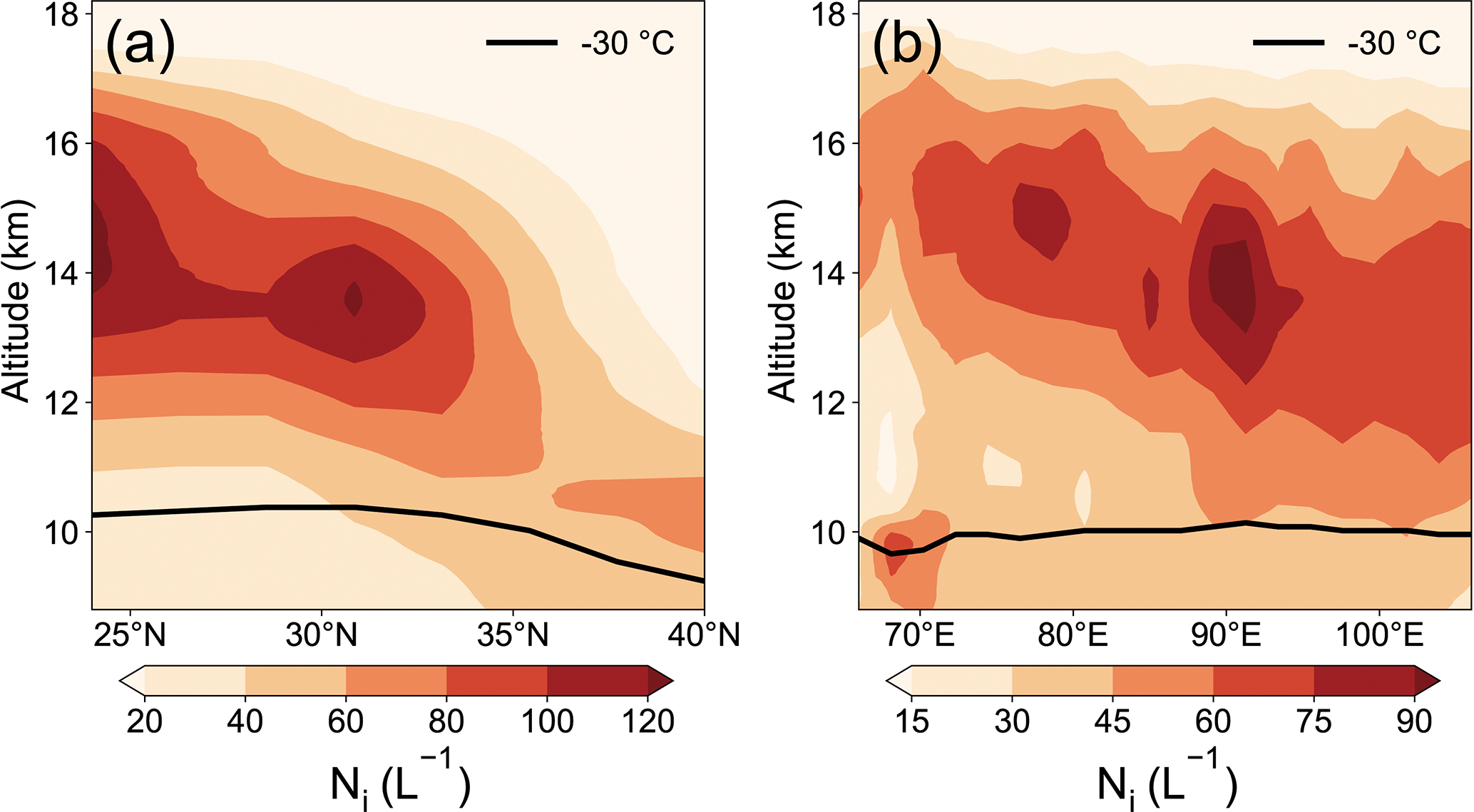

Figure 5 (a) The zonal distribution of N_i from 86 to 102° E for each latitude and (b) the meridional distribution of N_i from 24 to 40° N for each longitude.

Together, these zonal and meridional distributions reveal a consistent vertical structure, with peak N_i occurring near 14 km, which could be influenced by homogeneous nucleation processes that dominate at these altitudes (Fig. 4). In contrast, N_i exhibits significant variability across both latitudinal and longitudinal directions, which may be related to the spatial distribution of water vapor and certain meteorological factors, such as vertical wind velocity, providing a foundation for the subsequent analysis in this study.

3.2.2 The effect of deep convective activity

In addition to homogeneous nucleation, deep convective cloud anvils are another significant source of ice crystal formation in the atmosphere. Figure 6a compares the altitude-averaged N_i under different deep convective cloud conditions, based on all grid points across the TP where the incidence of deep convection exceeds 5 % (Fig. 2a). These selected regions represent areas with relatively frequent convective activity.

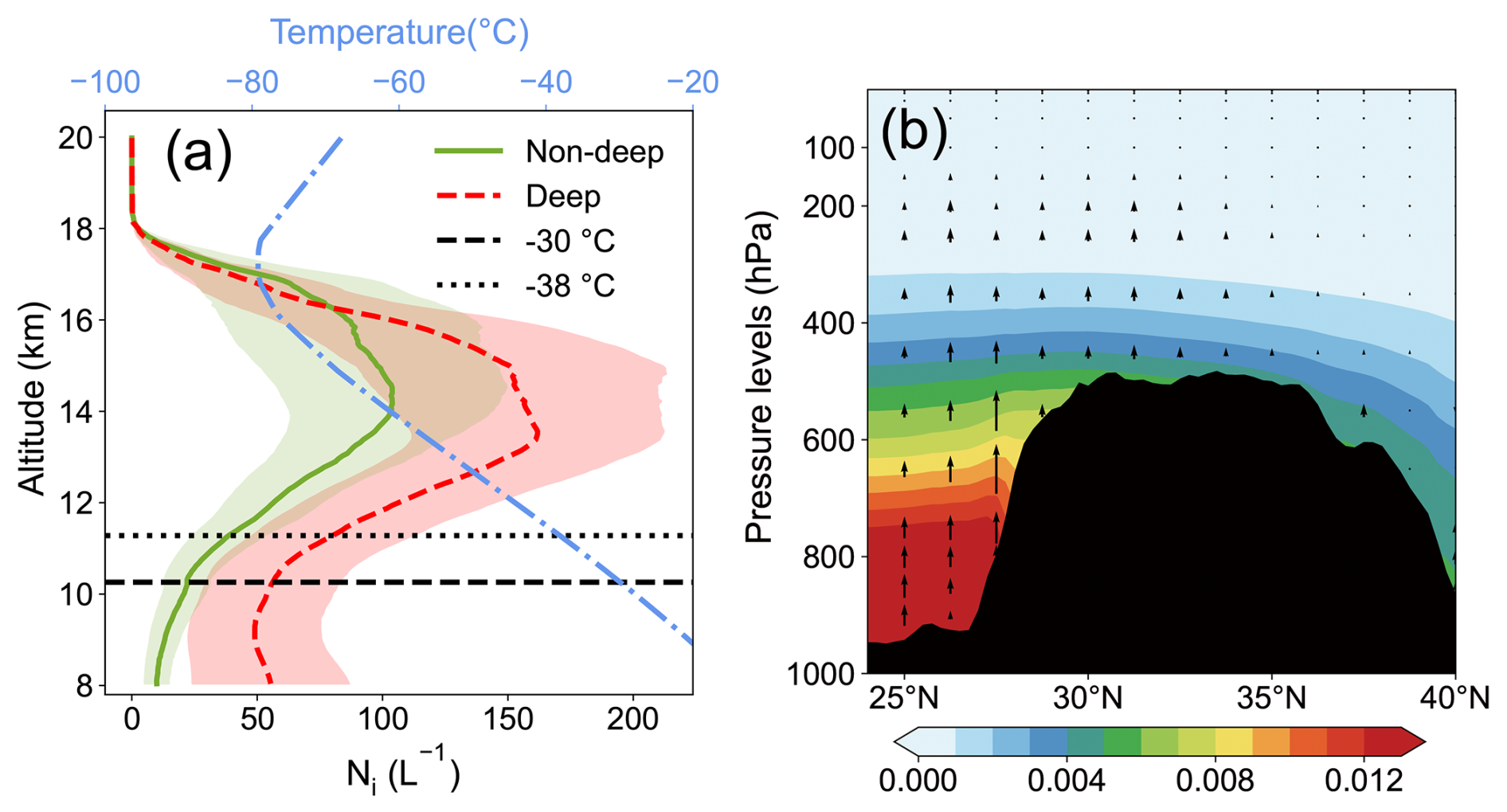

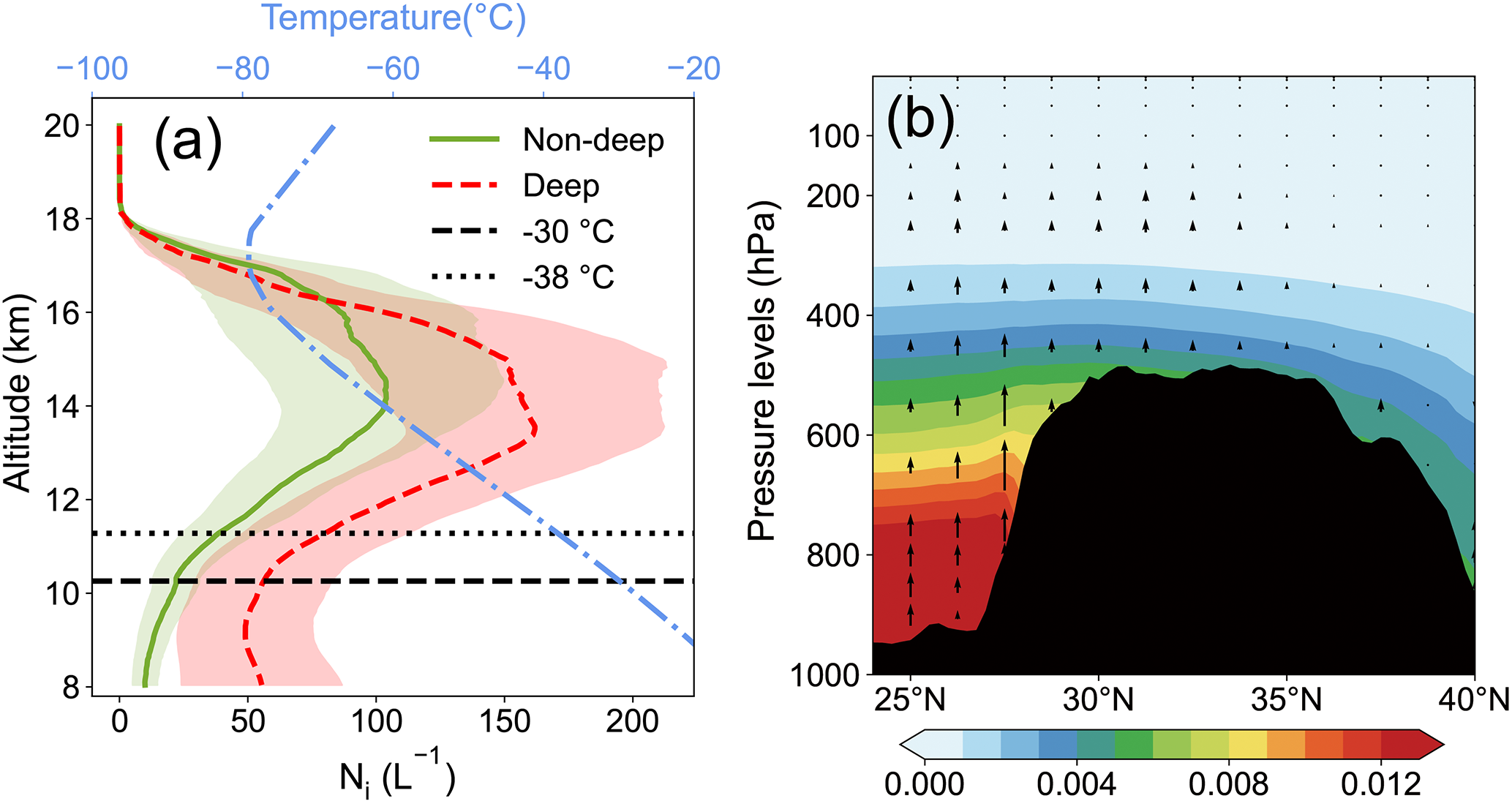

Figure 6 (a) Vertical profile of the N_i affected by DCO and (b) the zonal distribution of vertical winds averaged from 86 to 102° E for each latitude. The contour is specific humidity (kg kg⁻¹).

During summer, the tropopause height over the Tibetan Plateau typically ranges from about 16–18 km (Sun et al., 2021), providing an important vertical reference for cirrus cloud development. The top of cirrus clouds can develop near 18 km with a relatively low N_i for the case of non-deep convection activity, and at 14 km, reaches its peak of 104 L⁻¹. When deep convection activity occurs, the N_i at the same altitude is significantly higher, and at 14 km, reaches its peak of 162 L⁻¹. During summer, strong upward motions over the southern TP can transport both moist air and pre-existing ice crystals from the lower troposphere (below 12 km) into the upper troposphere via convective outflow anvils. These processes may create favorable conditions for enhanced N_i, while homogeneous nucleation may additionally occur under sufficiently cold and supersaturated conditions. It is therefore suggested that the observed N_i peak near 14 km is associated with the combined effects of convective transport, dynamical accumulation, and ice formation processes. At 14 km (about 140 hPa), where the vertical wind speed is nearly zero, N_i accumulates significantly above this level, while a substantial amount is transported upward from below 14 km. This upward transport, combined with the accumulation, results in the peak at 14 km (Fig. 4b). Satellite observations also indicate that during the development of deep convective clouds, approximately 95 % of the cloud tops are located at or below 16 km. This vertical distribution suggests that the influence of deep convection is mainly confined below 16 km. Consequently, N_i above this level remains relatively unchanged, indicating limited impact from convective processes at higher altitudes.

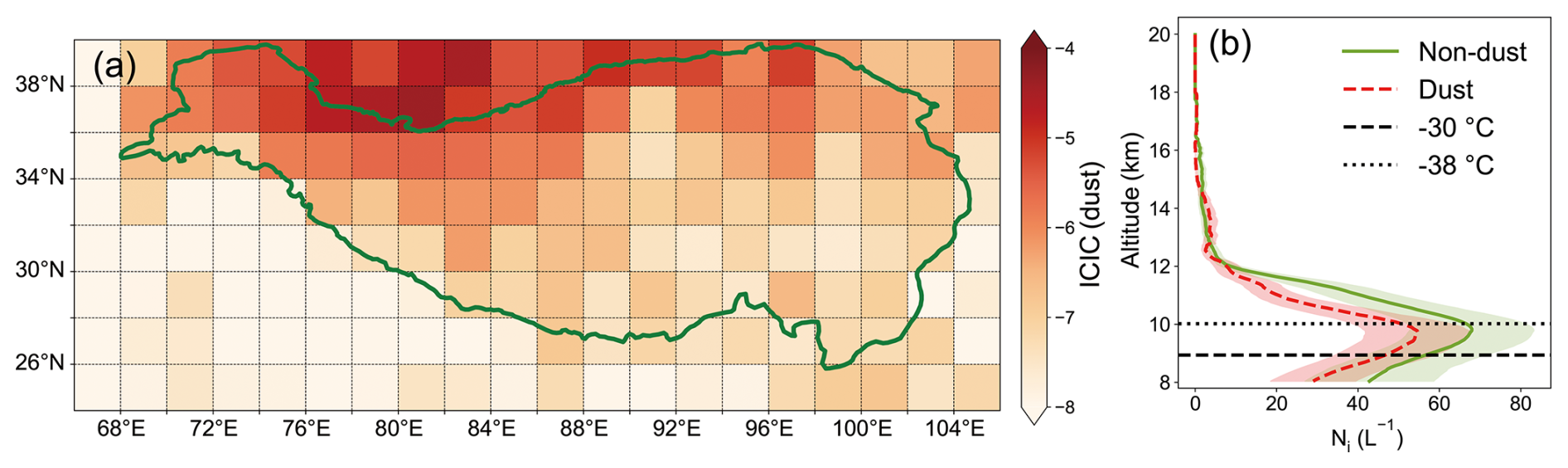

Figure 7 (a) Horizontal distribution of ICIC(dust) and (b) the vertical profile of the N_i affected by dust and non-dust events. Here, “non-dust” refers to all cases in which CALIPSO does not detect dust aerosols, including clean aerosol conditions.

3.2.3 Heterogeneous nucleation effect of INPs

In the northern part of the TP, convective activity is relatively weak, but dust aerosol content is high (Fig. 7a). The increase in N_i is primarily attributed to heterogeneous nucleation induced by INPs. Considering the frequent dust activity in this region, we selected grid points with ICIC(dust) greater than −5 as the primary study area. These grid points are predominantly located in the northern Plateau, adjacent to Xinjiang, a typical semi-arid region characterized by abundant dust aerosols. These dust particles facilitate water vapor adsorption in the lower atmosphere and promote ice crystal formation through heterogeneous nucleation (Huang et al., 2021; Hoose and Möhler, 2012).

It should be emphasized that the aerosol information used in this study represents column-level aerosol classification within each grid cell, rather than vertically co-located aerosol–cloud interactions. Dust aerosols are predominantly distributed in the lower troposphere. Therefore, the comparison between upper-tropospheric N_i and aerosol occurrence reflects statistical associations at the grid-cell scale, which may be influenced by vertical transport and large-scale dynamical processes, rather than direct, instantaneous interactions at the same altitude.

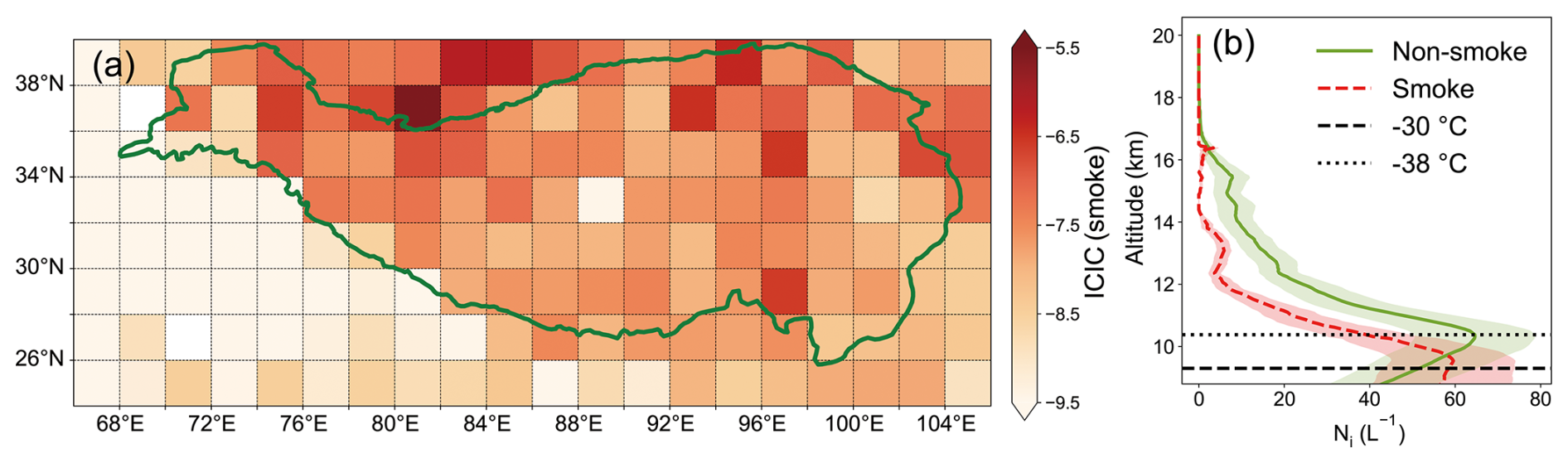

Figure 8 (a) Horizontal distribution of ICIC(smoke) and (b) the vertical profile of the N_i affected by smoke and non-smoke events. Here, “non-smoke” refers to all cases in which CALIPSO does not detect smoke aerosols, including clean aerosol conditions.

Figure 7b illustrates the effect of dust aerosol particles on N_i in this area. The results suggest that the presence of dust is associated with a reduction of N_i in cirrus clouds, with concentrations above 12 km becoming very small. During non-dust periods, although INPs remain present, their activation efficiency may be relatively high, allowing a large fraction of aerosol ice nuclei to be activated, resulting in weaker suppression of ice crystal formation. In contrast, elevated dust concentrations in the lower atmosphere may enhance heterogeneous nucleation, thereby consuming available water vapor and potentially inhibiting additional ice crystal formation, which could lead to a reduction of N_i. Within this interpretative framework, N_i during non-dust periods tends to be higher than during dust conditions. However, due to limited water vapor in this region, a large fraction of moisture may already be depleted in the lower atmosphere, which could contribute to very low N_i above 12 km. Consequently, the suppressive effect of heterogeneous nucleation may limit ice crystal formation through homogeneous nucleation at higher altitudes, making cirrus cloud development more difficult in these upper layers. In regions with low water vapor content, INPs may play an important role in modulating N_i.

Besides dust aerosol, smoke aerosol particles generated by human activities are considered another potential source of heterogeneous nucleation for cirrus clouds over the TP. In this research, grid points with ICIC(smoke) greater than −6.5 were selected as the primary research region to examine the possible influence of smoke INPs on N_i (Fig. 8a).

It is observed that the presence of smoke aerosols is associated with a decrease in N_i, with the maximum vertical extent of cirrus clouds limited to around 14 km (Fig. 8b). One possible interpretation is that, during smoke events, ice crystal formation in the lower atmosphere may be influenced by smoke-derived INPs, under which heterogeneous nucleation could become more active. The relatively high abundance of smoke INPs may enhance competition among ice particles, potentially suppressing additional ice crystal formation and resulting in lower N_i compared to non-smoke conditions. In this hypothetical framework, smoke INPs may be efficiently activated through heterogeneous nucleation, while any remaining water vapor could still contribute to ice formation via homogeneous nucleation. From this perspective, N_i tends to be higher during non-smoke periods, when fewer INPs may lead to weaker suppression effects. However, due to the inherently low water vapor content in this region, the vertical development of cirrus clouds appears to be constrained, and even during non-smoke periods, the maximum cloud height remains limited to approximately 17 km.

Homogeneous nucleation is often associated with a peak in N_i near 14 km. However, under dust and smoke conditions, such a peak is not clearly observed. One possible explanation is that dust and smoke aerosols are mainly concentrated over the northern TP, where the vertical wind speed around 400 hPa is relatively weak (Fig. 6b). Reduced vertical transport may limit the upward redistribution of ice crystals, thereby influencing the vertical structure of N_i.

4 Conclusion

This study analyzed the distribution characteristics and formation mechanism of cirrus cloud ice crystals during the summer of 2006 to 2016 (except 2011) over the TP, mainly using DARDAR-Nice data combined with aerosol product data.

The main conclusions are summarized as follows:

• (1)

  N_i shows pronounced spatial variability across the TP, with generally higher values over the southern TP than over the northern TP. This contrast is statistically associated with differences in large-scale meteorological conditions, including more frequent deep convection over the southern TP, whereas the northern TP is characterized by more frequent aerosol occurrence and lower N_i.

• (2)

  The vertical distribution of N_i exhibits a characteristic V-shaped structure, consistent with statistical signatures expected under conditions favorable for homogeneous freezing. The values of N_i at varying altitudes are likely determined by the combined effects of both homogeneous and heterogeneous nucleation.

• (3)

  Regions influenced by deep convection tend to exhibit higher N_i at a given altitude than non-convective regions. This behavior is consistent with the role of convective outflow anvils in transporting moisture and pre-existing ice crystals into the upper troposphere, while homogeneous freezing may additionally occur under sufficiently cold and supersaturated conditions.

• (4)

  Under dust and smoke influenced conditions, ice formation in the lower atmosphere is statistically associated with heterogeneous nucleation occurring prior to homogeneous freezing, and N_i is generally lower than non-dust(smoke) conditions. This behavior may be related to early vapor consumption, differences in vertical motion, and sedimentation effects. These interpretations represent one possible explanation of the observed.

Several limitations should be noted. This study integrates several validated satellite retrieval products in the analysis. Nevertheless, differences in retrieval methodologies and sensor sensitivities among these products introduce inherent uncertainties, which may affect the quantitative interpretation of the results to some extent. In addition, the use of multi-year climatological averages smooths event-scale extremes associated with strong updrafts or short-lived dynamical processes. Aerosol information represents grid-cell-scale and climatological conditions rather than instantaneous cloud–aerosol interactions. Consequently, the results should be regarded as hypothesis-driven and exploratory, providing statistical context and motivation for future studies combining satellite observations, in-situ measurements, and modeling.
