Measurement report: Lessons learned from the comparison and combination of fine carbonaceous aerosol source apportionment at two locations in the city of Strasbourg, France

Source apportionment analyses of carbonaceous aerosol were conducted at two neighboring urban sites in Strasbourg, France, during the winter of 2019/2020 using ACSMs (Aerosol Chemical Speciation Monitors; for non-refractory submicron aerosols), aethalometers (AE33; for equivalent Black Carbon – eBC) and filter-based offline chemical speciation. Positive Matrix Factorization (PMF) was applied to organic aerosols (OA) following two strategies: (i) analyzing each site individually, (ii) combining both sites into a single dataset. Both methods resolved five OA factors: hydrocarbon-like (HOA), biomass burning (BBOA), cooking-like (COA-like), oxygenated (OOA), and an amine-related OA (58-OA) factor. The latter factor, accounting for ∼ 4 % of the total OA mass at each site, showed clear diel profiles and a distinct origin marked by specific wind directions, suggesting a unique local source, potentially linked to industrial emissions. The present study also highlights the challenge of attributing a cooking-only origin to the COA-like factor, which exhibited a diel cycle similar to biomass burning OA at the background site. The combined PMF analysis improved the apportionment of cooking emissions at nighttime, especially for the traffic site, compared to individual PMF analyses, but it did not enhance the other OA factors due to instrumental specificities (i.e., different fragmentation patterns) leading to differences in OA mass spectra between the two instruments. Overall, this study argues for careful inspection of instrumental peculiarities in ACSM and AE33 data treatment and provides hints to benefit from their use at various locations at the city scale. It also allows comparison between different types of PMF analyses, showing that combined PMF may not be appropriate for improving the consistency of OA factors in some cases such as the one presented here.

1 Introduction

Air pollution influences climate change and induces adverse effects on human health, increasing disease and mortality rates (EEA, 2022). In particular, particulate matter such as those with an aerodynamic diameter smaller than 1 µm (PM₁) are inhaled and reach the deeper respiratory system, leading to a range of health problems including respiratory and cardiovascular disorders, disruptions in reproductive and central nervous functionalities, as well as the development of cancer (WHO, 2022; Duarte and Duarte, 2023). Identifying their chemical composition and main emission sources has become a priority for air quality (AQ) agencies to build up and assess efficient abatement strategies. Improving knowledge of their geographical origins is also a major challenge to better adapt local policies in a larger regional scale context.

In France, regional air quality monitoring networks (AQMN) and the national reference laboratory (termed “LCSQA”) are operating the CARA program for in situ observation of the PM chemical composition in urban environments and subsequent source apportionment studies (Favez et al., 2021). Chebaicheb et al. (2024a) recently analyzed and discussed long-term (>1 year) measurements of fine particles using online instruments at 13 CARA sites, providing PM₁ chemical composition, with annual mean loadings ranging from 7 to 16 µg m⁻³ in French urban background environments. This concentration range is relatively low compared to other cities outside Europe but still exceeds the World Health Organization (WHO) recommended annual concentration limit of 5 µg m⁻³ for PM_2.5. Organic aerosols (OA) represent a major fraction of the total PM₁ mass (40 %–60 %), a trend commonly observed worldwide (Bressi et al., 2021; Chen et al., 2022; Li et al., 2022; Via et al., 2021; Zhou et al., 2020).

Identifying the sources of the complex mix comprising the OA fraction is therefore crucial to develop effective mitigation strategies and improve AQ. Source apportionment (SA) approaches, including receptor models, have been widely used in urban AQ research during the last decades. In particular, Positive Matrix Factorization (PMF), as introduced by Paatero and Tapper (1994), stands out as one of the most extensively utilized tools (Hopke et al., 2020). PMF can be applied to various types of datasets, typically obtained from offline chemical analyses of filter samples or from online characterization of the aerosol chemistry and/or physical properties. Knowledge of OA chemistry and sources has greatly benefited from the development of aerosol mass spectrometry and subsequent application of PMF-type analysis to organic mass spectra since the mid-2000s (Crippa et al., 2013). This commonly allows to feature different families of organic compounds originating from primary emissions – typically, biomass burning OA (BBOA), hydrocarbon-like OA (HOA), cooking-like OA (COA) – or from various oxidation processes, e.g., leading to less- or more-oxidized oxygenated OA (LO-OOA and MO-OOA, respectively). Chen et al. (2022) recently proposed and applied a common protocol for advanced PMF analysis on unit-mass resolution (UMR) organic mass spectra obtained from long-term measurements at 22 European sites. This protocol is based on the use of the multi-linear engine (ME-2), allowing to introduce a priori knowledge (or assumption) on the mass spectral fingerprint of some OA factors to facilitate the comparison of SA outputs obtained at different locations. Such a standard methodology might also be of particular interest when conducting a SA study at the city scale to estimate increments due to local emissions on top of regional and/or urban background air pollution. Furthermore, previous studies also proposed to combine neighboring sites on a unique PMF analysis, in order to reinforce the consistency of the comparison of SA results obtained for each site. Such a multisite PMF analysis is considered to potentially improve the outputs' robustness, enhancing the variability in the resulting input dataset when using larger dataset than individual PMF (e.g., Pandolfi et al., 2020). To our knowledge, such a combined approach has been only applied to filter-based offline measurements, and not to aerosol mass spectrometry datasets.

In a previous paper, Chatain et al. (2021) compared the particle size distribution and aerosol concentrations between an urban background site and a roadside site during winter 2019/2020 in Strasbourg, France, showing higher particle number concentrations and particles smaller than 100 nm at the latter site compared to the former throughout the observation period. This measurement campaign also included simultaneous monitoring of black carbon (BC) and non-refractory submicron chemical species (NR-PM₁) at both sites, allowing for the investigation of major factors contributing to fine aerosols. In this context, this manuscript focuses on a SA study to analyze the main origins of carbonaceous species at two nearby sites located 2.5 km apart in Strasbourg. In order to compare the PMF results obtained for OA between these neighboring sites, a two-fold approach was undertaken. Initially, a standard PMF analysis was conducted independently for each site but in a harmonized way (i.e. using the same constraints and criteria). Subsequently, considering the geographical proximity of the sites, a combined PMF analysis was also carried out. Thus, the present study notably assesses the reliability and consistency of the results obtained from the individual PMF outputs compared with the combined ones. This comparative assessment also aims at discerning the main sources of pollution at these closely related sites.

Figure 1 Location of the two sites: Strasbourg Danube, and Strasbourg Clemenceau.

2 Methodology

2.1 Sampling sites

The city of Strasbourg is located at the edge of North-Eastern France, connecting with Germany, along the river Rhine. It is part of the most populous urban area in France and the largest on a regional scale. It is highly urbanized and crossed by several major roads, including the north-south axis (A35-A4 motorway) and the east-west axis (Rhine Avenue). Residential and commercial areas are adjacent to major industrial areas to the east and south, and the entire urban area is surrounded by agricultural land.

Despite significant improvements in AQ in recent decades, Strasbourg still experiences more than ten days per year with PM₁₀ levels exceeding the daily limit value of 50 µg m⁻³ set by the European Directive 2008/50/CE. In addition, in 2022, 100 % of the population lived in an area exceeding the WHO guideline for the annual PM_2.5 average (ATMO Grand Est, 2023). Moreover, the city can be significantly influenced by air masses from central Europe under anticyclonic conditions, as already observed for other urban areas in northern France, such as Greater Paris (MEGAPOLI, e.g., Beekmann et al., 2015; Freutel et al., 2013) and Lille (Chebaicheb et al., 2023).

A detailed description of the two sites (background and roadside) investigated here can be found in Chatain et al. (2021). Briefly, both sites correspond to fixed stations operated by the ATMO Grand Est AASQA (http://www.atmo-grandest.eu, last access: 17 November 2025). The first one (called Danube) corresponds to an urban background station located southwest of the city center of Strasbourg (Fig. 1). This station was installed at the center of a recently built eco-district between a small canal (Bassin Dusuzeau) and the Rhine Avenue. The second site (called Clemenceau) corresponds to an urban roadside station located at the corner of an intersection between two major roads in the north of the city center of Strasbourg.

2.2 Measurements

All the measurements at both sites were carried out by ATMO Grand Est. These measurements include regulatory monitoring of PM using a fine dust aerosol spectrometer (FIDAS 200, Palas Gmbh) measuring the optical light scattering of singles particles, and demonstrated to be equivalent to the gravimetric reference method for PM₁₀ and PM_2.5 (NF EN 12341); as well as NO_x using the chemiluminescence method (APNA-370, Horiba) as recommended by the NF EN 14211 reference method.

During winter 2019/2020, the chemical composition of NR-PM₁ was investigated using two quadrupole ACSMs (Q-ACSM, Aerosol Chemical Speciation Monitor, Ng et al., 2011) concomitantly at the Danube and Clemenceau stations. In this instrument, atmospheric particles are sampled at a flow rate of 3 L min⁻¹ (sampling line OD =9.5 mm; ID =6.5 mm; 2.2 m long stainless tube) with a cut-off at 2.5 µm using a sampling head, then subsampled at a flow rate of around 85 cc min⁻¹ determined by a 100 µm critical aperture mounted at the instrument inlet equipped with PM₁ aerodynamic lens. The submicron particles are then focused by an aerodynamic lens system toward a tungsten vaporizer heated at 600 °C under vacuum. The non-refractory constituents of particles are vaporized and then electronically ionized (70 eV). The resulting fragments are separated by a quadrupole depending on their mass-to-charge ratio ($m/z$) operating in a scanning mode from $m/z=\mathrm{10}$ to 150. The signal intensity (in Amps) proportional to the total amount of ions hitting the detector (SEM: Secondary Electron Multiplier) for each $m/z$ is then used to obtain the raw mass spectra. The final concentrations of OA, nitrate (NO₃), sulfate (SO₄), ammonium (NH₄), and chloride (Cl) are obtained using a fragmentation table (Allan et al., 2004). Roughly, inorganic compounds are first quantified based on their fragmentation patterns, and the remaining signal at each $m/z$ is attributed to organic fragments, forming the measured organic fraction. The resulting OA mass spectra can then be used as an input matrix, along with its corresponding uncertainties matrix, for PMF analysis. A critical point for the calculation of the species mass concentrations is the determination of their ionization efficiencies. This is basically done by taking nitrate as the reference (since it has a rather simple fragmentation pattern and few interferences at its specific $m/z$ fragments) and then measuring or assuming specific relative ionization efficiency (RIE) values relative to the NO₃ response factor (RF) for other species. In the present study, RF, RIE${}_{{\mathrm{NH}}_{\mathrm{4}}}$, and RIE${}_{{\mathrm{SO}}_{\mathrm{4}}}$ were determined by on-site calibrations during the measurement campaign, and the commonly-used default RIE values of 1.4 and 1.3 were used for OA and Cl, respectively, for both ACSM datasets. The ACSM species were corrected using composition-dependent collection efficiency (CDCE) correction, by applying the Middlebrook algorithm (Middlebrook et al., 2011), with a minimum CE of 0.5.

It is also worth noting that the two ACSMs deployed here were previously compared (August–October 2019) at a suburban background station of a nearby city (Metz-Borny, France), showing very satisfactory agreement for NO₃ measurements (∼ 100 %) but substantial differences – of about 30 % at the highest concentration ranges – in OA (and SO₄) measurements (Fig. S1 in the Supplement). These differences did not appear to be influenced by discrepancies in relative ion transmission (RIT) as the corresponding correction curves, based on the naphthalene internal standard fingerprint, behaved as generally expected for ACSM devices (Fig. S2), and the highest differences were already observed at the lowest $m/z$ (Fig. S3). They are also unlikely to be related to differences in RIE since both instruments were sampling the same ambient air and IE values led to a satisfactory agreement for nitrate measurements (slope: 1.05; r²=0.96, Fig. S1), except if the variations of organic RIE with the aerosol oxidation state (Katz et al., 2021; Nault et al., 2023; Xu et al., 2018) might also be instrument-specific. As a matter of fact, the few $m/z$ ratios showing the highest concentrations for the under-estimating instrument – which was further installed at the Clemenceau station during the wintertime Strasbourg campaign – included $m/z$ commonly attributed to biomass burning OA (in particular $m/z$ 60 and 73, see Fig. S3). It should also be noted that no Pieber-like artifact (Pieber et al., 2016) was observed during ammonium nitrate or ammonium sulfate calibrations. Moreover, the voltage applied to the vaporizers in both instruments was kept at the values determined for each of them by the manufacturer, theoretically ensuring a similar vaporizer temperature of about 600 °C in the two ACSM. In this context, besides any possible differences in lens transmission efficiencies, no other instrumental bias could be suspected to explain the discrepancies observed in OA measurements during this pre-campaign intercomparison exercise.

For the winter campaign, both Strasbourg sites were also equipped with a multi-wavelength Aethalometer (AE33, Magee Scientific), using a sampling head with a cut-off diameter of 2.5 µm at a flow rate of 5 L min⁻¹ (sampling line OD $=\mathrm{12}.$7 mm; ID =10.8 mm; 1.8 m long stainless tube and 2.5 m static dissipative tubing). A full description of the AE33 operating principles is given by Drinovec et al. (2015). Briefly, it is based on the measurement of optical attenuation in order to determine aerosol absorption coefficients (b_abs) at selected wavelengths. Aerosols are continuously sampled onto a filter tape, causing a decrease of light transmission through the sampled filter spot(s) which is compared to the light transmission through an unsampled area of the filter tape. In the AE33 model, optical measurements are conducted at seven optical wavelengths ranging from near-ultraviolet (UV) to near-infrared (IR) (370, 470, 525, 590, 660, 880, and 950 nm), and sampling artifacts known as filter-loading effect are corrected thanks to the dual-spot technology (Drinovec et al., 2015). By convention for multi-wavelength aethalometer, equivalent Black Carbon (eBC) is derived from measurements at 880 nm, assuming a mass absorption cross-section (MAC) value, such as:

$$\begin{array}{}\text{(1)}& \mathrm{eBC}=b_{\mathrm{abs},\mathrm{880}\mathrm{nm}}/{\mathrm{MAC}}_{\mathrm{880}\mathrm{nm}}\end{array}$$

In line with the current ACTRIS guidelines, b_abs,880 nm was obtained applying a filter type-dependent harmonization factor (1.76 for the MF8060 filter tape used here) to account for multiple scattering effects, and a MAC value of 7.5 m⁻² g⁻¹ at 880 nm was considered to estimate eBC concentrations (https://actris-ecac.eu/particle-light-absorption.html, last access: 17 November 2025).

All these measurements underwent regular quality checks, including calibration and preventive maintenance, following the manufacturer's recommendations, ACTRIS standard operating procedures, and guidelines provided by ACMCC (Aerosol Chemical Monitor Calibration Center) in the ACTRIS framework (Laj et al., 2024) and by the LCSQA at the national level. Quality control was routinely achieved following daily and weekly technical validation procedures, supplemented by a monthly environmental validation investigation. Finally, data handling procedures defined in Chebaicheb et al. (2024) data were applied to ACSM and AE33 datasets.

In addition, quartz fiber filters (TissuQuartz, Whatman, 47 mm diameter) pre-heated at 500 °C during 4 h and Leckel samplers (model SEQ 47/50) running at 2.3 m³ h⁻¹ were used to collect daily PM₁ samples simultaneously at both sites from 4 to 29 February 2020 for offline analyses of organic carbon (OC) and elemental carbon (EC) using a Sunset Lab instrument and following the EUSAAR-2 thermo-optical protocol (Cavalli et al., 2010). Daily mean values obtained for eBC and OA (from AE33 and ACSM, respectively) were then compared to EC and OC offline measurements, respectively. Results showed very good correlation coefficient values for both comparisons (r²>0.9, Fig. S5) with OA-to-OC ratios (about 1.4) in the lower range of what is commonly observed in urban environments (e.g., Aiken et al., 2008). This may be linked to the predominance of primary organic aerosols (from various combustion processes), which are less oxidized than secondary OA (SOA). This could also be partly related to possible OC overestimations due to positive sampling artifacts – e.g., adsorption of semi-volatile organic compounds onto the filter (e.g., Kim et al., 2001) – and/or OA underestimation from ACSM measurements, for instance due to poor lens transmission efficiency at the entrance of the ACSM for the finest and/or largest particles within the submicron aerosol fraction (e.g., Liu et al., 2007). Nevertheless, the consistency obtained for OA-to-OC ratio values with both ACSMs comforts the comparability of ACSM results.

The three measurement instruments, AE33, ACSM, and FIDAS are located in the same station and therefore in exactly the same place. Their sampling lines are separate but only a few meters apart, in accordance with national guidelines, and are set at the same sampling height. The ACSM and AE33 instruments were equipped with a dryer to maintain a relative humidity below 40 %.

2.3 eBC source apportionment

Following Sandradewi et al. (2008), multi-wavelength absorption measurements can be used to deconvolve eBC into two main fractions, classically identified as fossil fuel (eBC_ff) and wood burning (eBC_wb) components. To do so, it is assumed that the light absorption due to Brown Carbon (BrC) at near UV wavelengths in winter is primarily linked to wood-burning emissions, which has been recently documented by Zhang et al. (2020) at the national scale. More generally, the model allows distinguishing between highly efficient combustion processes (like traffic exhaust emissions) and poor combustion conditions.

This so-called Aethalometer model is based on the additivity of absorption coefficients from both of these source categories and on their own light absorption spectral fingerprints, such as:

$$\begin{array}{}\text{(2)}& {\displaystyle }{b}_{\mathrm{abs},\mathit{\lambda }}=b_{\mathrm{abs},\mathrm{ff},\mathit{\lambda }}+b_{\mathrm{abs},\mathrm{wb},\mathit{\lambda }}\text{(3)}& {\displaystyle }{b}_{\mathrm{abs},\mathrm{wb},\mathrm{470}\mathrm{nm}}/b_{\mathrm{abs},\mathrm{wb},\mathrm{950}\mathrm{nm}}=(\mathrm{470}/\mathrm{950}{)}_{\mathrm{wb}}^{-\mathit{\alpha }}\text{(4)}& {\displaystyle }{b}_{\mathrm{abs},\mathrm{ff},\mathrm{470}\mathrm{nm}}/b_{\mathrm{abs},\mathrm{ff},\mathrm{950}\mathrm{nm}}=(\mathrm{470}/\mathrm{950}{)}_{\mathrm{ff}}^{-\mathit{\alpha }}\end{array}$$

where α_ff and α_wb stand for the Absorption Ångström Exponent (AAE) of the fossil fuel and wood burning fractions, respectively. These parameters have initially been set to default values of 1 and 2, respectively (Sandradewi et al., 2008; Drinovec et al., 2015). However, further studies illustrated that the choice of these parameters is highly critical for the consistency of the Aethalometer model outputs so that site-specific values should preferably be determined (e.g., Favez et al., 2010; Zotter et al., 2017; Savadkoohi et al., 2023). Following Tobler et al. (2021), α_ff has been defined here as the first percentile of AAE values measured for ambient air particles during the campaign, applying a stringent data point selection based on the determination coefficient (r²>0.99) obtained from the fit of the b_abs spectral dependence (b_abs,λ vs. λ). Once α_ff was set for both sites (at 1.00 and 1.06 for Danube and Clemenceau, respectively), the optimal α_wb values could be investigated based on the results of a sensitivity study aiming at optimizing correlation coefficients between eBC_wb and $m/z$ 60 signal (commonly used as a biomass burning tracer) from ACSM measurements while keeping the correlation between eBC_ff and $m/z$ 60 as low as possible. On the other hand, the correlation between eBC_ff and NO concentration (considered as a proxy for road traffic exhaust emission) allows to determine the minimum α_wb. To be coherent, the correlation between NO and eBC_ff must be greater or at least equal to the correlation between NO and eBC_wb. Such a methodology is in line with recommendations also provided by Savadkoohi et al. (2025). This led to the determination of α_wb values of 1.6 and 1.7 for the Clemenceau and Danube sites, respectively, during the studied period (Fig. S7).

2.4 OA source apportionment

The data derived from the Q-ACSM at both sites were analyzed using the Aerodyne software “acsm local” version 6.37. Both OA concentrations matrices and their error matrices were exported to apply the PMF method using the Source Finder Pro software (SoFi Pro v8, Datalystica Ltd., Switzerland) with the ME-2 solver within the Igor Pro software environment (Wave Metrics, Inc., USA). Briefly, the PMF model allows for the separation of the measured organic concentrations matrix (x_ij) at a receptor site into organic mass spectra attributed to “sources” (profiles f_kj) and their contributions over time (time series g_ik), along with the residuals (e_ij), as described in Eq. (5):

$$\begin{array}{}\text{(5)}& x_{ij}={\sum }_{k=\mathrm{1}}^p{g}_{ik}\times f_{kj}+e_{ij}\end{array}$$

The objective is to find the number of factors “p” while minimizing a quantity Q defined as the sum of the squares of the residuals (e_ij) on the measurement uncertainties (σ_ij):

$$\begin{array}{}\text{(6)}& Q={\sum }_{i=\mathrm{1}}^n{\sum }_{j=\mathrm{1}}^m(e_{ij}/{\mathit{\sigma }}_{ij}{)}^{\mathrm{2}}\end{array}$$

The SoFi Pro software allows the use of the a-value approach to overcome the rotational ambiguity caused by the application of PMF. This approach helps constrain known factor profiles or time series at the site, using a scalar a-value varying from 0 to 1, as defined in these equations:

$$\begin{array}{}\text{(7)}& {\displaystyle }{f}_{\mathrm{solution}}=f_{\mathrm{reference}}(\mathrm{1}\pm a)\text{(8)}& {\displaystyle }{g}_{\mathrm{solution}}=g_{\mathrm{reference}}(\mathrm{1}\pm a)\end{array}$$

The PMF solutions are then evaluated using the bootstrap technique which allows estimating the uncertainties of the study.

A standard PMF analysis was first performed for each site during winter 2019/2020 (December, January, February; DJF), as detailed in the Supplement, Sect. S1. Briefly, unconstrained PMF was initially applied to pre-determine the potential number of factors (2–8 factor tests with ten PMF runs for each number of factors), allowing to identify five main OA factors at each site, namely one oxygenated (OOA) and four primary OA factors (hydrocarbon-like OA (HOA), cooking-like factor (COA), biomass burning OA (BBOA), as well as a specific 58-related OA). Then, a constrained PMF was conducted using the reference profiles from Crippa et al. (2013) for HOA and COA, which allowed us to obtain BBOA and 58-OA factors for each site without constraining them. After establishing a reasonable PMF solution for both sites, we applied the bootstrap analysis to test the stability of the solutions. The average bootstrapped solutions obtained at both sites are presented and discussed in Sect. 3.

An interesting experimental issue is the effect of possible instrumental biases – e.g., as described by Pieber et al. (2016) – on the obtained SA results. From the comparison of PMF analyses performed on datasets simultaneously obtained for 14 different ACSMs, Fröhlich et al. (2015) demonstrated that relatively important discrepancies in the OA mass spectra do not necessarily lead to significant differences in the PMF results from one instrument to another. An open question remains on the effect of mixing mass spectra datasets from two (or more) distinct ACSMs in a single input PMF matrix. Such multisite PMF studies have been recently introduced for the combined analysis of filter-based chemical speciation datasets, which can be obtained from offline analyses using the same laboratory equipment (e.g., Mooibroek et al., 2011, 2016; Pandolfi et al., 2020), but have rarely, if not never, been presented yet for online ACSM (or AMS) measurements. Considering the unexplained differences in mass spectral fingerprints observed from co-located measurements during the preliminary intercomparison campaign in Metz (see above), it appeared of particular interest to test here such a multisite approach combining OA measurements at both nearby Strasbourg sites in a single PMF input matrix, also verifying the robustness and accuracy of the individual PMF solutions. This combined PMF consisted of merging the two concentration and error matrices from the two sites vertically with the same number of variables ($m/z$ up to 100) and averaging the two-time series over 30 min. As for standard independent PMF analyses, the HOA and COA factors were constrained using Crippa's reference mass spectra. Bootstrap analysis and selection criteria were then applied to obtain the final solution as presented in Sect. S2.

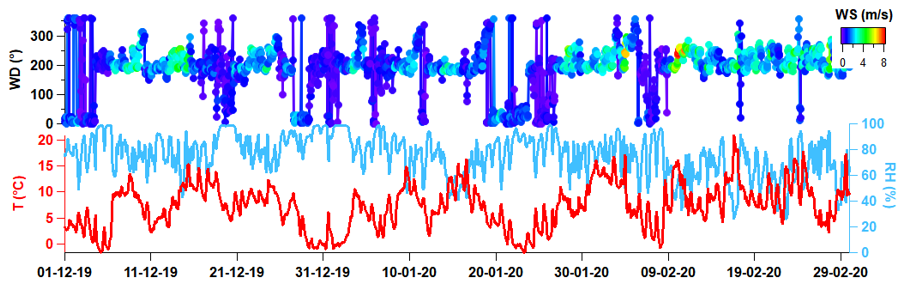

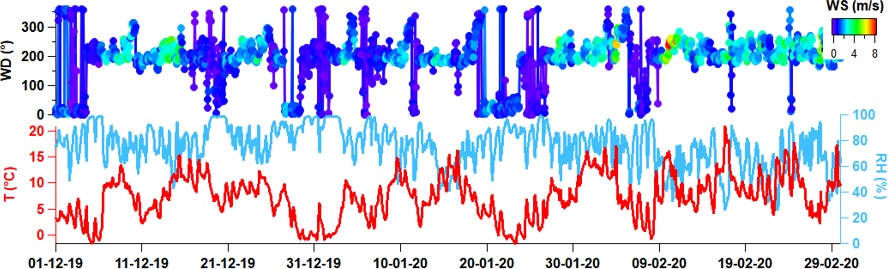

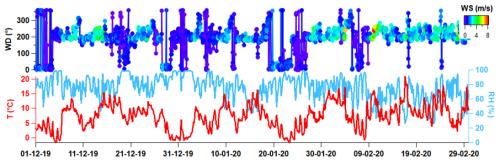

Figure 2 Meteorological parameters in Strasbourg during winter 2019/2020.

2.5 Meteorological data and wind analysis

Meteorological parameters have been measured at a background site located a few kilometers northwest of the study sites. Temperature (T) and relative humidity (RH) were measured by dedicated probes (HMP Vaisala model) and wind data (speed, WS; and direction, WD) by a wind vane (TAVID Chauvin Arnoux model). As presented in Fig. 2, the investigated period was dominated by south-western and relatively warm (5–10 °C) air masses, except during relatively short colder periods (e.g., around New Year and 22 January) with northern winds.

In order to understand the origin of air pollutants, wind and trajectory analyses were conducted, coupling pollutant concentrations with meteorological parameters (wind speed and direction) by computing the Non-parametric Wind Regression (NWR) model using the Zefir tool (Petit et al., 2017), also allowing to qualitatively differentiate between local and regional eBC and OA origins according to wind speed.

3 Chemical composition

Online chemical measurements could be validated by comparison with co-located regulatory PM_2.5 measurements. In this chemical mass closure exercise, NR-PM₁ is first calculated as the sum of the five chemical species from ACSM: OA, NO₃, SO₄, NH₄, and Cl. The PM₁ concentration is then approximated by adding eBC to NR-PM₁ and further compared with the mass concentration of PM_2.5 measured by the FIDAS instrument at both sites. Results indicate that ACSM and AE33 measurements together account for 62 % and 75 % of PM_2.5, with coefficients of determination (r²) equal to 0.90 and 0.87 for the Danube and Clemenceau sites, respectively (Fig. S8).

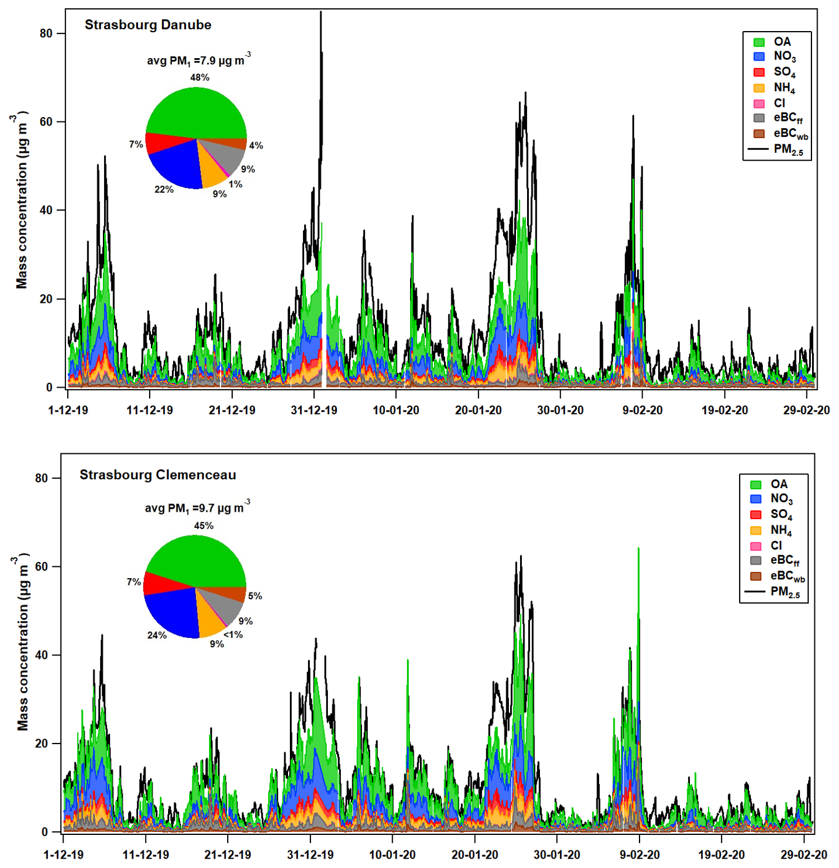

Figure 3 PM₁ species at the Danube (top) and Clemenceau (bottom) sites during the studied period.

Figure 3 displays the mass concentrations of PM₁ species and the average contribution of eBC, NR-PM₁ species, and PM_2.5 during winter 2019/2020 at the Danube and Clemenceau sites. OA dominates the average PM₁ chemical composition with 48 % and 45 % at the urban background and traffic sites, respectively, as already observed in previous studies in winter at the national scale in the Paris region (44 %), Lille (37 %) and Dunkirk (34 %) (Chebaicheb et al., 2024, 2023; Favez et al., 2021; Zhang et al., 2021; Petit et al., 2014). Secondary inorganic species (NO₃, SO₄, and NH₄) also contribute significantly, accounting for around 40 % of PM₁ total mass, mainly from NO₃ (22 %–24 %). These observations are consistent with the regional formation of ammonium nitrate (NH₄NO₃; AN), which is greater than ammonium sulfate ((NH₄)₂SO₄; AS). NH₃, considered as mainly emitted by agricultural activities, is expected to react preferentially with sulfur compounds (mainly sulfuric acid (H₂SO₄) formed from sulfur dioxide (SO₂)). However, regional SO₂ concentrations have been extremely low since the late 2010s (below 1 µg m⁻³ since 2016 at regional background sites). Therefore, AS is mainly derived from long-range transport in urban areas, and the remaining NH₃ is available to react with NO_x present, notably to form AN locally. However, the balance of AN formation also depends on meteorological conditions (low temperatures, high relative humidity, high pressure), leading to higher AN concentrations in winter/early spring when these meteorological conditions are met simultaneously with higher local NH₃ emissions. Previous studies conducted in this part of Europe, e.g., in Greater Paris (Zhang et al., 2019; Petit et al., 2014) or in the Lille metropolitan area (Chebaicheb et al., 2023) also highlighted the high contribution of organics and nitrate in PM₁ particles, as well as the high impact of transboundary pollution advection from Eastern Europe in northern France for particulate matter (Waked et al., 2018; Potier et al., 2019).

Both sites showed a similar high temporal variation, with PM₁ ranging from a few µg m⁻³ to over 40 µg m⁻³ at the Danube site and over 60 µg m⁻³ at the Clemenceau site. The coincidence of the peaks at both sites results from the strong influence of atmospheric conditions and common local sources. The accumulation of local primary particles is expected during the coldest periods associated with low wind speed. New Year's event is one of the peaks associated with elevated levels due to these stable atmospheric conditions, combined with the use of fireworks and firecrackers. In particular, some hours at the Danube site have been invalidated due to the negative chlorine levels attributed to these particular sources, which emit chlorinated species that may be poorly and/or slowly vaporized and not accounted for in the fragmentation table (such as chlorates, perchlorates) (Schmid et al., 2014).

The average mass concentrations of NR-PM₁ species and eBC presented in Table 1 showed only slight differences between the two sites, with overall higher levels at the Clemenceau site. This could be attributed to the proximity of primary exhaust and non-exhaust emissions from road traffic as well as more intense condensation and coagulation processes. It should also be noted that the environment of the Clemenceau station is more urbanized (city center) compared to the Danube site, which may also partly explain these observations. OA is associated with the highest concentrations at both sites – with values of 3.98 and 4.3 µg m⁻³ at the Danube and Clemenceau sites, respectively – reinforcing the interest in the apportionment of its main sources. The second main compound at both sites was nitrate, with concentrations about 20 % higher at Clemenceau compared to Danube. The differences in sulfate and eBC_ff concentrations are about 15 % on average (with the highest concentrations still observed at Clemenceau). Complementarily, results from offline analyses performed on filters collected in February 2020 indicate slightly higher concentrations for Clemenceau (Table 1). Surprisingly, however, filter-based levoglucosan analyses indicate similar concentration levels at both sites while eBC_wb appears to be about 40 % higher at Clemenceau, and the comparison of OA mass spectra averaged over the study period also indicates significantly higher signals for the highest $m/z$'s, including common wood-burning tracers (see Fig. S3), at Clemenceau.

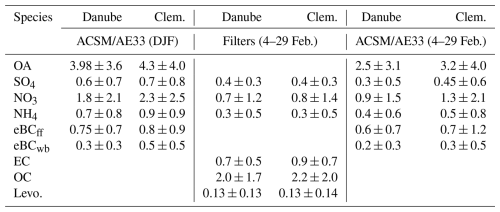

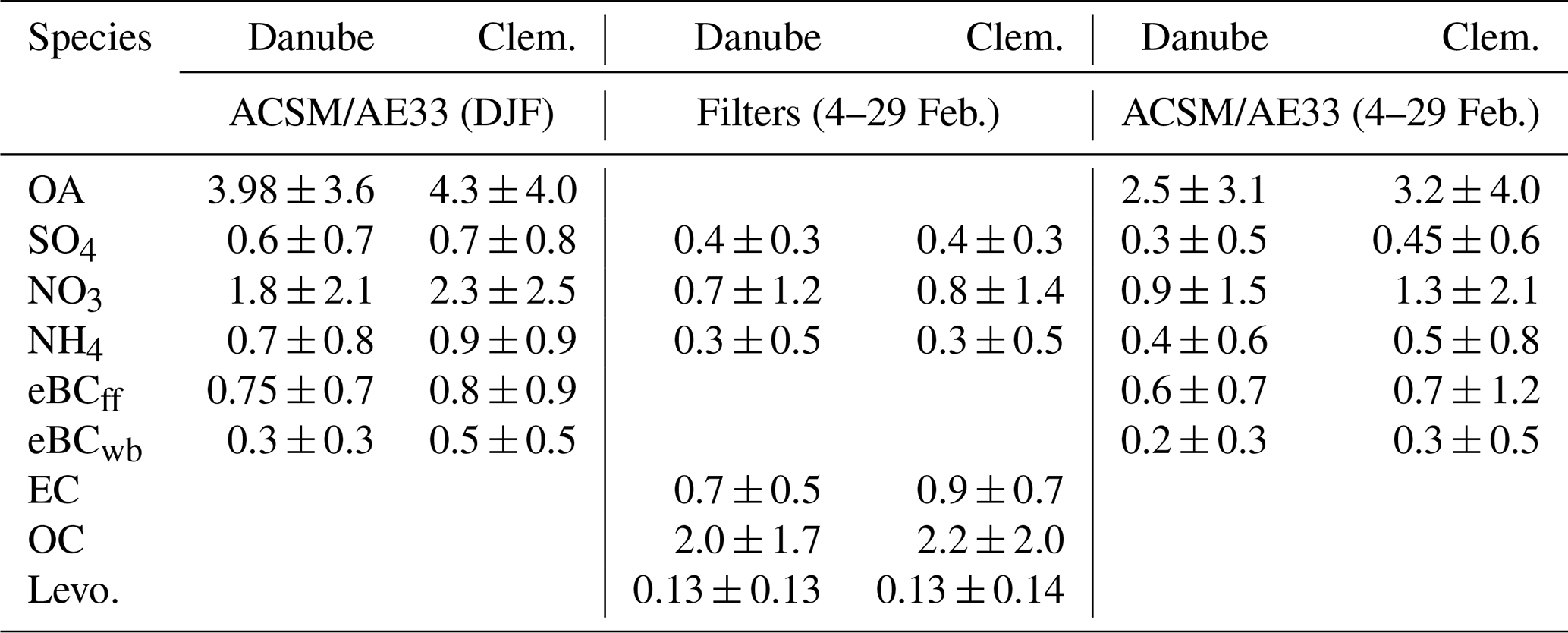

Table 1 Average (± standard deviation) mass concentrations of PM₁ species (in µg m⁻³) at both Strasbourg sites during the studied period.

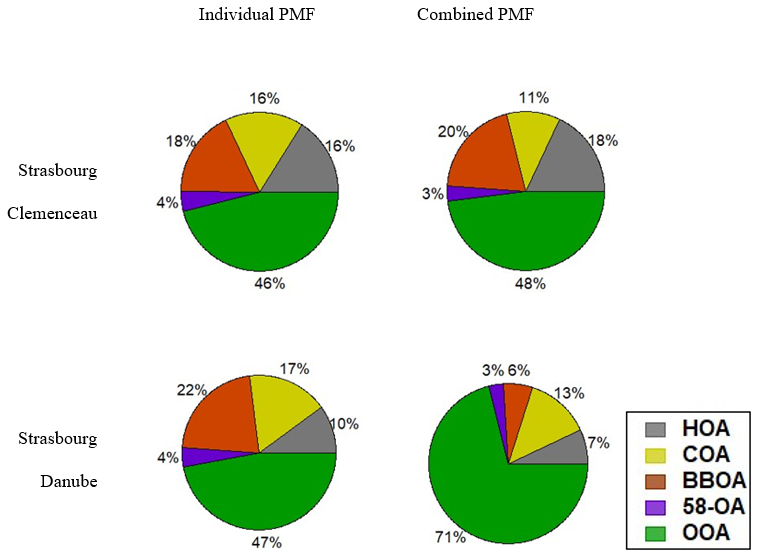

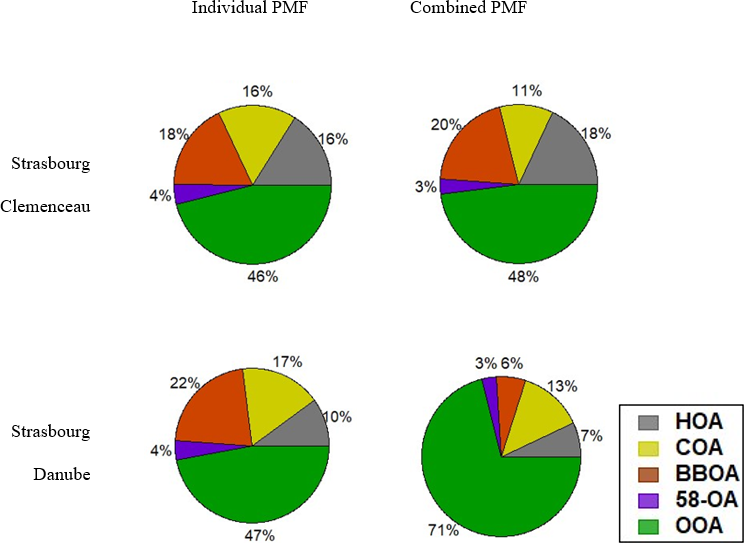

Figure 4 Contributions of OA factors at both sites from individual and combined PMF.

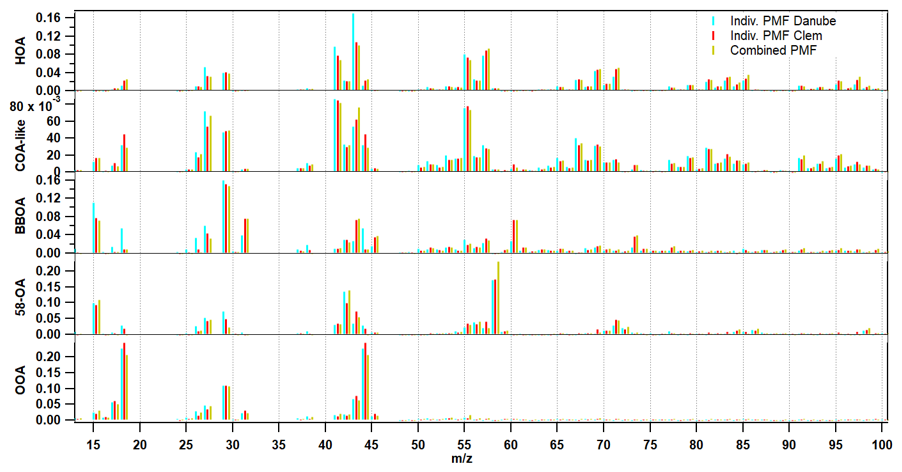

Figure 5 Mass spectra of OA factors from individual and combined PMF for both sites.

4 OA source apportionment

Figures 4 and 5 summarize the results of the individual and combined PMF analyses for the two sites, respectively, showing the relative contributions of each identified OA factor and their corresponding mass spectra. These results are described in the following paragraphs, according to their nature.

4.1 Amine-related OA

A noticeable result of the present study is the identification of a specific amine-related OA factor that was observed at both sites. This unusual factor is characterized by a high proportion of $m/z$ 58 (mainly C₃H₈N⁺), with a contribution of about 4 % of the total OA mass. It was observed in both unconstrained and constrained PMF analyses and regardless of the number of factors or specific runs, the unconstrained PMF consistently revealed this factor among the 4-factor (or more) solutions. It showed a relatively stable profile across different PMF runs with high contributions from $m/z$ 58 and 42 (C₂H₄N⁺). The time series for this factor at both sites show a highly variable temporal pattern with rather sporadic and intense peaks. The diel profile for this factor is not fully flat, displaying a slight peak in the morning and increasing towards the end of the day. However, associating this diel profile with a specific source proved to be challenging. Numerous tests were carried out in other seasons for continued measurements performed at the Danube site after the winter campaign presented in this paper. The 58-OA factor also emerged during a single study conducted in the summer, suggesting that it is not exclusively associated with winter sources.

The average mass spectrum for this factor differs from the few $m/z$ 58-rich factors observed in previous studies based on AMS or ACSM measurements (Hildebrandt et al., 2011; Chen et al., 2021), where this factor was more likely associated with an instrument artifact. In particular, we observe high peaks for $m/z$ 58 and 42, rather than the higher masses ($m/z$ 84 and 98) observed in these previous studies. Furthermore, this factor does not appear when analyzing the Metz (pre-campaign) data with the same two instruments. This suggests that the factor is more closely related to local sources in Strasbourg.

The pollution rose analysis at both Strasbourg sites shows a specific and localized direction associated with this amine-related OA factor (Fig. S18). The direction indicated an industrial area that could explain these specific particle emissions. A factor profile associated with amine-OA and a specific daily profile are consistent with an industrial source. This factor could therefore be associated with an industrial source of OA. Upon examining the emission inventory, we found a significant amount of particulate emissions linked to an industry zone, which aligns with the pollution roses. Although we found almost no info on the processes used in that type of industry, it seems polyamines are used in the production process of asphalt production as an example (as indicated in the Chinese patent, https://patents.google.com/patent/CN102604125B/en, last access: 17 November 2025).

4.2 Other POA factors

Besides this site-specific amine-related factor, the PMF analyses identified the three main POA factors commonly observed in such a source apportionment analysis at urban sites, namely HOA, BBOA, and a COA-like factor. For HOA, the mass spectrum fingerprint is characterized by a high contribution of hydrocarbon fragments $m/z$ 41, 43, 55, 57, 69, and 71, and its time series shows well-defined diel variations associated with morning and evening traffic peaks corresponding to home/work commutes. The BBOA factor is characterized by a high contribution at $m/z$ 29, 60, and 73 (tracers of biomass combustion) and by a diel variation showing an increase in the evening that extends into the night, associated with residential heating in winter. Some differences were observed between the BBOA profiles at the two sites. These differences can be explained by particle aging, especially with a higher $\mathrm{44}/\mathrm{60}$ ratio at the Danube site than at the Clemenceau site, indicating more oxidized particles from biomass burning at the Danube site. Compared to HOA and BBOA, COA profiles are usually characterized by higher peaks at $m/z$ 41 and 55, and by diel cycles showing midday (lunch) and evening (dinner) peaks associated with cooking activities. Such a clear diel profile could not be obtained for the Danube site, where it shows variations quite similar to those of BBOA, with a concentration maximum in the late evening. Therefore, we rather refer to this factor as COA-like.

For individual PMF outputs, HOA, BBOA, and COA-like contributed 16 %, 16 %, and 18 % of the organic matter, respectively, at the Clemenceau site. A lower HOA contribution (10 %) was observed for Danube, consistent with an increased influence of traffic at the Clemenceau site. The two primary factors HOA and BBOA showed a strong correlation with eBC_ff and eBC_wb (r² (HOA, eBC_ff)=0.81 and 0.73; and r² (BBOA, eBC_wb) =0.92 and 0.90 for the Clemenceau and Danube sites, respectively, Fig. S15). COA-like at the Danube site has a fairly similar contribution to COA-like at the Clemenceau site (about 17 %) but with a lower mass concentration of 0.6 µg m⁻³ compared to Clemenceau (0.9 µg m⁻³) which is closer to the city center. However, BBOA shows a higher contribution at the Danube site (22 % of the total OA mass) with a concentration of 0.8 µg m⁻³, close to that of Clemenceau which could be explained by the differences in the factor profile. A in comparison of $m/z$ 60 at Danube and Clemenceau (Fig. S16) shows an $m/z$ 60 signal twice as high at Clemenceau as at Danube.

The results of the combined PMF analysis may help to gain a deeper understanding of the variation of these POA factors between the two sites. Interestingly, the contributions obtained from the combined PMF differ from those obtained using the individual PMF for Danube, whereas only minor differences are obtained for Clemenceau, with slightly more HOA and BBOA and less COA-like at this site (Fig. 5). For the Danube site, however, the relative contributions and mass concentrations of these factors are significantly altered, especially for HOA and BBOA. The COA-like factor shows similar mass concentrations close to 0.6 µg m⁻³, representing 17 % and 13 % of the total mass for the individual and combined PMF, respectively. HOA also decreased slightly from 10 % to 7 % between the two PMF approaches. A strong decrease in BBOA is observed, from 22 % to 6 %, consistent with the $m/z$ 60 comparison showing less fresh BBOA at the Danube site. In fact, the BBOA profile for the combined PMF is more similar to the BBOA profile for the individual PMF at the Clemenceau site compared to the Danube site.

4.3 Oxygenated organic aerosols (OOA)

The obtained OOA mass spectra are consistent with those reported in the literature, associated with a stable diel variation, and characterized by a high contribution of $m/z$ 44 (Fig. S12). At both sites, the OOA factor showed similar profiles and diel variations. For the individual PMF, OOA dominated OA at both sites with a contribution of about 47 % but with different mass concentrations of 2.6 and 1.7 µg m⁻³ at the Clemenceau and Danube sites, respectively.

The combined PMF identified two OOA factors, named OOA1 and OOA2 (Sect. S2, Fig. S11). Because the two factors are correlated, we summed them together to obtain a single OOA factor (Fig. S13). At the Clemenceau site, the contribution of the OOA factor (48 %) is similar to the one obtained from the individual PMF, with a mass concentration of 2.8 µg m⁻³. At the Danube site, the contribution of the OOA factor strongly increased from 47 % for the individual PMF to 71 % for the combined one (Fig. 4), reaching a mass concentration of 2.6 µg m⁻³, close to that of the Clemenceau site. These combined PMF results provided further insight into this factor and demonstrated its regional origin. In Clemenceau, we observed a balance between primary and secondary OA factors, while for Danube, the combined PMF results indicated an average OOA contribution of about 70 % of the total OA.

5 Discussion and concluding remarks

The present study provides an opportunity to qualitatively assess the measurement consistency and results of carbonaceous aerosol source apportionment analyses conducted with the same type of instrument at two neighboring urban sites. The two ACSMs used in this study to characterize non-refractory submicron chemical species were first compared at the same location prior to the campaign. This side-by-side comparison showed a very good agreement for nitrate concentrations, confirming the consistency of the response factors obtained from the calibration of both ACSMs. However, significant discrepancies – of about 30 % – were obtained for OA (and sulfate) mass concentrations, and the comparison of OA mass spectra showed a surprising behavior with a few $m/z$'s (including $m/z$ 60 and 73, commonly used as biomass burning tracers) at higher levels in the instrument which presented overall lower loadings in total OA concentrations. Quality assurance and quality checks were performed according to the most advanced recommendations provided by the manufacturer and the scientific community, and no specific instrumental bias could be identified to explain these differences. Therefore, both ACSMs can be considered as running under their usual and proper operating conditions, with discrepancies mainly due to inherent technical specificities of each instrument. It should be noted that the two ACSMs do not have the same age or date of manufacture (the Clemenceau ACSM dates from 2014 and the Danube ACSM from 2018), which may influence the evolution of the instrument over time.

Once installed at their respective monitoring stations in Strasbourg, the ACSMs provided meaningful measurements of the submicron aerosol chemical species, with moderately higher concentrations at the Clemenceau traffic site compared to the urban background Danube station, which can be attributed to more intense primary emissions and/or transformation processes at the roadside. Filter-based offline measurements available for the last month of the campaign tend to confirm these observations, with slightly higher concentrations of major chemical species at Clemenceau. Results from individual PMF analyses also indicated higher HOA contributions for Clemenceau, in good agreement with moderately higher eBC_ff and EC concentrations at the same site compared to Danube. They also pointed to similar BBOA contributions at the two stations, in agreement with the comparison of filter-based levoglucosan measurements. Less expected is the significantly higher eBC_wb loading obtained from the application of the so-called Aethalometer model to AE33 measurements at both sites. This may be due to the choice of site-specific sets of AAE values (α_ff and α_wb) chosen to represent the two eBC subfractions at each monitoring site. This result confirms the high sensitivity of the Aethalometer model to the empirical assumptions to be made for its application. In particular, this may illustrate how cautiously it should be considered for any eBC source apportionment study at a traffic site (e.g., Savadkoohi et al., 2023).

The COA-like factor showed the expected peaks at lunch and dinner time for Clemenceau, but also a diel cycle relatively similar to BBOA (with no significant midday increase) for Danube, illustrating the difficulty in attributing a pure cooking origin to this factor. Interestingly, the results of the combined PMF analysis may improve the apportionment of these cooking emissions, reducing the COA-to-HOA ratio at night – especially for Clemenceau – compared to individual PMF outputs (Fig. S14). However, such a combined PMF analysis may not be suitable to improve the consistency of other OA factors, probably due to instrumental specificities leading to differences in the OA mass spectra obtained by the two instruments. More specifically, the OA profiles obtained by the combined PMF method exhibit a greater similarity to the profiles obtained by the individual PMF analysis at Clemenceau than to those obtained by the individual PMF analysis at Danube. As a result, there is a reduced contribution of $m/z$ 43 (associated with HOA) and $m/z$ 44 (associated with BBOA) at Danube when applying the combined PMF approach as opposed to the individual PMF analyses. This discrepancy leads to an underestimation of these factors (HOA and BBOA) and an overestimation of OOA at the Danube site when using the combined PMF method.

Finally, simultaneous ACSM measurements at these paired sites allow to confirm the existence and substantial influence of an amine-related OA factor in Strasbourg. This unique factor, characterized by a high proportion of $m/z$ 58, represents approximately 4 % of the total OA mass and is consistently observed in both PMF analyses. The diel profile of this factor shows peaks in the morning and late in the day, but its specific source remains challenging to identify. It differs from previously observed $m/z$ 58-rich factors, suggesting a distinct local source, possibly related to industrial emissions. Further investigation is needed to determine the exact source of this intriguing amine-related OA factor.

In summary, the comparison of different PMF methods carried out in this study highlights caveats and limitations inherent to such kind of SA approach First, the elucidation of OA sources based on factors derived from PMF should be interpreted with caution considering real-world . In addition, attention should be exercised when combining data from different measurement instruments, as they are not strictly identical in terms of sensitivity. However, positioning two instruments in the same location (or close to each other) can help to verify the presence of atypical or unique factors and explain discrepancies. These limitations introduce uncertainties in the apportionment of OA sources and in the consistency of factor interpretation. In order to improve the identification and interpretation of PMF factors, we propose the integration of complementary datasets (e.g., molecular tracers), which would provide additional constraints. Future work should include a focus on refined methodologies to better handle multi-instrument and multi-timescale datasets, and on the elaboration of standardized protocols for inter-instrument comparisons. Ultimately, improving these methods will lead to a better understanding of the sources, evolution, and role of OA in the atmosphere, which is crucial for accurately assessing their impacts on air quality, health, and climate.
