Ice-nucleating properties of glassy organic and organosulfate aerosol

The role of secondary organic aerosol (SOA) in atmospheric ice nucleation is not well understood, limiting accurate predictions of aerosol indirect effects in global climate simulations. This article details experiments performed to characterize the ice-nucleating properties of proxy SOA. Experimental techniques in conditioning aerosol to glass transition temperatures (T_g) as low as −70 °C using a pre-cooling unit are described. Ice nucleation measurements of proxy organosulfates (i.e., methyl, ethyl, and dodecyl sulfates) and citric acid were performed using the SPectrometer for ice nucleation (SPIN), operating at conditions relevant to upper-tropospheric cirrus temperatures (−45 °C, −40 °C, −35 °C) and ice saturation ratios ($\mathrm{1.0}<S_{\text{ice}}<\mathrm{1.6}$). Methyl, ethyl, and dodecyl sulfates did not nucleate ice, despite dodecyl sulfate possessing a T_g higher than ambient temperature. Citric acid nucleated ice heterogeneously at −45 and −40 °C ($\mathrm{1.2}<S_{\text{ice}}<\mathrm{1.4}$) but required pre-cooling temperatures of −70 °C, notably colder than the lowest published T_g. A kinetic flux model was used to numerically estimate water diffusion timescales to verify experimental observations and predict aerosol phase state. Diffusion modeling showed rapid liquefaction of glassy methyl and ethyl sulfates due to high hygroscopicity, preventing heterogeneous ice nucleation. The modeling results suggest that citric acid nucleated ice heterogeneously via deposition freezing or immersion freezing after surface liquefaction. We conclude that T_g alone is not sufficient for predicting heterogeneous ice formation for proxy SOA using the SPIN.

1 Introduction

Aerosol–cloud interactions have profound effects on Earth's climate by modifying cloud properties such as formation, lifetime, radiative forcing, and precipitation (Albrecht, 1989; Hansen et al., 1997; Twomey, 1974). However, these interactions remain a large uncertainty in predicting future climate change (Myhre et al., 2014). Atmospheric ice nucleation contributes significantly to this uncertainty due to indirect radiative effects such as mixed-phase cloud glaciation (Knopf and Alpert, 2023; Lohmann and Feichter, 2005) and cirrus cloud formation (Gasparini et al., 2018; Hartmann et al., 2001). Ice nucleation also contributes significantly to the hydrological cycle through efficient ice-initiated precipitation processes (Lau and Wu, 2003; Lohmann and Feichter, 2005). A more comprehensive understanding of atmospheric ice nucleation processes is critical in accurately estimating aerosol–cloud interactions and predicting their effects on the atmosphere and global climate.

Atmospheric ice formation occurs either homogeneously by spontaneously freezing solution droplets or heterogeneously by forming on ice-nucleating particles (INPs) (Koop et al., 2000; Pruppacher and Klett, 1997). Aerosol particles such as mineral dust fulfill one of the traditional requirements of INPs, specifically, insolubility (i.e., a solid surface; Pruppacher and Klett, 1997; Vali et al., 2015). Secondary organic aerosol (SOA), or compounds selected as representative proxies, has demonstrated heterogeneous ice nucleation despite many being water soluble (Baustian et al., 2013; Ignatius et al., 2015; Kasparoglu et al., 2022; Kilchhofer et al., 2021; Murray et al., 2010; Schill et al., 2014; Schill and Tolbert, 2013; Wagner et al., 2010, 2012; Wang et al., 2012; Wilson et al., 2012; Wolf et al., 2020). This discrepancy is best explained by variations in aerosol phase state, where SOA in the atmosphere can exist as semisolid or a glass (Zobrist et al., 2008). A glass is formally defined by having a viscosity equal to or higher than 10¹² Pa s, but in the absence of direct viscosity measurements (Grayson et al., 2016; Song et al., 2015) the glass transition temperature (T_g) can be used to estimate the transition from a semi-solid to solid/glassy phase state (Koop et al., 2011). Determining T_g of atmospheric SOA is non-trivial and parameters such as relative humidity (RH), mixing state, hygroscopicity, molar mass, and atomic oxygen-to-carbon (O : C) ratio have all been shown to affect T_g of complex aerosol mixtures (Derieux et al., 2017; Koop et al., 2011). These parameters also introduce complexity in experiments that control T_g as an experimental variable in ice nucleation studies, especially RH, a parameter difficult to measure at low temperatures.

Heterogeneous ice nucleation of SOA remains an active area of research (Knopf et al., 2018). Laboratory studies frequently conclude that semisolid or glassy SOA requires higher ice supersaturations to activate ice under cirrus conditions than mineral dust; i.e., they are comparatively poor INPs (Hoose and Möhler, 2012). Numerous studies have determined that SOA formed by the oxidation of select gas-phase precursors is homogeneous ice nuclei (Charnawskas et al., 2017; Ladino et al., 2014; Piedehierro et al., 2021; Prenni et al., 2009; Wagner et al., 2017), exhibiting onset conditions close to or above the homogeneous freezing threshold of aqueous droplets (Koop et al., 2000). A recent comprehensive study investigating the ice-nucleating properties of SOA formed from 11 biogenic precursors reached a similar conclusion (Kasparoglu et al., 2022) and recommended that both SOA and SOA-coated dust be treated as ice inactive entirely.

Despite SOA having lower ice-active fractions and apparent departure from the traditional insolubility requirement of INPs, aircraft measurements have reported tropical subvisible cirrus ice residuals (IRs) are predominantly sulfate-organic in composition (Froyd et al., 2010). Moreover, the sulfate component of the IRs was highly neutralized, likely present as ammonium sulfate. This can result in phase-separated particles, where ice formation is initiated by crystalline ammonium sulfate submerged in an aqueous organic layer or by the glassy organic shell itself (Schill et al., 2014; Schill and Tolbert, 2013). For the IRs studied by Froyd et al. (2010) there was no statistically significant evidence that sulfate-rich particles preferentially nucleated ice, suggesting the organic component must also be ice active. This study is not an isolated example; numerous single particle mass spectrometry (Cziczo et al., 2004; Murphy et al., 1998, 2006, 2007) and bulk chemical composition measurements (Jimenez et al., 2009) have frequently discovered an abundance of tropospheric aerosol is organic. Evidence of these particles participating in cirrus formation in the atmosphere is also well documented by sampling IRs (Cziczo et al., 2013; Cziczo and Froyd, 2014; Froyd et al., 2009). It remains unclear whether the higher number density of SOA compensates for their poor ice-nucleating efficiency.

Mechanistically, multiple modes of heterogeneous ice nucleation exist for SOA. For highly viscous or glassy particles, deposition nucleation in the “classical” sense (i.e., presumption that liquid water is absent) can occur directly via active sites on the particle surface, a mechanism unavailable for liquid particles. SOA can also undergo ice cloud processing or “freeze-drying” (Adler et al., 2013; Wagner et al., 2017), where SOA droplets first undergo homogeneous freezing, then sublimate. This process produces particles with a highly porous glassy surface structure, which has been observed to enhance heterogeneous ice nucleation (Wagner et al., 2012). Proposed mechanisms explaining this enhancement in ice nucleation ability can be broadly summarized by two effects: increased particle surface area and enabling of the two-step pore-condensation freezing (PCF) mechanism (Marcolli, 2014). In the case of increased particle surface area, the efficiency of the deposition freezing pathway would simply be amplified by more available activation sites. For the second effect, the porous particle surface would exhibit a similar morphology to particles known to activate via the PCF mechanisms such as mineral dust (Marcolli, 2014) or soot aggregates (Marcolli et al., 2021). In addition to the deposition and PCF freezing mechanisms, evidence of immersion freezing has also been observed for glassy SOA where water uptake proceeds ice formation (Baustian et al., 2013). Phase-separated organic-sulfate aerosol has also demonstrated immersion freezing, where water diffuses through the liquid organic shell to nucleate ice on crystalline ammonium sulfate “islands” within the simulated particle (Schill et al., 2014; Schill and Tolbert, 2013).

Experimental studies support the hypothesis that only SOA with a non-liquid phase state is heterogeneous INPs; however, much of the literature is limited to highly oxygenated model compounds used as proxy SOA such as citric acid (Kasparoglu et al., 2022; Murray et al., 2010), raffinose (Kilchhofer et al., 2021), or sucrose (Baustian et al., 2013). Studies of atmospherically relevant SOA are challenging as they require a combination of multidisciplinary laboratory techniques necessary to generate atmospherically relevant SOA from synthesized compounds or gas-phase precursors, constrain aerosol phase state, and measure ice nucleation properties.

The objectives of this study are as follows: (1) develop a pre-cooling technique to control the phase state of aerosol, (2) investigate the effects of different aerosol generation methods, (3) characterize the ice-nucleating properties of proxy SOA and proxy SOA constituents, and (4) use water diffusion modeling to evaluate our observations. Developing and characterizing this experimental framework is necessary for subsequent studies determining the ice-nucleating properties of more atmospherically relevant SOA. Citric acid has demonstrated the ability to nucleate ice heterogeneously (Kasparoglu et al., 2022; Murray et al., 2010) and therefore was selected as a control compound for these experiments to validate the pre-cooling technique. Additionally, methyl, ethyl, and dodecyl sulfate sodium salts were selected for investigation as proxy SOA constituents for organosulfates (OSs), a type of SOA generated via acid-driven multiphase chemistry (Iinuma et al., 2007b, a; Riva et al., 2015, 2016; Surratt et al., 2007, 2008; Lin et al., 2012) that has been identified as potential heterogeneous ice nuclei in ambient measurements (Wolf et al., 2020). Both methyl and ethyl sulfate have been observed in ambient aerosol (Hettiyadura et al., 2017, 2019) using hydrophilic interaction liquid chromatography with MS detection (Hettiyadura et al., 2015). Dodecyl sulfate has also been measured in ambient aerosols with possible formation processes linked to photochemical reactions of diesel fuel emissions with SO₂ (Blair et al., 2017). Previous studies have examined the hygroscopicity and cloud condensation nuclei (CCN) activity of these compounds as proxy OS (Estillore et al., 2016; Peng et al., 2021; Ruehl et al., 2010; Zhang et al., 2023); however, there is no literature describing their ice-nucleating properties.

2 Methods

2.1 Materials

For these experiments, we selected four commercially available compounds: (1) citric acid in both regular (≥99.5 %, 791725; Sigma-Aldrich) and anhydrous formulations (≥99 %, C0759; Sigma-Aldrich C0759), (2) methyl sulfate sodium salt (or methyl sulfate, ≥92 %, 318183; Sigma-Aldrich), (3) ethyl sulfate sodium salt (or ethyl sulfate, ≥98 %, 901275; Sigma-Aldrich), and (4) dodecyl sulfate sodium salt (or dodecyl sulfate, ≥95 %, Sigma-Aldrich 8.22050). Diluted methanol solutions (MeOH, ≥99.8 %, A412; Fisher Scientific) of the sodium salts were refrigerated until use. Additionally, control experiments included aqueous solutions of ammonium sulfate (AS, ≥99 %, A4915; Sigma-Aldrich) and ammonium bisulfate (ABS, ≥99.99 %, 455849; Sigma-Aldrich).

2.2 Experimental temperatures

A prerequisite for investigations of the ice-nucleating properties of SOA is determining the range of temperatures and RH conditions at which glassy conditions may be met. For the purposes of this study, a glassy phase state is inferred by observing heterogeneous ice nucleation and/or maintaining a combination of temperature and RH below the T_g of each compound. SOAs uptake water via hygroscopic growth under humid conditions, forming an organic–water mixture where water acts as a plasticizer (Koop et al., 2011). This water uptake due to RH effectively lowers the glass transition temperature of the pure “dry” organic (T_g,org) to that of the organic–water mixture T_g. The effect of RH on the T_g of SOA is explicitly defined using the Gordon–Taylor equation (Eq. 1), assuming the increase in humidity will form spherical aqueous solution droplets (Derieux et al., 2017; Gordon and Taylor, 1952; Koop et al., 2011):

$$\begin{array}{}\text{(1)}& T_{\mathrm{g}}\left(w_{\text{org}}\right)={\displaystyle \frac{(\mathrm{1}-w_{\text{org}})T_{\text{g,w}}+\frac{\mathrm{1}}{k_{\text{GT}}}{w}_{\text{org}}{T}_{\text{g,org}}}{(\mathrm{1}-w_{\text{org}})T_{\text{g,w}}+\frac{\mathrm{1}}{k_{\text{GT}}}{w}_{\text{org}}}},\end{array}$$

where T_g,w is the glass transition temperature of water, k_GT is the Gordon–Taylor constant, w_org is the organic mass fraction, and T_g,org is the dry glass transition temperature of the organic component (Table 1). T_g,w is defined as $-\mathrm{137.15}\pm \mathrm{2}\mathrm{°}\mathrm{C}$ (Kohl et al., 2005) with a constant value of k_GT=2.5 (Koop et al., 2011). To calculate w_org, the mass concentration of water ($m_{{\mathrm{H}}_{\mathrm{2}}\mathrm{O}}$) and organic particles (m_org) is combined as a ratio (Eq. 2):

$$\begin{array}{}\text{(2)}& w_{\text{org}}={\displaystyle \frac{m_{\text{org}}}{m_{\text{org}}+m_{{\mathrm{H}}_{\mathrm{2}}\mathrm{O}}}},\end{array}$$

with $m_{{\mathrm{H}}_{\mathrm{2}}\mathrm{O}}$ represented by a parameterization of hygroscopic growth (Eq. 3) (Derieux et al., 2017) using the hygroscopicity parameter (κ) (Petters and Kreidenweis, 2007):

$$\begin{array}{}\text{(3)}& m_{{\mathrm{H}}_{\mathrm{2}}\mathrm{O}}={\displaystyle \frac{\mathit{\kappa }{\mathit{\rho }}_{\mathrm{w}}{m}_{\text{org}}}{{\mathit{\rho }}_{\text{org}}\left(\frac{\mathrm{1}}{a_{\mathrm{w}}}-\mathrm{1}\right)}},\end{array}$$

where density of water (ρ_w) was defined as 1 gcm⁻³, ρ_org is 1.2 gcm⁻³, and a_w is the water activity. For calculations of w_org, the following hygroscopicity parameters (κ) were selected: methyl sulfate [0.459±0.021] (Peng et al., 2021); ethyl sulfate [0.397±0.01] (Peng et al., 2021); dodecyl sulfate [0.135±0.017] (Petters and Petters, 2016); and citric acid [0.233±0.035] (Rickards et al., 2013).

Table 1 Summary of citric acid experiments performed. Columns from left to right indicate the following: tested compound, generation method, glass transition temperature of the pure organic, PCU (pre-cooling unit) chamber temperature, class of activated particles by the SPIN OPC, activation onset ice supersaturation for either ice nucleation or droplet breakthrough, onset temperature for either ice nucleation or droplet breakthrough, PCU chamber RH, inlet of PCU RH, geometric mean diameter of size distribution, geometric standard deviation of size distribution, total particle concentration entering the SPIN, and total particle concentration measured by the CPC. See Table 2 for all tabulated results.

Modeled values of T_g,org for OS constituent proxies are calculated by their volatility (i.e., the saturation mass concentration), with semi-empirical fitting (Zhang et al., 2019). The vapor pressure is estimated from the melting and boiling temperatures (Myrdal and Yalkowsky, 1997). As boiling temperatures for the OS tested here are unknown, they were estimated using a group contribution model where each functional group in the compound possesses a group contribution value derived from fitting extensive experimental measurements of a large dataset of organic compounds (Ghasemitabar and Movagharnejad, 2016). For the selected compounds, we conducted experiments to simulate depositional ice nucleation relevant to upper-tropospheric cirrus cloud formation (−45 to −35 °C). Previous studies operated the SPectrometer for ice nucleation (SPIN) at similar temperatures and ice supersaturations (S_ice) ($T=-\mathrm{46}\mathrm{°}\mathrm{C}$; S_ice=1.3) to detect the ice nucleation of ambient isoprene SOA (Wolf et al., 2020).

2.3 Numerical diffusion modeling

Timescales of amorphous deliquescence (Mikhailov et al., 2009) were estimated using the kinetic multi-layer model of gas particle partitioning of aerosols and clouds (KM-GAP, Shiraiwa et al., 2012), generated with the kinetic multi-layer meta model generator (KM-MEMO, Berkemeier et al., 2020). In the model, particles and their surrounding gas phase are discretized into concentric and spherical gas, surface, and bulk layers. The model considers the relevant mass transport fluxes of water between these layers: gas diffusion, surface adsorption and desorption, surface-bulk transport, and bulk diffusion in the organic matrix. Diffusion of water between two bulk layers is calculated based on the water activity that corresponds to the average composition of the two layers. Layer numbers were increased until numerical convergence was achieved. The resulting system of ordinary differential equations was solved using MATLAB software (ode23tb). The model utilizes temperature- and humidity-dependent parameterizations for the bulk diffusion coefficient of water in the organic matrix. For citric acid solutions, we used a detailed parameterization of aqueous citric acid density and water diffusivity (Lienhard et al., 2014), whereas for organosulfates, we relied on the method by Berkemeier et al. (2014) to estimate diffusion coefficients based on glass transition temperatures and hygroscopicity parameters. The method modifies an existing Vogel–Fulcher–Tammann parameterization for the diffusivity of aqueous sucrose solutions at a given water activity (Zobrist et al., 2011) by changing the Vogel temperature to an estimate based on glass transition temperature.

The numerical model is set up to mimic the conditions in the SPIN chamber, which means that an individual model run is performed at constant temperature and RH. Particles entering the SPIN are assumed to be water-free, 0.225 µm in diameter, and glassy. For all four studied compounds, citric acid, methyl sulfate, ethyl sulfate, and dodecyl sulfate, we explore a large range of possible experimental conditions, characterized by temperatures between −65 and −25 °C (in increments of 0.5 K) and S_ice between 0.8 and 1.7 (in increments of 0.01).

2.4 Aerosol generation

OS proxies were atomized (Model 3076; TSI Inc., Shoreview, MN 3077) at a flow rate of 0.9 L min⁻¹ using compressed zero grade air (Indiana Oxygen, Lafayette, IN). Each OS was dissolved in MeOH at a mass concentration of $\mathrm{1}\mathrm{mg}/\mathrm{10}\mathrm{mL}$ to match the lowest solubility of methyl sulfate in MeOH. MeOH was selected as the atomizing solvent to minimize water content in aerosol, and, thus limiting any potential hydrolysis of the OS proxies examined (Darer et al., 2011). Directly following atomization, an Erlenmeyer vacuum flask was positioned to trap any condensed liquid. Atomization of control inorganic sulfates was performed in an identical manner but as aqueous solutions.

Citric acid aerosol was generated using two techniques: (1) by atomizing citric acid in water at a mass ratio of 3.75 mg$/$10 mL in an identical manner as for the OS proxies and (2) thermal generation. Thermal generation was selected as an alternative to atomization to minimize aerosol liquid water content; MeOH atomization is not compatible with citric acid due to potential esterification (Rissman et al., 2007). Thermal generation was achieved by heating 1 g of citric acid in a custom 1.27 cm outer diameter glass flow tube with an ultra-high-purity nitrogen carrier gas (UHP N₂, Indiana Oxygen, Lafayette, IN) at a flow rate of 0.1 L min⁻¹. Resistive heating tape was wrapped around the flow tube, with temperature controlled using a variable transformer (Type 3PN1010; Staco Energy Products) and monitored using a Type T thermocouple connected to a thermocouple calibrator (CL3512 A, Omega Engineering). Immediately following the heated flow tube, a 5 L glass volume was placed to allow particle formation and growth via nucleation, condensation, and coagulation. All other aspects of particle generation mirror the atomization technique as shown in Fig. 1.

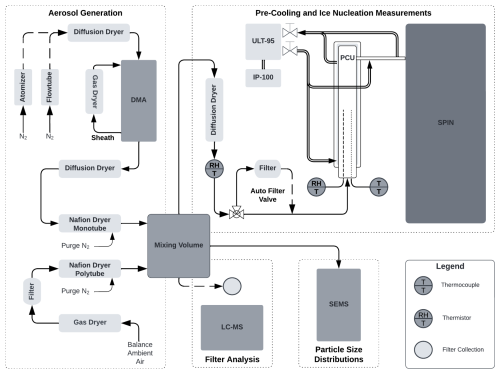

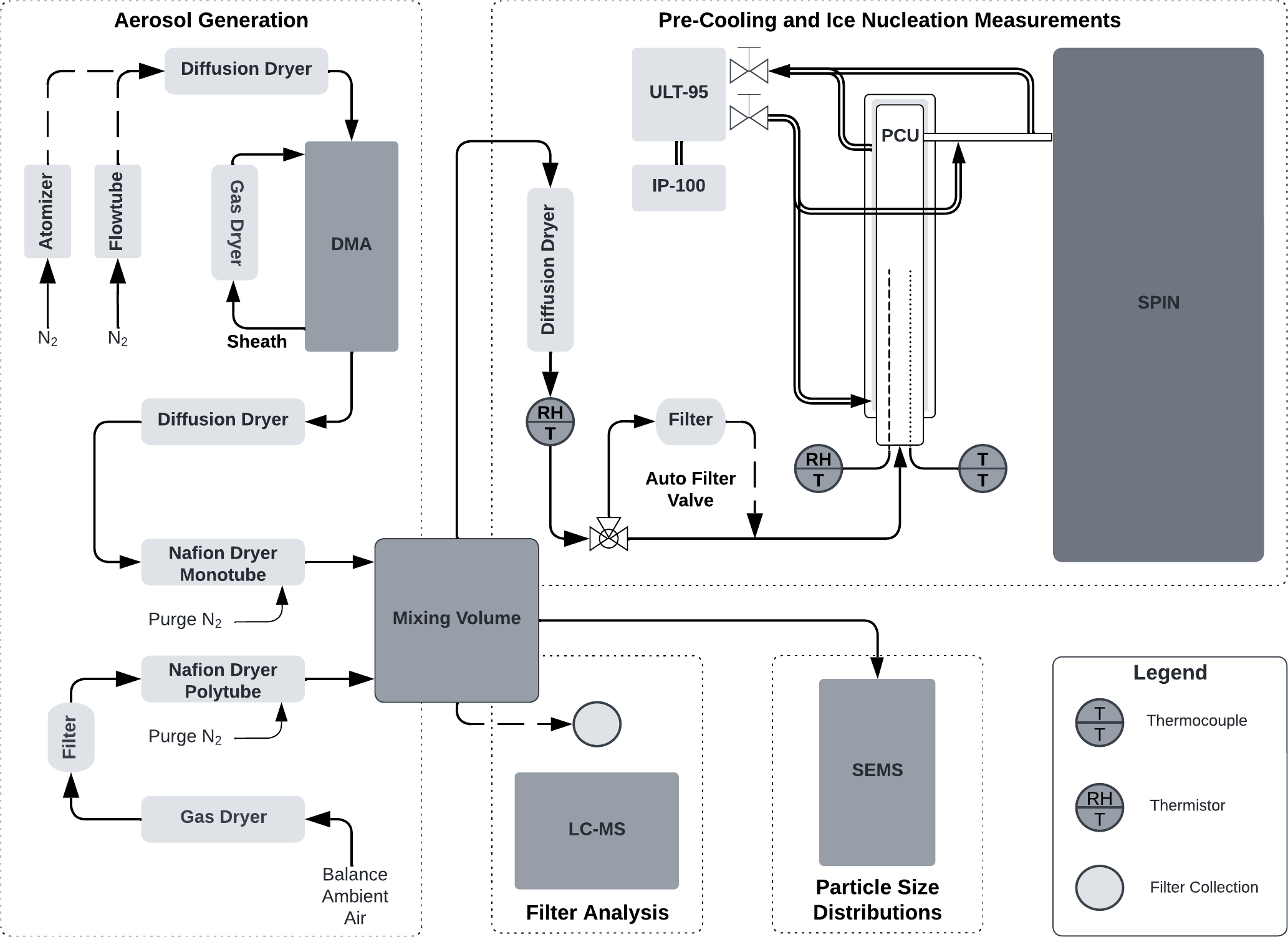

Figure 1 Experimental schematic summarizing aerosol generation, particle size measurements, pre-cooling, filter collection, and ice nucleation measurements. Alternate pathways for aerosol generation or filtering are denoted by a dashed line. See Methods section for full description of experimental design.

To the best of our knowledge, thermal nucleation of citric acid aerosol has not been performed extensively, and we find conflicting literature surrounding the thermal behavior of citric acid. Melting (T_m) and initial decomposition temperatures (T_d) using differential scanning calorimetry (heating rate of 5 °C min⁻¹) for fine particles have been reported as $T_{\mathrm{m}}=\mathrm{153}\pm \mathrm{0.2}\mathrm{°}\mathrm{C}$, T_d=168 °C (Barbooti and Al-Sammerrai, 1986) and $T_{\mathrm{m}}=\mathrm{160.8}\pm \mathrm{0.2}\mathrm{°}\mathrm{C}$, T_d=202.7 °C (Reid et al., 2018), respectively. This large difference in temperatures is further complicated by a reported slow thermal decomposition beginning at 148 °C (Barbooti and Al-Sammerrai, 1986). Initial experiments were conducted using a generating temperature of ∼160 °C with later experiments using temperatures below 148 °C to avoid any potential thermal decomposition.

For atomization techniques, polydisperse aerosol was dried using a desiccant diffusion dryer and immediately size-selected by a differential mobility analyzer (DMA, Model 3081A; TSI Inc., Shoreview, MN) to select 0.225 µm diameter aerosol particles operating at a 10:1 sheath to sample flow ratio. This electrical mobility mode was selected to minimize the transmission of doubly charged particles and maintain number concentrations of approximately 10⁴ cm⁻³. A desiccant gas dryer was connected to the sheath flow of the electrostatic classifier (Model 3082; TSI Inc., Shoreview, MN) and maintained a RH of 5 % throughout the entirety of each experiment. The monodisperse aerosol was then further dried using a diffusion dryer, followed by a Nafion™ dryer (Model MD-700-12S-3; Perma Pure LLC, Lakewood, NJ) operating at a nitrogen (3:1) purge to sample flow. Purge gas containing MeOH was disposed of in a desiccant gas dryer. For thermal generation techniques, all drying steps were identical; however, only polydisperse aerosol was sampled due to size selection irregularities (see Sect. 2.5). Immediately following all drying steps, aerosol was sampled into a 10 L mixing volume by each instrument to maintain stable concentrations throughout the experiment. Balance air provided with ambient air was dried using a desiccant gas dryer and Nafion™ dryer (Model PD-50T-12MSS; Perma Pure LLC, Lakewood, NJ).

2.5 Particle size distributions

A scanning electrical mobility sizer (SEMS, Model 2002; Brechtel Manufacturing Inc., Hayward, CA) determined particle size distributions in 60 s intervals throughout the duration of the experiment and was operated at a minimum sheath-to-flow ratio of 10. Sheath flow was dried using a desiccant gas dryer, and the resulting RH was less than 5 % for all experiments. Sample flow was 0.25–0.3 L min⁻¹. Total number density was calculated for each size distribution, and 1 Hz data points were interpolated through the experiment with a cubic spline using R software. Thermally generated citric acid aerosol exhibited irregular behavior when size selection was performed upstream, and we observed that the mode size was unstable due to static charging from the glass generation tube, varying by approximately 0.070 µm. Due to these problematic features, polydisperse thermally generated citric acid aerosol was used.

2.6 Pre-cooling unit (PCU)

We obtained sampling temperatures relevant to the T_g of our proxy SOA using a custom-built PCU (Fig. 1). The borosilicate chamber is a vacuum-jacketed flow tube ($\mathrm{1.8}\times {\mathrm{10}}^{-\mathrm{8}}\mathrm{Torr}$) with an interior volume of 1 L and KF50 glass flange for inlet connections. Prior to entering the chamber, aerosol pass through a diffusion dryer and an inline NTC (negative temperature coefficient) humidity temperature transducer (HTM2500LF, TE Connectivity). Temperature and RH measurements within the chamber were obtained using both a Type T thermocouple and an additional thermistor sealed into the PCU by a KF50 flange. Cooling was achieved with an ultra-low temperature recirculating chiller (Neslab ULT-95; Thermo Fisher). Supplemental cooling was provided by inserting a low-temperature rigid coil probe (IP-100; PolyScience, Niles, Illinois) into the recirculating bath volume of the Neslab ULT-95. We used a high-performance thermal transfer silicone polymer (Syltherm™ XLT, Dow Chemical) as the working coolant for the system. After exiting the chamber, insulated conductive tubing connecting to the SPIN was also cooled to the same PCU chamber temperature to prevent sample warming prior to ice nucleation experiments.

Calibrations of the PCU were performed with a simulated SPIN sample flow of 0.85 L min⁻¹ UHP N₂. The relationship between PCU temperature to chiller setpoint demonstrated a linear response. RH measurements are not included below a chamber temperature of −20 °C. Repeated calibration experiments of UHP N₂ indicate this temperature limit is a more conservative threshold for accurate RH measurements in comparison to the Manufacturer-specified limit of −40 °C. Manufacturer-specified uncertainties for low humidity applications (10 % or lower) are ±5 % and are consistent with UHP N₂ calibration. Uncertainty for the chamber Type T thermocouple is ±1 °C or ±0.75 %, whichever is greater. Sensors are interfaced using a microcontroller board (Arduino Mega), and data were retrieved using Python code with averaging performed at a sampling rate of 1 Hz.

2.7 Ice nucleation measurements

2.7.1 SPectrometer for ice nucleation (SPIN)

Ice nucleation activity of proxy SOA species was determined using the SPIN (Droplet Measurement Technologies, Longmont, CO). The SPIN is a continuous-flow diffusion chamber (CFDC) that uses two flat parallel plates 1 cm apart (Garimella et al., 2016; Rogers, 1988; Wolf et al., 2019, 2021). During operation, each plate is coated with approximately 0.1 mm of ice, with the temperature controlled by two independent refrigeration systems. Modifying the temperatures of each iced plate results in both a temperature gradient and a supersaturation gradient with respect to ice (Murphy and Koop, 2005). Aerosols are sampled into the chamber using a knife-edge inlet and constrained to a laminar jet between two sheath flows with a maintained sheath-to-sample ratio of approximately 9:1. This design enables the confinement of the aerosol within the lamina, allowing it to intersect a predetermined thermodynamic profile and simulate cloud conditions. Like other CFDC-style instruments, particles enter an isothermal evaporative segment immediately upon exiting the main chamber. In this evaporation section, the water vapor partial pressure is equivalent to the saturation vapor pressure over ice but subsaturated with respect to liquid, causing droplets to evaporate via the Bergeron–Wegener–Findeisen process (Pruppacher and Klett, 1997). Our experiments were conducted to simulate depositional ice nucleation relevant to upper-tropospheric cirrus cloud formation (−45, −40, −35 °C; $\mathrm{1.0}<S_{\text{ice}}<\mathrm{1.6}$). These values were selected so that conditions for water saturation, heterogeneous ice nucleation, and homogeneous ice nucleation of solution droplets could be observed. For each temperature, the lamina was kept isothermal throughout the chamber, and S_ice increased from ice saturation to 1.6 at a rate of 0.015 min⁻¹ for −45 °C and 0.024 min⁻¹; otherwise, S_ice then decreased at the same rate back to ice saturation for each lamina temperature.

An optical particle counter (OPC) collected the size (range of 0.5–15 µm), concentration, and scattering information on a particle-by-particle basis for aerosols exiting the droplet evaporation section of the SPIN chamber using four optical detectors (Garimella et al., 2016). Briefly, backscattering information is obtained using three detectors measuring the perpendicular (S₁) and parallel components (P₁ and P₂) of the polarized laser source. Backscattering optics for both S and P components have a detection angle of 135° and a half-angle of 20°. Particle sizing is achieved using a side-scatter detector, which measures the total scattering intensity. Particle size and concentration are recorded as both binned counts and, on a particle-by-particle basis, as log-normalized intensity of side scattered light, reported here log ₁₀(I_size). The intensity counts obtained by each backscattering detector are used to calculate a depolarization ratio for individual particles and allow classification between aspherical and spherical particles (Nichman et al., 2016; Zenker et al., 2017). This is achieved by dividing the average intensities of the S and P detectors for the SPIN (Eq. 4), and normalized with bounds 0 and 1,

$$\begin{array}{}\text{(4)}& {\mathit{\delta }}_{\text{SPIN}}={\displaystyle \frac{{\stackrel{\mathrm{‾}}{S}}_i}{{\stackrel{\mathrm{‾}}{P}}_i}}={\displaystyle \frac{\mathrm{2}{S}_{\mathrm{1}}}{P_{\mathrm{1}}+P_{\mathrm{2}}}}.\end{array}$$

Background frost released from the iced chamber walls was measured by sampling particle-free chamber air through an automatic filter valve upstream of the PCU. Frost counts were determined by summing particle counts larger than 2.5 µm for particle-free conditions and applying a 5 min smoothed linear interpolation across the experiment duration. To maintain conservative estimates of background frost, values were rounded up to the nearest whole number. Conversion to number density for all size data and background frost was performed using the volumetric chamber sample flow.

Accurate particle measurements assume that the sampled aerosol is constrained within the lamina; however, non-ideal “lamina spreading” has been observed with continuous-flow diffusion chambers such as the SPIN, where aerosol positions extend beyond the lamina (DeMott et al., 2015; Garimella et al., 2017, 2018). These aerosols experience supersaturations less than required for activation and inadvertently lower the activated number density. Correction factors (CFs) to the ice number density for the SPIN instrument range from 1.4–9.5 (Garimella et al., 2017). For this study, we applied a conservative CF of 1.4 to all of these particle data.

2.7.2 Particle classification and onset conditions

Traditionally, activated ice concentration for CFDC-style instruments is determined by applying an instrument-specific size threshold (e.g., 2.5–5 µm) on post-evaporative optical particle data (Rogers et al., 2001). This technique is primarily limited by a phenomenon called water droplet breakthrough (WDBT), where droplets beyond a critical size will not evaporate to sizes below the size threshold used in classification. As described in the previous section, depolarization can be used to distinguish between aspherical (ice-like) and spherical (droplet-like) particles to mitigate WDBT and improve particle classification. In this study, particles were classified using a supervised machine learning (ML) approach combining chamber and particle data on an experiment-by-experiment basis.

First, preliminary classification was performed on particle data using empirically determined optical classification parameters δ_SPIN and log ₁₀(I_size) (see Sect. 2.7.1), following a similar procedure conducted by Garimella et al. (2016). These parameters were determined using known ice-nucleating control compounds (AS and ABS) to generate five classes: aerosol, droplet, ice, water uptake, and unclassified. WDBT was observed for both AS and ABS at experimental temperatures of −35 °C. Homogeneous freezing of ABS aerosol corresponded to a distinct increase in δ_SPIN and plateaued above a δ_SPIN of 0.4. Heterogeneous freezing of AS coincided with a nearly identical profile of δ_SPIN. Unlike AS, ABS did not show ice formation below temperatures necessary for homogeneous freezing (i.e., −35 °C; see Sect. 3.1.1 for further detail). Droplet breakthrough of AS showed a distinct decrease in δ_SPIN as activated particles transitioned from the ice phase to droplets, with ABS shifting from a low δ_SPIN to about 0.2. Combining these observations, δ_SPIN values of 0.4 or 0.16 were used to first categorize the data into ice, droplet, or aerosol/water uptake classes, respectively (see Fig. 2). Aerosol/water uptake was grouped together on a δ_SPIN basis, but additional classification was performed using log ₁₀(I_size) and S_liq (see Table S1 in the Supplement). Water uptake was a particularly important class for all organic aerosol examined (see Sect. 3.3). Unclassified aerosol was defined by particles not meeting the δ_SPIN and log ₁₀(I_size) classification criteria for any class.

Figure 2 Optical scattering profiles obtained by the SPIN OPC for control experiments with 0.3 µm electrical mobility diameter ammonium sulfate (AS) panel (a) and ammonium bisulfate (ABS) panel (b) aerosol at three experiment lamina temperatures. The dashed blue line indicates water saturation, the dashed gray line indicates homogeneous freezing, and the dashed orange line also indicates homogeneous freezing (−40 and −45 °C, 0.3 µm diameter aqueous solution droplets; Koop et al., 2000) or water saturation (−35 °C). Shaded regions indicate the estimated phase of aerosol exiting the SPIN chamber.

Following preliminary classification, supervised machine learning (ML) using a support vector machine (SVM) classifier was applied using the classification and regression training (caret) R package (Kuhn, 2008). The procedure consisted of the following steps: (1) generating a subset of SPIN experiment data with known particle type, (2) data partitioning, (3) data pre-processing, (4) SVM classifier training and cross-validation, and (5) application of model to uncategorized data. First, a subset of SPIN data was generated, consisting of preliminary class (ice, droplet, and water uptake), thermocouple measurements, calculated lamina values, flow rates, OPC size distribution data, and OPC particle-by-particle scattering data. Data partitioning was then performed to obtain a randomized 80:20 training-to-testing ratio of this data subset. Next, pre-processing was performed using principal component analysis (PCA) for dimension reduction and to lower computational cost. Approximately 11 principal components were selected that explained 95 % of the variance for each dataset. A SVM classifier with a radial basis function kernel was then applied to the training data. The performance of the classifier was evaluated with k-fold cross-validation implemented with 10-fold and was repeated three times to check for overfitting. Model accuracy was evaluated against the testing dataset. Finally, the highest-performing model was applied to the original dataset to classify any uncategorized particles not captured by the preliminary classification described above. This classification technique was applied on an experiment-by-experiment basis; i.e., citric acid at a PCU temperature of −70 °C was run separately from citric acid at a PCU temperature of 20 °C.

Activated fractions were obtained by dividing the background-frost-corrected number density of particles classified as ice by the interpolated total number density entering the chamber. For experiments using polydisperse citric acid, particles smaller than 0.1 µm were omitted from the total number density calculation and treated as ice inactive (Vali, 1966). Ice activation onset conditions for each experiment were defined as the first temperature and S_ice combination where particle activation fraction exceeded 0.5 %.

3 Results

3.1 Control experiments

3.1.1 Sulfate salts

ABS demonstrated homogeneous ice nucleation within the homogeneous freezing regime (Cziczo and Abbatt, 2001; Koop et al., 2000). Additionally, crystalline AS nucleated ice heterogeneously (Abbatt et al., 2006), and homogeneous freezing was not observed for the S_ice and temperatures tested. For ABS aerosol, droplet breakthrough and homogeneous freezing were preceded by the onset of a feature classified as water uptake (see Table S2). In addition to the classification parameters described in Sect. 2.7.2, a distinct particle size increase from 0.3–1.5 µm for low S_ice (1–1.3) was observed. Ice activation onsets for ABS occurred at S_ice lower than the expected homogeneous freezing thresholds (see Fig. 2) due to a combination of measurement uncertainty in S_ice and neutralization of ABS to AS (Abbatt et al., 2006). This neutralization effect is particularly noticeable for post-calibration ABS measurements (see Table S2), where “aged” ABS (sampled several months later) resembled the ice onset conditions for crystalline AS.

3.1.2 Citric acid

Results for citric acid experiments are summarized in Table 1 and illustrated in Fig. 3. For both atomization (citric acid) and thermal generation (citric acid, anhydrous) techniques, heterogeneous ice nucleation was observed only at the lowest attainable PCU temperatures ($\sim -\mathrm{70}\mathrm{°}\mathrm{C}$) and required temperatures at or below −40 °C within the SPIN. Homogeneous freezing was not observed regardless of the generation technique or operating temperatures of the PCU. For experiments in which only droplet formation occurred, citric aerosol exhibited water uptake like ABS. Water uptake of citric acid generated via an atomizer exhibited a large variation in onset conditions with no discernible relationship. Notably, the onset of water uptake for anhydrous citric acid occurred at S_ice≈1 for all the SPIN temperatures examined (see Sect. 5.3 for interpretation of this result).

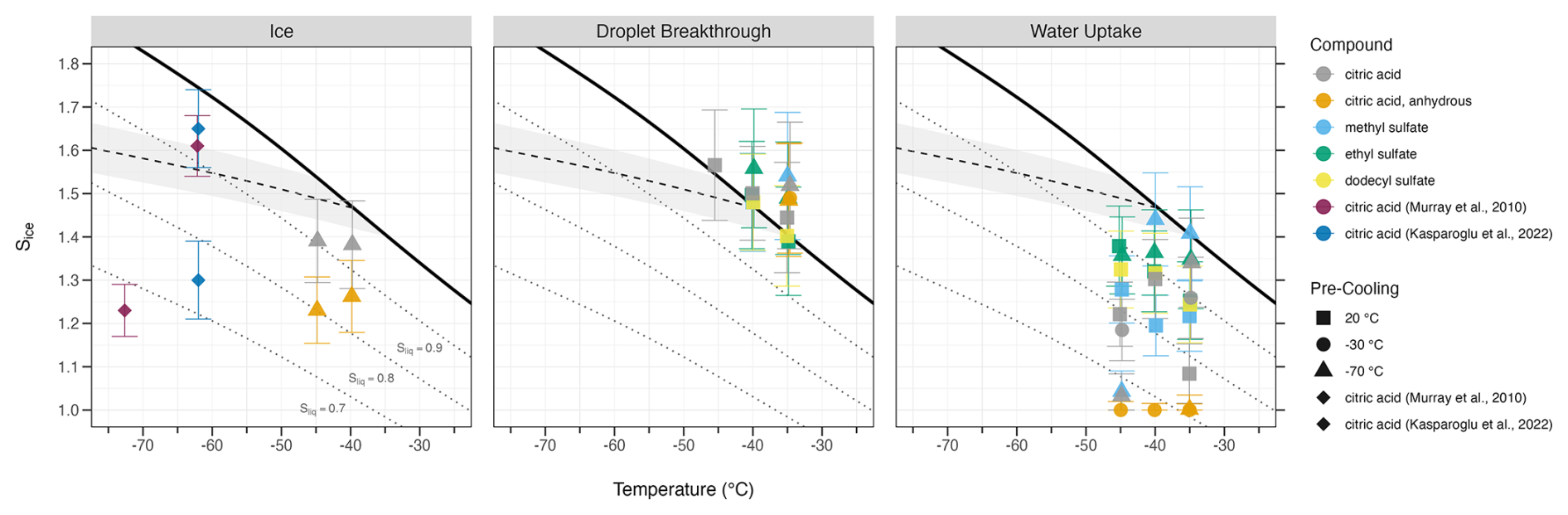

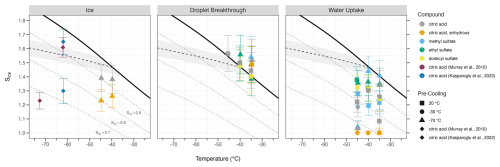

Figure 3 Thermodynamic onset conditions for ice, droplet breakthrough, and water uptake observed for all ice nucleation experiments conducted, including comparison to relevant literature. Shapes correspond to pre-cooling temperature setpoint or reported literature values. The dashed black line is the homogeneous freezing threshold of 0.1 µm diameter solution droplets (Koop et al., 2000), with shaded region indicating uncertainty in a_w of ±0.025 (Koop, 2004). The solid black line is water saturation, with dotted gray lines denoting equivalent lines of various liquid saturation ratios.

3.2 Organosulfate (OS) proxies

Model estimates of the T_g,org for methyl, ethyl, and dodecyl sulfates were $-\mathrm{83}\pm \mathrm{38}\mathrm{°}\mathrm{C}$, $-\mathrm{83}\pm \mathrm{34}\mathrm{°}\mathrm{C}$, and 73.85±13 °C, respectively. Heterogeneous ice nucleation was not observed for any commercial OS proxy compounds tested for any PCU operating conditions. Droplet formation occurred at or above water saturation for all experimental temperatures (see Table S2 for compilation of OS proxy results) with a notable absence of homogeneous freezing (see discussion for interpretation of this result). For all OS proxy compounds, particle size increased prior to water saturation with a distinct increase in δ_SPIN to 0.15, which was stable until droplet formation was observed. The onset of this water uptake required higher S_ice for low-temperature PCU operation ($\sim -\mathrm{70}\mathrm{°}\mathrm{C}$) and was observed for both methyl and ethyl sulfates at all experimental temperatures. Additionally, we found no evidence of any OS commercial standards being degraded by MeOH using RPLC/ESI-HR-QTOFMS analysis of filter samples (see Supplement for additional details).

3.3 Liquefaction timescales and ice nucleation regimes

For each of the resulting model runs (7371 iterations to encompass conditions in the SPIN chamber), we derive characteristic timescales for the partial and full liquefaction of particles from the full model output. We define the partial liquefaction of particles (see discussion for analysis in the context of hygroscopic growth onset) as the point where particle volume has increased by more than 5 % due to water uptake. Full liquefaction is defined as the point where no model layer can be characterized as glassy anymore due to water uptake; i.e., the composition-dependent glass transition temperatures (Eq. 1) of each model layer are reduced below the chamber temperature. Table 2 shows a subset of the timescales for full liquefaction for S_ice=1 and three different temperatures.

Table 2 Full liquefaction timescales (s) for selected temperatures and S_ice=1 are determined by the numerical diffusion model. Empty cells indicate that full liquefaction did not occur in the simulations (up to 1000 s of experiment time).

For each temperature, we interpolate the model results to find the ice supersaturations at which (i) the full liquefaction timescale coincides with a characteristic residence time in the chamber of 10 s and (ii) the partial liquefaction timescale coincides with a characteristic nucleation time of 0.1–1 s (Garimella et al., 2017). These sets of conditions represent the boundaries for three ice nucleation regimes (Berkemeier et al., 2014):

1. Deposition freezing. If the partial liquefaction timescale is above the characteristic residence time (i.e., 10 s), particles do not take up water in the SPIN and thus can only nucleate ice in the deposition freezing mode.

2. Homogeneous freezing. If the partial liquefaction timescale is below the characteristic nucleation time (i.e., 0.1–1 s), particles liquefy in the SPIN before heterogeneous freezing can occur and only nucleate ice in the homogeneous freezing mode.

3. Immersion freezing. Between these boundaries, particles spend considerable time exhibiting a core–shell morphology in the SPIN and thus may be able to nucleate ice in the immersion freezing mode.

Among the compounds evaluated, only citric acid exhibits liquefaction timescales favorable for the formation of core–shell morphologies within the SPIN, as evident from a comparison of simulated liquefaction timescales and measured ice onsets of citric acid in Fig. 4. The lowest temperature and humidity at which ice nucleation was observed for anhydrous citric acid (−45 °C, S_ice=1.23) coincide with the point at which the model suggests partial liquefaction to occur (dashed line in Fig. 4). The highest temperature and humidity at which ice nucleation was observed for anhydrous citric acid (−40 °C, S_ice=1.26) are at or near the point for which the model suggests full liquefaction to occur, depending on the assumed characteristic nucleation time of 1 s (Fig. 4a) or 0.1 s (Fig. 4b). We interpret such ice activation onsets between partial and full liquefaction conditions as immersion freezing. Dodecyl sulfate did not show significant water uptake at the temperatures and humidities for which ice nucleation could be expected, while methyl and ethyl sulfates equilibrated rapidly with the humidity in the SPIN, irrespective of temperature.

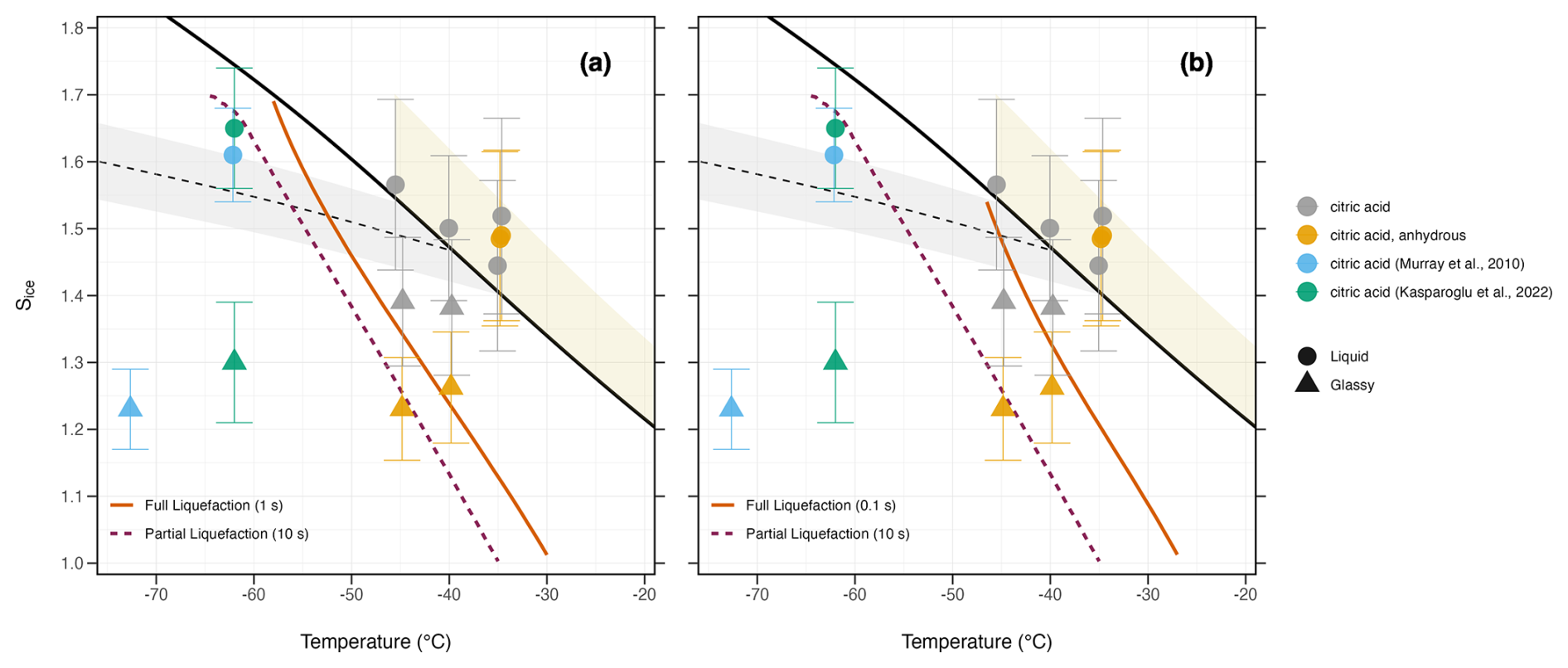

Figure 4 Thermodynamic onset conditions for citric acid ice nucleation and relevant literature, as well as humidity-induced phase transitions, are calculated with the diffusion model. The magenta-colored line indicates the modeled partial liquefaction timescale (10 s characteristic residence time of the SPIN), where particle volume has increased by more than 5 % due to water uptake. The orange lines indicate two modeled full liquefaction timescales, where citric acid is expected to be fully liquefied within 1 s (a) or 0.1 s (b), after entering the SPIN. Shapes correspond to aerosol phase state as reported in literature or defined using methods described above (e.g., PCU temperature lower than T_g,org and ice nucleation observed below homogeneous freezing threshold). The black dashed line is the homogeneous freezing threshold of 0.1 µm diameter solution droplets (Koop et al., 2000), with shaded region indicating uncertainty in a_w of ±0.025 (Koop, 2004). The solid black line is water saturation, with dashed gray lines denoting equivalent lines of various liquid saturation ratios. The shaded yellow region indicates expected droplet breakthrough regime within the SPIN.

4 Measurement uncertainties

4.1 Glass transition temperature

Model estimations of T_g,org for the selected OS proxies are based on their melting temperature, boiling temperature, and semi-empirical fitting. Unlike the melting temperature, the boiling temperature for the OS proxies is not readily available and requires interpretation from their chemical composition. This process inherently introduces model uncertainties into the calculation of T_g,org. Furthermore, applying the Gordon–Taylor equation (Eq. 1) to calculate the T_g for binary mixtures combines model uncertainty with measured uncertainties in hygroscopicity parameter (κ) and RH. Uncertainties of the T_g,org were calculated based on the procedure described in Sect. 2.2 and shown in Table 1. Experimentally, intrinsic instrument limitations exist for measuring RH at low temperatures. For example, chamber RH at dry conditions (<5 %) is absent due to sensor limitations, leaving any inference in aerosol phase state, dependent on whether ice nucleation was observed. Additionally, calibrations with high-purity nitrogen have shown a high correlation between reported humidity and thermistor temperatures below −20 °C, furthering the uncertainty when calculating T_g using measured chamber RH.

4.2 Ice nucleation measurements

Uncertainties in ice nucleation measurements for the SPIN instrument can be broadly defined as non-ideal lamina behavior, inhomogeneities of the chamber conditions, or particle detection in the OPC (Garimella et al., 2017). In this study, uncertainties in interpolated lamina position (Kulkarni and Kok, 2012) and chamber inhomogeneities were combined using propagation of errors (Taylor, 1997). The resulting uncertainty in lamina S_ice and temperature are calculated for every time interval during the experiment. Reported uncertainties for both onset temperature and S_ice are the calculated errors at which the activation threshold was first met, or exceeded. For this study, particle classification was performed using empirically derived parameters from compounds with known ice-nucleating properties. An additional parameter used when distinguishing between droplets and ice is whether water saturation has been met. This introduces a bias only in the conditions we expect to observe droplet onset, not in classification of droplet breakthrough on a particle-by-particle basis.

5 Discussion

5.1 Implications of aerosol generation and conditioning

Our results demonstrated that there are limitations in using T_g alone in predicting the heterogeneous ice-nucleating properties of SOA proxies. Citric acid exhibited this for both generating techniques. First, atomizing citric acid solutions introduces a significant challenge in ice nucleation measurements as extreme drying techniques must be implemented to reduce the plasticizing effect of water (see Eq. 1). It has been estimated that at 5 °C the sample RH must be below 10 % to obtain glassy conditions (Kasparoglu et al., 2021). A study that successfully nucleated ice with citric acid utilized similar experimental methods, which required extreme drying measures consisting of four diffusion dryers in series and a liquid N₂ trap (Kasparoglu et al., 2022). For all citric acid experiments performed (excluding the liquid citric acid experiments), PCU conditions were at or well below this threshold; however, heterogeneous ice nucleation was only observed at PCU temperatures near −70 °C. Experiments conducted at −30 °C, below the lowest published T_g,org of citric acid ($-\mathrm{13}\pm \mathrm{10}\mathrm{°}\mathrm{C}$) (Murray, 2008), did not nucleate ice using atomization. These results were identical to thermally generating citric acid aerosol from anhydrous citric acid, despite being considered a dry technique for heating temperatures below the decomposition temperature (Barbooti and Al-Sammerrai, 1986; Wyrzykowski et al., 2011). Furthermore, predicting heterogeneous ice nucleation using T_g was unsuccessful for dodecyl sulfate, an OS proxy purposefully selected as a positive control due to a high T_g,org of 74±13 °C. For a PCU RH of 5 % (highest RH due to measurement error), the T_g(w_org) of dodecyl sulfate is 70.1±12.8 °C, much warmer than measured PCU temperature of 20.7±1 °C. This result, in addition to liquefaction timescales exceeding the particle residence time of SPIN, confirms that dodecyl sulfate remained glassy for all ice nucleation experiments.

Explanations for this inconsistency are not well understood but have been observed for atmospherically relevant biogenic SOA (Kasparoglu et al., 2022). Timescales in reaching equilibrium RH for certain SOA (Ingram et al., 2017) may not be sufficient for experimental designs with low residence times, which prevents a liquid to glass phase transition from occurring. Accuracy of RH measurements for experiments pre-cooling to low T_g,org is also a source of uncertainty as encountered in these experiments, further obfuscating the expected phase state prior to testing ice-nucleating properties. Even among effective INPs, such as feldspars, the ice-nucleating properties vary significantly. This was succinctly summarized as “not all feldspars are equal” by Harrison et al. (2016). Analogously, we attribute a similar characterization to SOA: not all glasses are equal.

5.2 Ice-nucleating properties

Homogeneous freezing was not observed for any proxy SOA or proxy SOA constituents tested in this study, despite being observed for ABS using the same operating conditions in SPIN. Instead, droplet formation was frequently observed (Fig. 3) at or above water saturation. This result is consistent with observations that organic material inhibits homogeneous freezing of aqueous solution droplets (Murray, 2008), requiring much higher S_ice than expected (Kasparoglu et al., 2022). Particles that activated as droplets in the SPIN exited the evaporation section with diameters ≥2.5 µm, a size threshold frequently used to distinguish ice from droplets. We emphasize that using a traditional size cutoff was not a reliable method to classify ice in these SPIN measurements.

Heterogeneous nucleation was only observed for citric acid aerosol conditioned to approximately −70 °C (Table 1), indicating that the PCU was effective in inducing a glassy phase state. The onset temperature for both thermally and aqueously generated citric acid aerosol occurred at temperatures ∼20 °C warmer than found in the Colorado State University continuous-flow Diffusion Chamber (CSU-CFDC, Kasparoglu et al., 2022) or AIDA (Aerosol Interactions and Dynamics in the Atmosphere) chamber (Murray et al., 2010) but at a similar onset S_ice (Fig. 3). Additionally, we observed that the onset of heterogeneous ice nucleation of citric acid required lower S_ice for thermally generated aerosol than aqueously generated. We theorize that thermal generation of citric acid produces a glassy aerosol consisting of lower water content and thus a more viscous phase state. This would imply the aerosol population would contain increased activation site density (Vali et al., 2015) for particles. An additional factor that likely contributes to the lower onset conditions is the broader size distribution entering the SPIN since no size selection was conducted for this generation method due to static charging. This would lead to an increased total particle surface area for thermally generated citric acid and consequently a higher number of activation sites.

The absence of heterogeneous ice nucleation for both methyl and ethyl sulfates is consistent with particles exhibiting a liquid phase state. The lowest attainable PCU temperature was −70 °C, warmer than the T_g,org of methyl and ethyl sulfates ($-\mathrm{83}\pm \mathrm{38}$ and $-\mathrm{83}\pm \mathrm{34}\mathrm{°}\mathrm{C}$, respectively). Furthermore, even if these particles obtained a glassy phase state, rapid particle liquefaction would occur in the SPIN owing to their high hygroscopicity (Sect. 3.3), preventing the observation of heterogeneous ice nucleation. The low T_g,org of these OS proxy constituents is likely due to a lack of functionalization (e.g., hydroxyl, carboxyl, hydroperoxyl, and carbonyl groups) that many other known atmospheric OS exhibit (Surratt et al., 2008, 2010). These additional functional groups significantly increase T_g (Zhang et al., 2019), in contrast to the proxy constituents tested, which only contain one sulfate functional group. This limits our conclusions from broadly characterizing atmospheric OS as ice inactive. Moreover, our results supplement the finding of Wolf et al. (2020) that only highly functionalized OSs are heterogeneous ice nuclei.

Studies that have recommended both SOA and SOA-coated dust be treated as ice inactive typically identify ice onset near or above the homogeneous freezing threshold, of aqueous droplets (Kasparoglu et al., 2022; Koop et al., 2000). Furthermore, Kasparoglu et al. (2022) argued that the onset conditions for experiments that have identified heterogeneous ice nucleation of SOA (Ignatius et al., 2015; Wang et al., 2012) may in fact be homogeneous freezing if a more restrictive parameterization of homogeneous freezing based on aqueous sulfuric acid droplets (Schneider et al., 2021) was applied. We caution that applying a sulfuric acid homogeneous freezing parameterization on SOA is of limited relevance due to the large difference in hygroscopicity. Biogenic SOA formed from various precursors or different oxidizing conditions in the laboratory setting is less hygroscopic than sulfuric acid. Recently, a globally representative hygroscopicity parameter of organic aerosol systems (κ_org) was determined to be 0.12±0.02 (Pöhlker et al., 2023). This is significantly less than that of sulfuric acid using either the growth factor (κ=1.19) or CCN-derived (κ=0.9) form (Clegg et al., 1998; Petters and Kreidenweis, 2007).

5.3 Water uptake and particle morphology

Experiments where proxy SOA only participated in droplet formation exhibited antecedent features classified as water uptake. In the absence of aerosol growth fraction measurements via a humidified tandem differential mobility analyzer, we are unable to conclusively refer to this water uptake as the hygroscopic growth. Therefore, we cautiously suggest that this rapid growth of particles from diameters<0.5 µm to 1.5 µm using the SPIN OPC is hygroscopic growth occurring within the SPIN chamber. We observed rapid particle growth for all proxy OS and citric acid. Similar features have been observed in experiments where longifolene and α-pinene SOA systems with and without sulfate uptake water at low S_ice (Charnawskas et al., 2017). The scattering profile obtained by the SPIN OPC for all organics that grew due to water uptake was nearly identical and distinct from the aerosol, ice, and droplet classes identified using supervised ML. The onsets for water uptake varied among compounds and pre-cooling temperature. Anhydrous citric acid water uptake occurred immediately upon entering the SPIN (S_ice≈1). This result is expected as large particles from the polydisperse population produced during generation grew via water uptake to the detection limits of the SPIN OPC more readily than size-selected particles. Citric acid experiments by atomization did not exhibit this feature; instead, the onset of water uptake varied greatly between PCU and SPIN temperatures. Water uptake for methyl and ethyl sulfates conditioned at or below T_g,org using the PCU occurred at higher S_ice than those sampled at ambient temperature (Fig. 3). We propose that this offset between the onset of water uptake is related to decreased water diffusion for highly viscous or glassy particles (Berkemeier et al., 2014; Koop et al., 2011; Price et al., 2013; Zobrist et al., 2011).

Numerical diffusion modeling substantiates our observation of water uptake within the SPIN chamber and extends our results to infer the morphology of particles. Modeling results show that particle morphology upon rapid humidification as experienced in the SPIN shifts from an initial amorphous or semi-solid state towards full liquefaction. According to the diffusion model, methyl and ethyl sulfates are never glassy for more than a few milliseconds in the SPIN, which is consistent with the absence of heterogeneous ice nucleation. In contrast, dodecyl sulfate may not take up any water due to its high T_g,org and comparably low hygroscopicity. Citric acid, on the other hand, has properties that favor the formation of core–shell morphologies in the temperature range −55 and −30 °C, but this behavior is also highly dependent on ice supersaturation. Around −45 to −40 °C, the core–shell morphology persists in the important range of S_ice between 1.3–1.4, where heterogeneous ice nucleation of glassy aerosols is typically observed. Thus, the ice nucleation observed in this study could involve immersion freezing on partially deliquesced glassy aerosols. This is consistent with observations that phase-separated organic-sulfate aerosol nucleation via immersion freezing, where sulfate islands nucleated ice despite being covered in a liquid organic layer (Schill and Tolbert, 2013).

6 Conclusions

Ice nucleation experiments were conducted at conditions relevant to upper-tropospheric cirrus formation (−45, −40, −35 °C; $\mathrm{1.0}<S_{\text{ice}}<\mathrm{1.6}$) for proxy constituents of atmospheric SOAs. Generated aerosol was pre-cooled to conditions near or below their corresponding T_g to test that the hypothesis that phase state of SOA influences heterogeneous ice nucleation. Primary conclusions of this study are as follows:

1. Ice nucleation of the proxy constituents of atmospheric OS examined is not heterogeneous ice nuclei in the temperature and supersaturation range considered here. We suggest that the sulfate functional group of OS aerosol itself is not critical to ice nucleation. Instead, the acid-catalyzed multi-phase chemistry driven by sulfate produces highly functionalized OS aerosols that are effective INPs as identified in ambient measurements.

2. Pre-cooling of dodecyl sulfate and citric acid below the estimated or published T_g (74±13 °C and $-\mathrm{13}\pm \mathrm{10}\mathrm{°}\mathrm{C}$, respectively) in the pre-cooling unit did not always result in heterogeneous ice nucleation. From this, we conclude that T_g alone is not a sufficient condition for SOA to be considered as INPs using the SPIN. Commonly, laboratory techniques using continuously generated aerosol to measure ice-nucleating properties rely on using T_g as a metric to infer whether the aerosol phase is glassy, with confirmation of a glassy state being the detection of heterogeneous ice formation.

3. Diffusion modeling provides novel insight into the ice nucleation mechanisms for SOA and highlights experimental limitations when using CFDCs. Applied to the SPIN, we determined that glassy particles liquefy within the instrument at certain timescales. Using diffusion modeling, we have determined the SPIN induces three conditions on glassy SOA: full liquefaction leading to deactivation, partial liquefaction requiring ice nucleation via immersion freezing, and deposition freezing when no liquefaction occurs.

4. Size thresholds used in traditional CFDC experiments to classify ice are insufficient in effectively characterizing the ice-nucleating properties of SOA. We note an absence of any homogeneous freezing for proxy SOA experiments; rather, we observed evidence of water uptake preceding droplet formation as confirmed using scattering information from the SPIN OPC. Particles classified as droplets frequently exceeded the 2.5 µm size threshold, demonstrating a nominal size cutoff as being unreliable in quantifying the ice-nucleating properties of SOA.

Despite many laboratory studies concluding SOAs are broadly either entirely ineffective or even inhibitory to atmospheric ice formation, aircraft data have repeatedly confirmed a major fraction of cirrus cloud IRs contain organic matter (Froyd et al., 2010). Our measurements indicate that further experiments are needed to investigate ice nucleation of SOA, with careful consideration of aerosol generation techniques and the efficacy of ice nucleation measurements. Ultimately, obtaining parameterizations necessary to fully capture the role of SOA in cirrus cloud formation requires further research investigating the interaction between aerosol phase state and heterogeneous ice nucleation of atmospherically relevant organic aerosol.
