Secondary organic aerosol formation from nitrate radical oxidation of styrene: aerosol yields, chemical composition, and hydrolysis of organic nitrates

Styrene is emitted by anthropogenic sources and biomass burning and is highly reactive towards atmospheric oxidants. While it has the highest nitrate radical (NO₃) reactivity among aromatic hydrocarbons, the NO₃ oxidation of styrene and formation mechanisms of secondary organic aerosols (SOA) have not been investigated. In this study, we conduct chamber experiments with styrene concentrations ranging from 9.5 to 155.2 ppb. The resulting SOA yields range from 14.0 % to 22.1 % with aerosol mass loadings of 5.9–147.6 µg m⁻³ after wall loss corrections. The chemical composition of SOA is characterized by online measurements, revealing that dimeric organic nitrates (ONs) constitute 90.9 % of the total signal of particle-phase products. C₁₆H₁₆N₂O₈ and C₈H₉NO₄ are identified as the major particle-phase products, which constitute 88.3 % and 4.1 %, respectively, of the measured signal. We propose formation mechanisms for the ON products, including the common RO₂+ RO₂ $/$ HO₂ pathway and other radical chain termination reactions such as RO + R and R + R. We also investigate the hydrolysis of particulate ONs. The hydrolysis lifetime for ONs is determined to be less than 30 min. This short hydrolysis lifetime can be attributed to the stabilization of the carbocation by delocalized π orbitals of the benzene-related skeleton of aromatic ONs. This work provides the first fundamental laboratory data to evaluate SOA production from styrene + NO₃ chemistry. Additionally, the formation mechanisms of aromatic ONs are reported for the first time, highlighting that compounds previously identified as nitroaromatics in ambient field campaigns could also be attributed to aromatic ONs.

1 Introduction

Aromatic hydrocarbons are a class of unsaturated chemical compounds characterized by the presence of delocalized π orbitals. They play a crucial role in the atmosphere, contributing up to 60 % of volatile organic compounds (VOCs) in urban environments (Calvert et al., 2002; Cabrera-Perez et al., 2016). Styrene is unique among aromatic hydrocarbons as it possesses both an unsaturated double bond and a benzene ring and has the combined properties of alkenes and aromatic compounds. Although styrene is not the most abundant aromatic hydrocarbon, with concentrations ranging from 0.06 to 45 ppb in the atmosphere (Cho et al., 2014; Tuazon et al., 1993), it has the highest reaction rate constants for reactions with hydroxyl radicals (OH), nitrate radicals (NO₃), ozone (O₃), and chlorine radicals because of the unsaturated double bond (Tuazon et al., 1993; Tajuelo et al., 2019a, b; Atkinson and Aschmann, 1988; Le Person et al., 2008; Cho et al., 2014). In addition, styrene is the second most efficient aromatic hydrocarbon in forming secondary organic aerosols (SOA) during daytime chemistry, surpassed only by toluene (Sun et al., 2016). SOA yields from OH-initiated photooxidation of styrene can reach as high as around 35 % for an aerosol mass loading of 430 µg m⁻³ (Schueneman et al., 2024). A theoretical study suggests that OH-initiated photooxidation of styrene could be a substantial contributor to SOA formation in urban environments (Wang et al., 2015).

To the best of our knowledge, no study has specifically investigated SOA formation from styrene + NO₃ oxidation. Although styrene emissions from various anthropogenic sources such as industrial activities, motor vehicle operations, combustion processes, building materials, or consumer products (Zhang et al., 2017; Knighton et al., 2012; Helal and Elshafy, 2012; Okada et al., 2012) are predominant during the day, high levels of styrene have also been observed at night in urban environments. The nighttime presence of styrene is likely influenced by the boundary layer accumulation effect (Wu et al., 2020; Lu et al., 2023a), which enhances the conditions for styrene + NO₃ oxidation. Additionally, biomass burning, particularly wildfires, contributes to emission of styrene in rural and forest regions (Koss et al., 2018). The NO₃ oxidation of styrene can occur under conditions such as nighttime chemistry or optically dense plumes during biomass burning events (Decker et al., 2021). Given that styrene exhibits the highest NO₃ reactivity of aromatic hydrocarbons (Yang et al., 2020), the styrene + NO₃ oxidation can play a major role in the consumption of styrene and the formation of SOA.

The NO₃ oxidation of VOCs is also expected to generate a substantial amount of organic nitrates (ONs), primarily through the direct incorporation of the NO₃ with the double bond during reactions (Ng et al., 2017; Orel et al., 1978). ONs have been shown to influence NO_x recycling, O₃ production, and the formation of SOA in the atmosphere (Ng et al., 2017). Ambient field measurements consistently demonstrate the widespread presence of ONs derived from aromatics in submicron organic aerosols at various locations globally (Lu et al., 2023b; Lin et al., 2021; Jiang et al., 2023; Yang et al., 2019). For example, in Shanghai, around 16 % of the oxygenated organic molecules containing two nitrogen atoms originate from aromatic compounds (Lu et al., 2023b). In Beijing, the concentration of phenethyl nitrate is found to be 3.23 ng m⁻³ (Yang et al., 2019). All these suggest that the oxidation of styrene by NO₃ could be an important pathway for generating aromatic ONs.

Hydrolysis of particulate ONs is an important sink of NO_x, especially when the ONs have short hydrolysis lifetimes (Pye et al., 2015; Fisher et al., 2016; Zare et al., 2019; Vasquez et al., 2021; Takeuchi and Ng, 2019). To the best of our knowledge, there is only one study on hydrolysis of ONs from oxidation of 1,2,4-trimethylbenzene (Liu et al., 2012). More studies focus on biogenic ONs. For instance, results from hydrolysis of biogenic ONs in bulk solutions indicate that the number of alkyl substitutions, the types of functional groups, and the structures of carbon skeletons are three important factors controlling hydrolysis rates (Darer et al., 2011; Hu et al., 2011; Jacobs et al., 2014; Rindelaub et al., 2016; Y. Wang et al., 2021). A common feature identified in the mechanisms is the formation of stable carbocations, which facilitate the rapid hydrolysis of ONs. Previous research indicates that the benzene-related skeleton, featuring three delocalized π orbitals, enhances the hyper-conjugation effect and stabilizes the carbocation (Y. Wang et al., 2021). Consequently, ONs produced from styrene + NO₃ oxidation, which include such benzene-related skeletons, are likely to have short hydrolysis lifetimes. However, this hypothesis has not been evaluated before because of the lack of hydrolysis studies on aromatic ONs.

In this study, we aim to investigate SOA formation and chemical composition from styrene + NO₃ oxidation. We conduct a series of chamber experiments in the dark under both dry and humid conditions. SOA yields are determined across a wide range of initial styrene concentrations under dry conditions. The chemical composition of SOA is characterized by online mass spectrometry, and the SOA formation mechanism is proposed based on these measurements. Additionally, we investigate hydrolysis of particulate ONs. These results can be used to estimate SOA formation and transformation from NO₃ oxidation of styrene from anthropogenic emissions and biomass burning in ambient environments.

2 Experimental section

2.1 Environmental chamber experiments

The experimental conditions are summarized in Table 1. All of the experiments are performed at the Georgia Tech Environmental Chamber (GTEC) facility, which consists of two 12 m³ Teflon chambers (Boyd et al., 2015). Experiments are conducted at 295 ± 3 K and ambient pressure. Most of them are conducted under dry conditions (relative humidity RH < 3 %, Experiments 1–10), with the exception of two (Experiments 11 and 12), which are conducted under humid conditions (approximately 50 % and 70 %, respectively). These humid experiments allow for the investigation of the hydrolysis processes of SOA.

Table 1 Summary of the experimental conditions in this study.

^a Ammonium sulfate. ^b Uncertainties in hydrocarbon concentrations are calculated from the 3.5 % uncertainty in hydrocarbon concentrations measured by the GC-FID. ^c The density is 1.35 ± 0.05 g m⁻³, calculated from the comparison of the HR-ToF-AMS and SMPS size distribution data. ^d Uncertainties in aerosol mass loading are estimated based on the uncertainty in aerosol volume concentrations measured by the SMPS (5.3 %) and the uncertainty in the SOA density (3.5 %). ^e These numbers are not reported because the density of SOA in humid experiments is not available. ^f Uncertainties in SOA mass yields are propagated from the uncertainty associated with hydrocarbon concentration and aerosol mass loading.

A typical experiment begins with the injection of seed particles into the chamber by atomizing a dilute ammonium sulfate solution (AS; 0.015 M). Subsequently, styrene (99 %, Sigma-Aldrich) is injected into the chamber using a glass bulb, where the evaporation of styrene is facilitated by the flow of zero air at a rate of 5 L min⁻¹ through the bulb. The initial particle number and volume concentration are 2.9 × 10⁴ particles per cubic centimeter and 3.2 × 10¹⁰ nm³ cm⁻³, respectively. The initial concentration of styrene ranges from 9.5 to 155.2 ppb. It is noted that Experiments 9 and 10 do not involve seed particle injection and are conducted specifically to determine the density of styrene + NO₃ SOA.

N₂O₅ is generated by the reaction of NO₂ (Matheson, 500 ppm) and O₃ (by passing purified air through a UV light (Jelight 610), ∼ 125 ppm) in a flow tube (0.8 L min⁻¹ flow rate, 115 s residence time) and injected into the chamber as a NO₃ precursor, similar to our previous studies (Boyd et al., 2017; Takeuchi and Ng, 2019; Takeuchi et al., 2022). The injection time ranges from 5 to 75 min, depending on the initiation concentration of styrene. The typical styrene-to-N₂O₅ ratio is approximately 1:2. To ensure that styrene is predominantly oxidized by NO₃, the concentrations of O₃ and the flow rates of both NO₂ and O₃ are adjusted (based on results from a simple kinetic box model, Table S1) to optimize N₂O₅ production while minimizing O₃ concentration. Upon entering the chamber, N₂O₅ thermally decomposes, generating NO₂ and NO₃ and establishing an equilibrium that marks the onset of NO₃ oxidation (Boyd et al., 2015; Takeuchi and Ng, 2019; Takeuchi et al., 2022).

2.2 Gas- and particle-phase measurements

The concentrations of O₃ and NO_x are monitored with an ultraviolet absorption O₃ monitor (Teledyne T400) and a NO_x monitor (Thermo Fisher Scientific 42C), respectively. A gas chromatograph with a flame ionization detector (GC-FID, Agilent) is used to track the decay of styrene. Aerosol volume and size distributions of particles smaller than 1 µm in electrical mobility diameter are measured by a scanning mobility particle sizer (SMPS) in low-flow mode (sheath flow of 2 L min⁻¹). The SMPS consists of a differential mobility analyzer (TSI 3080) and a condensation particle counter (TSI 3775).

A high-resolution time-of-flight aerosol mass spectrometer (HR-ToF-AMS; Aerodyne Research Inc.) is used to quantitatively measure the bulk particle-phase chemical composition, including organics, nitrate, sulfate, ammonium, and chloride. The working principle and operation of the HR-ToF-AMS are described in detail elsewhere (DeCarlo et al., 2006). Elemental analysis of the data is conducted to determine the elemental composition of the bulk aerosols (Canagaratna et al., 2015). The data are analyzed using PIKA v1.16I in Igor Pro 6.38B.

The speciated oxidized gas- and particle-phase products are measured using a high-resolution time-of-flight chemical-ionization mass spectrometer coupled to the filter inlet for gases and aerosols (FIGAERO-CIMS; Aerodyne Research Inc.) with iodide (I⁻) as the reagent ion. Details of the operation of the instrument have been given in the previous literature (Boyd et al., 2017; Takeuchi and Ng, 2019; Nah et al., 2016b; Chen et al., 2020; Lopez-Hilfiker et al., 2014). Briefly, reagent ions are generated from a cylinder containing a mixture of CH₃I and dry N₂ (Airgas) and through a polonium-210 source (NRD; model P-2021). Each sampling cycle lasts 60 min. The instrument measures gaseous compounds by sampling air from the chamber at 1.7 L min⁻¹ for 30 min. At the same time, particles in the chamber are collected onto a polytetrafluoroethylene filter with a sampling rate of 1 to 5 L min⁻¹, depending on the aerosol mass concentrations. Gradually heated nitrogen gas flows over the filter, evaporating oxidized organic species and transporting them into the CIMS for detection, with a temperature ramp period of 10 min, a soak period of 15 min, and a cooling phase of 5 min. The data are analyzed using Tofware v2.5.11. All the compounds presented in this study are I⁻ adducts.

2.3 Volatility calibration

In FIGAERO-CIMS, at the thermal desorption stage, the temperature at which the maximum (T_max) desorption signal for a particle-phase compound is observed corresponds to the effective saturation mass concentration (C^*) (Lopez-Hilfiker et al., 2014; Thornton et al., 2020; Stark et al., 2017; Ylisirniö et al., 2021). The experimental procedures for volatility calibration have been described in detail in our previous study (Takeuchi et al., 2022). Briefly, the relationship between T_max and C^* in FIGAERO-CIMS is established by depositing a mixture of standards with known C^* onto the filter. These standards are then subjected to thermal desorption using the same thermal program applied in the chamber experiments. The standards used in this study include glycolic acid (C₂H₄O₃), oxalic acid (C₂H₄O₂), malonic acid (C₃H₃O₄), succinic acid (C₄H₆O₄), meso-erythritol (C₄H₁₀O₄), levoglucosan (C₆H₁₀O₅), suberic acid (C₈H₁₄O₄), azelaic acid (C₉H₁₆O₄), sebacic acid (C₁₀H₁₈O₄), dodecanedioic acid (C₁₂H₂₂O₄), palmitic acid (C₁₆H₃₂O₂), stearic acid (C₁₈H₃₆O₂), and behenic acid (C₂₂H₄₄O₂). The relationship between C^* (µg m⁻³) at 25 °C and T_max (°C) obtained in this study is log₁₀ [$C_{\mathrm{25}\mathrm{°}\mathrm{C}}^{*}$] = −0.085 T_max+5.12 (Fig. S1) and is consistent with the calibrations in Takeuchi et al. (2022).

3 Results

3.1 SOA formation from NO₃ radical oxidation of styrene

A series of chamber experiments with different initial styrene concentrations is performed to investigate SOA formation from NO₃ oxidation of styrene (Table 1). In these experiments, the ratio of styrene to N₂O₅ is maintained at 1:2 to optimize the reaction conditions, facilitating complete consumption of styrene and allowing for analysis of the resulting products. Figure S2 presents the time series of the formation of SOA during a typical experiment (Experiment 7). In all of the experiments, styrene is fully reacted within 60 min, and the peak aerosol mass concentration is typically observed within the same time range (Fig. S2).

All of the SOA data are corrected for particle wall loss by applying size-dependent coefficients determined from wall loss experiments (Nah et al., 2017). The nucleation experiments are conducted to determine SOA density. By comparing SMPS volume distribution and HR-ToF-AMS mass distribution (Bahreini et al., 2005; Alfarra et al., 2006; Ng et al., 2008), the SOA density is determined to be 1.35 ± 0.1 g cm⁻³. Figure 1 shows the SOA yields (Y, 4.5 %–16.1 % for Experiments 1–8 over a wide range of aerosol mass loadings (ΔM_O), 1.9–107.4 µg m⁻³). For all of the experiments, peak aerosol mass concentration is obtained from the SMPS aerosol volume concentration (averaged over 30 min at peak aerosol loading) and the calculated aerosol density. SOA yields are parameterized as a function of organic mass produced using a semi-empirical model (Odum et al., 1996, 1997) based on gas-to-particle partitioning of two semi-volatile products (Eq. 1). The fitted molar yields (α₁ and α₂) are 0.1 and 0.09, and the fitted partitioning coefficients (K₁ and K₂) are 0.4 and 0.02 (R²=0.997).

$$\begin{array}{}\text{(1)}& Y=\mathrm{\Delta }{M}_{\mathrm{O}}\left[{\displaystyle \frac{{\mathit{\alpha }}_{\mathrm{1}}{K}_{\mathrm{1}}}{\mathrm{1}+K_{\mathrm{1}}{M}_{\mathrm{O}}}}+{\displaystyle \frac{{\mathit{\alpha }}_{\mathrm{2}}{K}_{\mathrm{2}}}{\mathrm{1}+K_{\mathrm{2}}{M}_{\mathrm{O}}}}\right]\end{array}$$

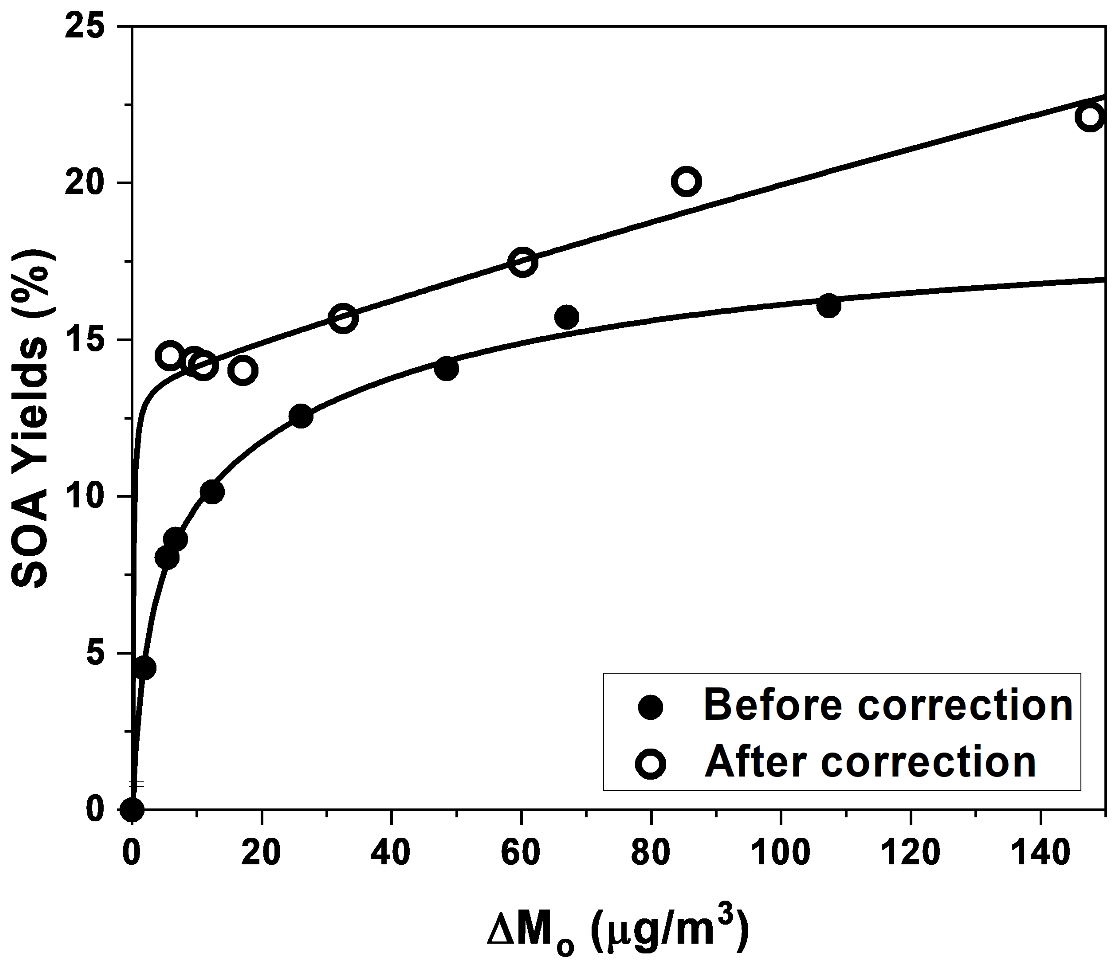

Figure 1 SOA yield data and yield curves for styrene + NO₃ oxidation with and without vapor wall loss correction.

3.2 Chemical composition of SOA

A typical HR-ToF-AMS aerosol mass spectrum is shown in Fig. 2 along with the National Institute of Standards and Technology (NIST) mass spectra of possible styrene + NO₃ oxidation products. There are a few notable ions in the aerosol mass spectrum. The signals at $m/z$ 39 (C₃H${}_{\mathrm{3}}^{+}$), 50 (C₄H${}_{\mathrm{2}}^{+}$), 51 (C₄H${}_{\mathrm{3}}^{+}$), 52 (C₄H${}_{\mathrm{4}}^{+}$), 77 (C₆H${}_{\mathrm{5}}^{+}$), 78 (C₆H${}_{\mathrm{6}}^{+}$), 91 (C₇H${}_{\mathrm{7}}^{+}$), 105 (C₇H₅O⁺), and 106 (C₇H₆O⁺) are aromatic compound signatures with a benzene ring (McLafferty and Turecek, 1993). The signals at $m/z$ 91 (C₇H${}_{\mathrm{7}}^{+}$), 105 (C₇H₅O⁺), and 106 (C₇H₆O⁺), while not particularly significant in the mass spectra of other aromatic SOA systems (Yu et al., 2014, 2016; Zhang et al., 2023; Liu et al., 2022; Chen et al., 2021), are relatively high for the styrene + NO₃ oxidation system. However, $m/z$ 91 (C₇H${}_{\mathrm{7}}^{+}$) is a signature ion for SOA formed from NO₃ oxidation of β-pinene (Boyd et al., 2015) and photooxidation of β-caryophyllene (Tasoglou and Pandis, 2015). $m/z$ 91 (C₇H${}_{\mathrm{7}}^{+}$) has also been detected as one of the major fragments of synthetic monoterpene ON standards measured by the HR-ToF-AMS (Takeuchi et al., 2024). Therefore, only $m/z$ 105 (C₇H₅O⁺) and 106 (C₇H₆O⁺) can potentially serve as useful indicators of SOA formed from styrene oxidation in ambient aerosol mass spectra. Note that the HR-ToF-AMS spectrum of styrene + NO₃ oxidation is very similar to the NIST mass spectra of benzaldehyde (C₇H₆O) and 2-hydroxy-1-phenyl ethanone (C₈H₈O₂). However, we do not detect the prominent peaks of dimers in the HR-ToF-AMS, which can be explained by instability of dimers under the high collision energy of the instrument.

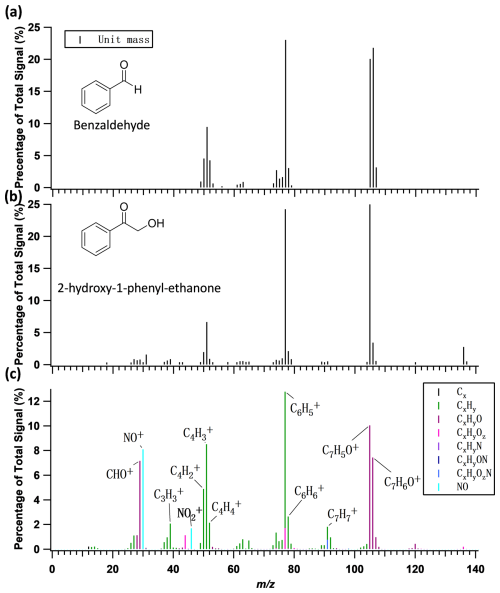

Figure 2 Comparison between the National Institute of Standards and Technology (NIST) mass spectra of (a) benzaldehyde, (b) 2-hydroxy-1-phenyl ethanone, and (c) the HR-ToF-AMS mass spectrum (integer $m/z$) of SOA from styrene + NO₃ oxidation. The chemical structures for benzaldehyde and 2-hydroxy-1-phenyl ethanone are shown in panels (a) and (b).

Figure S3a presents the time series of organics and nitrate as measured by the HR-ToF-AMS from a typical experiment. Sulfate is used to normalize the decay of organics and nitrate because it is non-volatile and any decrease in sulfate is reflective of particle wall loss and changes in aerosol collection efficiency (CE) in the HR-ToF-AMS (Henry and Donahue, 2012). Organics and nitrate exhibit similar decay trends. However, the situation differs when examining the time series of major organic families relative to sulfate (Fig. S3b). Hydrocarbon fragments (C_xH_y family), the C_xH_yO family, and the C_xH_yO_zN (z>1) family exhibit similar decay rates but decrease more rapidly relative to sulfate than the C_xH_yON and C_xH_yO_z families. This may indicate that further aerosol aging leads to the formation of more oxidized fragments (C_xH_yO_z) (Boyd et al., 2015). This may also suggest that the aging products are more likely to produce C_xH_yON rather than C_xH_yO_zN fragments.

FIGAERO-CIMS is used to measure the speciated particle-phase composition of styrene + NO₃ SOA, including both dimeric and monomeric products. The characteristic SOA mass spectrum from FIGAERO-CIMS (Fig. 3a) is categorized according to molecule types, i.e., CHO, CHON, and CHON₂, each containing compounds with different numbers of carbon atoms (Fig. 3b). The SOA composition is dominated by nitrogen-containing compounds, with C_xH_yO_zN₂, C_xH_yO_zN, and C_xH_yO_z molecules constituting 91.8 %, 7.4 %, and 0.8 % of the measured signal (Fig. 3c). Dimers (with carbon numbers C₉ to C₁₆) make up 90.9 % of the signal, with the majority being C₁₆H_xO_zN₂ dimers constituting 89.4 % of the total signal. The relative percentage contributions of CHO, CHON, CHON₂, dimers, and monomers remained relatively stable across various experiments with differing initial styrene concentrations (Fig. S4). Figure 4 shows the temporal evolution of major particle-phase products, and the dominant product is C₁₆H₁₆N₂O₈, contributing 88.3 % of the total signal. The next most abundant particle-phase product is C₈H₉NO₄, which constitutes 4.1 % of the total signal. In addition, C₈H₇NO₄, C₈H₉NO₅, C₈H₈N₂O₆, and C₈H₈N₂O₇ are major monomeric particle-phase products. C₁₆H₁₄N₂O₈, C₁₆H₁₇NO₇, C₁₅H₁₃NO₆, and C₁₆H₁₃NO₆ are major dimeric particle-phase products. It is noted that it is possible that the compounds detected as monomeric species are formed from the thermal decomposition process in FIGAERO-CIMS (Yang et al., 2021; Kumar et al., 2023; Stark et al., 2017).

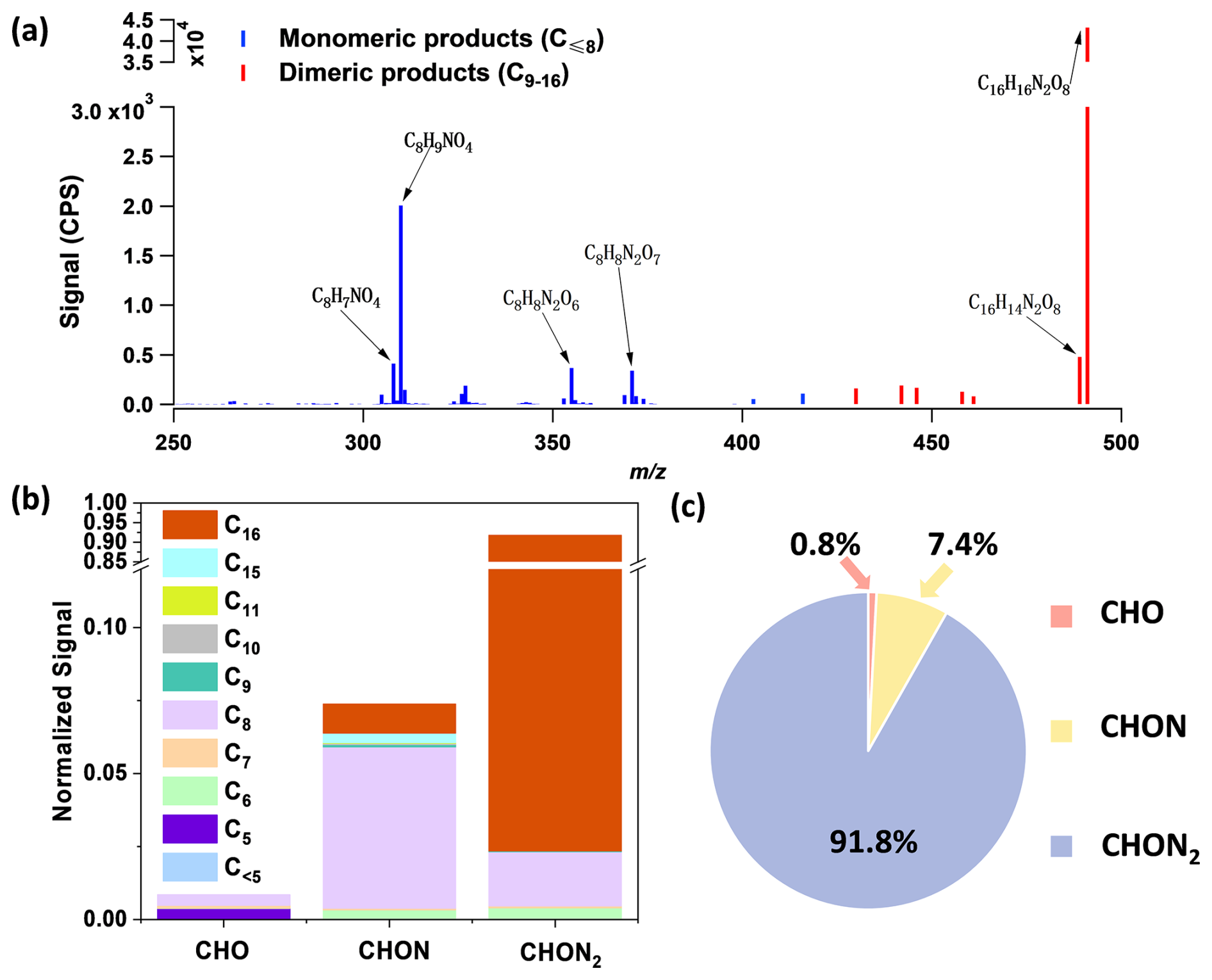

Figure 3 (a) A typical FIGAERO-CIMS mass spectrum of SOA from styrene + NO₃ oxidation (Experiment 7). The sticks are colored to distinguish between monomeric and dimeric products, as indicated in the legend. Prominent masses are labeled with the corresponding chemical formulas without an iodide ion. Only $m/z$ 250–500 are shown here, and there are no specific major products before $m/z$ 250 except I⁻ and HNO₃I⁻. (b) SOA product distribution, categorized by molecule type: CHO, CHON, and CHON₂. Each category is further subdivided by carbon number. (c) The pie chart illustrates the relative percentage contributions of CHO, CHON, and CHON₂.

3.3 Hydrolysis of styrene-derived organic nitrates

Building on results from our previous study (Y. Wang et al., 2021), the unique benzene-related skeleton of styrene ONs can facilitate their rapid hydrolysis. Therefore, we conduct experiments with three different chamber RHs, i.e., dry (RH < 3 %), RH ∼ 50 %, and RH ∼ 70 %, to study the hydrolysis of styrene-derived ONs. Figure S5 illustrates the time series of nitrate measured by the HR-ToF-AMS for these different RH systems. Distinct variations are observed in nitrate levels across different chamber RH conditions. The presence of the small amounts of nitrate prior to the commencement of experiments under different RH conditions could potentially result from the uptake of background nitric acid onto aqueous seed particles (McMurry and Grosjean, 1985; Grosjean, 1985; Matsunaga and Ziemann, 2010; Zhang et al., 2014, 2015; Yeh and Ziemann, 2015; La et al., 2016; Nah et al., 2016a; Krechmer et al., 2016; Huang et al., 2018). After N₂O₅ is injected into the chamber, the large increase in nitrate in the higher RH experiments can be attributed to the reactive uptake of N₂O₅ and/or the dissolution of HNO₃ into aqueous aerosols (Takeuchi and Ng, 2019), and this is subsequently neutralized by ammonia to form ammonium nitrate. Therefore, to evaluate the extent of particle-phase ON hydrolysis, the contributions of inorganic nitrate (NO_3,Inorg) and ONs (NO_3,Org) to the measured nitrate from the HR-ToF-AMS need to be separated.

We differentiate between the contributions of NO_3,Inorg and NO_3,Org to the measured nitrate based on the method reported in Farmer et al. (2010), as described in Eq. (2):

$$\begin{array}{}\text{(2)}& x={\displaystyle \frac{\left(R_{\mathrm{obs}}-R_{{\mathrm{NH}}_{\mathrm{4}}{\mathrm{NO}}_{\mathrm{3}}}\right)\left(\mathrm{1}+R_{\mathrm{ON}}\right)}{\left(R_{\mathrm{ON}}-R_{{\mathrm{NH}}_{\mathrm{4}}{\mathrm{NO}}_{\mathrm{3}}}\right)\left(\mathrm{1}+R_{\mathrm{obs}}\right)}},\end{array}$$

where $R_{{\mathrm{NH}}_{\mathrm{4}}{\mathrm{NO}}_{\mathrm{3}}}$ (i.e., NO⁺ $/$ NO${}_{\mathrm{2}}^{+}$ from ammonium nitrate) is derived from the standard ionization efficiency (IE) calibration of HR-ToF-AMS using 300 nm ammonium nitrate particles, and the value is 1.8. The R_ON (i.e., NO⁺ $/$ NO${}_{\mathrm{2}}^{+}$ for ONs) value is dependent on the aerosol chemical composition and instrument. The NO⁺ $/$ NO${}_{\mathrm{2}}^{+}$ ratio throughout all of the dry experiments remains constant at approximately 4.9, referred to as R_ON in this study. The R_ON $/$ $R_{{\mathrm{NH}}_{\mathrm{4}}{\mathrm{NO}}_{\mathrm{3}}}$ ratio (ratio of ratio, RoR) is 2.7, which falls in the range of previous studies with the presence of ONs (Day et al., 2022). The R_obs values are 2.8 and 3.8 for experiments with RH values of ∼ 70 % and 50 %, corresponding to NO_3,Org contributions of 51 % and 80 %, respectively. Figures S5b and S6 depict the time series of NO_3,Org for experiments under different RH. We also compare the NO_3,Org measured by the HR-ToF-AMS and speciated ONs measured by FIGAERO-CIMS, which show similar trends (Fig. S6).

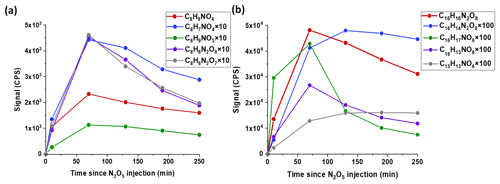

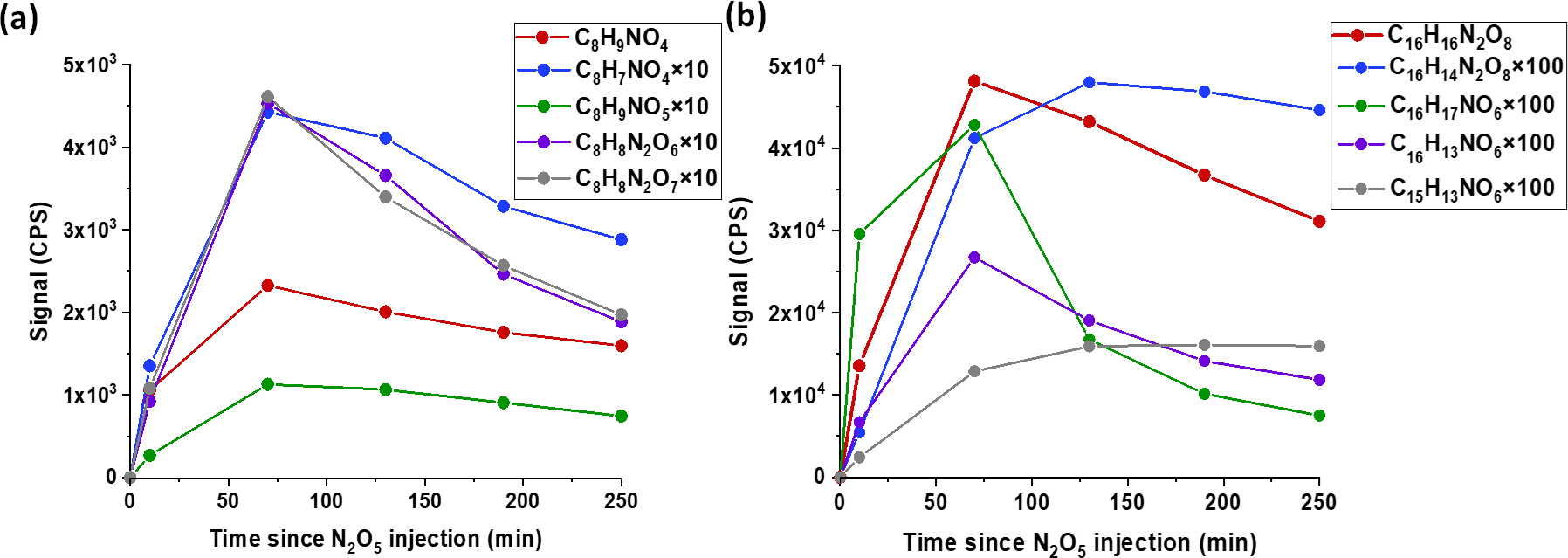

Figure 4 The time series of major particle-phase products from styrene + NO₃ oxidation measured by FIGAERO-CIMS (Experiment 7), including (a) monomeric styrene ONs and (b) dimeric styrene ONs.

Here, we follow the approach reported in our previous work and use the pON $/$ OA ratio to evaluate the extent of ON hydrolysis via Eq. (3) (Takeuchi and Ng, 2019; Takeuchi et al., 2024). It is noted that pON refers to the total mass concentration of particulate ONs, encompassing both the organic and nitrate components of the ON compounds. Similarly, OA represents the total mass concentration of organic aerosols, which includes both nitrated and non-nitrated organic compounds:

$$\begin{array}{}\text{(3)}& \begin{array}{rl}{\displaystyle \frac{p\mathrm{ON}}{\mathrm{OA}}}& =\left({\displaystyle \frac{{\mathrm{NO}}_{\mathrm{3},\mathrm{Org}}}{\mathrm{Organic}+{\mathrm{NO}}_{\mathrm{3},\mathrm{Org}}}}\right)\times \left({\displaystyle \frac{\mathrm{MW}p\mathrm{ON}}{{\mathrm{MW}}_{{\mathrm{NO}}_{\mathrm{2},\mathrm{ON}}}}}\right)\\ & =\left({\displaystyle \frac{\frac{{\mathrm{NO}}_{\mathrm{3},\mathrm{Org}}}{\mathrm{Organic}}}{\mathrm{1}+\frac{{\mathrm{NO}}_{\mathrm{3},\mathrm{Org}}}{\mathrm{Organic}}}}\right)\times \left({\displaystyle \frac{\mathrm{MW}p\mathrm{ON}}{{\mathrm{MW}}_{{\mathrm{NO}}_{\mathrm{2},\mathrm{ON}}}}}\right),\end{array}\end{array}$$

where MW_pON refers to the average molecular weight of pON estimated from FIGAERO-CIMS data. Assuming uniform sensitivity among the detected species, MW_pON is similar across different experiments within the range of 182.7–184.0 g mol⁻¹. ${\mathrm{MW}}_{{\mathrm{NO}}_{\mathrm{2},\mathrm{ON}}}$ is the molecular weight of the nitrogen-containing moiety of ONs (i.e., NO₂, 46 g mol⁻¹) measured by the HR-ToF-AMS, as discussed in detail in a recent study by Takeuchi et al. (2024). It is noted that, given the limitation of FIGAERO-CIMS, which can lead to the underestimation of simple alkyl or keto nitrates (Lee et al., 2016), as well as potential differences in sensitivity between the detected species, MW_pON may vary.

As illustrated in Fig. 5a, the time series of pON $/$ OA stabilizes fairly quickly, similar to what we observed previously for monoterpene systems (Takeuchi and Ng, 2019). If we utilize pseudo first-order rate equations to assess the hydrolysis lifetimes at 70 % RH and 50 % RH, the corresponding hydrolysis lifetimes are 18.8 ± 1.9 and 29.5 ± 8.7 min for 70 % RH and 50 % RH, respectively. Considering that a drastic change in the pON $/$ OA ratio is not observed except for a few initial data points, the rate of pON hydrolysis may be fast enough that the decay trend of pON relative to OA is not visibly apparent. Therefore, we report the hydrolysis lifetime to be less than 30 min (Takeuchi and Ng, 2019). The hydrolyzable fraction of styrene-derived ONs can be estimated from the difference in pON $/$ OA between dry and RH experiments once the ratio stabilizes. The hydrolyzable fraction is about 52.7 %–60.6 %. The observed hydrolyzable ONs are C₁₆H₁₆N₂O₈, C₈H₇NO₄, and C₈H₉NO₄, as determined by comparing the FIGAERO-CIMS mass spectra under dry and 70 % RH conditions (Fig. 5b). We also observe the enhancement of non-nitrated organic species (i.e., C₈H₈O₅) in the humid experiment, which could be formed from hydrolysis of ONs.

Figure 5 (a) Time series data of the ratio of particulate ONs (pON) to total organic aerosols (OA) in Experiment 2 (RH < 3 %), Experiment 11 (RH ∼ 50 %), and Experiment 12 (RH ∼ 70 %). (b) FIGAERO-CIMS difference mass spectrum of SOA: Experiment 2 (RH < 3 %) minus Experiment 12 (RH ∼ 70 %). Prominent masses are labeled with the corresponding chemical formulas without an iodide ion.

4 Discussion

4.1 SOA yields over a wide range of organic mass loadings

There is no prior study on SOA formation from styrene + NO₃ oxidation, but previous research has reported SOA formation from photolysis, OH-initiated photooxidation, and ozonolysis of styrene (Fig. S7). Photolysis of styrene results in the lowest SOA yields, ranging from 1.8 % to 3.6 % in the presence of 29.4 to 202.7 µg m⁻³ of ΔM_O (Tajuelo et al., 2019b). Different peroxy radical (RO₂) chemistry, controlled by the concentration of NO, influences the SOA formation during OH-initiated photooxidation of styrene. The SOA yields are observed to be 4.0 %–5.0 %, with 174.4–348.3 µg m⁻³ of ΔM_O under conditions where RO₂+ NO chemistry dominated (Tajuelo et al., 2019b), and around 2 %–35 %, with 2.8–430 µg m⁻³ of ΔM_O where RO₂+ RO₂ chemistry prevailed (Yu et al., 2022b; Schueneman et al., 2024). Several previous studies have reported that the SOA yields from the ozonolysis of styrene (Ma et al., 2018; Na et al., 2006) are higher than those from OH-initiated photooxidation of styrene under RO₂+ NO chemistry but lower than those from RO₂+ RO₂ chemistry. As shown in Fig. S7, the SOA yields from the styrene + NO₃ oxidation are higher than in other styrene oxidation systems when ΔM_O is lower than 80 µg m⁻³.

Organic vapor wall loss has been reported as impacting SOA yield calculation and can lead to an underestimation of SOA yields by as much as a factor of 4 (McMurry and Grosjean, 1985; Grosjean, 1985; Matsunaga and Ziemann, 2010; Zhang et al., 2014, 2015; Yeh and Ziemann, 2015; La et al., 2016; Nah et al., 2016a; Krechmer et al., 2016; Huang et al., 2018). Therefore, to evaluate the potential effect of organic vapor wall loss on SOA yields in our study, experiments without seed particles are carried out (Experiments 9 and 10). As shown in Fig. S8, the SOA formation from nucleation experiments (without seed particles) is lower than that from condensation experiments (with seed particles). Zhang et al. (2014) determined that if organic vapor wall loss is significant in chamber experiments, the addition of more seed particles will lead to an increase in SOA yields. The differences in SOA formation between styrene + NO₃ nucleation experiments and condensation experiments suggest the possible impact of organic vapor wall loss. Although particle wall loss is accounted for, the SOA yields reported in Fig. 1 and Table 1 could represent the lower limit due to vapor wall loss, where organic vapors could have partitioned to the chamber wall rather than to the aerosols.

To account for the impact of vapor wall loss, we employ the semi-empirical equation (Eq. 1) for SOA yield to correct for vapor wall loss. The correction relies on two assumptions: (1) styrene + NO₃ oxidation yields two major products and (2) the partitioning of these major products between the gas and particle phases together with vapor wall loss is controlled by the C^* of these products. The detailed procedures and the relevant equations are shown in the Supplement. The SOA yields and the SOA yield curve after this correction are shown in Fig. 1 and Table S2. The fitted molar yields (α₁ and α₂) are 0.8 and 0.1, and the fitted partitioning coefficients (K₁ and K₂) are 8.1 × 10⁻⁴ and 7.5 (corresponding to C^* values of 1.2 × 10³ and 1 × 10⁻¹ µg m⁻³, respectively) after vapor wall loss correction (R²=0.991). The vapor wall loss bias factor, defined as the ratio of aerosol mass loadings after correction to those before correction, ranges from 1.3 to 3.2. The vapor wall loss bias factor is smaller for the experiments with the higher organic mass loadings, which is consistent with the results reported by Zhang et al. (2014).

In styrene + NO₃ oxidation, two products stand out in abundance, i.e., C₈H₉NO₄ and C₁₆H₁₆N₂O₈, which constitute 92.4 % of the total particle signal (Fig. 3). We utilize two methods to estimate the C^* values of C₈H₉NO₄ and C₁₆H₁₆N₂O₈: the Estimation Program Interface Suite (EPI Suite) method and the FIGAERO thermal desorption method (Takeuchi et al., 2022). The C^* values of C₈H₉NO₄ and C₁₆H₁₆N₂O₈, as simulated by EPI Suite, are 1.6 × 10³ and 9.0 × 10⁻¹ µg m⁻³, respectively. The FIGAERO thermal desorption profiles for C₈H₉NO₄ and C₁₆H₁₆N₂O₈ are shown in Fig. S9. The T_max values of C₈H₉NO₄ and C₁₆H₁₆N₂O₈ are 24.6 and 67.8 °C, respectively, corresponding to C^* values of 1.1 × 10³ and 2 × 10⁻¹ µg m⁻³. It is noted that, although the FIGAERO thermal desorption profile of C₈H₉NO₄ shows two peaks, we use the first peak (24.6 °C) to calculate the volatility, as the second peak (around 70 °C) may result from thermal decomposition of dimers (Lopez-Hilfiker et al., 2016; Yang et al., 2021). The C^* values of C₈H₉NO₄ and C₁₆H₁₆N₂O₈, estimated using these two methods, are similar to those obtained from the semi-empirical equation (Eq. 1). The consistency of the C^* values across the different methods supports the applicability of the semi-empirical Eq. (1) proposed in this study for correcting vapor wall loss in SOA yield calculation.

4.2 Proposed formation mechanisms for styrene-derived organic nitrate monomers and dimers

We present the proposed formation mechanisms of major particle-phase products detected by FIGAERO-CIMS (Fig. 6). The formation mechanisms involve two distinct routes to generate the monomeric and dimeric ONs, respectively. In the monomeric ON formation pathway (Pathway A), the reaction begins with the addition of a nitrooxy group (-ONO₂) to the double bond of styrene, followed by O₂ addition to form a nitrooxy peroxy radical (via R1). This addition is expected to be favored because the NO₃ radical adds to the less substituted carbon atom in the double bond. We also propose the formation mechanism with a NO₃ radical adduct for the more substituted carbon atom in the double bond in Fig. S10. The nitrooxy peroxy radical can react further with RO₂ or the hydroperoxyl radical (HO₂) to produce the styrene hydroxy nitrate (C₈H₉NO₄), ketone nitrate (C₈H₇NO₄), and peroxy nitrate (C₈H₉NO₅) via reactions R2, R3, and R4, respectively. C₈H₉NO₄, which is the second most abundant product, has been observed in ambient environments as well. However, it has been assumed to be a nitroaromatic compound (R-NO₂, i.e., dimethoxy nitrobenzene) instead of an aromatic ON (R-ONO₂) (Kong et al., 2021; W. Wang et al., 2021; Salvador et al., 2021). C₈H₉NO₅ and C₈H₇NO₄ are also identified from residential wood burning boilers and have been suggested to be nitroaromatic compounds (Salvador et al., 2021) formed from the OH-initiated photooxidation of phenolic VOCs in the presence of NO (Vione et al., 2001, 2004; Jenkin et al., 2003; Frka et al., 2016; Vidoviæ et al., 2018). Considering that the ambient concentrations of nitroaromatic compounds remain high even at night (Wang et al., 2019), our work suggests that styrene-derived ONs could account for these molecular species in ambient environments, which are often only attributed to nitroaromatic compounds. Furthermore, the nitrooxy peroxy radical can react with the NO₃ radical to produce an alkoxyl (RO) radical (via R6). The RO radical can undergo further decomposition to produce benzaldehyde, benzene hydroxy aldehyde, and NO₂ as byproducts. NO₂ can react with the nitrooxy peroxy radical as well through R5 to produce styrene peroxy nitrate (C₈H₈N₂O₇). Peroxy nitrate remains unstable at room temperature unless there is a carbonyl group present to induce an electron-withdrawing effect, thereby stabilizing the peroxy nitrooxy group (Yu et al., 2022b). Here, the benzene ring can also stabilize the peroxy nitrooxy group through electron coupling (McMurry, 2012), thus promoting the formation of styrene peroxy nitrate. According to Lewis and Moodie (1996), the NO₃ radical can react with the double bond in olefins to produce the ONs containing two nitrooxy groups. We utilize the same mechanism to elucidate the formation of C₈H₈N₂O₆ in our work (via R7).

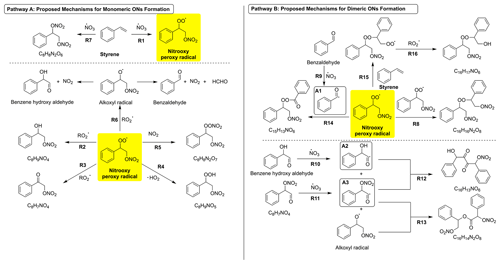

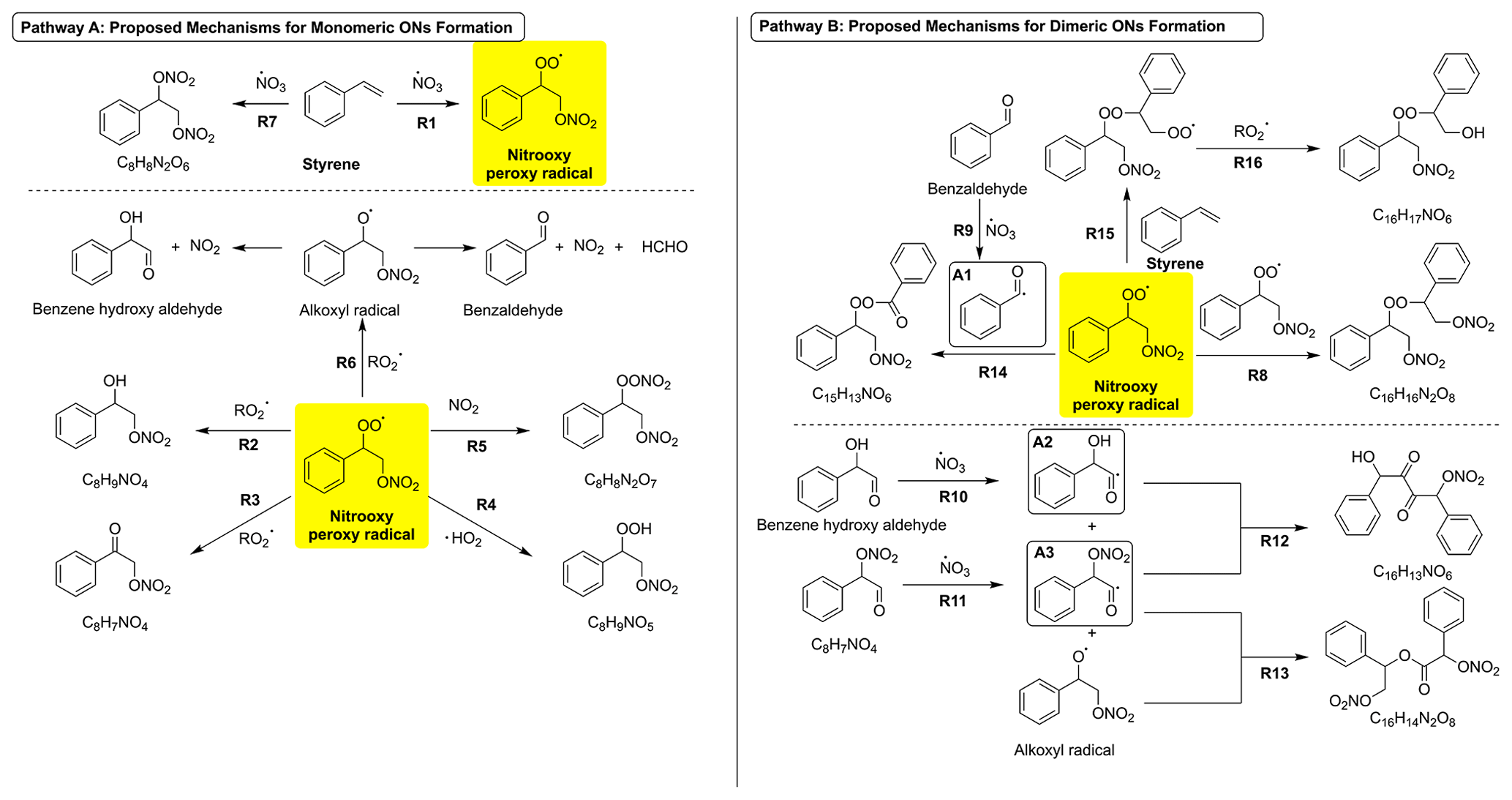

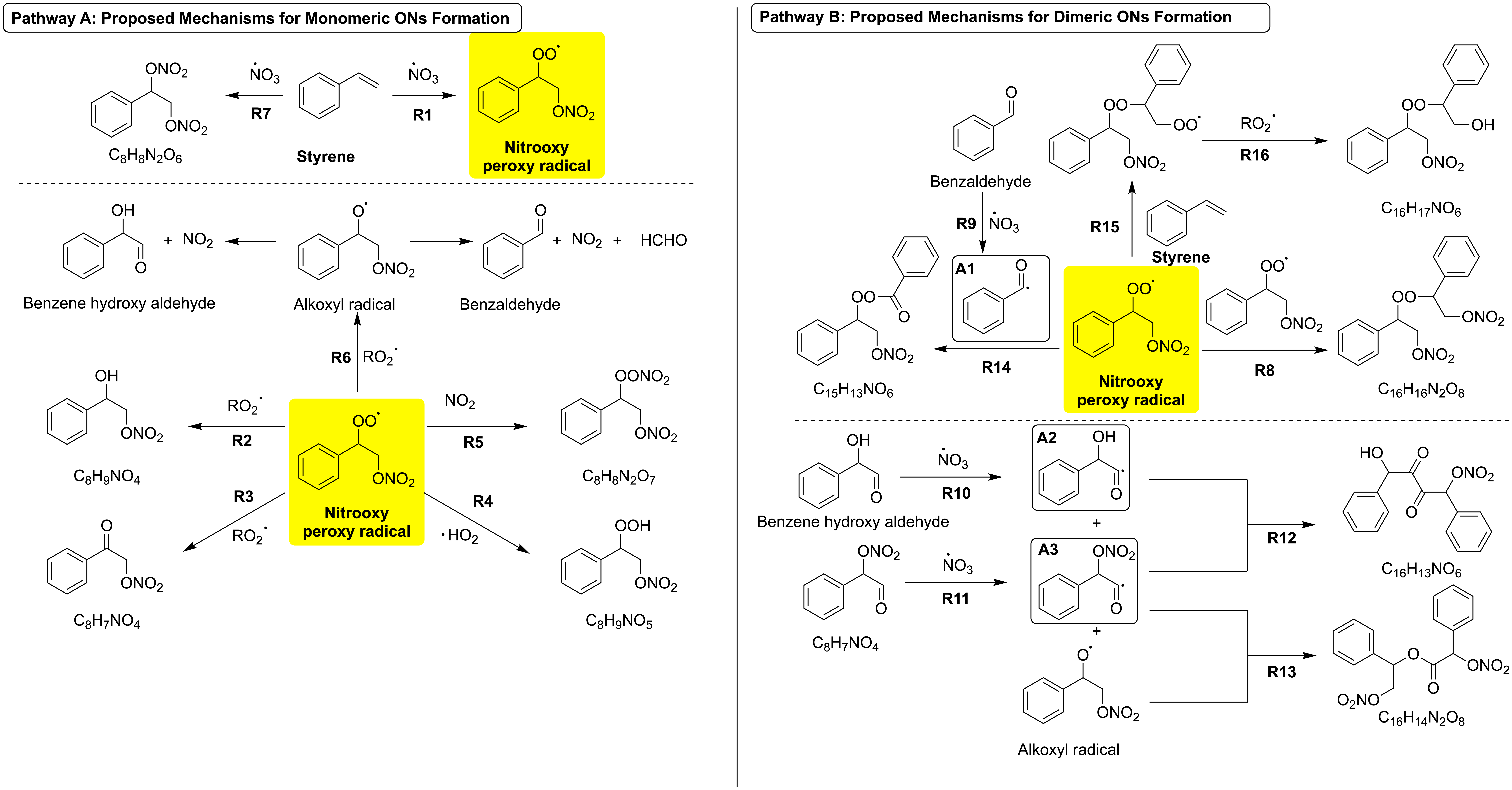

Figure 6 The proposed formation mechanisms for the major particle-phase products resulting from styrene + NO₃ oxidation include two distinct pathways: Pathway A is the proposed formation pathway for monomeric ON products. Pathway B is the proposed formation pathway for dimeric ON products. Radicals A1, A2, and A3 are highlighted in the boxes as the major products resulting from the reaction between aldehydes and NO₃ radicals. The nitrooxy peroxy radical is highlighted in yellow as the major RO₂ in mechanisms. All chemical structures in the formation mechanisms are proposed based on the molecular formulas of the detected species (shown beneath the structures) or fragments measured by the HR-ToF-AMS and require validation through further experiments or theoretical calculations.

The formation of nitrogen-containing dimeric products from aromatic oxidation systems has been observed in laboratory chamber studies (Molteni et al., 2018; Kumar et al., 2023; Mayorga et al., 2021). For example, Kumar et al. (2023) reported that dimeric products make up 54.2 % of the total particle signal in NO₃ oxidation of an aromatic hydrocarbon mixture, with the majority (42.3 %) being C_xH_yO_zN dimers. Nitrated diphenyl ether dimers have been observed from the NO₃ oxidation of phenolic VOCs, as reported by Mayorga et al. (2021). In our work, the predominant dimeric product is C₁₆H₁₆N₂O₈, which is generated from the RO₂+ RO₂ reaction (via R8). Additionally, C₁₆H₁₄N₂O₈, C₁₆H₁₇NO₇, C₁₅H₁₃NO₆, and C₁₆H₁₃NO₆ are major dimeric ON products observed in the particle phase. Benzaldehyde, ketone nitrate (C₈H₇NO₄), and benzene hydroxy aldehyde can react further with the NO₃ radical via R9, R10, and R11 to generate radicals A1, A2, and A3, respectively. A2 and A3 can further react with each other (via R12) to terminate the radical reaction by producing C₁₆H₁₃NO₆. Additionally, A3 can react with the RO radical from R5 to form C₁₆H₁₄N₂O₈ (via R13), while A1 can react with the nitrooxy peroxy radical to produce C₁₅H₁₃NO₆ (via R14). We propose the formation of C₁₆H₁₇NO₆ through the reaction between the nitrooxy peroxy radical and styrene (via R15), followed by the RO₂+ RO₂ reaction (via R16). It is noted that, in this work, we propose formation mechanisms of dimeric compounds based on molecular formulas of the detected species. Further experimental studies and density functional theory work are necessary to confirm the structures and formation of these dimeric compounds and to detect the critical intermediates for validating the proposed mechanisms.

4.3 Hydrolysis of organic nitrates formed from styrene + NO₃ oxidation

Condensed-phase hydrolysis has been identified as a significant sink for ONs, as evidenced by substantial ON uptake to aerosols and the reported short hydrolysis lifetimes (Pye et al., 2015; Fisher et al., 2016; Zare et al., 2019; Vasquez et al., 2021). Recent studies have reported experimentally constrained parameters for the hydrolysis of biogenic ONs derived from monoterpene or isoprene through chamber or bulk solution experiments (Takeuchi and Ng, 2019; Morales et al., 2021; Hu et al., 2011; Darer et al., 2011; Jacobs et al., 2014; Rindelaub et al., 2016; Vasquez et al., 2021; Y. Wang et al., 2021). Studies using bulk solutions to examine hydrolysis of ONs with specific structures have demonstrated that the numbers of alkyl substitutions, functional groups, and carbon skeletons are three important factors controlling hydrolysis rates (Y. Wang et al., 2021). Therefore, the hydrolysis lifetimes of biogenic ONs can be as fast as seconds or minutes or as stable as several days without observable hydrolysis, depending on the structures of the ONs. Unlike bulk solutions, which only involve aqueous solutions, chamber experiments can simulate the hydrolysis of ONs formed from VOC oxidations in aerosol water. In Takeuchi and Ng (2019), the ON hydrolysis lifetimes are determined to be less than 30 min for NO₃ oxidation and OH-initiated photooxidation of α-pinene and β-pinene systems. The hydrolysis lifetimes of ONs formed from OH-initiated photooxidation of β-ocimene have been found to be pH-dependent, i.e., 51 (± 13) min at a pH of 4 and 24 (± 3) min at a pH of 2.5 (Morales et al., 2021).

There are limited studies on the hydrolysis of anthropogenic ONs. Only one study reported the hydrolysis lifetimes of ONs resulting from OH-initiated photooxidation of 1,2,4-trimethylbenzene to be 6 h (Liu et al., 2012). The extended hydrolysis lifetimes of ONs from this system can be explained by the cleavage of the benzene ring, which disrupts the delocalized π orbitals. In this study, we determine that the hydrolysis lifetimes of ONs from styrene + NO₃ oxidation are less than 30 min. Based on our previous work with bulk solutions (Y. Wang et al., 2021), we propose that the benzene-related skeleton of aromatic ONs, which contains three delocalized π orbitals, can lead to rapid hydrolysis. This is because the delocalized π orbitals enhance the hyper-conjugation effect and stabilize the carbocation, thereby decreasing the hydrolysis lifetimes of ONs (Y. Wang et al., 2021). This mechanism helps explain the short hydrolysis lifetimes observed in this work.

The fraction of hydrolyzable ONs is crucial for understanding the role of hydrolysis as a loss mechanism for ONs and NO_x. Takeuchi and Ng (2019) reported that the hydrolyzable fraction of ONs from the NO₃ oxidation and the OH-initiated photooxidation of the α-pinene and β-pinene systems range from 9 % to 36 %. However, more than 50 % of the ONs resulting from the OH-initiated photooxidation of 1,2,4-trimethylbenzene are hydrolyzable (Liu et al., 2012). In our study, we observe that the fraction of hydrolyzed styrene-derived ONs ranges from 52.7 % to 60.6 %. Overall, while research on the fraction of hydrolyzable ONs is still limited, these findings so far indicate that the hydrolyzable fractions of ONs resulting from the oxidation of aromatic VOCs are larger than those from biogenic VOCs. The difference can likely be explained by the fact that only ONs with specific chemical structures, particularly tertiary nitrates in biogenic VOC oxidation systems, are susceptible to hydrolysis. In contrast, a large fraction of aromatic ONs features structures with delocalized π orbitals, which facilitate hydrolysis.

5 Atmospheric implications

To the best of our knowledge, this study is the first to demonstrate the formation of SOA and particulate ONs from styrene + NO₃ oxidation. We systematically carry out a series of chamber experiments with initial styrene concentrations ranging from 9.5 to 155.2 ppb under dry and humid conditions at room temperature. The resulting SOA yields range from 4.5 % to 16.1 % with aerosol mass loadings of 1.9 to 107.4 µg m⁻³. It is known that the loss of organic vapors to the chamber wall can lead to underestimation of SOA yields. For instance, Zhang et al. (2014) compared the results from a statistical oxidation model and experimental observations and determined that the correction factor for SOA yields ranged from 2.1 to 4.2. Here, we use a semi-empirical model that incorporates the gas-to-particle partitioning of two semi-volatile products to correct for the effect of vapor wall loss on SOA yields; the correction factor is found to range from 1.3 to 3.2, consistent with previous studies (Zhang et al., 2014). By applying the correction factor derived in this work, the corrected SOA yields range from 14.0 % to 22.1 % with aerosol mass loadings of 5.9 to 147.6 µg m⁻³. The yields obtained in this study form the basis for determining the contributions of styrene + NO₃ chemistry to SOA formation. Styrene has been detected at ppb levels in the ambient atmosphere and has a high emission factor from biomass burning, with typical abundances ranging from 0.06 to 45 ppb (Cho et al., 2014; Tuazon et al., 1993; Yu et al., 2019; Koss et al., 2018). These are in the range of our experiments, corresponding to the formation of up to 32.5 µg m⁻³ of SOA with the vapor wall loss correction. Our results serve as fundamental inputs for parameterizing SOA formation from styrene in atmospheric models.

We examine the chemical composition of SOA and propose formation mechanisms for the major monomeric and dimeric ON products detected in the particle phase. We find that dimeric products constitute around 91 % of the signal, while monomeric products account for only 9 %. As the fractions of monomers and dimers are relatively constant in experiments spanning a wide range of styrene concentrations, this may suggest that dimeric ONs are also important products when NO₃ reacts with typical atmospheric levels of styrene. Previous studies have suggested that nitrogen-containing products measured in ambient environments are nitroaromatic compounds (R-NO₂) formed from aromatic VOCs (Kong et al., 2021; W. Wang et al., 2021; Salvador et al., 2021). Our work introduces an alternative perspective, suggesting that ONs could also be nitrogen-containing products from the oxidation of aromatic VOCs in the atmosphere. Dimeric nitrogen-containing compounds from the oxidation of aromatic VOCs (e.g., toluene, p-xylene, ethylbenzene, 1,3,5-trimethylbenzene, phenol, cresol, and 2,6-dimethylphenol) have been observed in chamber experiments (Molteni et al., 2018; Kumar et al., 2023; Mayorga et al., 2021). Here, based on speciated molecular-level characterization of SOA, we are able to propose the chemical structures and formation mechanisms of dimeric ON products for the first time. Besides the common RO₂+ RO₂ pathway, we suggest that other radical chain termination reactions, such as RO + R or R+R, could explain the formation of the major dimeric ONs. Further density functional theory calculations and experimental work are needed to provide additional evidence to confirm the molecular structures and identify critical intermediates for validating our proposed mechanisms. In contrast to chamber experiments, the detection of dimeric nitrogen-containing compounds derived from aromatics is rare in field campaigns. Ye et al. (2021) observed C_≥19H_yO_zN₁₋₂ compounds in ambient aerosols in Shenzhen, China, using FIGAERO-CIMS, exhibiting a ring and double-bond equivalence (RDBE) exceeding 10 and an aromaticity equivalent (Xc) surpassing 2.70 (Yassine et al., 2014; Wang et al., 2017). These compounds can be considered aromatic ONs (Table S3). Considering the difference between controlled laboratory experiments and the complexity of ambient environments, it will be intriguing to explore why dimeric ONs derived from aromatic compounds are rarely observed in the field.

In this study, we observe that the hydrolysis lifetimes of styrene-derived ONs (about 52.7 % to 60.6 % of the total ONs) are less than 30 min. This finding supports our previous assumptions about the relationship between hydrolysis lifetimes and the molecular structures of ONs (Y. Wang et al., 2021). The unique delocalized π orbitals provided by the benzene-related skeleton of styrene ONs can stabilize the carbocation, thereby promoting hydrolysis. The hydrolysis lifetimes observed for ONs generated from styrene + NO₃ oxidation can serve as an experimentally constrained parameter for modeling hydrolysis of aromatic ONs in general. For example, not only styrene-derived ONs but also other aromatic ONs such as furan or methylfuran ONs (Joo et al., 2019), despite lacking benzene rings, have the potential to undergo rapid hydrolysis due to the presence of delocalized π orbitals. The hydrolysis lifetimes are crucial for regional and global chemical transport models in order to accurately assess the impacts of hydrolysis of aromatic ONs on the NO_x budget and subsequent ozone formation.
