The evolution of aerosol mixing state derived from a field campaign in Beijing: implications for particle aging timescales in urban atmospheres

The mixing states and aging timescale of aerosol particles play a vital role in evaluating their climate effects. Here, by using field measurements at a site in urban Beijing, we have identified four different real-time mixing patterns of size-resolved particles, which are defined as less hygroscopic (LH) internally mixed, externally mixed, transitional externally mixed and more hygroscopic (MH) internally mixed particles, with atmospheric fractions of 0 %–10 %, 20 %–46 %, 17 %–24 % and 27 %–56 %, respectively. The fraction depends on particle size, with the maximum fraction of MH internally mixed particles at 80 and 110 nm and the minimum fraction of LH internally mixed particles across all sizes, implying rapid mixing and aging of ambient particles during the observational period. The diurnal variations of the mixing states of particles in all sizes investigated (40, 80, 110, 150 and 200 nm) present an apparent aging process from externally mixed to MH internally mixed, which typically spans a duration of approximately 5–10 h from 08:00–10:00 to 15:00–17:00 local time (LT), revealing the mixing (aging) timescale of aerosols in a polluted urban atmosphere. Additionally, our results suggest that those fine aerosol particles experience aging through both the photochemical process and non-photochemical growth during the campaign. Furthermore, through a comprehensive review of the mixing–aging timescale of particles adopted in current models and derived from observations, we show a great discrepancy between observations and models, highlighting the importance of parameterizing their aging timescale based on more field campaigns.

1 Introduction

The mixing state of atmospheric aerosol particles can affect the hygroscopicity and the ability to serve as cloud condensation nuclei (CCN), thus affecting the air quality and climate (Müller et al., 2017; Xu et al., 2021; Yao et al., 2022; Ge et al., 2024). It has been shown that the aerosol mixing state is closely related to hygroscopicity (Chen et al., 2022; Fan et al., 2020). Ren et al. (2018) predicted the concentration of CCN using five different mixing state schemes and found that the influence of aerosol mixing state on its activation characteristics ranged from −34 % to +16 %. Neglecting particle mixing structure can also lead to significant overestimation of the aerosol absorption efficiency (Yao et al., 2022). Therefore, it is important to account for the information on the mixing state of ambient particles in climate models so as to reduce the uncertainty in evaluating their environmental and climate effects.

The mixing states of ambient particles are complex. Particles in areas affected by primary emissions are mainly in an external mixing state (i.e., the chemical components of particles exist independently), while aerosols in relatively clean areas are mainly transported from elsewhere and have a higher degree of internal mixing (Swietlicki et al., 2008; Enroth et al., 2018; Chen et al., 2022). Internal mixing typically includes uniform composition or core–shell structures (Jacobson, 2001). The former refers to the same proportion of species in any part of the aerosol component, while the latter is defined as the mixing state formed by certain chemical components coating or condensing on the surface of other components during the aging process. Also, the mixing state of aerosol particles is variable. Freshly emitted particles undergo various processes, including photochemical and aqueous-phase processes, as well as physical processes such as coagulation and condensation, leading to an increase in their degree of internal mixing. This gradual transition from external to internal mixing characterizes the aging process of particles. The aging timescale varies greatly between clean and polluted areas (Peng et al., 2016; Chen et al., 2017; Ghosh et al., 2021). However, the timescale of the aging process of particles was commonly fixed in many models and did not depend on environmental conditions (Chen et al., 2017; Ghosh et al., 2021), which may introduce great uncertainty in the prediction of regional aerosol concentration and the evaluation of aerosol climate effects (Ghosh et al., 2021). Therefore, capturing the temporal scales of the evolution of the aerosol mixing state based on field campaigns is crucial for accurately parameterizing the aging timescale of aerosol particles in models, thereby enhancing the precision of simulations pertaining to the environmental and climatic impacts of aerosols.

At present, some studies have characterized the mixing state and aging process of black carbon (BC) aerosols using different instruments. Transmission electron microscopy (TEM) has been used to determine the mixing state of individual particles in China (Li et al., 2016; Zhang et al., 2023). However, based on a TEM technique, a large number of aerosol samples are required so as to make the results statistically significant, which means a high cost with regard to both labor and materials. The most important issue is that the mixing state of particles may change during collection and transportation. Recently, aerosol time-of-flight mass spectrometry (ATOFMAS) and soot-particle aerosol mass spectrometry (SP-AMS) have been used to measure the mixing state of BC and coated aerosol species in real time (Liu et al., 2019; Xie et al., 2020). Overall, previous studies focused more on the mixing state of BC of single particles (Saha et al., 2018; Xie et al., 2020; Chen et al., 2020). However, the mixing state of particles across a population in ambient atmosphere is more complex (Riemer et al., 2019). According to Winkler's definition, the “internal mixing” means when all particles within the bulk aerosol populations have the same compositions. The “external mixing” means when all particles consist of pure species and have distinct compositions (Winkler, 1973; Riemer et al., 2019). Note that in Riemer et al. (2019), the definition refers to the bulk and not the sized-resolved mixing state of aerosol particles. In this study, the size-resolved mixing state of aerosol particles has been identified according to the patterns of the probability density function (PDF) of hygroscopic growth factor/hygroscopic parameter (κ) (GF PDF; κ PDF) measured using a humidity tandem differential mobility analyzer (H-TDMA) (Hong et al., 2018; Shi et al., 2022; Spitieri et al., 2023). For example, the internally mixed aerosol populations with diameters of 40 nm are characterized by the single hygroscopic mode of GF PDF/κ PDF, while the externally mixed particles have bi- or trimodal distributions of GF PDF/κ PDF. However, most studies based on the H-TDMA measurements only made qualitative descriptions of the particle mixing state when explaining the variations in the aerosol hygroscopicity (Wang et al., 2019; Chen et al., 2022; Shi et al., 2022).

In this study, with the aim of obtaining insights into the mixing state and mixing (aging) timescale of ambient particles in urban area, we have identified four different types of size-resolved particle mixing states and characterized their real-time variations using the field-measured hygroscopic growth factor by the H-TDMA in urban Beijing. The evolution of the mixing state of particles with specific sizes was explored to imply the mixing (aging) timescale of their aging from the diurnal variations during clear and cloudy days. Finally, we compared the mixing–aging timescale of aerosol particles with that adopted in current models and other field observations reported in previous literature.

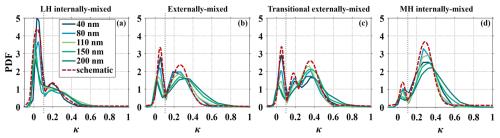

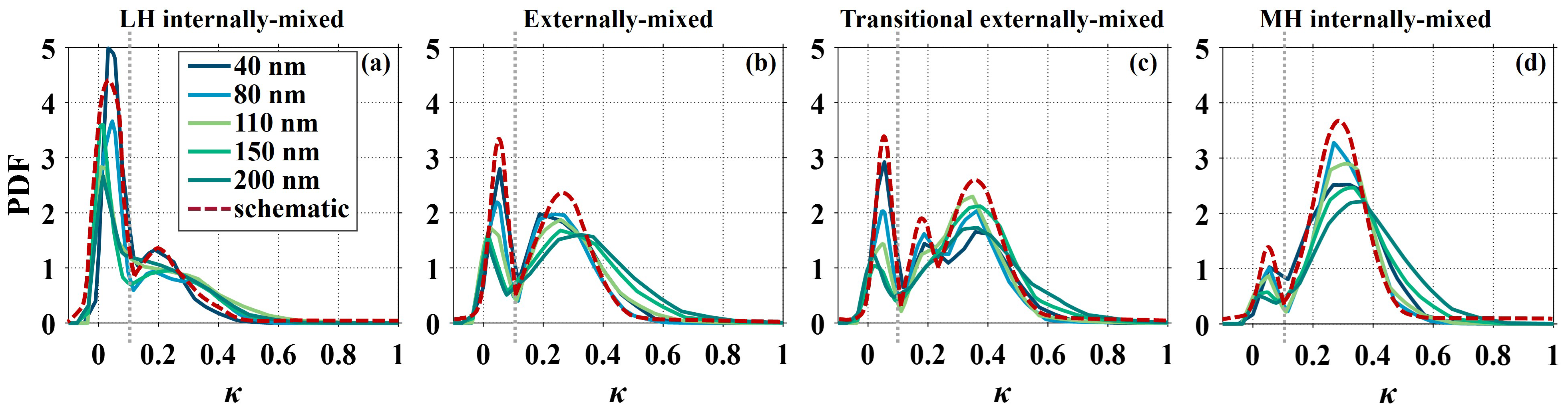

Figure 1 The mean κ PDF of five particle sizes and the schematic diagram of κ PDF for four mixing types.

2 Methods

The campaign was conducted at the meteorological tower branch of the Institute of Atmospheric Physics (IAP), Chinese Academy of Sciences, to measure the physical and chemical properties of particles and the meteorological conditions from 19 May to 18 June 2017 in Beijing. The instruments used in this study were deployed in a container at ground level (the sampling inlet is located at ∼ 8 m on the meteorological tower). The hygroscopicity of aerosols with different dry sizes (40, 80, 110, 150 and 200 nm) and particle number distribution in the size range of 10–550 nm was measured using a H-TDMA and a Scanning Mobility Particle Sizer (SMPS), respectively. The mass concentration of the non-refractory chemical compositions in particulate matter with diameter < 1 µm (PM₁) was measured by an Aerodyne high-resolution time-of-flight aerosol mass spectrometer (HR-ToF-AMS) (Xu et al., 2019), and the BC was measured by a seven-wavelength Aethalometer (AE33, Magee Scientific Corp.). More details about the sites, instruments and calibrations can be found in previous literature (Zhang et al., 2017; Wang et al., 2019; Fan et al., 2020; Chen et al., 2022). The campaign site was located at the urban area of Beijing, where the atmospheric fine aerosols are more frequently affected by local traffic and cooking sources (Sun et al., 2015). In addition, during the observation period of summertime, the site was predominately affected by the warm and humid southeastern air parcels (Fig. S1 in the Supplement), while the dust events normally originate from northwestern regions occurring in springtime (Li et al., 2020) and typically with particle sizes in coarse mode (Wang et al., 2023). Therefore, the contribution from dust aerosols could be negligible in this study.

Here, we mainly describe the interpretation criteria for the mixing state of particles. The GF PDF was obtained by the TDMA_inv algorithm in this study (Gysel et al., 2009). Then, the κ PDF of size-resolved particles was retrieved according to the κ Köhler theory (Petters and Kreidenweis, 2007). Subsequently, we accurately defined four mixing states based on the κ PDF patterns and the number of peaks in κ PDFs (Figs. 1 and S2). The κ PDF of type 1 exhibits bimodal distributions with a much higher proportion (> 70 %) of hydrophobic mode or less hygroscopic mode (LH; the peak of κ PDF occurs at κ < 0.1) and was thus defined as LH internally mixed state (type 1). Mixing type 2 (externally mixed) is characterized by bimodal distributions in the κ PDF for both LH and more hygroscopic (MH, κ≥ 0.1) modes, with less than 30 % difference in the fraction of the two modes. The κ PDF pattern with trimodal distributions was named the transitional externally mixed state (type 3). The κ PDF of type 4, defined as the MH internally mixed type, was dominated by the MH mode with a fraction larger than 70 %. It should be noted that the four categories defined in our study have covered all cases of the observational results. In this study, we also calculated the standard deviation of κ PDF (σ) according to Spitieri et al. (2023), which indicates the degree of dispersion in the data and is thought to reflect the mixing degree of particles to a certain extent. Given that the aerosol particles sampled at the campaign site in this study are rarely affected by other hygroscopic aerosols (e.g., aerosols from marine sources), the MH internally mixed particles (110, 150 and 200 nm) are thus mainly from the aging and growth of smaller particles. In contrast, the larger LH internally mixed particles are predominantly from primary emissions. Therefore, the proportion of MH and LH internally mixed particles at 100–200 nm can be used to distinguish the contribution to the internally mixed fraction of larger particles from smaller aerosol aging and primary emissions, respectively. Specifically, the result shows that a significant proportion of the internally mixed particles at larger size originate from the aging and growth of smaller particles, accounting for 99 %, 96 % and 92 %, respectively, for 110, 150 and 200 nm particles, whereas the contribution from primary emissions to these larger internally mixed particles is less than 10 %. It is worth noting that these results may involve certain uncertainties, as the influence of other sources was not considered. For example, the more hygroscopic sulfate particles could also be directly emitted from primary sources in the urban atmosphere (Dai et al., 2019); in addition, the aerosols are assumed to be rarely affected by sea salt. Consequently, the contribution of smaller particle aging and growth to the internally mixed fraction of larger particles may have been overestimated in this study. More research work is warranted to further evaluate and quantify such uncertainties in the future.

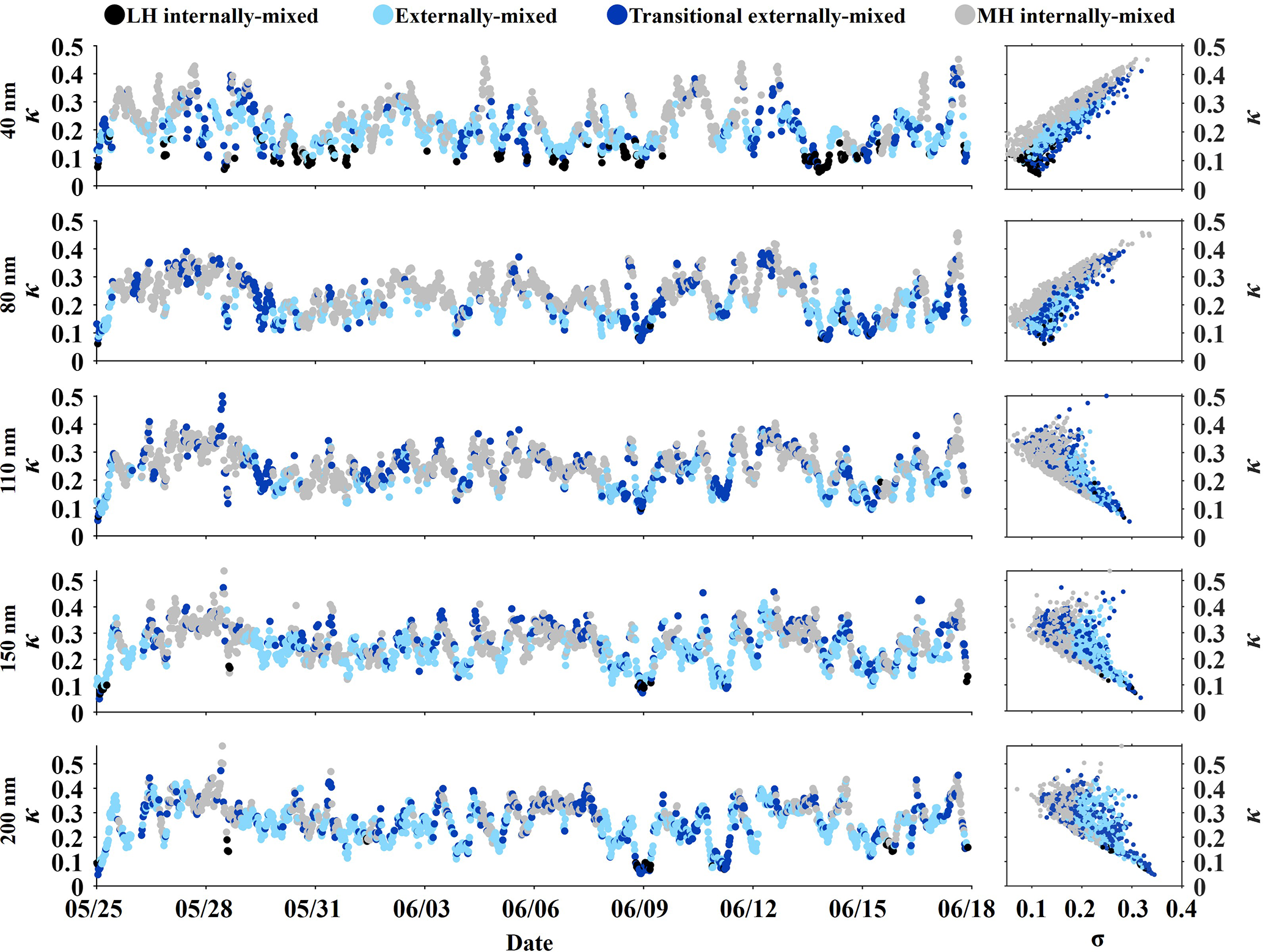

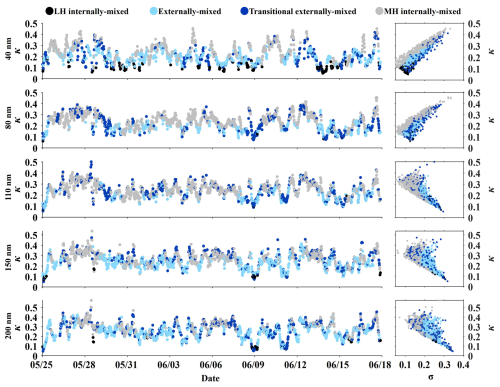

Figure 2 Time series of the hygroscopic parameter (κ) and plots of κ versus standard deviation of κ PDF (σ) for 40, 80, 110, 150 and 200 nm particles (from top to bottom). The colors denote the different mixing types.

3 Results and discussion

3.1 Overview of the mixing state of size-resolved particles

Figure 2 shows the time series of size-resolved κ and κ versus σ. The real-time changes in the mixing states of particles are represented by different filled colors. The κ values vary from 0 to 0.5 in each of the five particle sizes, accompanied by significant changes in mixing states. In general, the mixing state of particles gradually transitions from externally mixed to MH internally mixed along with increases in κ. For example, particles with a size of 40 nm are dominated by LH internally mixed and externally mixed at κ < 0.2, and the transitional externally mixed state takes up an increasingly proportion often corresponding to κ values of > 0.2, and the MH internally mixed particles occur when κ is greater than 0.3 (shown by the light gray dots in Fig. 2).

However, there exists different correlations between κ and σ for the five sizes. For particles with diameters of 40 and 80 nm, the σ increases as the κ increases from 0.1 to 0.4 along with slight increases in the fraction of MH internally mixed particles, showing a positive correlation. Unlike the small particles, the σ for particles larger than 100 nm (i.e., 110, 150 and 200 nm) exhibits a negative correlation with κ variations, showing that the particles were more MH internally mixed and with stronger hygroscopicity when the smaller σ values were derived. The different sources and chemical compositions of aerosol particles could explain the distinct relationship between σ, mixing states and hygroscopicity among particles of different sizes. Here, the standard deviation of κ PDF, σ, reflects the degree of dispersion in the pattern of κ PDF. Taking 40 nm particles as an example, the obtained larger σ value indicates more diversity in particle hygroscopicity and chemical compositions and thus a higher degree of external mixing state. This is because, besides the local emissions (Ren et al., 2023), the 40 nm particles during the campaign were also from the growth of newly formed particles that are much more hygroscopic (Liu et al., 2021a). Therefore, the composition of those small particles is more heterogeneous, resulting in both greater σ and κ. The cases where both the σ and κ of small particles are lower suggest that the particles may consist of a mixture of different species originating from primary emissions (e.g., BC, hydrocarbon-like and/or cooking organic aerosols). In contrast, for most larger particles, their chemical composition tends to become homogeneous after aging and growth processes, exhibiting stronger hygroscopicity, a higher degree of internal mixing and thus the smaller σ. However, a small number of larger particles with weak hygroscopic properties from primary emissions coexist with the aged ones in the atmosphere, which would result in a larger σ and a higher degree of external mixing.

The size dependence of mixing type fractions and σ are shown in Fig. 3. The external mixing types, including externally mixed and transitional externally mixed states, dominate in 40, 150 and 200 nm particles, accounting for 53 %, 57 % and 70 %, respectively, of all mixing types. The elevated fraction of externally mixed particles is intimately associated with the local sources. For instance, a previous study revealed the particle size distribution of aerosols from different sources in urban Beijing, suggesting that the particles with diameters of 40 nm during rush hours and cooking times predominantly originated from primary emissions, and particles at 150 and 200 nm displayed a strong correlation with regional atmospheric transport sources (Ren et al., 2023). In this study, the particles exhibit weaker hygroscopicity at lower wind speeds, indicating that hydrophobic particles are primarily from local sources (Fig. S3). Furthermore, for 40 nm particles, the relatively higher fraction of MH internally mixed particles (37 %) is likely due to the growth and aging of newly formed particles (Liu et al., 2021a). This is similar to the result observed in Athens, Greece, in which the particles with 30 nm were more internally mixed (Spitieri et al., 2023). For particles with sizes of 80 and 110 nm, the transitional externally mixed and MH internally mixed states totally account for 50 %–80 % of all mixing types, corresponding to a significant decrease from about 10 % to less than 1 % of the fraction of the LH internally mixed type. Note that the proportion of transitional externally mixed particles remains relative constant, with a mean value of 21 % across all sizes in this study, implying a continuous influence of atmospheric aging process on the particle mixing state. In addition, the larger particles (i.e., 150 and 200 nm) are closely associated with the growth of smaller particles and undergo a prolonged aging process. However, the fraction of MH internally mixed particles at 150 and 200 nm is lower than that of smaller particles (e.g., 80 and 110 nm). This is mainly due to the fact that a considerable amount of accumulated particles observed during the campaign were emitted from primary sources, which could be externally mixed with most of the aged more hygroscopic 150 and 200 nm aerosol particles. As shown in Fig. 3, the higher proportion of externally mixed state was obtained for particles with diameters of 150 and 200 nm. Furthermore, the more active Brownian coagulation of smaller particles enhances chemical homogenization (Park et al., 2002), resulting in a much higher fraction of MH internally mixed particles at 80 and 110 nm. On average, the result reveals that the externally and internally mixed particles accounted for 53 ± 11 % and 47 ± 11 %, respectively. The mixing state of particles derived in this study differs from that reported by Zhang et al. (2017), in which they conducted the measurements at the suburban site of Xinzhou, where the aerosols are much less affected by sources nearby, and the aerosols are mainly transported from elsewhere and are thus more aged and well mixed. The result implies that the influence of mixing state on hygroscopicity should be explored at specific particle sizes due to the heterogeneity of chemical compositions with particle size (Fan et al., 2020; Fig. S4).

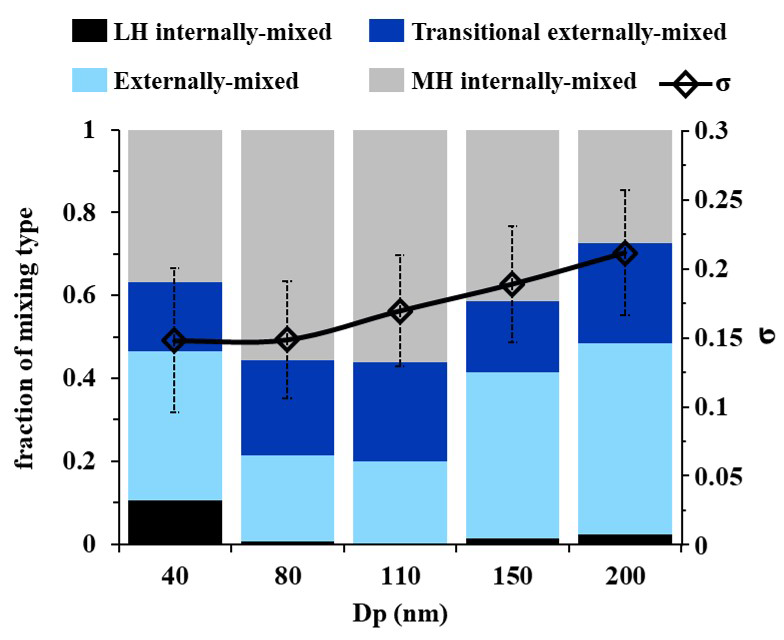

Figure 3 The size dependence of fraction of particle mixing types and σ.

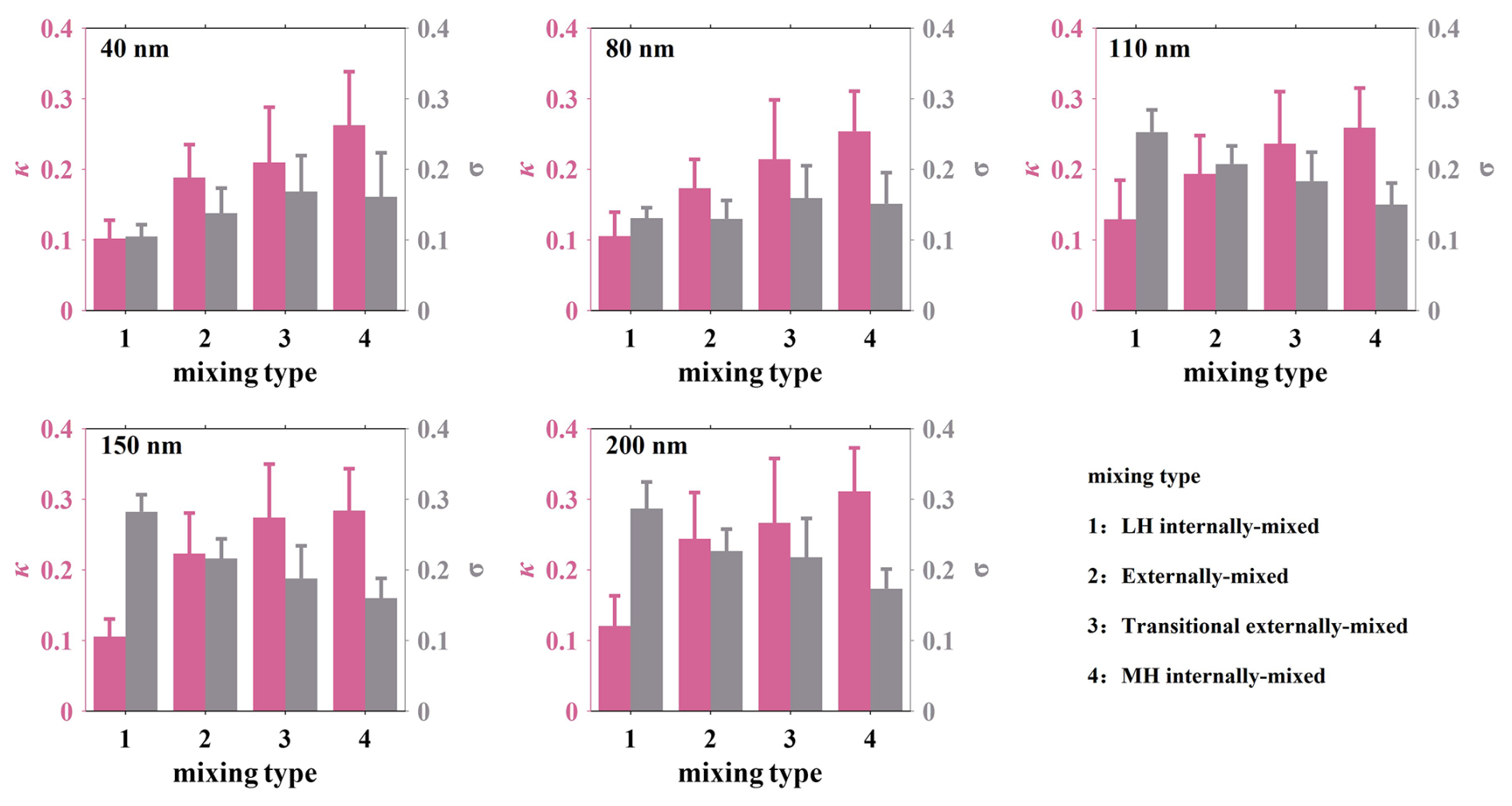

Figure 4 The mixing type dependence of hygroscopicity and σ for five particle sizes.

Further, we compared the dependence of κ and σ on the variations of mixing states for five particle sizes (Fig. 4). At 40 and 80 nm sizes, the transition from externally mixed to MH internally mixed particles results in a marked increase in κ, accompanied by a slight rise in σ. Conversely, for particles with sizes of 110, 150 and 200 nm, the σ reduced but the κ increased when the particles change from externally to MH internally mixed state. In other words, the σ of the particles larger than 80 nm shifts to lower values as the particles become more internally mixed. This contrasts with that previously observed in a vegetated site by Spitieri et al. (2023), who used only σ of GF PDF as a single indicator to characterize the particle mixing state. The distinct relationship between mixing type and σ for small particles (i.e., 40 and 80 nm) in urban sites indicates that the standard deviation of κ PDF can effectively characterize mixing degree and chemical composition heterogeneity of larger particles in polluted areas, where smaller aerosol particles are usually severely affected by local anthropogenic emissions.

Figure 5 Diurnal variations of the mixing state fraction and κ for five particle sizes.

3.2 Evolution of mixing state of the particles

The average diurnal variations of the mixing state and κ of different particle sizes are shown in Fig. 5. For 40 nm particles, the fraction of LH internally mixed particles presents three peaks during morning (09:00–12:00), evening rush hours (18:00–20:00) and nighttime (00:00–03:00). This is accompanied by the impacts from those primary cooking and traffic emissions (Xu et al., 2021; Liu et al., 2021b). Unlike the 40 nm particles, there is no apparent increase in the LH internally mixed state for the particles with sizes of 80, 110, 150, and 200 nm during the rush hours or cooking times. The results indicate that the particles emitted from local primary sources are small, mainly with sizes of around 40 nm during the campaign. Correspondingly, the proportion of the particles with the MH internally mixed state was smallest in the morning and nighttime but exhibited a rapid increase from about 09:00 until the evening rush hours (about 16:00–18:00). This is accompanied by the increase in hydrophobic modes in κ PDFs of small particle sizes during rush and cooking hours measured in Beijing (Fig. S5). Moreover, the increase in externally mixed particles of 40 nm during nighttime may be highly associated with the emissions of primary species from heavy trucks in urban Beijing during nighttime (Hua et al., 2018), which can also be evidenced by the increased hydrophobic mode of the 150 and 200 nm particles observed from 00:00 to around 03:00 in Fig. S5. In addition, the absence of photochemical aging and the lower boundary layer height during nighttime could also result in a higher proportion of externally mixed particles. In the early afternoon, the externally mixed and transitional externally mixed particles, which represent the intermediate state of the aging process in which particles transition from LH to MH mode, showed a decrease to around 10 %, while the proportion of particles with MH internally mixed state increased up to 80 %. As a result, an obvious enhancement in particles hygroscopicity was observed during the daytime, indicating the impact of particle mixing and aging on their hygroscopicity (Hersey et al., 2013; Müller et al., 2017). Overall, the diurnal variation implies an apparent aging process that leads the particles to change from externally mixed in the early morning to MH internally mixed in the afternoon.

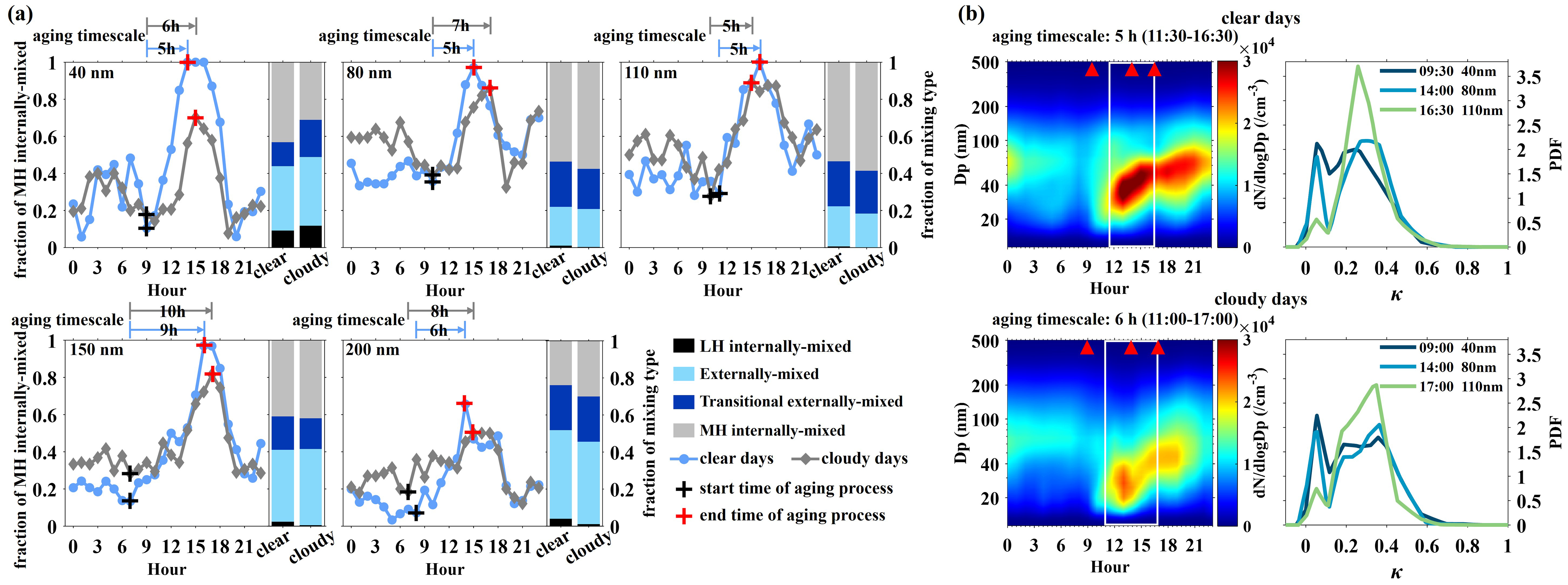

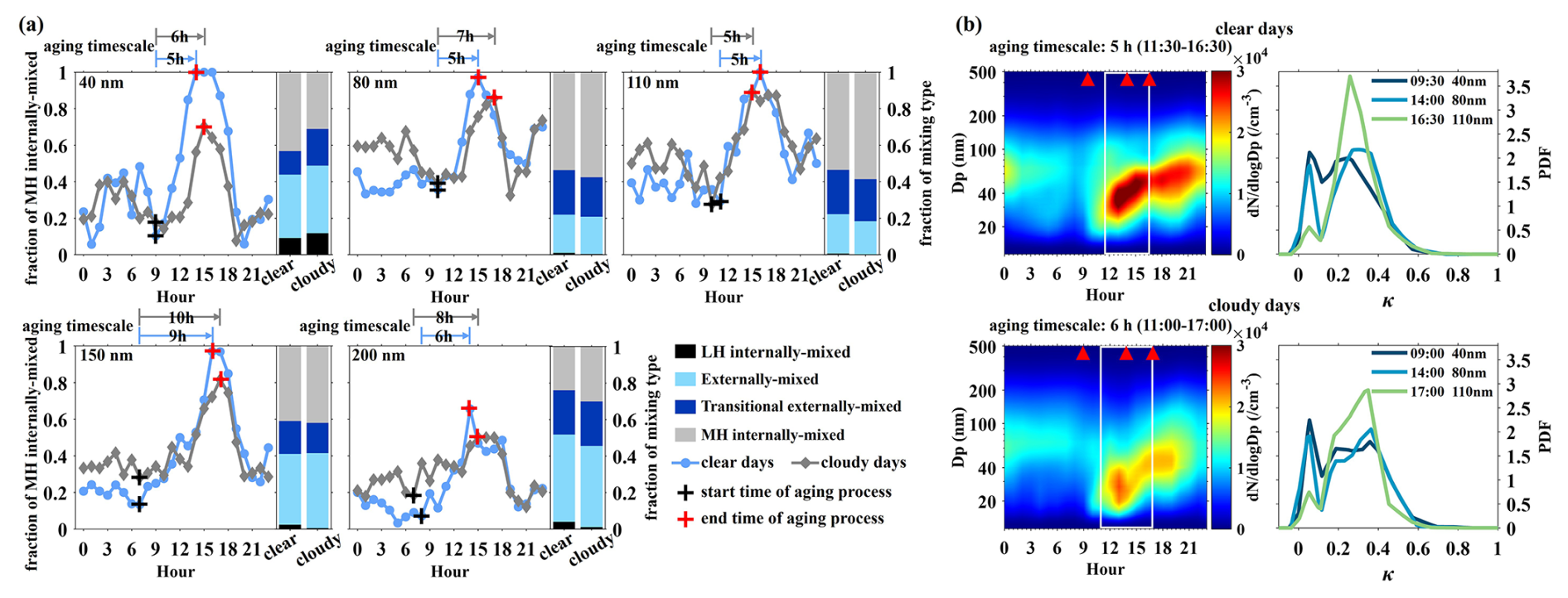

Figure 6 (a) Diurnal variations of the proportion of MH internally mixed particles and statistical results of the fraction of mixing state for five particle sizes on clear and cloudy days. The start time of particle mixing–aging was selected when the proportion of MH internally mixed particles was at a minimum between sunrise and noon, and the end time was defined as when the fraction of MH internally mixed particles reached its maximum. (b) The averaged diurnal variations in PNSDs and the variations of mean κ PDF during the growth periods on clear and cloudy days (right panels). The red triangles indicate 2 h before the start of the aging, during the growth and end of the aging process.

3.3 Particle mixing (aging) timescale: on clear and cloudy days

The aerosol particle mixing and aging process is usually accompanied by the growth of particle sizes. In order to derive the mixing and aging timescale of particles, we further analyzed the averaged diurnal variations of particle fraction with the MH internally mixed state, particle number size distributions (PNSDs) and the variations of mean κ PDF during the growth periods on both clear and cloudy days (Fig. 6). On clear days, the fraction of MH internally mixed particles increases significantly from ∼ 10 %–40 % before 09:00 to ∼ 70 %–100 % during 12:00–15:00. Such an enhancement is nearly as large as that on cloudy days. In detail, the proportion of MH internally mixed particles usually increased by less than 50 % between the period before 09:00 and during 12:00–17:00, and its maximum fraction was around 50 %–90 %. In addition, the fraction of MH internally mixed particles for 40 nm is noticeably higher on clear days (80 %), which is approximately 40 % greater than that on cloudy days, indicating that photochemical processes can make particles more internally mixed and aged (Liu et al., 2021a). Furthermore, the diurnal variations of PNSDs show that the growth of particle size is highly consistent with the increase in the fraction of MH internally mixed particles. Specifically, as the particle size grows from less than 40 nm before 09:00 to ∼ 100 nm around 17:00, the fraction of MH internally mixed particles increases from less than 40 % to > 90 %. And the peak value for κ shifts from κ < 0.1 to κ > 0.2, and the count for the peak value of κ PDF increases accordingly (Fig. 6). Overall, on clear days, the particles undergo a gradual shift from externally mixed to MH internally mixed states during 08:00–16:00 accompanied by a growth in particle size from 20 to about 100 nm, which is generally 1–2 h shorter than that observed on cloudy days.

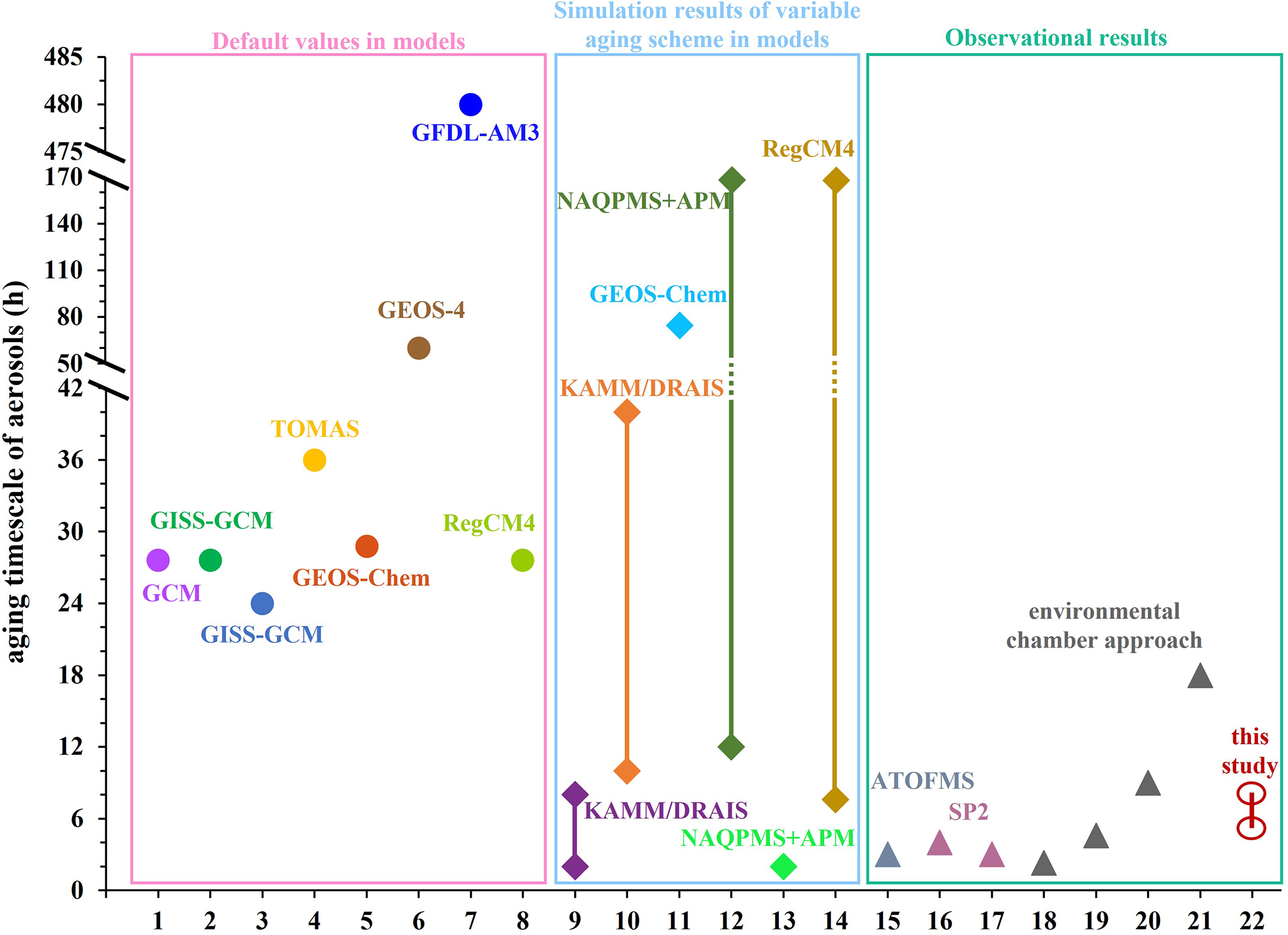

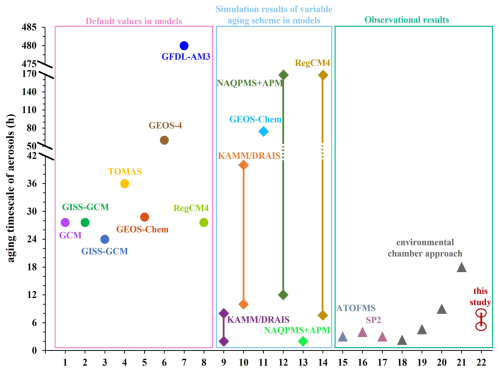

Figure 7 The mixing–aging timescale of particles reported in the literature (1. Cooke et al., 2002; 2. Chung and Seinfeld, 2002; 3. Koch and Hansen, 2005; 4. Pierce et al., 2007; 5. Yu and Luo, 2009; 6. Colarco et al., 2010; 7. Liu et al., 2011; 8. and 14. Ghosh et al., 2021; 9. and 10. Riemer et al., 2004; 11. Huang et al., 2013; 12. and 13. Chen et al., 2017; 15. Moffet and Prather, 2009; 16. Akagi et al., 2012; 17. Krasowsky et al., 2016; 18.–21. Peng et al., 2016). The solid circles, diamonds and the triangle denotes the default aging time of particles used in models, the stimulation results of variable aging scheme in models, and the observational results, respectively.

The obvious banana-shaped growth of newly formed particles was captured in the diurnal variations in PNSDs, which characterize the aging and growth of non-hygroscopic particles (e.g., BC) of primary emission and newly generated particles. Overall, the mixing and aging process is confirmed by the transition of particle from externally mixed to MH internally mixed, as well as the growth of particle size, which typically spans a duration of approximately 5 to 10 h, as is similar to the aging timescale of aerosol particles in the polluted Indo-Gangetic Plain (< 10 h) (Ghosh et al., 2021). In addition, the location of air parcels 5–10 h prior to measurement was close to the sampling site in Beijing, showing that the air parcels from the northwest (cluster 5) with long-distance transport account for the least fraction (only 8 %) of the air trajectories from all originating directions during the campaign (Fig. S1). The detailed results are presented in the Supplement (Fig. S1). This implies that most MH internally mixed particles were formed through the aging of locally emitted externally mixed particles. Actually, the aerosol particle aging would be largely affected by local atmospheric conditions and thus would vary both spatially and temporally (Pöschl et al., 2001; Huang et al., 2013). For example, using an environmental chamber approach, Peng et al. (2016) revealed that the timescale of BC aerosol aging is 2.3 and 4.6, 9 and 18 h over two cities: Beijing and Houston. Note that the faster aging time in Beijing derived in the chamber experiment is probably due to the different levels in the concentration of gaseous precursors. In addition, only photochemical aging occurred in the chamber experiment; however, in the atmosphere, particle aging is also through a coagulation process, which usually occurs more slowly than the photochemical reaction and condensation processes (Chen et al., 2017). This can also explain our observed faster mixing (aging) time on clear days when the photochemical process is more significant, considering that the difference in the pollutant concentrations during daytime between clear and cloudy days is not obvious (i.e., O_x and PM₁; Fig. S6).

3.4 Implications to parameterization of the current models

The mixing–aging timescale of aerosol particles significantly impacts their physiochemical properties, which in turn affects their atmospheric lifetime, transport characteristics (Zhang et al., 2023), hygroscopicity and the direct radiative forcing of aerosol particles (Moffet and Prather, 2009; Wang et al., 2018; Stevens and Dastoor, 2019). We further compared our results with the results derived from five field sites and the values adopted in current models (Table S1 in the Supplement). In most models, the aging processes of carbonaceous aerosols were treated with a simple parameterization, which generally obtained aging time based on the transformation of aerosols from hydrophobic to hydrophilic (Chen et al., 2017; Ghosh et al., 2021). Unlike the models, the aging timescale of BC aerosols in field measurements and laboratory studies was commonly derived by tracking changes in hygroscopicity, morphology, coating thickness or optical properties (Moffet and Prather, 2009; Akagi et al., 2012; Krasowsky et al., 2016; Peng et al., 2016). These methods were used to quantify the aging timescale of particles indirectly. However, in our study, the mixing (aging) time was inferred based on the changes in hygroscopic modes and mixing states of non-BC particles in the ambient atmosphere. Note that although there may be some differences in the results based on different methods, the aging timescales obtained all represent the mixing and aging rate of aerosol particles in the atmosphere, which affects aerosol atmospheric lifetime and thus the environment and climate effects. As shown in Fig. 7, the derived aging timescale of aerosols in this study is comparable to the observational results reported in other urban areas, such as Mexico City (3 h; Moffet and Prather, 2009) and Los Angeles (3 h; Krasowsky et al., 2016). The result is also close to the aging timescale of particles in the source area of biomass burning in California (4 h; Akagi et al., 2012). However, the aging time of particles displays large spatial variations at different sites. For example, the aging timescale of particles observed in Beijing (4.6 h) was 4 times faster than that in Houston (18 h), where the precursor concentrations are extremely low (Peng et al., 2016). Overall, the mixing–aging timescale of particles in Beijing achieved in this study is 5–10 h, which falls within the range of 2–10 h in polluted areas obtained by other studies. Therefore, our results are likely representative of the aging timescale of aerosols in polluted urban areas. Furthermore, the aging time of particles obtained in ambient atmosphere is much shorter than the default values adopted in most models, which is commonly with a duration of 1.15–2.5 d. In addition, the values among different models range greatly from 1 to 20 d (Fig. 7). For example, a timescale of 20 d was used to represent a slow aging process (i.e., coagulation) by Liu et al. (2011), as may not be properly applied in regions with a high particle number concentration where the particle coagulation is also efficient (Chen et al., 2017).

Although using a dynamic parameterization scheme for particle aging in models could achieve the application of different aging times to different regions, the simulated values show large variations among different models. For example, in the RegCM4 model, the conversion time from fresh to aged BC ranges from about 5 h to 7 d (Ghosh et al., 2021). The range in the KAMM/DRAIS, however, is only 2 h to about 1.6 d (Riemer et al., 2004). Moreover, even in central-eastern China, the aging timescale has been reported to range from 12 h to 7 d based on a regional chemical transport model (Chen et al., 2017), which is much longer than that derived in urban Beijing by this study. Additionally, the aging times of carbonaceous aerosols simulated by the GEOS-Chem model exhibit large spatial and temporal variations, with the global average calculated to be 3.1 d (Huang et al., 2013). This value is much larger than the default values used in other global models (1–2 d) (Pierce et al., 2007). Note that although the mixing (aging) timescale of particles was determined by examining diurnal variations in the mixing state of aerosol particles in this study, compared with laboratory studies, various factors in the real ambient atmosphere change over time, including meteorological conditions, emission sources and atmospheric processes. Therefore, the result derived in this study warrants further verification. Long-term field measurements at more sites should be conducted in the future.

The large uncertainties in the aging timescale can significantly affect the accuracy of simulation and assessment for the atmospheric lifetime, loading and radiation forcing of aerosols. For example, to better simulate the intercontinental transport of aerosols, Huang et al. (2013) implemented a variable aging scheme in the GEOS-Chem model, which showed that the total atmospheric burdens and global average lifetimes of BC (OC, organic carbon) increased by 8 % (2 %) compared to the default value (1.15 d). Similarly, due to the implementation of the dynamic aging scheme in models, the column burden and surface mass concentration of carbonaceous aerosols increased during the dry season in the polluted Indo-Gangetic Plain, and the atmospheric heating increased by at least 1.2 W m⁻² (Ghosh et al., 2021). Therefore, given the large spatiotemporal variations in aging timescales of particles, this study emphasizes the urgency of conducting investigations at more field sites. In addition, other factors, such as the meteorology and particle sizes, that affect the aerosol aging should be accounted for so as to improve the dynamic aging schemes in climate models.

4 Conclusions

The real-time mixing state of ambient aerosol particles with dry particle sizes of 40, 80, 110, 150 and 200 nm was investigated in urban Beijing, according to the PDF of the hygroscopic growth factor measured using the H-TDMA system. Four mixing states of ambient size-resolved particles were captured in this study. In general, particles with LH internally mixed, externally mixed, transitional externally mixed and MH internally mixed state account for 0 %–10 %, 20 %–46 %, 17 %–24 % and 27 %–56 %, respectively, which depend on particle size greatly. The fraction of MH internally mixed particles peaks at 80 and 110 nm due to more active Brownian coagulation enhancing the chemical homogenization of particles. The diurnal variation of mixing state of particles in all sizes considered presents a visible aging process, showing that the fraction of particles with the MH internally mixed state increases significantly from ∼ 10 %–40 % before 09:00 to about 100 % during 12:00–15:00 on clear days, accompanied by a growth in particle size from 20 to 100 nm. Typically, the mixing–aging process of particles takes approximately 5–10 h, which reveals the mixing (aging) timescale of aerosols during the campaign. Additionally, our results suggest that fine aerosol particles undergo significant aging through photochemical processes in the polluted atmosphere of urban Beijing. Furthermore, there is a large difference in the mixing–aging timescale of particles between values in models and the timescale achieved by observations, emphasizing the vital role of exploring the aging timescale through more field measurements to improve the accuracy of aging schemes in climate models. The results revealed in our study highlight the considerable impact of atmospheric aging on the mixing state of fine aerosol particles in polluted megacities.
