Atmospheric mercury: recent advances in theoretical, computational, experimental, observational, and isotopic understanding to decipher its redox transformations in the upper and lower atmosphere and interactions with Earth surface reservoirs

Mercury is a volatile heavy element with no known biological function. It is present in trace amounts (on average, ∼ 80 ppb) but is not geochemically well blended in the Earth's crust. As a result, it occurs in extremely high concentrations (up to a few percent) in certain locations. It is found along tectonic plate faults in deposits of sulfide ores (cinnabar), and it has been extensively mobilized during the Anthropocene. Mercury is currently one of the most targeted global pollutants, with methylmercury compounds being particularly neurotoxic. Over 5000 t of mercury is released into the atmosphere annually through primary emissions and secondary re-emissions. Much of the re-emitted mercury resulting from exchanges with surface reservoirs is related to (legacy) human activities, such as direct releases. Understanding the dynamics of the global Hg cycle is critical for assessing the impact of emission reductions under the UN Minamata Convention, which became legally binding in 2017. This review of atmospheric mercury focuses on fundamental advances in field, laboratory, and theoretical studies, including six stable Hg isotope analytical methods, which have contributed recently to a more mature understanding of the complexity of the atmospheric Hg cycle and its interactions with the Earth's surface ecosystem.

1 Introduction

Mercury (Hg) is a potent neurotoxin that, via methylmercury (MMHg⁺) food exposure, poses a global health threat (e.g., IQ decrement and heart attacks) (Zhang et al., 2021b). The atmosphere plays a pivotal role in the Hg biogeochemical cycle, functioning as the most important transient reservoir, a conduit for transport and transformation, and a site rich in redox chemistry. In part due to concerns about global Hg transport, the multilateral UN Environment Convention on Hg was negotiated and entered into force in 2017 with a mandate to reduce the intentional use and emissions of Hg (UNEP, 2018). Research on Hg biogeochemical cycling gained momentum after an outbreak of mass MMHg⁺ poisoning severely affected the population of Minamata Bay, Japan, in the 1950s and 1960s through the consumption of contaminated seafood, and it became clear that MMHg⁺ was present at chronically high levels in predatory fish in many lakes, particularly those in the boreal forest belt, through long-range transport and biomagnification (Lindqvist et al., 1991). The earliest known series of measurements of airborne elemental Hg, possibly the first systematic study of its kind, was conducted in Pacific North America during the second half of the 1960s (Williston, 1968). It was recognized as early as the 1970s that Hg circulated globally through the atmosphere (Nriagu, 1979). Somewhat later, Slemr et al. (1985) published an influential paper whose results on the distribution, speciation, and budget of atmospheric Hg reproduce the qualitative features of the atmospheric Hg cycle fairly well, such as atomic vapor (Hg⁰) dominating the atmospheric pool and showing an interhemispheric difference with higher concentrations in the Northern Hemisphere and being relatively well mixed vertically through the troposphere with an extensive residence time (concept of a “global pollutant”).

Knowledge of the physical and chemical processes that govern the dynamics of Hg in the atmosphere has developed gradually. Over time, through technological leaps (stable isotope sampling in natural probes, refined methods in the theoretical and experimental field, etc.), its full complexity has begun to be appreciated. In earlier research, the prevailing view was that water-phase oxidation by ozone could be the primary mechanism initiating the removal of tropospheric Hg⁰ (Pleijel and Munthe, 1995; Seigneur et al., 1994). However, newer data have indicated that gaseous oxidized mercury (GOM) could also be present in the atmosphere (Xiao et al., 1997; Lindberg and Stratton, 1998), in addition to the particulate form (PBM). Specifically, the observation that Hg⁰ was periodically depleted in the planetary mixing layer during the polar spring (Schroeder et al., 1998) prompted a reassessment of Hg chemistry in favor of homogeneous gas-phase chemistry (Hynes et al., 2009). The two-step gas-phase oxidation of Hg⁰ initiated by Br atoms has emerged as the most important global channel for tropospheric conversion to Hg^II (Donohoue et al., 2006; Holmes et al., 2010). Gas-phase O₃ was previously considered an oxidizing agent for Hg⁰ to Hg^II. Although this route was discarded, O₃ has been found to effectively oxidize intermediate Hg^I species (Gómez Martín et al., 2022). This suggests that OH- and less certain I-initiated oxidation of Hg⁰, which produces less stable intermediates than Br and Cl do, may also be important for Hg turnover in parts of the troposphere and beyond (Dibble et al., 2020; Lee et al., 2024). A novel finding is that major Hg^I,II species, which are expected to be formed in the atmosphere upon oxidation of Hg⁰, are themselves photolabile and undergo gas-phase reduction (Francés-Monerris et al., 2020; Saiz-Lopez et al., 2019). The complexity of rapid redox Hg chemistry involving multiple gas-phase oxidation states (0, +1 and +2) is further compounded by the impact of multiphase interactions, including reactive uptake and homogeneous and heterogeneous processes in condensed-phase media, on the dynamics of atmospheric Hg. An indicator of the maturation of our understanding of atmospheric Hg chemistry is the inclusion of bromine chemistry in critically evaluated datasets for use in atmospheric studies (Burkholder et al., 2019). Over the past 2 decades, measurements of Hg stable isotope ratios in natural samples have emerged as valuable tools for gaining insights into the atmospheric Hg cycle. One notable outcome of isotope analysis is the recognition that dry Hg⁰ deposition exerts a more pronounced influence on a global scale than was previously understood, with wet and dry deposition of the atmospheric Hg^II fraction being of lesser importance (Jiskra et al., 2018).

Hg in the atmosphere has been the subject of reviews over the past 45 years, with topics including biogeochemical cycling (Lindqvist and Rodhe, 1985; Lindqvist et al., 1991; Schroeder and Munthe, 1998; Selin, 2009; Lyman et al., 2020a), observations (Sprovieri et al., 2010; Dommergue et al., 2010; Fu et al., 2015; Steffen et al., 2015; Mao et al., 2016; Zhang et al., 2019c; Custódio et al., 2022; Bencardino et al., 2024), isotopic observational data (Kwon et al., 2020; Liu et al., 2024), atmospheric measurement techniques (Pandey et al., 2011; Huang et al., 2014; Gustin et al., 2015, 2024; Davis and Lu, 2024), anthropogenic emissions (Carpi, 1997; Zhang et al., 2016; Cheng et al., 2023), natural volcanism (Edwards et al., 2021), physical removal and air–surface exchange (Zhang et al., 2009; Sommar et al., 2013, 2020; Zhu et al., 2016; Agnan et al., 2016; Cooke et al., 2020; Zhou et al., 2021; Liu et al., 2024) with emphasis on global change (Obrist et al., 2018; Sonke et al., 2023), polar atmospheric surface layer mercury depletion events (Steffen et al., 2008), chemical conversion in the atmosphere (Schroeder et al., 1991; Lin and Pehkonen, 1999; Lin et al., 2011; Si and Ariya, 2018), aqueous homogeneous and heterogeneous photoredox chemistry (Zhang, 2006; Si et al., 2022), multiphase atmospheric chemistry (Ariya et al., 2015), assessment of critical atmospheric chemical processes using state-of-the-art experimental and computational chemistry methods (Ariya and Peterson, 2005; Ariya et al., 2008; Hynes et al., 2009), receptor (Cheng et al., 2015), and global models (Lin et al., 2006, 2007; Subir et al., 2011, 2012; Amos et al., 2015; Travnikov et al., 2017). This review is based on the perspective of atmospheric scientists, with synthesis and a comprehensive account of the results of fundamental research, including field, laboratory, and theoretical studies, that have contributed to an understanding of the complexity of the atmospheric Hg cycle and its interactions with the Earth's surface ecosystem at the molecular level. This work does not address several topics related to Hg in the atmosphere. These include anthropogenic and natural emission inventories, corresponding top-down constraints, and inverse modeling from atmospheric observations, accounting for long-term air data series and their temporal and spatial trends, observations of the PBM and its particle size distributions, wet deposition, future scenarios for the effects of regulatory measures (Minamata Convention), ongoing climate change, and many more topics. Our goal is to provide a comprehensive review of the atmospheric chemistry of both inorganic and organic Hg in the lower and upper atmosphere, coupled with a compilation of updated, critically evaluated kinetic, thermochemical, photochemical, and isotopic fractionation data. Where appropriate, we introduce the basic concepts and fundamental aspects of Hg chemistry, including those of condensed phases. In atmospheric Hg isotope chemistry, our approach is comprehensive, encompassing a range of activities from field observations of air and Hg⁰ gas exchange with natural surfaces to laboratory studies of processes that may be relevant to the atmosphere. We also highlight areas of persistent uncertainty or lack of consensus, such as measurement methods for atmospheric Hg speciation and the partitioning of Hg^II in atmospheric water between inorganic and organic ligands.

2 Physical chemistry of elemental mercury

Hg is the only metal that is a liquid at standard temperature and pressure (freezing point of −38.8 °C and boiling point of 356.7 °C), and its vapor is monatomic. Under these conditions, the mixing ratio of neurotoxic Hg vapor in equilibrium with metallic liquid is already at the hazardous level of approximately 1.7 ppm (Huber et al., 2006). Liquid Hg possesses properties that have given it a wide range of applications in the past despite its known toxicity, including exceptional surface tension (nearly 7 times greater than that of water at 25 °C), high specific gravity, high electrical conductivity (a reference substance for measuring the SI unit Ω), low compressibility, and a constant volume of expansion coefficient in the liquid state. Hg forms solid alloys (amalgams) with most metals except iron. This property enables its application in gold panning (HgAu) and dental fillings (HgAg) or as an electrode material in the chloralkali industry (NaHg). The electronic configuration of the mercury atom has filled f- and d-orbitals with a high density of 6s valence electrons near the nucleus ([Xe]4f¹⁴5d¹⁰6s²), which is related to a relativistic radial contraction of s- and p-orbitals as the inner electrons approach a significant fraction of the speed of light (which for a Hg 1s electron is 58 %, implying a radial shrinkage of 23 %; Pyykkö, 1988). It also follows that oxidation states 0 and +2 (mercuric, d¹⁰ metal ion) are the most stable for Hg. Nevertheless, Hg differs from other metals in its propensity to readily form a polycation in the aqueous phase, the mercurous ion, ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$, which is, however, only metastable in the gaseous phase (Strömberg and Wahlgren, 1990). The solubility of Hg⁰ in water is limited to 0.3 µM (Sanemasa, 1975), and the gas–water equilibrium is governed by Henry's law. The Henry's law coefficient ($k_{\mathrm{H}}^{\mathrm{cp}}$) for Hg⁰ is 0.11 M atm⁻¹ at 25 °C (Andersson et al., 2008), whereas the value is more than 7 orders of magnitude greater for the HgCl₂ molecule at the same temperature (Sommar et al., 2000). Since the mid-19th century, light production, including sharp lines at 184.9 and 257.3 nm, has been achieved by passing an electric arc through Hg⁰ vapor in a glass bulb. Conversely, absorption spectroscopy uses these atomic deep-UV lines to analytically detect Hg in samples, as discussed in detail in Sect. 3.1.

3 Atmospheric environment

3.1 Atmospheric measurements of mercury species

Hg is the only trace gas, other than the noble gases (Burnard, 2013), that exists as free atoms (Hg⁰) in the atmosphere, making this pollutant exceptional in terms of low detection limits by optical measurement techniques. This makes it possible to measure Hg⁰ vapor emissions in real time, for example, from mining, chloralkali production and geothermal activities, as has been done in Europe for decades via light detection and ranging (lidar) in differential absorption mode by mobile laser systems (Svanberg, 2002). If the optical path length in the measuring cell of an instrument is sufficiently long (i.e., using multipath techniques such as cavity ring-down), then the conditions exist for continuous measurement of Hg⁰ in ambient air (at the sub-ppt level, ∼ 5×10⁶ atoms cm⁻³ in the Northern Hemisphere) via atomic absorption spectroscopy (AAS) with Zeeman background correction (Osterwalder et al., 2020). The application of Zeeman AAS in Hg stable isotope analysis has also been described (Lu et al., 2019). As an alternative to Zeeman splitting of the Hg(6³P) level for sensitive, selective detection of Hg⁰ (Sholupov et al., 2004), sequential two-photon laser-induced fluorescence schemes have been used (Bauer et al., 2002, 2014; Hynes et al., 2017). For initial excitation of the Hg(6¹S₀) → Hg(6³P₁) transition at 253.7 nm, a light beam from a Hg discharge lamp or the frequency-doubled output of a dye laser pumped by the third harmonic of a Nd:YAG laser is used. As shown in Fig. 1a, further excitation involves the sequential excitation of different atomic transitions by two laser systems, both starting from the Hg(6³P₁) state, followed by the detection of blue-shifted (Hg(6¹P₁) → Hg(6¹S₀) at 184.9 nm) or red-shifted (e.g., at 578.9 nm) fluorescence. The detection of Hg⁰ with such a sophisticated apparatus is an exception to typical measurements, which are made via cold vapor atomic fluorescence spectroscopy (CV-AFS) after preconcentration sampling on gold (Ambrose, 2017). Smaller non-Hg⁰ portions of atmospheric Hg are challenging to speciate because of their low concentrations. Instead, they are fractionated operationally based on their oxidation state (Hg⁰ versus GOM) or phase state (GOM versus PBM). Since gold does not selectively trap Hg⁰ but also captures other Hg species (Dumarey et al., 1985; Gačnik et al., 2024), the GOM and PBM must be individually collected upstream of the sample air to accurately measure the triad Hg⁰–GOM–PBM. KCl-coated annular denuders have been utilized for fractionating ambient GOM by gas-phase diffusion for over 2 decades. Nonetheless, upon the development of techniques to regularly assess its accuracy in measuring ambient air, the method was found to be biased in a non-systematic manner towards lower values (Jaffe et al., 2014; Lyman et al., 2010; McClure et al., 2014). The automated KCl denuder method, with its variable efficiency, can thus assess its accuracy in measuring ambient air regularly; the method was found to be biased in a nonsystematic manner, leading to serious underestimation of the GOM, whereas the refluxing mist chamber method, which is an alternative, carries the risk of cosampling the GOM with the PBM (Gustin et al., 2021). However, the KCl-covered denuder does not have full penetration of PBMs < 2.5 µm, but aerosols of 100 nm or less are increasingly trapped by the salt surface (Ghoshdastidar et al., 2019). When compared, refluxing mist chambers yielded ambient GOM concentrations that were 3 to 4 times higher on average than those obtained with KCl-coated annular denuders (Landis et al., 2002). A decade later, the capture and retention efficiency of the KCl denuder method for GOM was evaluated, which was close to 95 % in synthetic Hg⁰-free air but decreased drastically to between 20 % and 54 % when exposed to ambient air, where ozone and humidity were found to cause severe reductive losses such as Hg⁰ (McClure et al., 2014). In fact, ozone gas can heterogeneously reduce particle-bound Hg^II halides, as recent experiments have shown (Ai et al., 2023). In high-humidity marine applications, KCl denuder technology operates at very low efficiency; for example, He and Mason (2021) reported average losses of 80 % during oceanographic expeditions in the Pacific. By determining total airborne mercury (TAM; Steffen et al., 2002; Slemr et al., 2018) and Hg⁰ in air, a measure of reactive mercury (RM) is obtained as the sum of GOM + PBM by subtracting Hg⁰ from TAM. In turn, Hg⁰ is obtained by passing an air stream through a filter and a cation exchange membrane (CEM) in series, whereas TAM is measured as Hg⁰ after a pyrolysis unit held at 800 °C converts all Hg in the sample air to elemental vapor (Lyman et al., 2020b). CEM is capable of capturing and retaining Hg^II quantitatively over long storage periods but has no affinity for Hg⁰ (Miller et al., 2019). However, when two quantities that are usually close to each other are subtracted, the precision of the RM determination is low. Hynes et al. (2017) used two-photon laser-induced fluorescence as an online detection method for RM (by switching between ambient and pyrolyzed air as the source for the Hg⁰ analyte) and concluded that the variability in ambient Hg⁰ severely limits the sensitivity of dual-channel difference RM measurements. For the separation of the semivolatile GOM fraction from the PBM in ambient air, various membranes have been examined but with recognized limitations (Dunham-Cheatham et al., 2023; Gustin et al., 2023). The realization of NIST-traceable GOM calibration systems has recently progressed (Gačnik et al., 2022). Several studies have been carried out with the aim of experimentally deciphering the molecular identities (speciation) of the GOM pool in ambient air. Most methods are based on a preconcentration process of GOM on a substrate, which is then thermodesorbed in a gas stream following a programmed temperature ramp and detected as Hg⁰ after pyrolysis (Gustin et al., 2015), alternatively focused on a capillary column and analyzed by different types (chemical ionization CI; electron impact ionization) of mass spectrometry (MS) (Deeds et al., 2015; Jones et al., 2016). In the former case, standards are used in the form of a number of commercially available Hg chemicals (such as HgBr₂, HgCl₂, HgO, Hg(NO₃)₂, and HgSO₄) that are assumed to be representative surrogates for GOM (Huang et al., 2017; Sexauer Gustin et al., 2016). As inferred by Khalizov et al. (2020), this speciation is indirect, as it has not been confirmed that the GOM molecules adsorbed on the substrate can be desorbed in the same chemical form as they are in air.

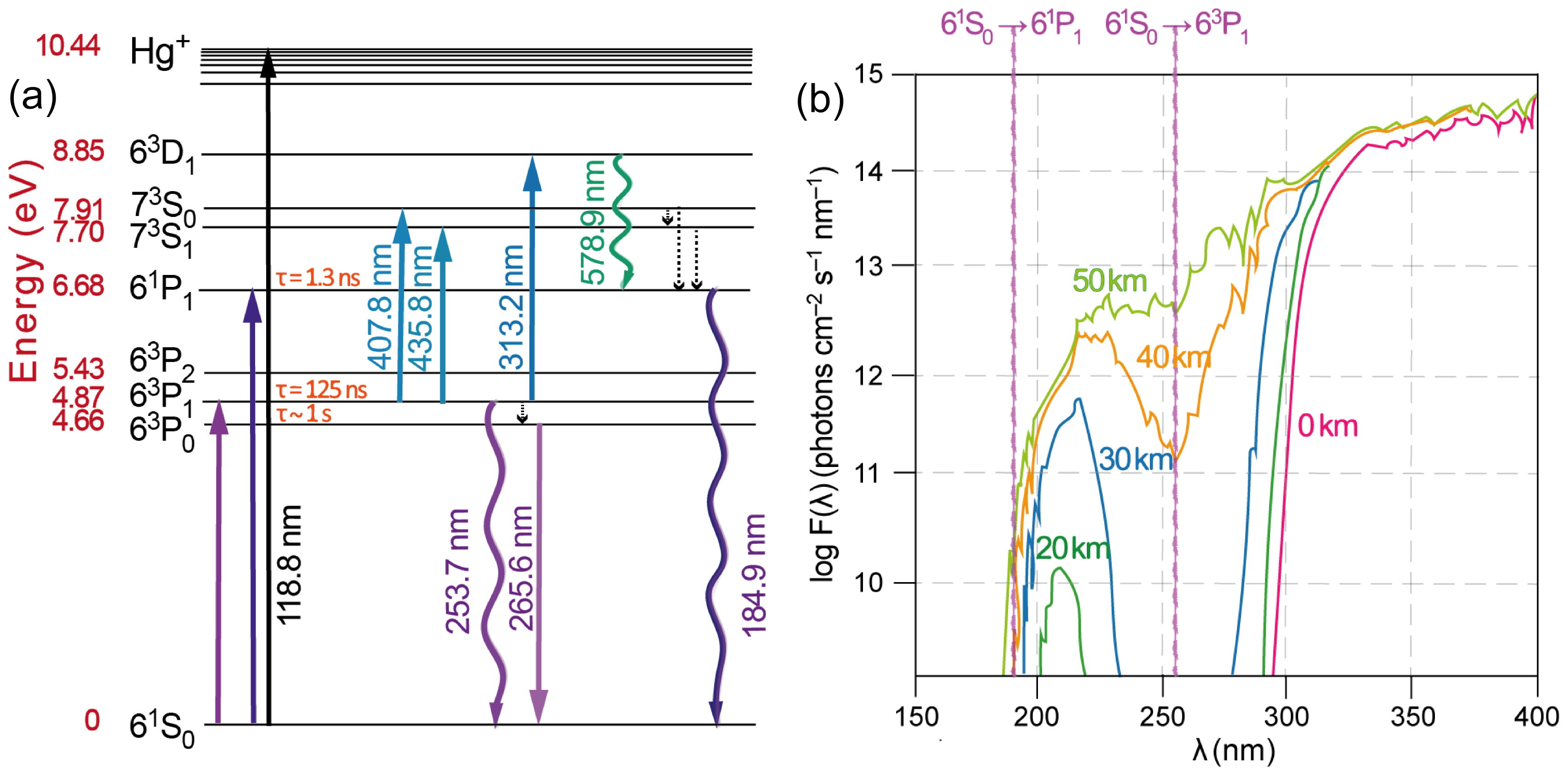

Figure 1 (a) Energy level diagram of the Hg atom. The wave-shaped arrows represent resonant radiation. (b) Actinic fluxes as a function of altitude. The wavelengths of the Hg(¹S₀) → Hg(³P₁) and → Hg(¹P₁) transitions at 253.7 and 184.9 nm, respectively, are given.

In contrast, studies have shown that aerosol reactions lead to the re-speciation of mercuric halides on surfaces (Mao et al., 2021; Mao and Khalizov, 2021). The authors reported that their ion-drift (ID) CI-MS system, which is sensitive enough for detection in laboratory studies, can achieve a limit of detection (LOD) at a 1 amu resolution of (0.8–2.0) × 10⁵ molecules cm⁻³ toward ambient GOM by switching to multistage atmospheric pressure ID-CI-MS. The feasibility of using proton transfer reaction mass spectrometry (PTR-MS) to study the reaction products (GOM) of Br-initiated Hg⁰ oxidation has been evaluated by Dibble et al. (2014) but is not recommended because it cannot be applied in multi-stage atmospheric pressure systems (Khalizov et al., 2020). In summary, direct measurements of ambient GOM species have not yet been achieved. No method exists for chemically characterizing the GOM fraction, which is semivolatile and may contain species that are photolytically unstable. Since previous GOM measurements are considered unreliable (Lyman et al., 2020a; Slemr et al., 2016) and emerging RM data (Lyman et al., 2020b; Slemr et al., 2018; Swartzendruber et al., 2009; Gratz et al., 2015; Lyman and Jaffe, 2012) are still too sparse and spatially limited, it is not possible to draw deterministic conclusions on atmospheric Hg^II. Sampling methods for organic Hg (dimethylmercury; He et al., 2022 and monomethylated Hg^II species; Lee et al., 2003) in ambient air, as opposed to inorganic Hg species, are more unambiguous. The speciation of Hg in atmospheric waters is discussed in Sect. 4.6. Hg measurement data from air and precipitation, ground-based or aircraft (Slemr et al., 2018, 2016) observations that fall outside the scope of this review, including those reported from continental (Cole et al., 2014, 2013; Schmolke et al., 1999; Wängberg et al., 2001; Gay et al., 2013; Fu et al., 2015) to hemispherical (Bencardino et al., 2024; Szponar et al., 2020; Slemr et al., 2020; Sprovieri et al., 2017, 2016) monitoring networks, some of which have been in operation since before the turn of 2000 (Custodio et al., 2020), have been reviewed elsewhere (Mao et al., 2016; Lyman et al., 2020a; Howard et al., 2017; Angot et al., 2016; Kim et al., 2012; Zhang et al., 2017). In the case of the isotopic characterization of atmospheric Hg, however, we feel justified in compiling, analyzing, and discussing the considerable body of recent observations (Sect. 8.2).

3.2 Stability of atmospheric Hg⁰

Hg⁰ represents the primary form of atmospheric mercury in both the troposphere and stratosphere. Considering the spatial variability of Hg⁰ concentrations¹, which depart from a uniform vertical distribution throughout the atmosphere (Slemr et al., 2018), a singular global atmospheric lifetime is not appropriate. A more pertinent measure is the effective lifetime of Hg⁰, expressed on an annual basis and as a function of its horizontal and vertical location within the atmosphere. The observed disparity in tropospheric Hg⁰ concentrations between the Northern and Southern Hemispheres of a factor of ∼ 1.41 (Tang et al., 2025), despite anthropogenic emissions in the Northern Hemisphere being approximately 2.5 times greater than those in the Southern Hemisphere (Streets et al., 2019; Sonke et al., 2023), implies that Hg⁰ has a relatively short effective lifetime in comparison to the interhemispheric air mass exchange time of approximately 1.3 years (Geller et al., 1997). As Hg⁰ crosses the intertropical convergence zone, it undergoes convective uplift, enabling its transport into the stratosphere (Koenig et al., 2022). Troposphere-to-stratosphere Hg⁰ transport has been regarded as limited (100–176 Mg yr⁻¹; Lyman and Jaffe, 2012; Horowitz et al., 2017). Nevertheless, recent modeling suggests that the stratosphere is crucial for biogeochemical Hg cycling, acting as the primary pathway for Hg⁰ exchange between hemispheres and explaining the minor interhemispheric gradient (Saiz-Lopez et al., 2025). As posited by models developed by Shah et al. (2021) and Saiz-Lopez et al. (2025), approximately 17 % of the aggregate atmospheric Hg load is situated within the stratosphere, whereas a previous study reported 12 % (Horowitz et al., 2017). Given that the stratosphere's mass (9.06 × 10¹⁷ kg) constitutes approximately 18 % of the total atmospheric air mass (5.13 × 10¹⁸ kg; Warneck and Williams, 2012), one might infer that the fraction of mercury present in the stratosphere is comparable to the proportion of stratospheric air relative to the entire atmosphere. However, this scaling is not supported by empirical data. Aerial measurements of Hg in the troposphere and lower stratosphere reveal a steep Hg gradient around and above the tropopause with lower Hg mixing ratios in the upper atmospheric layers (Radke et al., 2007; Talbot et al., 2007; Slemr et al., 2018) linked to a larger contribution of oxidized Hg species partitioned to aerosols (Murphy et al., 1998) from the gas phase.

With respect to the tropospheric Hg budget, there is a relative consensus that the Hg load is close to 4 Gg (Saiz-Lopez et al., 2020; 3.9 ± 1.0, Saiz-Lopez et al., 2025; 3.8, Zhang et al., 2023b; 4.0, Shah et al., 2021; 3.9, Horowitz et al., 2017), with exceptions suggesting that it is closer to 5–6 Gg (Holmes et al., 2010; Zhang et al., 2025) and that anthropogenic emissions, excluding biomass burning, are approximately 2.2–2.6 Gg yr⁻¹ (Horowitz et al., 2017; Shah et al., 2021; Zhang et al., 2023b; Geyman et al., 2024; Saiz-Lopez et al., 2025), with significant reductions across developed countries in the Northern Hemisphere observed in the near term (Custódio et al., 2022; Feinberg et al., 2024). Aircraft-based observations reveal a relatively consistent mixing ratio of Hg⁰ within the troposphere below the tropopause, encompassing the planetary boundary layer in regions characterized by low primary emissions (Banic et al., 2003; Talbot et al., 2007; Swartzendruber et al., 2008; Weigelt et al., 2016b; Bieser et al., 2017). This uniformity supports the adoption of a steady-state procedure (Seinfeld and Pandis, 2006), where the inverse of the Hg⁰ lifetime (τ_troposphere) is approximated by the sum of its loss rates:

$$\begin{array}{}\text{(1)}& \begin{array}{rl}\mathrm{1}/{\mathit{\tau }}_{\mathrm{troposphere}}& =\mathrm{1}/{\mathit{\tau }}_{\mathrm{rxn}}+\mathrm{1}/{\mathit{\tau }}_{\mathrm{ocean}}+\mathrm{1}/{\mathit{\tau }}_{\mathrm{land}}+\mathrm{1}/{\mathit{\tau }}_{\mathrm{wash}}\\ & +\mathrm{1}/{\mathit{\tau }}_{\mathrm{stratosphere}},\end{array}\end{array}$$

where the indices rxn, ocean, land, wash, and stratosphere are used to represent net oxidation, oceanic uptake, assimilation in land ecosystems, and processes that lead to wet deposition and net transfer to the tropopause/stratosphere, respectively. As discussed subsequently, all the terms in Eq. (1) are subject to significant uncertainties. However, as is the case with many other trace gases, the chemical lifetime (τ_rxn) undoubtedly plays a controlling role in determining the effective lifetime of Hg⁰. Representing net oxidation, τ_rxn encompasses the duration of the initial two-step oxidation to molecular forms and the subsequent redox cycling of the photolabile fraction of these molecules in the gas phase and aerosols prior to deposition. According to the latest redox schemes (Shah et al., 2021; Castro Pelaez et al., 2022; Saiz-Lopez et al., 2025), the extent of bidirectional Hg mass flux by atmospheric chemical conversion (oxidation and reduction, 10.4–13.0 vs. 6.0–6.9 Gg yr⁻¹, respectively) appears to be much greater than previously assumed (e.g., 8.0 vs. 3.7 Gg yr⁻¹, Holmes et al., 2010), which also holds for the bidirectional fluxes (emission and depositional uptake) that occur in the gas exchange of Hg⁰ between the atmosphere and the land and ocean. Aggregate atmospheric emissions and dry deposition have been approximated at 7.4–11.2 and 2.9–6.8 Gg Hg⁰ yr⁻¹, respectively (Horowitz et al., 2017; Shah et al., 2021; Sonke et al., 2023; Zhang et al., 2023b), following a tendency of researchers toward augmenting the role of re-emission of legacy Hg from the oceans (3.7–7.2 Gg Hg⁰ yr⁻¹) and gross biospheric assimilation from the atmosphere (1.2–3.2 Gg Hg⁰ yr⁻¹; Horowitz et al., 2017; Yuan et al., 2023a; Obrist et al., 2021; Zhou and Obrist, 2021; Feinberg et al., 2022; Wang et al., 2022; Szponar et al., 2025), respectively. To transfer Hg⁰ from the ocean into the atmosphere, the mass transfer rate is usually parameterized via wind speed dependencies that have been tested for CO₂ emissions. However, recent evidence (Osterwalder et al., 2021) suggests that Hg⁰, which is less soluble than CO₂, behaves similarly to O₂ and N₂, where the impact of bubble-mediated transfer is greater. As a result, ocean emissions play an increased role in the global Hg budget, accounting for approximately 60 % of total Hg emissions to the atmosphere due to a wind speed dependence with a cubic power exponent instead of a quadratic power exponent in model simulations (Zhang et al., 2023b). The greater gross emissions from seawater must be balanced by gross deposition of Hg⁰, which is, within uncertainties, of comparable magnitude to that of Hg^II deposition over oceans (Jiskra et al., 2021) and much higher than previously assumed (Soerensen et al., 2010). The global net exchange of Hg⁰ from the oceans has been estimated at 0.8–4.0 Gg Hg⁰ yr⁻¹ (Lamborg et al., 2002; Strode et al., 2007; Selin et al., 2008; Holmes et al., 2010; Chen et al., 2014; Horowitz et al., 2017; Shah et al., 2021), and the fraction of Hg⁰ emissions resulting from Hg^II reduction in surface waters is at an upper limit of 2.25 ± 0.89 Hg⁰ Gg yr⁻¹ (Tang et al., 2025). In summary, the latter terms in Eq. (1) correspond to lifetimes, the spans of which are conservatively estimated to exceed 1 year. However, their inverses, referring to Eq. (1), when summed, can shorten τ_troposphere by tens of percent beyond what the tropospheric chemical lifetime of Hg⁰ (τ_rxn) dictates, taking into account the inherent uncertainties. Currently, Hg⁰ is estimated to have a τ_troposphere of between 3.8 and 7 months (Shah et al., 2016, 2021; Horowitz et al., 2017; Saiz-Lopez et al., 2020, 2025) and an average atmospheric lifetime (troposphere + stratosphere) of 8.2 months (Saiz-Lopez et al., 2025).

The sources of atmospheric Hg^II are twofold: primary Hg^II emissions from anthropogenic sources and atmospheric Hg⁰ oxidation. Compared with that of Hg⁰, the proportion of Hg^II in anthropogenic emissions in the troposphere is not well defined. One estimate suggests that 74 % of cumulative anthropogenic Hg emissions into the air are Hg⁰ (Streets et al., 2017). Currently, East Asia has the most emissions worldwide (Streets et al., 2019); however, compelling evidence indicates that the magnitude of total Hg air emissions in this region has already peaked (Zhang et al., 2023a) and has declined in recent years (Wu et al., 2023a; Feinberg et al., 2024). Nevertheless, a shift in the contributions of distinct source categories, with cement production emerging as the predominant source since 2009 in China (Wu et al., 2016), suggests an increase in the proportion of Hg^II within Hg emissions (Zhang et al., 2016; Wang et al., 2024). Hg speciation profiles from anthropogenic sources may vary significantly across regions; for example, in continental Europe, the Hg^II contribution from coal-fired power plants may represent less than 25 % (Weigelt et al., 2016a), whereas in the tropics, artisanal and small-scale gold mining represent a substantial yet largely unconstrained source of atmospheric Hg⁰ (Obrist et al., 2018). On average, contemporary global models employ 60 % to 65 % Hg⁰ speciation in current anthropogenic emissions to the atmosphere (Horowitz et al., 2017; Shah et al., 2021; Zhang et al., 2023b). There are significant differences in the estimates of the tropospheric pool of Hg⁰ (∼ 3.3–4.8 Gg), separated from Hg^II (0.1–1.0 Gg), within the above-mentioned constrained budgets for the total tropospheric Hg load in contemporary models. Having estimated the atmospheric load of Hg^II up to 20 km at ∼ 0.36 Gg on the basis of a synthesis of RM measurements at different heights in the atmosphere (Saiz-Lopez et al., 2020), a later contribution (Saiz-Lopez et al., 2025) involving stratospheric transport and chemistry deployed a much larger tropospheric Hg^II pool (0.51 Gg) associated with downward transport (0.35 Gg yr⁻¹) of mostly photostable Hg^II from the stratosphere (Hg^II pool of ∼ 0.2 Gg). The corresponding amount of (wet and dry) Hg^II deposited on Earth's surface is 6.92 ± 1.70 Gg yr⁻¹, which is outside the previously estimated range of 4.8–6.8 Gg yr⁻¹ Hg^II (Strode et al., 2007; Zhang et al., 2019b; Feinberg et al., 2022; Sonke et al., 2023). The effective τ_troposphere of Hg^II is a few weeks (Horowitz et al., 2017), whereas Hg^I species are intermediates (lifetime ≪1 s) in the ${\mathrm{Hg}}^{\mathrm{0}}/{\mathrm{Hg}}^{\mathrm{II}}$ redox cycle, and their tropospheric mass is negligible (Shah et al., 2021).

Hg⁰ in the planetary boundary layer can be consumed at a surprisingly high rate, leading to low concentration levels that approach complete depletion. Thus, chemical oxidation by reactive bromine species in a catalytic cycle (“bromine explosion”, Toyota et al., 2014; Gao et al., 2022) can explain atomic Hg depletion events (AMDEs) during the polar spring after sunrise (Schroeder et al., 1998; Sommar et al., 2007; Nerentorp Mastromonaco et al., 2016) and those observed over the Dead Sea (Obrist et al., 2011) (Fig. 2). Br-controlled oxidation via the intermediate ^•Hg^IBr is critical for the tropospheric oxidation of Hg⁰, as described later in the section on gas-phase oxidation. Upon entry into the stratosphere, thermal oxidation with Br^• remains important for conversion to Hg^II but with increasing altitude in the lower stratosphere; Cl chemistry plays the most important role, with OH-directed chemistry in second place at a slow net oxidation rate. With the maximum concentration of the O₃ layer (∼ 25 km) as the dividing line, there is a strong dichotomy between the Hg chemistry in the upper and lower stratosphere. The former is UV-C driven (Sun et al., 2022, the UV window > 30 km provides a substantial photon flux at λ=253.7 nm, Fig. 1b), involving optically excited Hg⁰ states with a strong electrophilic character. The electronic excitation of Hg⁰ from the ground state (singlet, ¹S₀) at 253.7 nm is spin-forbidden (leading to a triplet state, ³P₁ with a radiative lifetime of ∼ 125 ns; Fig. 1a). The metastable dark Hg(³P₀) state cannot be produced directly from Hg(¹S₀) by light absorption but can be produced by spin–orbit relaxation of Hg(³P₁) atoms involving energy transfer to surrounding (air) molecules. In N₂, the equilibrium constant between the ³P₀ and ³P₁ states at room temperature (297 K) is 1.87 × 10³ (Callear and Shiundu, 1987), but in the presence of O₂, their distribution changes profoundly. Although O₂ is a slightly less effective quencher for Hg(³P₀) than for Hg(³P₁) (Callear, 1987), their effective lifetimes in air at atmospheric pressure differ by only 1 order of magnitude (∼ 1.1 and ∼ 0.2 ns, respectively; Saiz-Lopez et al., 2022). In addition to physical quenching to the ground state, both Hg(³P₀) and Hg(³P₁) may undergo chemical oxidation to mercury oxide(s) (Callear et al., 1959), although metastable atoms are expected to be less reactive. The chemical conversion of excited Hg atoms by O₂ releases Hg^II, which can further react with more stable species, giving Hg⁰ in the upper stratosphere a tiny lifetime against oxidation compared with that of transfer to the lower atmosphere (Saiz-Lopez et al., 2022). In the uppermost stratosphere, there appears to be access to deeper UV-C (Fig. 1b) such that at 184.9 nm, a spin-allowed electronic transition from Hg(¹S₀) to Hg(¹P₁) occurs, with a light absorption cross-section nearly 2 orders of magnitude greater than that for the Hg(¹S₀)→ Hg(³P₁) transition (Morton, 2000). Like Hg(³P₁), the more energetic Hg(¹P₁) reacts with O₂ at a rate approaching the collision frequency, but the HgO product formed in the latter case is so vibrationally hot that it promptly decays into Hg and O atoms. As a result, the chemistry of Hg(¹P₁) is expected to play a minor role in the turnover of Hg in the upper stratosphere. The calculated lifetime of Hg⁰ in the middle to upper stratosphere is altitude-dependent, ranging from a fraction to a few hundred hours (Saiz-Lopez et al., 2022), and is most comparable to that of Hg⁰ during AMDEs. However, the underlying governing physicochemical processes are completely different.

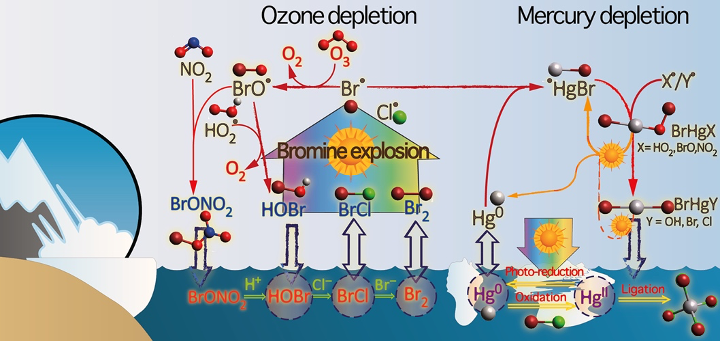

Figure 2 The chemistry behind bromine explosion events and related surface layer ozone and mercury depletion events.

4 Kinetics, thermodynamics, and general chemistry

4.1 Fundamental kinetics and thermodynamic principles

A chemical process can be decomposed into a sequence of one or more single-step processes as elemental reactions. Elementary processes involve a transition between two atomic or molecular states, separated by a potential energy barrier that represents the activation energy. The rate of a gas-phase reaction depends on the number of collisions between the reactants and the thermodynamics of their interactions (i.e., the change in entropy, ΔS, and enthalpy, ΔH, upon passing through the transition state), whereas for the rate of a reaction in aqueous solution, there are a number of additional factors that can influence the rate, such as solvation, ionic strength, pH, and diffusion rates. Processes that release heat as products and increase the entropy of the system favor the reaction. The balance between ΔH and ΔS is given by the Gibbs free energy equation, where T is the absolute temperature: $\mathrm{\Delta }G=\mathrm{\Delta }H-T\mathrm{\Delta }S$. If the Gibbs free energy is negative, the reaction is spontaneous from a thermodynamic perspective. The index is used to distinguish the enthalpy of reaction (ΔH_R) from, e.g., the enthalpy of formation of a substance (ΔH_f). We can calculate the equilibrium constant, K, using ln $K=-\mathrm{\Delta }{G}_{\mathrm{R}}/RT$ and determine the ratio of the forward and reverse rate coefficients from $K=k_{\mathrm{f}}/k_{\mathrm{r}}$. Examples of important types of gas-phase reactions are listed in Table 1.

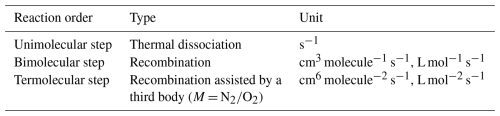

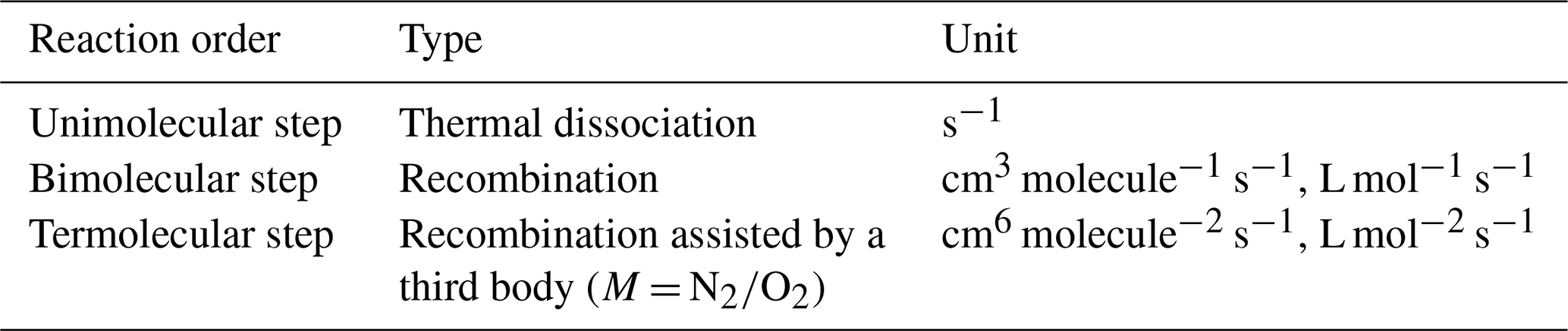

Table 1 Important types of gas-phase reactions.

Termolecular reactions are pressure (M)-dependent at low pressures with an effective rate coefficient (k) of third order but become pressure-independent at high pressures. The transition from third- to second-order behavior is known as the fall-off region. For most atmospheric reactions, we can expect that the rate coefficient is at the low-pressure limit. However, there are exceptions, which are listed in Table 4. While two-body collisions are common in the gas phase, three-body collisions are much less probable, and four-body collisions can be ignored because of their low probability. An overall reaction includes two or more elementary reactions. The temperature dependence of the rate coefficients can be fit over a relatively narrow temperature range via the empirical Arrhenius equation: k(T) = A exp ($-E_{\mathrm{a}}/RT$), where E_a is the activation energy and R is the gas constant. The pre-exponential factor A, a constant in the original Arrhenius equation, is weakly temperature-dependent for most reactions (varying as the square root of T according to collision theory). For a wider temperature range, the modified expression $k\left(T\right)={\left(T/\mathrm{300}\right)}^n\cdot \exp \left(-E_{\mathrm{a}}/RT\right)$ provides a better fit to the experimental data. If the activation energy is high enough, there is a large endothermic barrier that prevents even a reaction with a strongly negative ΔG_R from occurring at measurable rates. In select cases, the experimental data show a negative activation energy, suggesting that the reaction proceeds by the addition of reactants to form an intermediate species with excess energy that must be dissipated before decomposing into the final products. The rate constant for termolecular reactions between small molecules in the atmosphere can usually be well approximated by a combination of three parameters k₀ (cm⁶ molecule⁻² s⁻¹), k_∞ (cm³ molecule⁻¹ s⁻¹) and F_C. The first two correspond to the low- and high-pressure limits, and F_C is a form factor that describes the transition region.

$$\begin{array}{}\text{(2)}& k={\displaystyle \frac{k_{\mathrm{0}}\cdot k_{\mathrm{\infty }}\cdot \left[M\right]}{k_{\mathrm{\infty }}+k_{\mathrm{0}}\cdot \left[M\right]}}{F}_{\mathrm{C}}^{{\left(\mathrm{1}+{\left[\log (k_{\mathrm{0}}\cdot [M]/k_{\mathrm{\infty }})\right]}^{\mathrm{2}}\right)}^{-\mathrm{1}}}\end{array}$$

The temperature dependence of k is expressed by parameterizing k₀ and k_∞ as a function of temperature with the following expression:

$$\begin{array}{}\text{(3)}& k_{\mathrm{0}}^T=k_{\mathrm{0}}^{\mathrm{300}}{\left(T/\mathrm{300}\right)}^{-n}\text{and}{k}_{\mathrm{\infty }}^T=k_{\mathrm{\infty }}^{\mathrm{300}}{\left(T/\mathrm{300}\right)}^{-m}.\end{array}$$

4.2 Surface kinetics

Atmospheric aerosols have a high surface-to-volume ratio that concentrates most of their constituents at the surface. Furthermore, the influence of surface chemistry increases with decreasing particle size. Gas-to-particle reactions, among other heterogeneous reactions, begin with adsorption, which links molecules from the gas phase to the surface of a solid or liquid. This process can be physical, with low adsorption energy (physisorption, van der Waals forces) or chemical (chemisorption) when chemical bonding occurs as molecules approach the surface, overcome the activation energy barrier, and become reactive when the adsorbent reacts with sites on the surface. Importantly, gases and solutes adsorbed at an interface frequently exhibit physicochemical properties that diverge from their bulk properties, including reactivity and spectral shifts. Surface reaction kinetics are often expressed by the uptake probability (γ), which represents the fraction of gas collisions with a substrate surface that yield uptake or reactions. The net uptake of gas γ_net is quantified in terms of conductances (Γ), which are normalized to the rate of gas surface collisions:

$$\begin{array}{}\text{(4)}& {\mathit{\gamma }}_{\mathrm{net}}^{-\mathrm{1}}={\mathrm{\Gamma }}_{\mathrm{g}}^{\mathrm{1}}+{\mathit{\alpha }}^{-\mathrm{1}}+{\left({\mathrm{\Gamma }}_{\mathrm{rxn}}+{\mathrm{\Gamma }}_{\mathrm{sol}}\right)}^{-\mathrm{1}},\end{array}$$

where Γ_g, Γ_rxn, and Γ_sol represent the processes of gas-phase diffusion to the surface, solubility, and reaction in the bulk liquid phase, respectively, and α represents the (reversible) mass accommodation (“sticking”) across the gas–particle interface. In addition to α, these processes are related to the diffusion constants in gas (D_g) and liquid (D_l) phases, Henry's law coefficient ($k_{\mathrm{H}}^{\mathrm{cp}}$), and the rate constant of the first-order reaction in the condensed-phase bulk (Finlayson-Pitts and Pitts, 2000). For solids, bulk diffusion is generally too slow to allow bulk solubilities or bulk kinetics to control uptake. To justify the use of the formulation of additive kinetic conductances (Eq. 4) to solve the continuity equation and thus to be sufficient in laboratory studies to measure the net loss of a gas over a condensed phase of known volume and surface area, it is preferable to conduct experiments at low pressure. These experiments are typically performed in a tube reactor (radius r) with fast laminar flow (FF) conditions. To vary the reaction time, a moving injector is employed to change the exposed surface length in this technique. The net flux of the gas X into the condensed phase (J_x) can in this case be expressed as Eq. (5):

$$\begin{array}{}\text{(5)}& J_X={\displaystyle \frac{\mathrm{2}\cdot k_{\mathrm{obs}}}{r}}\left({\left[X\right]}_{\mathrm{g},\mathrm{\infty }}-{\displaystyle \frac{{\left[X\right]}_{\mathrm{surf}}}{k_{\mathrm{H}}^{\mathrm{cp}}}}\right),\end{array}$$

where k_obs is the experimentally observed first-order rate coefficient and where the indices “g”, ∞, and surf represent the gas, bulk, and surface, respectively. In turn, k_obs is approximately related to γ_net as shown in Eq. (6):

$$\begin{array}{}\text{(6)}& k_{\mathrm{obs}}=r^{-\mathrm{1}}{\left({\displaystyle \frac{r}{\mathrm{3.66}\cdot D_{\mathrm{g}}}}+{\displaystyle \frac{\mathrm{2}{\mathit{\gamma }}_{\mathrm{net}}}{{\stackrel{\mathrm{‾}}{\mathit{\upsilon }}}_X}}\right)}^{-\mathrm{1}},\end{array}$$

where D_g is the diffusivity of the gas and where ${\stackrel{\mathrm{‾}}{\mathit{\upsilon }}}_X$ is its mean thermal velocity. The value of γ_net changes as the surface is covered by molecules and depends on the concentrations of the reactants and the reaction time. The initial phase is denoted by ${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{0}}$, whereas the steady-state phase is denoted by ${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{\infty }}$. The calculated γ_net can be employed to estimate the lifetime of gas X (τ_X) with respect to the reactive uptake on particles. The following formula has been applied to the uptake of aerosols with a polydisperse distribution (Mao et al., 2021; Sander, 1999; Schwartz, 1986):

$$\begin{array}{}\text{(7)}& {\mathit{\tau }}_X={\left[\sum \mathrm{4}\mathit{\pi }{r}^{\mathrm{2}}\left({\displaystyle \frac{\mathrm{\Delta }N}{\mathrm{\Delta }\log r}}\right)\mathrm{\Delta }\log r\left({\displaystyle \frac{r}{D_{\mathrm{g}}}}+{\displaystyle \frac{\mathrm{4}}{{\mathit{\gamma }}_{\mathrm{net}}\cdot {\stackrel{\mathrm{‾}}{\mathit{\upsilon }}}_X}}\right)\right]}^{-\mathrm{1}}.\end{array}$$

The uptake of the only Hg^II species studied thus far, HgCl₂, follows a Hinshelwood–Langmuir mechanism (Mao et al., 2021), where HgCl₂(g) must first be adsorbed to a site (∥) on the surface and then react as a surface complex with a reactive center (e.g., anions) R on the surface, forming a product released from ∥, which becomes vacant again:

$$\begin{array}{}\text{(8)}& {\mathrm{HgCl}}_{\mathrm{2}}\left(\mathrm{g}\right)\stackrel{K=k_{\mathrm{ads}}/k_{\mathrm{des}}}{⟺}\parallel -{\mathrm{HgCl}}_{\mathrm{2}}\stackrel{R}{⟶}\mathrm{product}\left(\mathrm{s}\right)+\parallel ,\end{array}$$

where K in the above equation is referred to as the Langmuir constant. Deposition velocities and partitioning coefficients constitute an empirical framework for parameterizing heterogeneous atmospheric processes. A coefficient for absorptive partitioning of compound X onto existing aerosols, K_gp, was proposed as in Pankow (2007):

$$\begin{array}{}\text{(9)}& {\mathrm{K}}_{\mathrm{gp}}={\displaystyle \frac{{\left[X\right]}_{\mathrm{p}}/\mathrm{PM}}{{\left[X\right]}_{\mathrm{g}}}},\end{array}$$

where the index “gp” represents gas–particle partitioning; [X]_p and [X]_g represent the mass concentrations of compound X in the gas phase and particle phase, respectively, in a unit volume of air; and PM represents the total mass concentration of the particles.

4.3 Aqueous redox equilibria

The Gibbs free energy change (ΔG) presented previously is related to the electrode potential (E) as the equation:

$$\begin{array}{}\text{(10)}& \mathrm{\Delta }G=nFE,\end{array}$$

where n is the number of moles of electrons transferred in the reaction and F is the Faraday constant (96 485 C mol⁻¹). The standard potentials for the mercury–mercurous–mercuric free cation couples are as follows:

$$\begin{array}{}\text{(R1)}& {\displaystyle }{\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)+\mathrm{2}{e}^{-}\rightleftarrows \mathrm{2}{\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{aq}\right)E^{\mathrm{0}}=\mathrm{0.789}\mathrm{V}\text{(R2)}& {\displaystyle }\mathrm{2}{\mathrm{Hg}}^{\mathrm{2}+}\left(\mathrm{aq}\right)+\mathrm{2}{e}^{-}\rightleftarrows {\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)E^{\mathrm{0}}=\mathrm{0.908}\mathrm{V}\text{(R3)}& {\displaystyle }{\mathrm{Hg}}^{\mathrm{2}+}\left(\mathrm{aq}\right)+\mathrm{2}{e}^{-}\rightleftarrows {\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{aq}\right)E^{\mathrm{0}}=\mathrm{0.854}\mathrm{V}.\end{array}$$

These positive potentials indicate that the reduction of Hg² $/$ ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$ to Hg is favored under standard conditions. It is also evident that Hg⁰ can be oxidized to ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)$ rather than to Hg²⁺(aq) only by agents with potentials ranging from −0.79 to −0.85 V. None of the common oxidizing agents meet this narrow potential range. Therefore, in excess of the oxidizing agent, Hg⁰ is completely oxidized to Hg²⁺(aq). Only when the excess Hg⁰ exceeds 50 % does oxidation lead to ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$(aq). Ligation and hydrolysis have a major impact on standard potentials, including those listed in Reactions (R1)–(R3). For example, Hg(OH${)}_{\mathrm{2}}+\mathrm{2}{e}^{-}$ ⇄ Hg⁰ + 2HO⁻, analogous to Reaction (R3), has an E⁰ value of 0.206 V.

4.4 Chemical properties of aqueous Hg^I,II

The Hg²⁺ aqua ion, ${\left[\mathrm{Hg}{\left({\mathrm{H}}_{\mathrm{2}}\mathrm{O}\right)}_{\mathrm{6}}\right]}^{\mathrm{2}+}$, exists only in distinctly acidic aqueous solutions containing a weakly coordinating anion (e.g., ${\mathrm{ClO}}_{\mathrm{4}}^{-}$). It readily undergoes hydrolysis at pH > 1 (log ${\mathit{\beta }}_{\mathrm{10}}{\left[\mathrm{Hg}\left(\mathrm{OH}\right)\right]}^{+}=\mathrm{10.3}$, Powell et al., 2005). Owing to its size and stable electron configuration, Hg²⁺(aq) can be easily polarized by ligands and, therefore, has the potential to form strong covalent bonds. This property allows Hg²⁺(aq) to interact with organic C to readily form Hg–C bonds through mercury–hydrogen substitution (mercuration), addition (oxy- and amino-mercuration, etc.), and decarboxylation reactions. An example is aniline, which forms a covalent complex with Hg²⁺ readily in aqueous solution at room temperature.

$$\begin{array}{}\text{(R4)}& \textcolor{red}{}\end{array}$$

The formation of organomercurials by mercuration in aqueous solution is generally slow because of the reduced electrophilicity of Hg²⁺ caused by hydrolysis of the metal center. However, the presence of a polar solvent has little influence on other processes of organomercurial formation, such as decarboxylation. Therefore, abiotic Hg methylation can occur in aqueous solutions with the assistance of, e.g., light carboxylic acids (Deacon et al., 1986). In the case of keto-enolic organic compounds such as acetylacetone (R = H) and malonate (R = OH), the mercuric ion can, in principle, adopt a C bond, an O bond or a chelate structure.

$$\textcolor{red}{}$$

Highly toxic CH₃Hg⁺ (MMHg⁺) species are by far the most abundant organic Hg in the environment and are formed from inorganic Hg^II, mainly by the action of Fe^III and ${\mathrm{SO}}_{\mathrm{4}}^{\mathrm{2}-}$ reducing bacteria. In addition to monomethylation, permethylation can also occur anaerobically (Sommar et al., 1999). (CH₃)₂Hg (DMHg) is detected mainly in deep-sea waters, but by upwelling waters (Conaway et al., 2009), it may reach the mixed layer, where gas exchange with the atmosphere can occur. DMHg has also been detected in landfills (Lindberg et al., 2005; Feldmann et al., 1994), sewage gas (Sommar et al., 1999), flood plains (Wallschläger et al., 1995), and rice paddies (Wang et al., 2019c). The binding affinity of Hg²⁺ to ligands is often qualitatively rationalized by Lewis acid–base theory, with the message that mercurials (type B metals) prefer soft ligands such as heavier halides and hydrochalcogenides (e.g., I⁻ and SH⁻, respectively) to hard ones (e.g., OH⁻ and F⁻). In fact, Hg²⁺ is the softest metal ion that acts as a Lewis acid. The preference for low coordination numbers (≤ 4, typically linear two-coordinate) in Hg^II complexes is related to the fact that relativistic effects come into play for the heaviest elements (Tossell and Vaughan, 1981). The interactions between Hg²⁺(aq) and inorganic ligands (Table 2) and low-molecular-weight organics (Table 3) are given as stability constants. The tables show that Hg²⁺ also binds strongly to nitrogenous bases. Interactions with inorganic compounds, such as ammonia, are extensive and complex (Breitinger and Brodersen, 1970). For organic nitrogen ligands, there is a parallel between the basicity of the ligand and the stability of the Hg–ligand complex (e.g., guanidine). Heterocyclic nitrogen compounds, such as histidine, also form strong complexes with mercuric ions. The hard–soft acid–base principle applies only to highly polar solvents, such as aqueous solutions, as a result of solvation (hydrolysis) effects (Riccardi et al., 2013). In the gaseous phase, an inverse relationship prevails (Riccardi et al., 2013) and can be illustrated by the fact that gaseous Hg(OH)₂ is a stable molecule, whereas in aqueous solution, Hg²⁺ and 2 OH⁻ can form the intermediate molecule Hg(OH)₂(Yang et al., 2020b), which eliminates H₂O and precipitates solid HgO. Therefore, solid Hg(OH)₂ is not known (Wang and Andrews, 2005a). Furthermore, in the aqueous phase, the univalent state (mercurous species) is represented by the metal-metal bound ion ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)$, which is ordinarily stable. Like Hg²⁺(aq), ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$(aq) is a soft Lewis acid.

Hg–ligand complexation is ubiquitous in the environment. This process involves a significant energy shift due to solvation effects, which results in a reduction in the number of solvating water molecules and an increase in the interaction between ligands/anions in the complexes and water. Unlike the dimer cation, the discrete Hg^•+ cation is paramagnetic and was detected for the first time via electron spin resonance (Symons and Yandell, 1971). Free Hg^•+ is a highly potent reducing agent with a one-electron reduction potential, E⁰(Hg²⁺ $/$ Hg^•+), estimated to be well below −2.0 V (Gårdfeldt and Jonsson, 2003). However, hydrolyzed or ligated forms are less reactive (Gårdfeldt and Jonsson, 2003; Kozin and Hansen, 2013). The dissociation ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)\rightleftarrows \mathrm{2}{\mathrm{Hg}}^{\mathrm{•}+}$(aq) is considerably less significant than the disproportionation ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right)\rightleftarrows {\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{aq}\right)+{\mathrm{Hg}}^{\mathrm{2}+}\left(\mathrm{aq}\right)$, with a conservative upper bound for the ratio $\left[{\mathrm{Hg}}^{\mathrm{•}+}\right]/\left[{\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\right]$ of 10⁻⁷ (Moser and Voigt, 1957). Free cation acidity decreases in the order of Hg²⁺ (pK 3.4), ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$ (pK 4.9), and Hg^•+ (pK 5.1). ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}\left(\mathrm{aq}\right){\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{aq}\right)+{\mathrm{Hg}}^{\mathrm{2}+}\left(\mathrm{aq}\right)$ has an equilibrium constant of 5.5 × 10⁻⁹ M (Moser and Voigt, 1957), which indicates that a solution of initially only ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$ in pure water will contain only a single percent Hg²⁺ in the absence of ligands that form complexes with Hg²⁺. However, in the presence of ligands that form complexes with Hg²⁺, disproportionation is rapid, and ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$ is consumed. The same applies when Hg⁰(aq) is removed from the solution, e.g., by a gas stream. ${\mathrm{Hg}}_{\mathrm{2}}^{\mathrm{2}+}$ can be a major speciation component in heavily polluted waters (Fang et al., 2024) but is insignificant in the atmosphere.

4.5 Chemical equilibria data

For a general complex equilibrium with Hg²⁺ and the ligand L, ${\mathrm{Hg}}^{\mathrm{2}+}+\mathrm{q}\mathrm{L}+r{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\rightleftarrows {\left[\mathrm{Hg}{\mathrm{L}}_{\mathrm{q}}{\left(\mathrm{OH}\right)}_{\mathrm{r}}\right]}^{\left(\mathrm{2}-r\right)+}+r{\mathrm{H}}^{+}$, a stability constant β_qr is defined as $\left[{\left\{\mathrm{Hg}{\mathrm{L}}_{\mathrm{q}}{\left(\mathrm{OH}\right)}_{\mathrm{r}}\right\}}^{\left(\mathrm{2}-r\right)+}\right]{\left[{\mathrm{H}}^{+}\right]}^{\mathrm{r}}/\left(\left[{\mathrm{Hg}}^{\mathrm{2}+}\right]{\left[\mathrm{L}\right]}^{\mathrm{q}}\right)$. When the complex is not hydrolyzed, β_qr is reduced to ${\mathit{\beta }}_{\mathrm{q}}=\left[{\left\{{\mathrm{HgL}}_{\mathrm{q}}\right\}}^{\mathrm{2}+}\right]/\left(\left[{\mathrm{Hg}}^{\mathrm{2}+}\right]{\left[\mathrm{L}\right]}^{\mathrm{q}}\right)$. For the equilibrium obtained by adding a ligand (L) to a metal complex in a stepwise manner, K_q is used, which is related to β_q by ${\prod }_{i=\mathrm{1}}^{\mathrm{q}}{\mathrm{K}}_{\mathrm{q}}$. Tables 2 and 3 present the equilibrium constants for Hg²⁺ associated with a range of inorganic and organic natural ligands, respectively, without being comprehensive. Quantitative details are available through the open-access AQUAMER database and web server dedicated to Hg, which provides direct speciation results by combining web-based interfaces with a speciation calculator, thermodynamic constant databases, and a computational chemistry toolbox for input to other software to estimate missing constants (Lian et al., 2020).

Table 2 Hg²⁺–inorganic ligand complexes. Omitted in the table are, e.g., interactions with reduced sulfur (HS–, R–S–), which can be found in, e.g., Skyllberg (2011).

^a Hg²⁺ + HCO${}_{\mathrm{3}}^{-}\rightleftarrows ({\mathrm{HgHCO}}_{\mathrm{3}}{)}^{+}$. ^b ${\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{OH}}^{-}$ $+{\mathrm{HSe}}^{-}\rightleftarrows \mathrm{HgSe}$. ^c Hg²⁺ +2 HO +2 HSe ⇄ HgSe${}_{\mathrm{2}}^{\mathrm{2}}$. ^d Hg²⁺ + HO +2 HSe ⇄ HgHSe${}_{\mathrm{2}}^{\mathrm{2}}$.

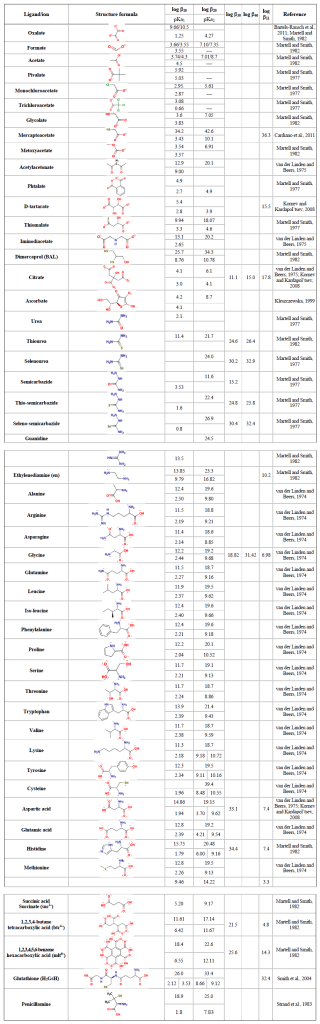

Table 3 Hg²⁺–organic ligand complexes.

4.6 Speciation of Hg^II in atmospheric waters

Hg^II speciation in atmospheric waters such as clouds and fog is governed by interactions with inorganic nucleophiles, low-molecular-weight organics (LMWO), and high-molecular-weight dissolved organic matter (DOM). The identified LMWOs typically make up a smaller mass fraction of the DOM in ambient cloud and fog droplets. Despite its limited abundance (0.5 %–3 % in freshwater), sulfurized DOM exerts control over Hg cycling in terrestrial aquatic systems by forming predominantly strong HgL (logK ∼ 21.9–23.6) and HgL₂ (logK ∼ 30.1–31.6) complexes (Dong et al., 2011), where L represents functional groups with reduced sulfur. Although sulfur-containing DOM (with the elemental compositions of CHSO and CHNSO) is also relatively ubiquitous in atmospheric organic matter (AOM), sulfur is present mainly in hexavalent form, with reduced sulfur being rare (Zhao et al., 2013; Bianco et al., 2018; Jiang et al., 2022). In contrast to sub-zero valence S, which is not relevant in this context, conjugate bases of strong oxo acids that are common in AOM, such as organic nitrates and sulfates, form only weak complexes with Hg^II. Therefore, the application of speciation by equilibrium modeling on a geospherical basis to assess the atmospheric interaction between atmospheric DOM and Hg^II, as in some studies (Li et al., 2018; Zhen et al., 2023), is questionable. Bittrich et al. (2011) used pH, a confined set of inorganic ions (${\mathrm{NH}}_{\mathrm{4}}^{+}$, ${\mathrm{NO}}_{\mathrm{3}}^{-}$, ${\mathrm{SO}}_{\mathrm{4}}^{\mathrm{2}-}$, and Cl⁻), and LMWO acids to observe dissolved Hg^II in a study of cloud and fog water. Strongly dependent on pH, at <5, even moderate Cl⁻ levels can control speciation (HgCl₂), whereas in more alkaline waters (e.g., influenced by NH₃), speciation is represented by Hg(OH)₂, Hg(OH)Cl, and to some extent ${\left[\mathrm{Hg}{\left({\mathrm{NH}}_{\mathrm{3}}\right)}_{\mathrm{2}}\right]}^{\mathrm{2}+}$. A more realistic approach is to include DOM in speciation. In this regard, Yang et al. (2019) employed Hg^II complexation with fulvic acids under conditions of binding to mainly O donors (1:2 complexes with logβ₂₀=5.6, Haitzer et al., 2002) as surrogates for AOM interaction, which, when applied, was found to dominate in the Hg^II speciation of rainwater samples in rural and urban France. Studies of cloud water in eastern China revealed a marked change in acidity and other chemical compositions in the post-2008 period, where Hg^II, although the concentration was unchanged over time, in the former acidic environment was mainly bound by DOM (∼ 79 %) (Li et al., 2018) and, in the latter more neutral environment, was more homogeneously distributed in addition to DOM among hydrolyzed and halide (X = Cl, Br)-bound species (Hg(OH)₂, HOHgX, and HgX₂; Zhen et al., 2023). In conclusion, until the complexation of Hg^II with AOM is well understood, there is considerable uncertainty regarding the partitioning of aquatic Hg^II between stable and reduction-labile complexes in the photic atmosphere.

4.7 Chemical reaction data

The subsequent two principal sections address the chemical redox reactions in the gaseous phase (Sect. 5) and in the aqueous phase (Sect. 6). Table 4 summarizes the gas-phase reactions, along with the rate coefficients considered most accurate and the corresponding reaction enthalpies. The reaction numbers are designated with the prefix G (G R1, G R2, etc.). The aqueous-phase reaction numbers are designated with prefix W and are listed in Table 5 with the corresponding rate coefficients. Notably, several chemical reactions that are not labeled with G or W and are not assigned to Tables 4 and 5 appear in the text. This is particularly the case for heterogeneous (multiphase) processes (Sect. 7), such as reactive uptake and reduction on surfaces, which consequently have no prefix and follow sequential numbering throughout the document.

5 Gas-phase atmospheric Hg chemistry

5.1 Inorganic species

5.1.1 Initial reactions of ground-state Hg⁰

The homogeneous gas-phase oxidation of Hg⁰ in the electronic ground state is limited to a few reactive species produced photolytically. In the atmosphere, multi-step reactions involving both Hg^I and Hg^II species are crucial for Hg transformation. Atmospheric oxidation of Hg⁰ occurs largely in the gas phase, whereas the rates of aqueous phase reactions in deliquescent aerosols are relatively slower on a unit air volume basis and are inherently limited by the low water solubility of Hg⁰. The oxidation of Hg⁰ vapor by closed-shell molecules, such as halogenation chemistry with reference to the gas phase, has been studied in the laboratory at various temperatures (Hall, 1992; Qu et al., 2009; Chi et al., 2009; Ariya et al., 2002; Sumner et al., 2005; Raofie and Ariya, 2004; Raofie et al., 2008; Wilcox, 2009) since Ogg et al. (1936). Direct oxidation by free halogens (X₂) via the insertion reaction Hg + X₂→ XHg^IIX is highly exothermic but very slow under atmospheric conditions due to large energy barriers (Auzmendi-Murua et al., 2014), whereas the abstraction Hg + X₂→^•Hg^IX + X^• proceeds at significant rates only at high temperatures (Niksa et al., 2001). Thus, free halogen chemistry is important for the conversion of Hg in flue gas from power generation systems (Wilcox, 2009), such as coal-fired (CFPP) systems, but not in the atmosphere. The same applies to the Hg + NO₂ reaction, which is barrierless and whose pathway to Hg^II(ONO)₂ shows a negative temperature dependence (Li et al., 2022c). However, reactions that are important only in combustion and flue gas cleaning systems are outside the scope of this review.

$$\mathrm{Hg}+\mathrm{XO}\left(X={\mathrm{O}}_{\mathrm{2}},{\mathrm{NO}}_{\mathrm{2}}\text{and}\mathrm{Br}\right)$$

Although oxidation of Hg⁰ vapor by the common atmospheric oxidants O₃ (Sumner et al., 2005; Hall, 1995; Pal and Ariya, 2004b; Snider et al., 2008), BrO^• (Raofie and Ariya, 2004; Spicer et al., 2002), and ${\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$ (Sommar et al., 1997; Sumner et al., 2005) has been observed in the laboratory, the identity and phase of the product(s) are in doubt. Laboratory studies of gas-phase oxidation of ppb levels of Hg⁰ (the atmospheric level is sub-ppt) have revealed product particles in the accumulation mode, suggesting that gas-to-particle conversion takes place (Raofie and Ariya, 2004; Sun et al., 2016). These data attributed to the gas phase are almost certainly compromised by complex kinetics, including reactions at the reactor wall (Hynes et al., 2009). In all cases, gas-phase oxidation pathways leading to HgO by O atom transfer are endothermic (Reactions G R5–R7, Table 4). Furthermore, the measured pre-exponential factors for the Hg–O₃ reaction, ∼ 10⁻¹⁶–10⁻¹⁸ cm³ molecule⁻¹ s⁻¹ (Hall, 1995; Pal and Ariya, 2004b), are much smaller than expected for simple O atom transfer (Calvert and Lindberg, 2005). Alternative O₃ oxidation via a weakly bound (∼ 16 kJ mol⁻¹) adduct, HgO₃, lacks exothermic dissociation pathways (i.e., HgO + O₂, Reaction G R5a) and is therefore unlikely to occur in the atmosphere. However, in laboratory experiments, HgO_x can conceivably diffuse to surfaces and be deposited as solid HgO possibly via oligomerization (Tossell, 2006). Recombination of Hg⁰ with ${\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$ results in weakly bound ^•Hg^INO₃ (∼ 27 kJ mol⁻¹), which dissociates in the lower troposphere before oxidation to Hg^II species of the type O₂NOHgO^• or O₂NOHgY can occur (Edirappulige et al., 2024). Abstractions (e.g., Hg + BrO^•→ HgO + Br^• or Hg + BrO^•→^•Hg^IBr + O, Reactions G R7a and R7b) are endothermic, whereas direct insertion reactions (e.g., Hg + BrO^•→ BrHg^IIO^•, Reaction G R7c) are exothermic (−84 kJ mol⁻¹, Shepler 2006) but affected by large barriers (170 kJ mol⁻¹) and are therefore unlikely to proceed (Balabanov and Peterson, 2003). The remaining exit channels, namely the recombination of Hg and BrO^• (Reaction G R7d), leading to the formation of the geometric isomers of BrHg^IIO^• (^•Hg^IBrO and ^•Hg^IOBr), are also inconceivable, as these adducts are thought to be very weakly bound (Shepler, 2006). Stable Hg^I species of this type have been reported, suggesting that BrO^• is important during AMDEs (Raofie and Ariya, 2004). However, other field (Wang et al., 2019a) and model (Xie et al., 2008; Ahmed et al., 2023) studies have shown that the synchronous disappearance of Hg⁰ and O₃ during AMDEs can best be described solely as the action of Br atoms, with an upper limit for k_Hg + BrO of 1 × 10⁻¹⁵ cm³ molecule⁻¹ s⁻¹, but that the reaction product ^•Hg^IBr (Fig. 2) rapidly adds BrO^•, presumably mainly to BrHg^IIOBr, which is 117 kJ mol⁻¹ more stable than the isomer BrHg^IIBrO (Jiao and Dibble, 2017a). Despite its thermal stability, BrHg^IIOBr is rapidly photolyzed (Figs. 2 and 4) and therefore does not constitute a significant component of the Hg^II pool following an AMDE.

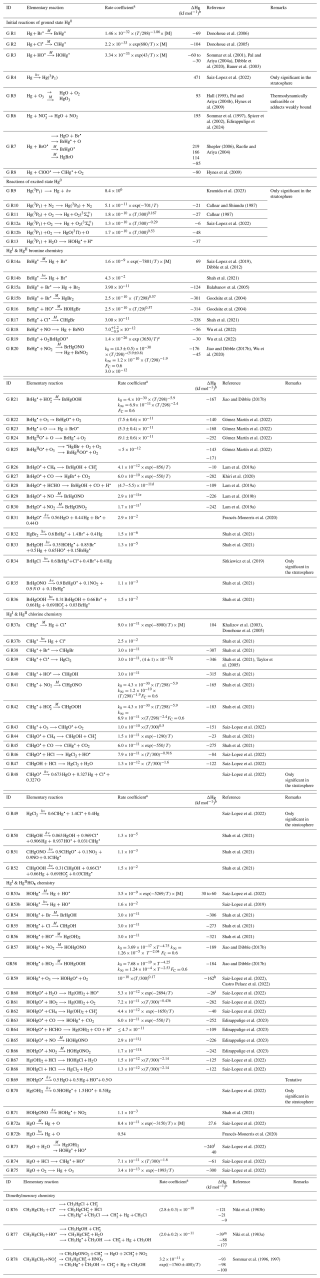

Table 4 Atmospheric gas-phase reactions. Except where otherwise noted in the reference column, the thermodynamic data have been compiled from the following sources of information: CRC Handbook of Chemistry and Physics (Lide, 2008), Hepler and Olofsson (1975), Chemical Kinetics and Photochemical Data for Use in Atmospheric Studies (Burkholder et al., 2019), Guzman and Bozzelli (2019), Saiz-Lopez et al. (2020, 2022), Balabanov and Peterson (2003, 2004), and Shepler (2006). The photolysis frequencies are calculated via the global annual average photon flux in the troposphere.

^a The basics of gas-phase kinetics have been introduced in Sect. 4.1. Unimolecular rate coefficients are in s⁻¹ (photolysis frequencies refer to excitation energies at λ > 290 nm calculated according to $\int \mathit{\varphi }\left(\mathit{\lambda },T\right){}^{\mathrm{•}}\mathit{\sigma }\left(\mathit{\lambda },T\right){}^{\mathrm{•}}F\left(\mathit{\lambda }\right)\mathrm{d}\mathit{\lambda }$, where ϕ is the quantum yield (≤1), ó is the absorption cross section (cm² molecule⁻¹), F is the photon flux (photons cm² s⁻¹), λ is the wavelength, and T is absolute temperature), bimolecular reaction rate coefficients are in cm³ molecule⁻¹ s⁻¹ (expressed as a rate constant or as a coefficient with an Arrhenius or other type of temperature dependence), and three-body reactions according to Eq. (2), i.e., $k=\frac{k_{\mathrm{0}}\left[M\right]}{\mathrm{1}+k_{\mathrm{0}}\left[M\right]/k_{\mathrm{\infty }}}\mathrm{•}{F}_{\mathrm{C}}^{{\left\{\mathrm{1}+{\left[{\log }_{\mathrm{10}}{k}_{\mathrm{0}}\left[M\right]/k_{\mathrm{\infty }}\right]}^{\mathrm{2}}\right\}}^{-\mathrm{1}}}$, are in cm⁶ molecule⁻² s⁻¹ (where [M] is the number density of air molecules), k₀ (cm³ molecule⁻¹ s⁻¹) is the low-pressure limiting rate coefficient, and k₈ (cm⁶ molecule⁻² s⁻¹) is the high-pressure limiting rate coefficient. The temperature dependence of k₀ and k₈ is expressed with Eq. (3). ^b Refers to the calculated enthalpy (0 K) or to the experimental ditto (298 K). ^c Equilibrium coefficient (unit: cm³ molecule⁻¹). ^d Over the interval 333 to 200 K. ^e Estimated value from CH₃O + NO. ^f Estimated value from CH₃O + NO₂. ^g Valid for 395–573 K. ^h Based on calculation of exit-channel complexes at SC-NEVPT2 level of theory. ⁱ Based on Δ_fH⁰(HOHgO^•)=63.2 kJ mol⁻¹. ^j Estimated value from CH₃O + NO. ^k Estimated value from CH₃O + NO₂. ^l refers to singlet Hg(OH)₂ but is 10 kJ mol⁻¹ endothermic for formation of spin-conserving triplet Hg(OH)₂. ^m Assuming Δ_fH⁰(CH₃HgCl) =Δ_fH⁰(CH₃HgOH).

$$\mathrm{Hg}+X^{\mathrm{•}}\left(X=\mathrm{Br},\mathrm{Cl},\mathrm{OH}\text{and}I\right)$$

In addition to bromine atoms (Br^•), hydroxyl radicals (HO^•) and, to a lesser extent, chlorine (Cl^•) and possibly iodine (I^•) atoms have been proposed to initiate the global gas-phase oxidation of Hg⁰ in the ground state in the atmosphere:

$$\begin{array}{}\text{(G R1-G R3)}& \mathrm{Hg}+X^{\mathrm{•}}\stackrel{M}{⟶}{}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{X}.\end{array}$$

The reaction rates for X = Cl (Reaction G R2, Donohoue et al., 2005; Taylor et al., 2005) and Br (Reaction G R1, Donohoue et al., 2006) have been determined via pulsed laser photolysis–laser-induced fluorescence (PLP-LIF) for a range of pressures and temperatures. The reaction is apparently termolecular; i.e., it shows a linear dependence on pressure (M), a slightly negative temperature dependence, and a significant difference in deactivation efficiency, with N₂ and He as third bodies (Donohoue et al., 2005). There are also several experimental static studies of halogen atom reactions carried out at 1 atm pressure, which, with the exception of the studies by Horne et al. (1968) and Greig et al. (1970), have used the relative rate (RR) technique at room temperature (Ariya et al., 2002; Spicer et al., 2002; Sun et al., 2016; Guérette, 2011). The Hg + X^• rate expression determined by Donohoue et al. over 0.26−0.79 atm and 243–293 K by the preferred PLP-LIF technique gives rate coefficients of 5.4 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹ (Donohoue et al., 2005) and 3.6 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹ (Donohoue et al., 2006) at 298 K and 1 atm pressure in air for the Cl^• and Br^• reactions, respectively. Although the rate constant of the chlorine atom reaction is 50 % greater than that of the bromine atom reaction, the significance of the former is small in the remote troposphere, considering the low concentration of chlorine atoms. Notably, a significant increase in the apparent recombination rate coefficient of Hg + Cl^• was observed in the presence of air. This result has been rationalized on the basis that secondarily formed ClO_x species may also react rapidly with Hg⁰ (Donohoue, 2008). A plausible candidate is Hg + ClO₂→ ^•Hg^ICl + O₂ (Reaction G R8), which is exothermic (ΔH_R = –80 kJ mol⁻¹), but the channel has not been investigated further. Computational studies (Shepler et al., 2007; Goodsite et al., 2004; Goodsite et al., 2012) reported a slightly larger rate constant (∼ 10⁻¹² cm³ molecule⁻¹ s⁻¹) for the Hg + Br^• reaction than the absolute PLP-LIF determination at STP. On the other hand, experimental RR studies generally yield rate constants that exceed the limit obtained from theoretical calculations, suggesting complex kinetics, including reactions at the reactor wall.

The reaction with X = OH (Reaction G R3) was studied with PLP-LIF using an excess of Hg⁰ over ^•OH (generated from the photolysis of HNO₃ at 266 nm) without evidence of a reaction, resulting in an upper rate limit of (<) 1.2 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹ (Bauer et al., 2003). The rate constant of Hg +^•OH → products determined by Sommar et al. (2001) relative to cyclohexane +^•OH → products of 8.7 × 10⁻¹⁴ cm³ molecule⁻¹ s⁻¹ falls below this limit at 295 K and 1 atm air, as does the temperature-resolved kinetic RR study of Pal and Ariya (2004a) extrapolated to 295 K (∼ 1 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹). External re-analysis of Pal and Ariya (Calvert and Lindberg, 2005) and Sommar et al. (2001) (Dibble et al., 2020) data via kinetic modeling revealed that ^•Hg^IOH under experimental conditions exclusively reacts with NO₂ (^•Hg^IOH + NO₂→ HOHg^IIONO, Reaction G R57) rather than dissociating. The temporal resolution in the PLP-LIF study also allowed a lower-bound estimate of the equilibrium constant $K_{{}^{\mathrm{•}}\mathrm{HgOH}}$ $={[}^{\mathrm{•}}\mathrm{HgOH}]/\left(\left[\mathrm{Hg}\right]\left[{\mathrm{HO}}^{\mathrm{•}}\right]\right)$ of $\mathrm{5}\times {\mathrm{10}}^{-\mathrm{16}}$ cm³ molecule⁻¹ (Bauer et al., 2003). This equilibrium constant has been estimated via computational studies. Recently, high-level quantum chemical calculations (Dibble et al., 2020) performed at 200–320 K yielded a $K_{{}^{\mathrm{•}}\mathrm{HgOH}}$ of ∼ 7 × 10⁻¹⁶ cm³ molecule⁻¹ at 298 K, corresponding to a k₁₃ of $\mathrm{9.5}\times {\mathrm{10}}^{-\mathrm{14}}$ cm³ molecule⁻¹ s⁻¹ at 1 atm. In contrast, Saiz-Lopez et al. (2022) reported that $K_{{}^{\mathrm{•}}\mathrm{HgOH}}$ was more than an order of magnitude smaller (∼ 5 × 10⁻¹⁷ cm³ molecule⁻¹) at the corresponding temperature.

The kinetics of the reaction between Hg⁰ and iodine atoms (by photolysis of CH₂I₂ $/$ CF₃I) were studied in an early work by monitoring ^•Hg^II by absorption spectroscopy at 403–438 K (Greig et al., 1971) and in a later study by following the Hg⁰ loss by MS at 296 K (Raofie et al., 2008). In the first study, sufficiently high ^•Hg^II densities could not be generated to gauge a reaction, for which the rate constant was lower than that of the competing ${\mathrm{I}}^{\mathrm{•}}+{\mathrm{I}}^{\mathrm{•}}\stackrel{M}{⟶}{\mathrm{I}}_{\mathrm{2}}$ reaction of ∼ 1 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹. The latter study lacks conclusive results on the $\mathrm{Hg}+{\mathrm{I}}^{\mathrm{•}}{\stackrel{M}{⟶}}^{\mathrm{•}}$Hg^II reaction but provides a limit on the rate constant for the reaction of Hg with molecular iodine vapor (≤ $\mathrm{1.3}\times {\mathrm{10}}^{-\mathrm{19}}$ cm³ molecule⁻¹ s⁻¹), a reaction that lacks any atmospheric significance. A rate coefficient of 4.0 × 10⁻¹³ $(T/\mathrm{298}{)}^{-\mathrm{2.38}}$ cm³ molecule⁻¹ s⁻¹ was calculated for the $\mathrm{Hg}+{\mathrm{I}}^{\mathrm{•}}{\stackrel{M}{⟶}}^{\mathrm{•}}$Hg^II reaction at 1 atm N₂ and T between 180 and 400 K via Rice–Ramsperger–Kassel–Markus (RRKM) theory based on the calculated binding energy (46 kJ mol⁻¹) and molecular properties of ^•HgI(²∑) (Goodsite et al., 2004).

5.1.2 Stability of ^•Hg^IX

The first step (termolecular Reactions G1–G3), which is exothermic, produces Hg^I radical intermediates (^•Hg^IX), which can revert to Hg⁰ both thermally and photolytically:

$$\begin{array}{}\text{(G R14a, b-R37a, b-R53a, b)}& {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}X\begin{array}{l}\stackrel{\mathrm{\Delta }}{⟶}\\ \stackrel{h\mathit{\nu }}{⟶}\end{array}\mathrm{Hg}+X^{\mathrm{•}}.\end{array}$$

Photolytic and thermal dissociation

The first excited electronic state of ^•Hg^IX (designated A²Π for halogenated radicals) is exclusively repulsive, resulting in dissociation with visible light for wavelengths exceeding ∼ 460 nm, where the absorption maxima are predicted at ∼ 480, ∼ 575, ∼ 650, and ∼ 690 nm for ^•Hg^IOH, ^•Hg^ICl, ^•Hg^IBr, and ^•Hg^II, respectively (Saiz-Lopez et al., 2019; Fig. 3). While the bond strengths of Hg–Cl and Hg–Br are well defined in relative terms (89.5–98.0 kJ mol⁻¹, Tellinghuisen et al., 1982; Shepler et al., 2005; Saiz-Lopez et al., 2022; Cremer et al., 2008 and 60.2–68.1 kJ mol⁻¹, Goodsite et al., 2004; Shepler et al., 2005; Cremer et al., 2008; Tellinghuisen and Ashmore, 1983, respectively), there is significant variation in the estimates of the bond strengths of ^•Hg^II and ^•Hg^IOH, ranging from ∼ 33 to 46 kJ mol⁻¹ (Goodsite et al., 2004; Shepler et al., 2005; Cremer et al., 2008; Jordan et al., 1993; Salter et al., 1986) and ∼ 23 to 55 kJ mol⁻¹ (Dibble et al., 2020; Tossell, 2003; Goodsite et al., 2012; Guzman and Bozzelli, 2019; Cremer et al., 2008), respectively. Therefore, the stability of ^•Hg^IOH and ^•Hg^II is uncertain, and it is debatable whether their thermal lifetimes in the atmosphere are long enough for these radicals to be further oxidized to mercuric species to any significant degree. The question has been raised recently since it was experimentally established that ^•Hg^IBr is kinetically oxidized by O₃ without a reaction barrier (Reaction G R22), which was also theoretically established to be true at least for ^•Hg^ICl and ^•Hg^IOH (Reactions G R43 and G R59, respectively, Sect. 5.1.3). A study using RRKM theory suggested that the recombination rate coefficients of Hg with I^• and HO^• are similar in the free troposphere, while the thermal dissociation of ^•Hg^II gradually exceeds that of ^•Hg^IOH at lower temperatures (Goodsite et al., 2004). ^•Hg^II is the ^•Hg^IX species with the shortest photolytic lifetime in the troposphere globally (∼ 17 s), according to computational chemistry theory (Saiz-Lopez et al., 2019). Recently, Dibble et al. (2020) estimated the HO–Hg binding energy to be 46 kJ mol⁻¹ using high-level quantum chemical calculations. Compared with a global photolytic lifetime of just over 1 min (Shah et al., 2021), the thermal lifetime of ^•Hg^IOH in the lower troposphere is significantly shorter (according to data from Dibble et al., 2020 ∼ 10 ms at the surface up to approximately 10 s at the tropopause). For the lighter mercurous halides (excluding ^•Hg^II), the relationship is reversed with respect to the importance of photolytic versus thermal dissociation. The lifetimes of the former channel are ∼ 20 and ∼ 40 s for ^•Hg^IBr and ^•Hg^ICl, respectively, while the thermal decay is slower for ^•Hg^IBr above the planetary boundary layer, and ^•Hg^ICl is much less thermally unstable.

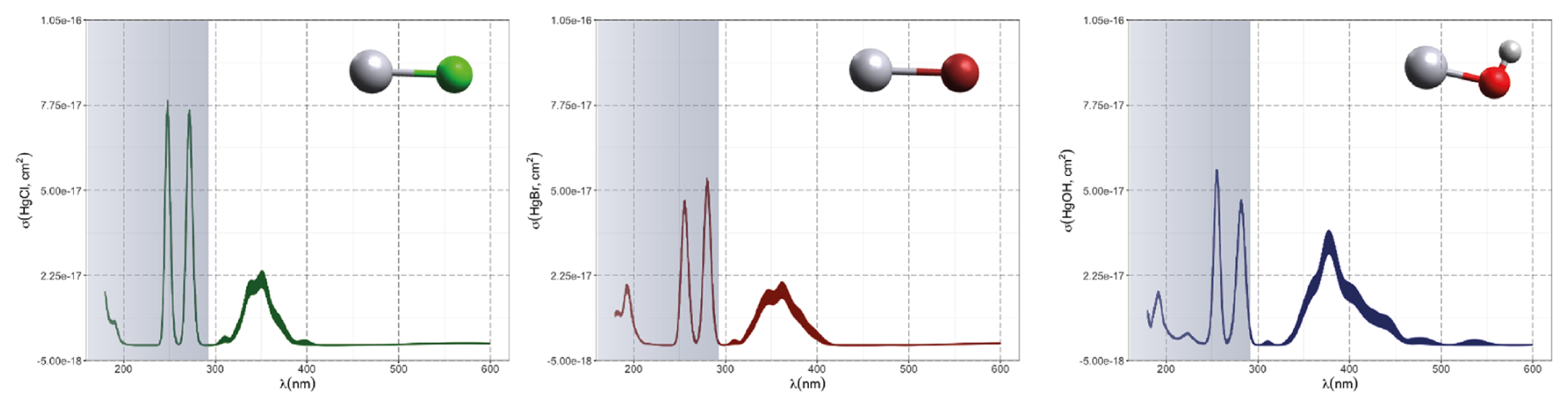

Figure 3 Computed absorption spectra of the atmospherically important mercurous chloride, bromide, and hydroxyl radicals. Wavelengths accessible in the troposphere are to the right of the colored area. Data from Saiz-Lopez et al. (2019).

5.1.3 Bimolecular reactions of ^•Hg^IX

In addition to thermal and photolytic decomposition, the fate of ^•Hg^IX in the atmosphere is controlled by further oxidation to thermally stable mercuric species molecules. Experimental studies of the specific bimolecular reaction kinetics of ^•Hg^IX are limited to X = Br and Cl (Reactions G R15 and G R39). Taylor et al. (2005) studied the reactions of ^•Hg^ICl with Cl₂, HCl, and Cl^• at temperatures characteristic of post-combustion conditions. The observed reaction with free chlorine to form HgCl₂ was rapid (1.2 × 10⁻¹¹ cm³ molecule⁻¹ s⁻¹) and temperature-independent. Jiao and Dibble (2017b) used computational chemistry to determine the rate constant and product yield for reactions of ^•Hg^IBr with abundant atmospheric NO₂ (Reaction G R20) and HOO (Reaction G R21) radicals. Analogous to the experimental ^•Hg^ICl study, these reactions were calculated to be rapid, with the rate constant for oxidation by NO₂ being approximately twice that for oxidation by HOO^•. This theoretical study indicated that the ^•Hg^IBr + NO₂ reaction occurs along two competing channels (Reaction G R20a, b), one proceeding via oxidative addition, resulting in BrHg^IIONO, and the other operating via reductive displacement, resulting in Hg⁰ + BrNO₂. The dichotomy occurs because ^•Hg^IBr (²Σ⁺) possesses a delocalized electron that spreads more equivalent spin density over the molecule (^•Hg^IBr ↔•Hg^IBr^•), whereas the spin density of the HgOH (¹A') radical is most localized on the Hg atom. A reaction with another radical center occurs for ^•Hg^IOH when the reactant is oriented toward Hg, leading to addition, while for HgBr, reductive displacement is also possible when the collision involves the Br atom (Castro Pelaez et al., 2022). The existence of a branching ratio was also confirmed by an experimental study of the ^•Hg^IBr + NO₂ reaction by Wu et al. (2020) using PLP-LIF, who reported that the computed rate coefficients for both reduction and oxidation were greatly overestimated. This study deduced that the importance of the reductive channel increases slowly with increasing altitude from the ground level to the tropopause but is only ∼ 10 % as fast as the oxidation reaction. Wu et al. (2022) also experimentally studied the interaction between NO and ^•Hg^IBr, leading to Hg⁰ + BrNO. ^•Hg^IBr $+{\mathrm{O}}_{\mathrm{2}}\to \mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{OO}}^{\mathrm{•}}$ (Reaction G R19) is slightly exothermic, while that leading to Hg⁰ + BrOO^• is less feasible due to endothermicity. The ^•Hg^IBr + O₂ reaction is thus described by ^•Hg^IBr $+{\mathrm{O}}_{\mathrm{2}}\rightleftarrows \mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{OO}}^{\mathrm{•}}$, with an equilibrium constant that decreases with increasing temperature (Wu et al., 2022). To the extent that BrHg^IIOO^• can be attributed significance, it is a reservoir for ^•Hg^IBr at low temperatures, with an upper limit of ∼ 50 % stored at 220 K. Wu et al. (2022) argued that BrHg^IIOO^• behaves like a peroxyl radical (HOO^• $/$ ROO^•) in reactions with atmospheric radicals. Recently, Saiz-Lopez et al. (2020) implied missing oxidation pathways to better reconcile their GEOS-Chem global atmospheric chemistry model simulations with field observations. Suggested by Shepler (2006) and later Lam (2019) as a potential pathway of Hg^I oxidation, the Saiz-Lopez group has carried out theoretical (Saiz-Lopez et al., 2020) and experimental (Gómez Martín et al., 2022) investigations of the system ^•Hg^IBr + O₃. In addition, Castro Pelaez et al. (2022) carried out theoretical calculations for rate constants and product yields, including ^•Hg^IOH + O₃. ^•Hg^IX + O₃ → XHg^IIO^• + O₂ (Reactions G R22, G R43 and G R59) is highly exothermic (172 kJ mol⁻¹ for X = Br), proceeds without a substantial activation barrier, and is currently considered to be important for the atmospheric oxidation of ^•Hg^IX, with XHg^IIO^• as a key intermediate. As a radical, XHg^IIO^• is relatively thermally stable with strong Hg–O bond (333 and 294 kJ mol⁻¹ for X = Cl & Br, respectively; Balabanov and Peterson, 2003). Gómez Martin et al. (2022) determined the rate coefficient of the ^•Hg^IBr + O₃ reaction at 295 K via a PLP-LIF system. To generate ^•Hg^IBr (photolysis of HgBr₂ at 248 nm by a KrF excimer laser), the introduced O₃ would inevitably be photolyzed to some extent before it could react with ^•Hg^IBr. This led to complications due to the following potential chemistry:

$$\begin{array}{}\text{(G R22)}& {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Br}+{\mathrm{O}}_{\mathrm{3}}\to {\mathrm{BrHgO}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}\end{array}$$

$$\begin{array}{}\text{(G R23)}& {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Br}+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\begin{array}{l}⟶\mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}\\ ⟶{\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{BrO}}^{\mathrm{•}}\end{array}\text{(G R24)}& {\displaystyle }{\mathrm{BrHg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}+\mathrm{O}⟶{\mathrm{BrHg}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}\text{(G R25)}& {\displaystyle }\mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{3}}\begin{array}{l}⟶\mathrm{•}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Br}+{\mathrm{O}}_{\mathrm{2}}+{\mathrm{O}}_{\mathrm{2}}\\ ⟶\mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{OO}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}\end{array}.\end{array}$$

By performing experiments at different KrF laser energies and ozone concentrations and by numerical modeling of the data, Gómez Martin et al. (2022) isolated k (^•HgBr + O₃), k(^•HgBr + O), and k(BrHgO^•+ O) as 7.5, 5.3, and 9.1 (all × 10⁻¹¹ cm³ molecule⁻¹ s⁻¹), respectively. They presented an upper limit for BrHg^IIO^•+ O₃ ($k<\mathrm{5}\times$ 10⁻¹² cm³ molecule⁻¹ s⁻¹), which was considered infeasible by theoretical calculations due to steric hindrance. Instead of leading primarily to BrHg^IIO^•, as is the case for the ^•Hg^IBr + O₃ reaction, ^•Hg^IBr + O results in reductive elimination (Hg⁰ + BrO^•) for all collision geometries. Hg⁰ is also produced in the rapid reaction between BrHg^IIO^•+ O. In the lower atmosphere (≤ 25 km), the content of free O atoms is low, and therefore, its role as an oxidant is minor (Calvert et al., 2015). The energetic O(¹D), formed primarily by photolysis of O₃ by UV light (<340 nm), is rapidly consumed through two competitive channels: deactivation to O(³P) by collision with air molecules or reaction with the ubiquitous water vapor to form OH radicals. O(³P), also formed by the photolysis of NO₂ (<430 nm), reacts rapidly and thermally with O₂ in the atmosphere to form ozone (Calvert et al., 2015). Importantly, k(^•HgBr + O₃) is more than twice as fast as k(^•HgBr + NO₂) when the experimental results are extrapolated to the atmospheric surface layer (1 atm, 295 K). The combination of a high k(^•HgBr + O₃) and the abundance of ozone relative to other radicals, such as NO₂ and HOO, suggests that ^•Hg^IBr + O₃ is predominant in the conversion of Hg^I to Hg^II in the atmosphere. The experimentally determined k(^•HgBr + O₃) is close to the upper limit of 1 × 10⁻¹⁰ cm³ molecule⁻¹ s⁻¹ estimated by Saiz-Lopez et al. (2020), which excludes steric effects. For an updated chemical mechanism in the global atmospheric model GEOS-Chem, Shah et al. (2021) used a conservative rate constant of 3 × 10⁻¹¹ cm³ molecule⁻¹ s⁻¹ for the oxidation of ^•Hg^IX with O₃ (X = Cl, Br and OH). By postulating k(^•HgOH + O₃)= k(^•HgBr + O₃), simulations by Shah et al. (2021) revealed that the OH-initiated pathway accounts for one-third of global Hg^II production. In contrast, by not including ^•Hg^IOH + O₃ in their model, Dibble et al. (2020) reported that the OH-initiated channel is largely irrelevant, with only some regional significance in areas with high levels of photochemical smog. More recently, Castro Pelaez et al. (2022) compared ^•Hg^IBr + O₃ and ^•Hg^IOH + O₃ systems via computational chemistry and reported that the former has a slight tendency (≤ 0.1 %) to undergo reductive elimination (Hg + BrO^• + O₂) rather than oxidation (BrHg^IIO^• + O₂) when the orientation of the terminal oxygen in ozone is toward the Br atom. There was no such tendency for ^•Hg^IOH + O₃. It was also found that k(^•HgBr + O₃) and k(^•HgOH + O₃) are likely similar at 298 K in the range of (6.6–8.5) × 10⁻¹¹ cm³ molecule⁻¹ s⁻¹. The positive covariation of O₃ and ^•OH, as opposed to ^•Br and O₃ (O₃ titrates ^•Br, Fig. 2), suggests precedence for OH-initiated Hg oxidation in air with secondary pollutants (Rutter et al., 2012). Field observations of GOM in urban air may suggest radical-initiated Hg⁰→ Hg^II gas-phase transformation, which is claimed to be completed by certain radicals (Peleg et al., 2015; Hong et al., 2016; Edirappulige et al., 2024). An interesting case is urban Jerusalem, where episodes of elevated daytime and nighttime gaseous Hg^II levels covary with O₃ (max 250 µg m⁻³) and NO₃(430 ng m⁻³), respectively (Peleg et al., 2015). To the east of the city lies the Dead Sea basin, where effective bromine-controlled oxidation of Hg⁰ has been observed (Tas et al., 2012). Finally, the reactivity of ^•Hg^IX toward volatile hydrocarbons is low, as ^•Hg^IX does not abstract a hydrogen atom from an alkane (e.g., from CH₄), nor does it significantly add to a double bond of an alkene (e.g., to CH₂=CH₂) (Dibble and Schwid, 2016).

5.1.4 Stability of Hg^IIXY

Photoreduction and stoichiometric yields

Although atmospheric Hg^II species are generally more stable than Hg^I species are, many Hg^II molecules are still labile, and the atmospheric pool contains mercuric species with different thermal and photolytic stabilities. Most of the atmospherically relevant gas-phase species have well-defined absorption bands in deep UV, in some cases extending into the UV-B and UV-A regions. Early theoretical studies (Strömberg et al., 1989; Strömberg et al., 1991), when knowledge of the atmospheric chemistry of Hg was rudimentary, indicated that the photoreduction of HgCl₂ and Hg(CN)₂ in actinic light at the Earth's surface was negligible, while that of Hg(OH)₂ and Hg(SH)₂ was extremely slow. The UV absorption spectra of mercuric halides are increasingly red-shifted as the halogen becomes heavier. HgCl₂ vapor absorbs only radiation below 240 nm (Fig. 8a), and HgBr₂ absorbs mainly deep-UV light with a tiny tail (< 10⁻¹⁹ cm² molecule⁻¹, Fig. 8c) into UV-B, while HgI₂ has significant absorption in the entire UV region (Maya, 1977; Sitkiewicz et al., 2019). However, binary compounds such as HgBr₂ or HgCl₂ do not completely dominate the atmospheric Hg^II(g) speciation. Mixed compounds such as BrHg^IIY molecules (Y = ONO, OOH, OH, OCl, OBr, etc.) and XHg^IIO radicals (X = Br, OH) are also predicted to be important. Saiz-Lopez et al. (2018) computed the absorption spectra of mixed compounds and found that abundant BrHg^IIY molecules absorb in UV-B. The rapidly photolyzed Hg^II species identified include BrHgONO (Reaction G R35), BrHgOOH (Reaction G R36) and BrHgOBr (with lifetimes of a few minutes to less than a second, Fig. 4a-c), with BrHgOH being comparatively long-lived (> 1 day, Fig. 4d) in terms of photodissociation. In their modeling study, HgCl₂ and Hg(OH)₂ were estimated to be photolytically stable in the troposphere by Shah et al. (2021), while the photolysis frequency of HgBr₂ was calculated to be just over an order of magnitude lower than that of BrHgOH (1.2 × 10⁻⁶ and 1.3 × 10⁻⁵ s⁻¹, respectively).

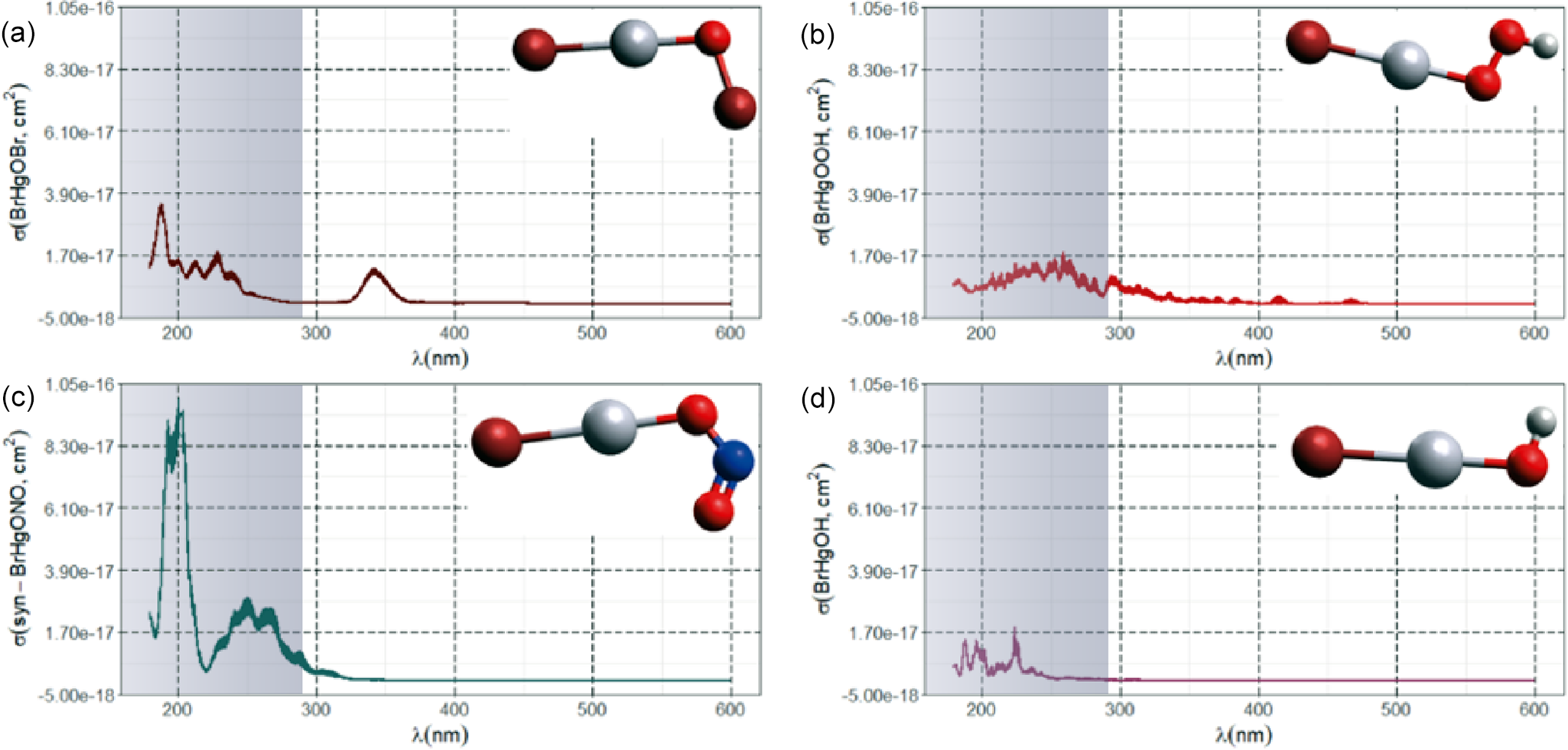

Figure 4 Computed absorption spectra of the atmospherically important (a) BrHgOBr, (b) BrHgOOH, (c) syn-BrHgONO and (d) BrHgOH. Wavelengths accessible in the troposphere are to the right of the colored area (Francés-Monerris et al., 2020).

The photodissociation mechanism (quantum and product yield) of BrHg^IIY has been studied using computer-aided calculations based on 2D potential energy surfaces, with the result that photodynamics lead to different channels in which the Hg-containing products can exhibit +II, +I, and 0 oxidation states (Francés-Monerris et al., 2020; Lam et al., 2019b). Photolysis of BrHg^IIONO results in the formation of NO and BrHg^IIO^• in 90 % of cases, while the remainder reverts to ^•Hg^IBr and NO₂(Francés-Monerris et al., 2020). Consistently, a large dominance of the photoproducts BrHg^IIO^• + NO was predicted by the calculations of Lam et al. (2019b), in contrast to an early work by Saiz-Lopéz et al. (2018) that favored ^•Hg^IBr and Hg⁰ formation. During the photolysis of BrHg^IIOOH, the Hg–Br, Hg–O, and O–O bonds can be broken, resulting in three main exit channels:

$$\begin{array}{}\text{(G R36)}& \mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}\mathrm{OOH}\stackrel{h\mathit{\nu }}{⟶}\begin{array}{l}\mathrm{Hg}+\mathrm{Br}+{}^{\mathrm{•}}\mathrm{OOH}\left(\mathrm{66}\mathit{\%}\right)\\ \mathrm{Br}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}+{}^{\mathrm{•}}\mathrm{OH}\left(\mathrm{31}\mathit{\%}\right)\\ {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Br}+\mathrm{O}\sim \mathrm{O}-\mathrm{H}(\le \mathrm{3}\mathrm{\%})\end{array}.\end{array}$$

Thus, the photodissociation of BrHg^IIOOH produces Hg⁰, ^•Hg^IBr, and BrHg^IIO^• to varying degrees (Francés-Monerris et al., 2020). In the case of BrHg^IIOH, the photolytic formation of BrHg^IIO^• is negligible, while in half of the cases (49 %), reduction to elemental Hg occurs, and in the other half, ^•Hg^IBr or ^•Hg^IOH is formed, with the former being predominant (∼ 70 %) (Francés-Monerris et al., 2020). The photolysis of BrHg^IIONO and BrHg^IIOOH thus results in significant yields of BrHg^IIO^•, the radical form of Hg^II described above as the major product of the rapid reaction between ^•Hg^IBr and O₃. In this series of reported compositional chemical results, the only YHg^IIO^• species that has been experimentally characterized is the fluorine analog that is formed along with FOHg^IIF when excited Hg atoms react with OF₂(Andrews et al., 2012). Although FHg^IIO^• has no atmospheric significance, its experimentally determined properties are important benchmarks for other homologs in the series. YHg^IIO^• has two strong bonds (the dissociation energy for YHg–O is ∼ 250 kJ mol⁻¹) and is thermally stable in the gas phase. However, YHg^IIO^• is photolabile under UV–VIS light (cf. Fig. 5b) and decomposes photolytically along two channels. The calculated branching ratios for both Y = Cl and Br favor the formation of HgO (67 % and 56 %, respectively, Saiz-Lopez et al., 2022) over splitting into atoms, as shown below:

$$\begin{array}{}\text{(G R31 and G R48)}& \mathrm{Y}{\mathrm{Hg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}\stackrel{\mathrm{h}\mathit{\nu }}{⟶}\begin{array}{c}\mathrm{HgO}+Y^{\mathrm{•}}\\ \mathrm{Hg}+\mathrm{O}+Y^{\mathrm{•}}\end{array}.\end{array}$$

For HOHg^IIO^•, there are no stoichiometric calculations for the photoproducts. The main product generated, HgO with a ³Π ground state, as a monomer in the gas phase (Sun et al., 2022), possesses a weak Hg–O bond of disputed magnitude (15–30 kJ mol⁻¹, Tossell, 2006; Balabanov and Peterson, 2003; Cremer et al., 2008; Filatov and Cremer, 2004; Shepler and Peterson, 2003; Peterson et al., 2007), which is only ≤ 10 % as strong as in YHg^IIO^•. HgO can be reduced to Hg⁰ by reaction with O₂ and by thermal and photo-dissociation:

$$\begin{array}{}\text{(G R71a)}& \mathrm{HgO}\stackrel{M}{⟶}\mathrm{Hg}+\mathrm{O}\end{array}$$

$$\begin{array}{}\text{(G R71b)}& \mathrm{HgO}\stackrel{h\mathit{\nu }}{⟶}\mathrm{Hg}+\mathrm{O}\end{array}$$

$$\begin{array}{}\text{(G R75)}& \mathrm{HgO}+{\mathrm{O}}_{\mathrm{2}}⟶\mathrm{Hg}+{\mathrm{O}}_{\mathrm{3}}.\end{array}$$

The HgO + O₂ reaction is exothermic but is subject to a barrier, which, using transition state theory, results in a rate coefficient of $\mathrm{3.4}\times {\mathrm{10}}^{-\mathrm{13}}$ exp ($-\mathrm{1993}/T$) cm³ molecule⁻¹ s⁻¹ (Saiz-Lopez et al., 2022). The enthalpy of thermal decay of HgO is only weakly endothermic and therefore favored by high temperature, with a dependence of 8.4 × 10⁻¹¹ exp ($-\mathrm{3150}/T$) cm³ molecule⁻¹ s⁻¹, as calculated by RRKM theory (Saiz-Lopez et al., 2022). In addition, HgO is more photolabile than ^•Hg^IOH is, with a calculated global annual mean J(HgO) of 0.54 s⁻¹ for the troposphere (Saiz-Lopez et al., 2018, absorption spectrum in Fig. 5a). These suggest that gas-phase HgO in the troposphere is highly unstable. Although the decay slows at lower temperatures and pressures as the reaction is collisionally activated, the thermal lifetime is still only about 1 ms at 250 K and 0.1 atm. Analogous to the photolysis of Hg^I compounds, the quantum yield for the photo-dissociation of Hg^II compounds is assumed to be unity.

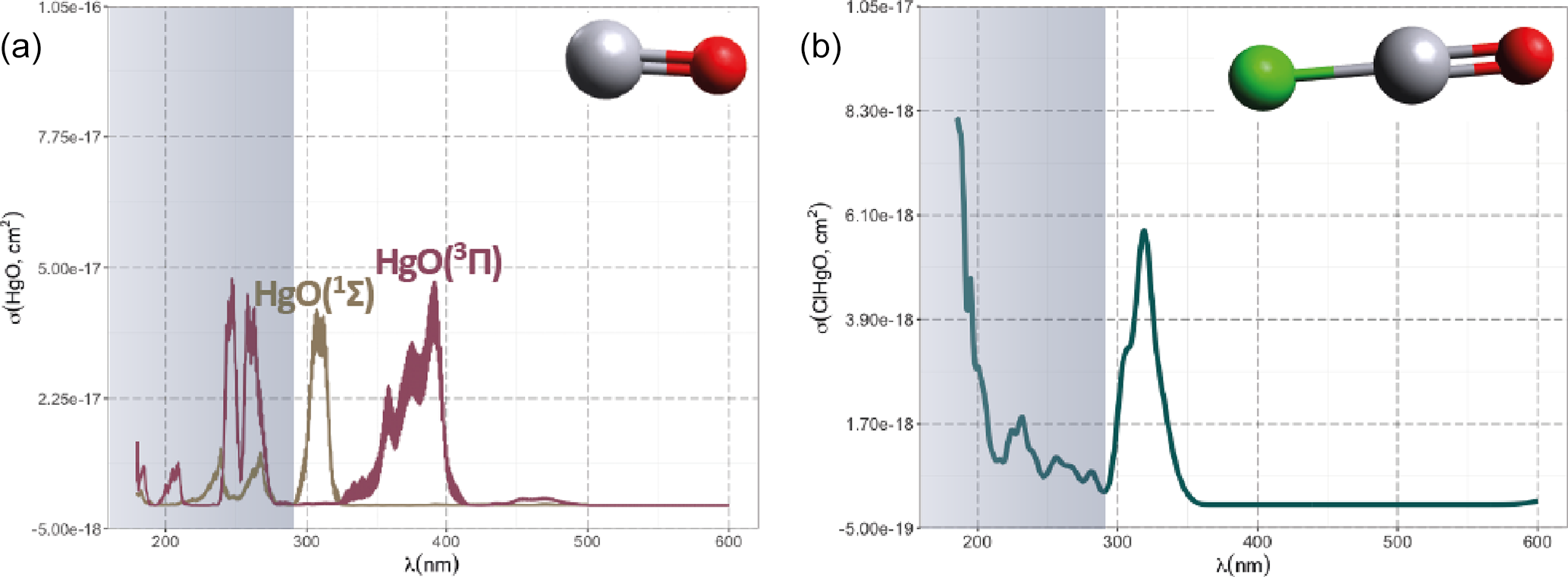

Figure 5 Computed absorption spectra of (a) HgO (low-lying ³Π and ¹Σ states) and (b) ClHgO radical (Saiz-Lopez et al., 2018; Saiz-Lopez et al., 2022). Wavelengths accessible in the troposphere are to the right of the colored area.

Thermochemistry of YHg^IIO^•

Experimental data on the kinetics and mechanisms of the atmospheric chemistry of YHg^IIO^• are scarce (the reaction BrHg^IIO^• + O₃ to ^•Hg^IBr and O₂ has been described above, Gómez Martín et al., 2022). Initially, the focus of computer simulations was on the Br analog and its reactions. Later, the scope was expanded to include the thermochemistry of the OH and Cl analogs, which will be recapitulated below. Dibble and colleagues (Lam et al., 2019b; Khiri et al., 2020; Lam et al., 2019a) concluded that the bimolecular reaction with CH₄ is of primary importance for the disappearance of BrHg^IIO^•: BrHg^IIO^• + CH₄→ BrHg^IIOH + ^•CH₃ (Reaction G R26). Unlike ^•Hg^IX, BrHg^IIO^• readily abstracts hydrogen atoms from saturated hydrocarbons and overcomes a modest energy barrier with a rate expression of 4.1 × 10${}^{-\mathrm{12}}\times$ exp($-\mathrm{856}/T$) cm³ molecule⁻¹ s⁻¹ for BrHg^IIO^• + CH₄. Computational modeling suggested that BrHg^IIO^• mimics the OH radical in terms of reaction selectivity. In addition to BrHg^IIO^• abstract H from aliphatic hydrocarbons, it adds to the unsaturated bonds of olefins (such as the biogenic isoprene), NO (Reaction G R29), and NO₂ (Reaction G R30) and interacts with CO (Reaction G R27). The addition of NO produces BrHg^IIONO, which is susceptible to photolytic decomposition to predominantly BrHg^IIO^•, whereas the addition of NO₂ promptly produces peroxynitrites of the BrHg^IIOONO type, which are likely isomerized to BrHg^IIONO₂. Whether bromomercuric nitrate is photolabile in the troposphere is not yet known. Another source of BrHg^IIOH is the reaction of BrHg^IIO^• with aldehydes (e.g HCHO, Reaction G R28). The pathway for the BrHg^IIO^• + HCHO reaction bifurcates into two processes leading to different products (Khiri et al., 2020). The dominant reaction is H abstraction, leading to BrHg^IIOH and a formyl radical. The alternative route involves the addition of the oxygen atom in BrHg^IIO^• to the carbon center in HCHO to form a methoxy radical, which eliminates a hydrogen atom unimolecularly or in the presence of O₂ to form a formate salt (BrHg^IIOCHO). Secondary chemistry initiated by O₂ after the addition of BrHg^IIO^• to a carbon double bond (such as in ethene) also involves alkoxy radicals formed after titration of the primary peroxyl radical formed by NO. The atmospheric fate of these mercuric alkoxy and alkyl peroxyl radicals (with one Hg–O bond) is similar to the general characteristics of organic oxidation in the atmosphere described in detail elsewhere (Finlayson-Pitts and Pitts, 2000). However, apart from the CH₄ reaction, the interaction between BrHg^IIO^• and volatile organic compounds (VOCs) is considered limited in the atmosphere.

Analogous to ^•OH + CO, the reaction between BrHg^IIO^• and CO is not a simple bimolecular reaction. However, the intermediate BrHgOCO is much less stable than HOCO with respect to the release of CO₂. The very weakly bound BrHgOCO promptly dissociates in ^•Hg^IBr + CO₂ (Khiri et al., 2020). The above reaction is highly exothermic (>280 kJ mol⁻¹); therefore, the ^•Hg^IBr product can be chemically activated to the extent that it increasingly decomposes into atoms. The importance of this Hg reduction channel has been identified as difficult to constrain theoretically, as the shape of the potential energy surface is unfavorable for the application of standard kinetic simulation methods. Nevertheless, using an inverse Laplace transformation method, Khiri et al. (2020) calculated the range for the rate coefficient at two temperatures: (9.4–52) × 10⁻¹² cm³ molecule⁻¹ s⁻¹ at 298 K and (3.8–29) × 10⁻¹² cm³ molecule ⁻¹ s⁻¹ at 220 K. These data are the basis for the current inclusion of the YBr^IIO^• + CO →^•Hg^IY + CO₂ reaction in chemical models (Shah et al., 2021; Saiz-Lopez et al., 2022), with an average expression of 6.0 × 10${}^{-\mathrm{11}}\times$ exp($-\mathrm{550}/T$) cm³ molecule⁻¹ s⁻¹. With this numerical characterization, the YHg^IIO^•+ CO reaction becomes profoundly important when implemented in simulations, as it largely counteracts the effect of the ^•Hg^IX + O₃ reaction, thereby extending the predicted lifetime of Hg⁰ in the troposphere. However, other candidates have emerged that, like CH₄, may react with HOHg^IIO^• to form the stable Hg(OH)₂ molecule, namely water vapor. The reaction HOHg^IIO^• + H₂O → Hg(OH)₂ + ^•OH (Reaction G R60) is nearly thermoneutral due to the stability of Hg(OH)₂ ($\mathrm{\Delta }{H}_{\mathrm{f}}=-\mathrm{226}$ kJ mol⁻¹; Wang and Andrews, 2005a), and Saiz-Lopez et al. (2022) give a temperature-dependent rate constant expression of 5.3 × 10⁻¹² × exp($-\mathrm{2894}/T$) cm³ molecule⁻¹ s⁻¹ without further details. Since both the calculated HOHg^IIO^• + H₂O rate coefficient and the H₂O(g) mixing ratio vary considerably across the troposphere, the HOHg^IIO^• loss due to this channel may largely exceed or fall below the more monotonic rate of hydrogen abstraction by HOHg^IIO^• from CH₄, depending on the circumstances. The fate of HOHg^IIO^• is thus influenced by several exit channels (Edirappulige et al., 2023), none of which have been investigated experimentally. Particularly, the uncertainty of the CO and H₂O reactions makes it difficult to determine the importance of OH-initiated oxidation to the atmospheric Hg^II pool.

Can mercury species nucleate in the atmosphere?

While Hg⁰ vapor has been observed to nucleate homogeneously in laboratory experiments conducted under high pressures (Martens et al., 1987), neither Hg⁰ atoms nor GOM species, which are molecular rather than ionic entities, have a vapor pressure that is sufficiently low and a concentration that is sufficiently high in the atmosphere to nucleate new particles by simple condensation (Murphy et al., 1998). However, the concerted action of a foreign gas-phase precursor (e.g., amines, highly oxygenated organics, sulfuric, nitric, and iodic acids; Lehtipalo et al., 2025; He et al., 2021) or heterogeneous condensation on pre-existing nuclei of subcritical or critical size may result in the transfer of GOM species to aerosols (Ariya et al., 2015). Measurements of individual aerosol particles have shown that a significant portion of the aerosols present in the lowest kilometers of the stratosphere contain small yet measurable amounts of Hg^II. Interestingly, Hg^II is empirically correlated with bromine and iodine in these organic-sulfate-type particles and has the highest relative concentrations in the stratosphere near the tropopause. However, Hg^II is rarely observed in the relatively pure sulfuric acid particles characteristic of the main stratospheric aerosol (Junge) layer (Murphy et al., 2006). While bromine and iodine aerosols are also observed throughout the troposphere, no Hg can be detected in these aerosols (Murphy et al., 2006). Both Br and I, with oceans as the primary sources, are injected into the stratosphere, where they account for most of the ozone depletion caused by halogens (Koenig et al., 2020). It is challenging to determine whether there is a causal mechanistic relationship and, if so, what can explain the observed correlation between aerosol Hg, Br, and I. Nevertheless, a plethora of clues can be utilized to assemble a coherent narrative. First, the combination of Br^• (Reaction G R14a) and O₃ (Reaction G R22) constitutes a significant oxidation pathway for Hg⁰ to Hg^II. However, as mentioned above, there is no firm evidence that this reaction pathway is relevant when I^• is a substitute for Br^•. Second, the gas-phase system I^• + O₃ + H₂O has been identified as a substantial precursor of particle nucleation (as iodine oxoacids) and growth that is highly important within marine (Sipilä et al., 2016) and stratospheric (Koenig et al., 2020) environments. Third, the condensed phases Br⁻ and I⁻ act as robust complexing ligands (Table 2) for the GOM to partition into the aerosol, thereby impeding its recycling back to the gas phase. Presumably, the fundamentals are similar for a particle formation event observed in the context of the polar spring partial AMDE in East Antarctic pack ice by Humphries et al. (2015), where the formation of 3 nm particles lags the phase of gaseous Hg⁰ loss in the air mass. Observations over a decade in the Canadian High Arctic region clearly show that PBM transmitted by KCl-coated denuders dominated Hg^II fractionation over the GOM during the early period of AMDEs, where the highest frequencies of depleted Hg⁰ occurred between –45 and –40 °C, whereas during the late period of higher temperatures and lower particulate concentrations (AMDEs then occurred most frequently between –25 and –20 °C), Hg^II fractionation shifted to a clear dominance of the GOM (Steffen et al., 2014). The KCl denuder technique used cannot selectively separate nano- to submicron-sized mercuric halide clusters completely from GOM (Ghoshdastidar and Ariya, 2019), which, along with the other nonsystematic bias of the method previously mentioned, makes separation into Hg^II fractions tentative. The measurement methodology deficiencies make establishing empirical gas–particle partitioning schemes highly uncertain (Amos et al., 2012; Rutter and Schauer, 2007b, a). This complicates the assumption and verification of model parameterization, which relies on accurate atmospheric concentration measurements. For example, the release of Hg^II from aerosols into the gas phase is assumed to be entirely in the form of the tropospherically stable HgCl₂ molecule (Shah et al., 2021). Coupling an oxidized Hg vapor source or a reactor where oxidized Hg is formed by gas-phase oxidation of Hg⁰ to particle characterization instruments (such as scanning mobility or optical particle sizers) provides conclusive evidence that mercuric halide molecules readily form clusters that undergo particle growth (Ghoshdastidar and Ariya, 2019). In experimental studies of the vapor-phase oxidation of volatile Hg forms Hg⁰ and (CH₃)₂Hg, aerosol-phase products have been detected (Raofie et al., 2008; Raofie and Ariya, 2004; Sun et al., 2016; Niki et al., 1983a; Niki et al., 1983b). For example, using a scanning mobility particle sizer, Sun et al. (2016) found that, well below the saturation pressure of HgX₂, reaction products from X (Cl and Br)-initiated Hg⁰ vapor oxidation began to generate particles that grew from the Aitken nuclei range (few tens of nanometers) into the accumulation range (> 100 nm) over the course of a few hours (Fig. 6). Figure 7 summarizes the main elements of the Hg gas-phase chemistry in the troposphere.

Figure 6 Particle growth of the reaction products from the halogen atom (X = Cl, Br)-induced oxidation of Hg⁰ vapor studied after the same degree of Hg⁰ conversion (∼ 75 %, 5–8 ppb) but at different reaction times a and b (∼ 45 min, Hg⁰+ Br and ∼ 4 h, Hg⁰ + Cl, respectively). Adopted from Sun et al. (2016).

5.1.5 Chemical transformation of Hg in the lower stratosphere

In the lower stratosphere, chlorine atoms and hydroxyl radicals initiate most of the oxidation of Hg⁰. This is because the concentrations of these species increase with altitude, and the channels in which they are contained produce more photostable products, such as Hg(OH)₂ and HgCl₂(Fig. 8a, b). The prediction of these model calculations that Hg⁰ converts to long-lived (photostable) oxidized forms and thus leads to a higher $\mathrm{RM}/\mathrm{TAM}$ ratio is supported by hundreds of profile measurements made with an Airbus 340-600 passenger aircraft in intercontinental traffic as an upper troposphere–lowermost stratosphere observatory (Slemr et al., 2018). In addition to the frequently observed higher $\mathrm{RM}/{\mathrm{Hg}}^{\mathrm{0}}$ ratios, a steep decrease in the Hg⁰ mixing ratio occurs when crossing the tropopause. In the stratosphere, the latter ratio decreases to 0.25–0.7 ng m⁻³ (STP), measured up to an altitude of 4 km (Slemr et al., 2018). The results of both studies above show a more than 10-fold increase in the lifetime of Hg⁰ in the lower stratosphere compared with that in the troposphere. The chemical lifetime of Hg⁰ increases and approaches 10 years as the concentration in the lower stratosphere bound by the ozone layer increases (Saiz-Lopez et al., 2025).

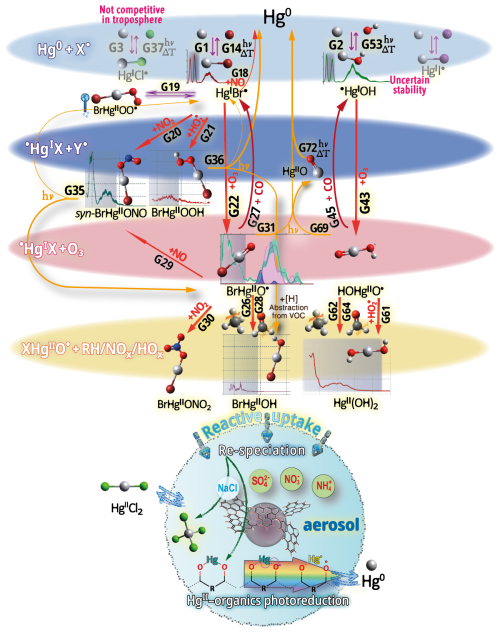

Figure 7 Outline of tropospheric gas-phase Hg chemistry. The reactions of the type Hg + XO^• (X = O₂, Br and NO₂) directly leading to mercuric species are, for the (varying) reasons given in the text, impossible processes in the homogeneous gas phase. In the troposphere, gas-phase oxidation of Hg⁰ in termolecular reactions is initiated by a few radicals in which Br atoms and, with some uncertainty, OH radicals have the greatest importance, leading to the formation of thermally and photolytically labile mercurous radical species (i.e., ^•Hg^IBr and ^•Hg^IOH). These Hg^I species are further oxidized to Hg^II, not only by ozone but also by radicals (in descending order of abundance), such as NO₂ > HO₂ > BrO ≈ OH. NO cannot efficiently oxidize Hg^I to Hg^II but instead induces thermal reduction, e.g., ^•Hg^IBr + NO → Hg + BrNO. As O₃ is a closed-shell species, it directly oxidizes ^•Hg^IBr ${/}^{\mathrm{•}}$Hg^IOH to mercuric radical species YHg^IIO^•; for example, HOO^• and BrO^• are added to linear mercuric molecules (e.g., BrHg^IIOOH) that are photolytically labile, while those resulting from, e.g., NO₂, ^•OH, and Br^• are more photostable. The photolysis of many of the major thermally more stable Hg^II species, such as syn-BrHg^IIONO, BrHg^IIOOH, and BrHg^IIOH, leads to several species-specific photoproducts (potentially Hg⁰, Hg^I species or YHg^IIO^•) with various yields (Table 4). The remarkably thermally stable YHgO radical exhibits versatile thermochemistry, such as abstracting hydrogen from VOCs, adding to double bonds and being reduced by CO. Some of its bimolecular reactions, such as with CH₄, directly form fairly stable Hg^II compounds such as Hg(OH)₂ and BrHg^IIOH. When these encounter hydrometeors, they dissolve and are re-speciated by rapid equilibration with major aqueous ligands. This leads to the formation of strong complexes, e.g., by Cl⁻ to chloromercurates HgCl₂, HgCl${}_{\mathrm{3}}^{-}$, and HgCl${}_{\mathrm{4}}^{\mathrm{2}-}$. Thus, molecular HgCl₂ is released into the gas phase when the particle dries. HgCl₂ is completely photostable and is enriched in the troposphere (a major Hg^II species), with dry and wet deposition as the only sink processes.

5.1.6 Chemical transformation of Hg in the upper stratosphere

The presence of UV-C radiation above the ozone layer maximum opens completely new reaction pathways for redox cycling of stratospheric Hg. New insights into its conceptual stratospheric chemistry (Saiz-Lopez et al., 2022; 2025) and associated anomalous isotope fractionation (Sun et al., 2022; Fu et al., 2021) have been presented. The gas-phase oxidation of Hg⁰ is rapid (10³–10⁴ times faster than in the troposphere, Saiz-Lopez et al., 2022) and is driven entirely by the oxidation of electronically excited Hg atoms by one of the major constituents of air, O₂.

Hg⁰(³P) reaction with elemental oxygen

Already involved in the discovery of the element oxygen toward the end of the 18th century, the chemistry of the system of Hg + O₂ has exhibited intricate complexity. These early observations, made independently in northern and western Europe, address an important aspect of the thermochemistry of the system. A direct combination of liquid Hg and O₂ occurs just below the boiling point of Hg to form HgO, but the reaction is reversed above 400 °C. While the reaction of ground-state Hg vapor (Hg(¹S)) with O₂ is negligibly slow (Hall et al., 1995), deep UV light excitation of singlet to triplet Hg atoms (Hg(³P)) leads to significant homogeneous reactions with O₂. In contrast, further excitation of Hg(¹P₁) in blue and subsequent reaction with O₂, as discussed above, is unlikely to result in the net formation of mercury oxides. The gas-phase reactions of Hg(³P) have been studied in the laboratory since 1922 (Cario and Franck, 1922). In particular, O₂/air has been used as a route for ozone synthesis since the mid-1920s (Dickinson and Sherrill, 1926). While larger quantities of ozone are produced by Hg photochemistry (photo-sensitization), the elemental vapor is oxidized more slowly, resulting in the deposition of a yellow-brown film of solid HgO on the reactor walls downstream of the irradiation zone (Volman, 1953). However, the Hg(³P) + O₂ mechanism is unclear because of the controversy regarding the molecular intermediates, and whether there is a direct route from Hg(³P) to gaseous HgO or oxidation starting from the Hg(¹S) state remains undetermined (Callear et al., 1959; Volman, 1953; Hippler et al., 1978; Morand and Nief, 1968). The dark homogeneous reaction Hg(¹S) + O₃→ HgO + O, supported by early researchers (Callear et al., 1959; Volman, 1953; Pertel and Gunning, 1959) as driving the oxidation in the photochemical experiments, can now be rejected for the reasons discussed above in Sect. 5.1.1. Considering more recent results (Wang and Andrews, 2005a; Hall, 1995), e.g., those obtained by refined computational chemistry, the following mechanism seems to be the most plausible:

$$\begin{array}{}\text{(G R4)}& \mathrm{Hg}\stackrel{h\mathit{\nu }}{⟶}\mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{1}})\end{array}$$

$$\begin{array}{}\text{(G R9)}& \mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{1}})⟶\mathrm{Hg}+h\mathit{\nu }\end{array}$$

$$\begin{array}{}\text{(G R10)}& \mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{1}})+{\mathrm{N}}_{\mathrm{2}}⟶\mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{0}})+{\mathrm{N}}_{\mathrm{2}}\end{array}$$

$$\begin{array}{}\text{(G R12a,b)}& \begin{array}{rl}\mathrm{Hg}& {(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{1}})+{\mathrm{O}}_{\mathrm{2}}\stackrel{M}{⟶}{\mathrm{HgO}}_{\mathrm{2}}^{\ast }\stackrel{M}{⟶}\\ & \mathrm{OHgO}\begin{array}{l}\to \mathrm{Hg}{(}^{\mathrm{1}}{\mathrm{S}}_{\mathrm{0}})+{\mathrm{O}}_{\mathrm{2}}{(}^{\mathrm{3}}{\mathrm{\Sigma }}_{\mathrm{u}}^{+})\\ ⟶\mathrm{HgO}{(}^{\mathrm{3}}\mathrm{\Pi })+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\end{array}\end{array}\end{array}$$

$$\begin{array}{}\text{(G R11)}& \mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{0}})+{\mathrm{O}}_{\mathrm{2}}\to \mathrm{Hg}{(}^{\mathrm{1}}{\mathrm{S}}_{\mathrm{0}})+{\mathrm{O}}_{\mathrm{2}}{(}^{\mathrm{3}}{\mathrm{\Sigma }}_{\mathrm{u}}^{+})\end{array}$$

$$\begin{array}{}\text{(R5)}& {\mathrm{O}}_{\mathrm{2}}{(}^{\mathrm{3}}{\mathrm{\Sigma }}_{\mathrm{u}}^{+})+{\mathrm{O}}_{\mathrm{2}}\to {\mathrm{O}}_{\mathrm{3}}+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\end{array}$$

$$\begin{array}{}\text{(R6)}& {\mathrm{O}}_{\mathrm{2}}+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\to {\mathrm{O}}_{\mathrm{3}}.\end{array}$$

Photoexcitation (Reaction G R4) has been discussed, but its reverse (Reaction G R9), i.e., the spontaneous emission of a photon that brings Hg(³P₁) to the ground state, is spin-forbidden, and the radiative lifetime is relatively long (0.12 µs corresponding to k₉=8.4 × 10⁶ s⁻¹). The quenching of Hg(³P) states (i.e Reactions G R9 and G R10–G R12a) for several gases has been studied, with Hg(³P₁) atoms being 21.3 kJ mol⁻¹ more energetic than Hg(³P₀) atoms. The two main constituents of air play different roles in the quenching process, with N₂ almost exclusively deactivating Hg(³P₁) to Hg(³P₀) with k_G10=5.1 × 10⁻¹¹ exp ($-\mathrm{701}/T$) cm³ molecule⁻¹ s⁻¹, while O₂ quenches both Hg(³P₁) and Hg(³P₀) directly to Hg(¹S₀), with k_G12a and k_G11 values of 1.3 × 10⁻¹⁰ $(T/\mathrm{300}{)}^{-\mathrm{0.29}}$ and 1.8 × 10⁻¹⁰ $(T/\mathrm{300}{)}^{\mathrm{0.167}}$ cm³ molecule ⁻¹ s⁻¹, respectively. In the stratosphere (T = 240 K), the $k_{\mathrm{G}\mathrm{12}\mathrm{a}}/k_{\mathrm{G}\mathrm{10}}$ ratio is ∼ 50, suggesting that O₂ is a much better physical quencher than N₂, which is true throughout the atmosphere. Of primary interest here, however, is the spin-conserving Reaction (G R12b), which allows the oxidation of Hg and is overall nearly thermoneutral (exothermic by ∼ 6 kJ mol⁻¹), yielding HgO (³Π) with low vibrational energy, as noted by Saiz-Lopez et al. (2022), which is important for increasing the lifetime of this weakly bound molecule. First tentatively identified as an intermediate in a low-temperature UV-C-irradiated matrix consisting of Hg, O₂, and H₂ yielding discrete Hg(OH)₂ molecules (Wang and Andrews, 2005a), linear OHg^IIO as the initial product is calculated to be 275 kJ mol⁻¹ lower in energy than the reactants Hg(³P) + O₂ and therefore sufficiently stable over time to participate in barrier rearrangement to Hg(¹S) + O₂* alongside dissociation to HgO and O. Experimental data suggest that the branching ratio between Reactions (G R12b) and (G R12a) is low, making oxidation the minor process. Sun et al. (2022) reported a quantum yield of up to a few percent for the oxidation step in experiments using synthetic air at 46–88 kPa and 233–298 K. Callear et al. (1959) observed a faster reaction in air than in O₂, suggesting that Hg(³P₀) may also react with O₂ to form HgO, analogous to Hg(³P₁).

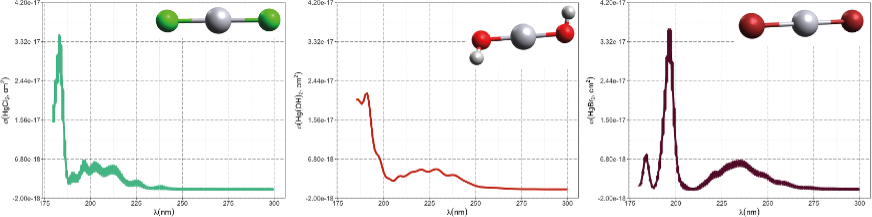

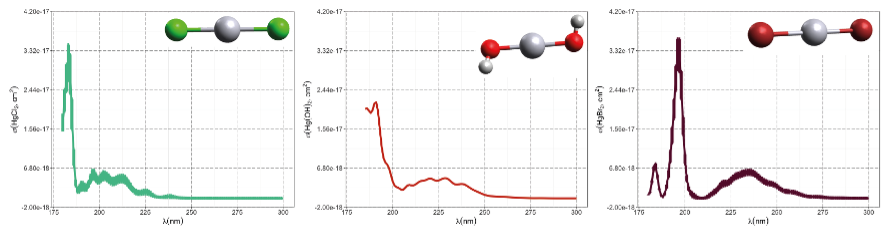

Figure 8 Computational absorption spectra of HgCl₂, Hg(OH)₂, and HgBr₂. Data from Saiz-Lopez et al. (2022) and Sitkiewicz et al. (2019).

Chemical turnover of HgO in the stratosphere: formation of HgCl₂

The instability of the HgO molecule and its unimolecular decay to elemental Hg was discussed earlier. Produced in greater quantities by rapid photosensitized but nearly thermoneutral oxidation, the initially vibrational cold stratospheric HgO is more likely to survive in the colder part of the upper stratosphere until it can react further into less unstable oxidized forms. The most abundant trace gases in this part of the stratosphere are water vapor, hydrochloric acid, and ozone (Calvert et al., 2015). H₂O can oxidize Hg(³P) (Gunning and Strausz, 1963; Gruß et al., 2017) and may react with HgO.

$$\begin{array}{}\text{(G R13)}& {\displaystyle }\mathrm{Hg}{(}^{\mathrm{3}}{\mathrm{P}}_{\mathrm{1}})+{\mathrm{H}}_{\mathrm{2}}\mathrm{O}⟶{}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{OH}+{\mathrm{H}}^{\mathrm{•}}\text{(G R72)}& {\displaystyle }\mathrm{HgO}{(}^{\mathrm{3}}\mathrm{\Pi })+{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\begin{array}{l}\stackrel{M}{⟶}{\mathrm{Hg}}^{\mathrm{II}}(\mathrm{OH}{)}_{\mathrm{2}}\\ \to {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{OH}+{\mathrm{HO}}^{\mathrm{•}}\end{array}\end{array}$$

However, the reaction of Hg(³P) + H₂O is so exothermic (∼ 200 kJ mol⁻¹) that the product ^•Hg^IOH can be expected to be vibrational hot and dissociate rapidly with less time for further bimolecular oxidation. A possible reaction between water vapor and HgO is strongly exothermic if the final product is singlet Hg(OH)₂ but weakly endothermic if the triplet form is formed instead. Nevertheless, there is currently no evidence to suggest that HgO can be converted to Hg(OH)₂ in a direct reaction with moisture. According to Saiz-Lopez et al. (2022), the reaction between stratospheric HgO and HCl is fast enough (close to the collision limit) to allow some Hg^II to be converted to ^•Hg^ICl rather than being reduced to elemental vapor:

$$\begin{array}{rl}\mathrm{HgO}& +\mathrm{HCl}⟶{}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Cl}\\ & +{\mathrm{HO}}^{\mathrm{•}}(\mathrm{G}\mathrm{R}\mathrm{73},\mathrm{\Delta }{H}_{\mathrm{R}}=-\mathrm{61}\mathrm{kJ}{\mathrm{mol}}^{-\mathrm{1}}).\end{array}$$

As with ^•Hg^IOH and ^•Hg^IBr, the reaction between ^•Hg^ICl and O₃ is barrierless and rapid; in this case, ClHg^IIO^• is produced:

$$\begin{array}{}\text{(G R43)}& {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Cl}+{\mathrm{O}}_{\mathrm{3}}⟶{\mathrm{ClHg}}^{\mathrm{II}}{\mathrm{O}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}}.\end{array}$$

Of the versatile tropospheric chemistry presented for YHg^IIO^•, hydrogen abstraction (Reaction G R44) is still important in the stratosphere and is again dominated by CH₄ (which is not photolyzed and reacts with the OH radical as the main sink). The product ClHg^IIOH, like ClHg^IIO^•, is further converted by reaction with HCl to HgCl₂ (Reactions G R46 and G R47), which is the most thermally and photolytically stable of the Hg^II molecules present. The photolytic lifetime of HgCl₂ in the upper stratosphere is close to 1 h and about twice that of Hg⁰, so the oxidized Hg species dominate (of which ≥ 90 % is HgCl₂). The Hg^I concentration increases rapidly above 50 km with increasing UV-C photon flux, so the ratio ^•Hg^ICl $/$ Hg^IICl₂ approaches unity at 60 km. An overview of the gas-phase Hg chemistry in the upper stratosphere is given in Fig. 9.

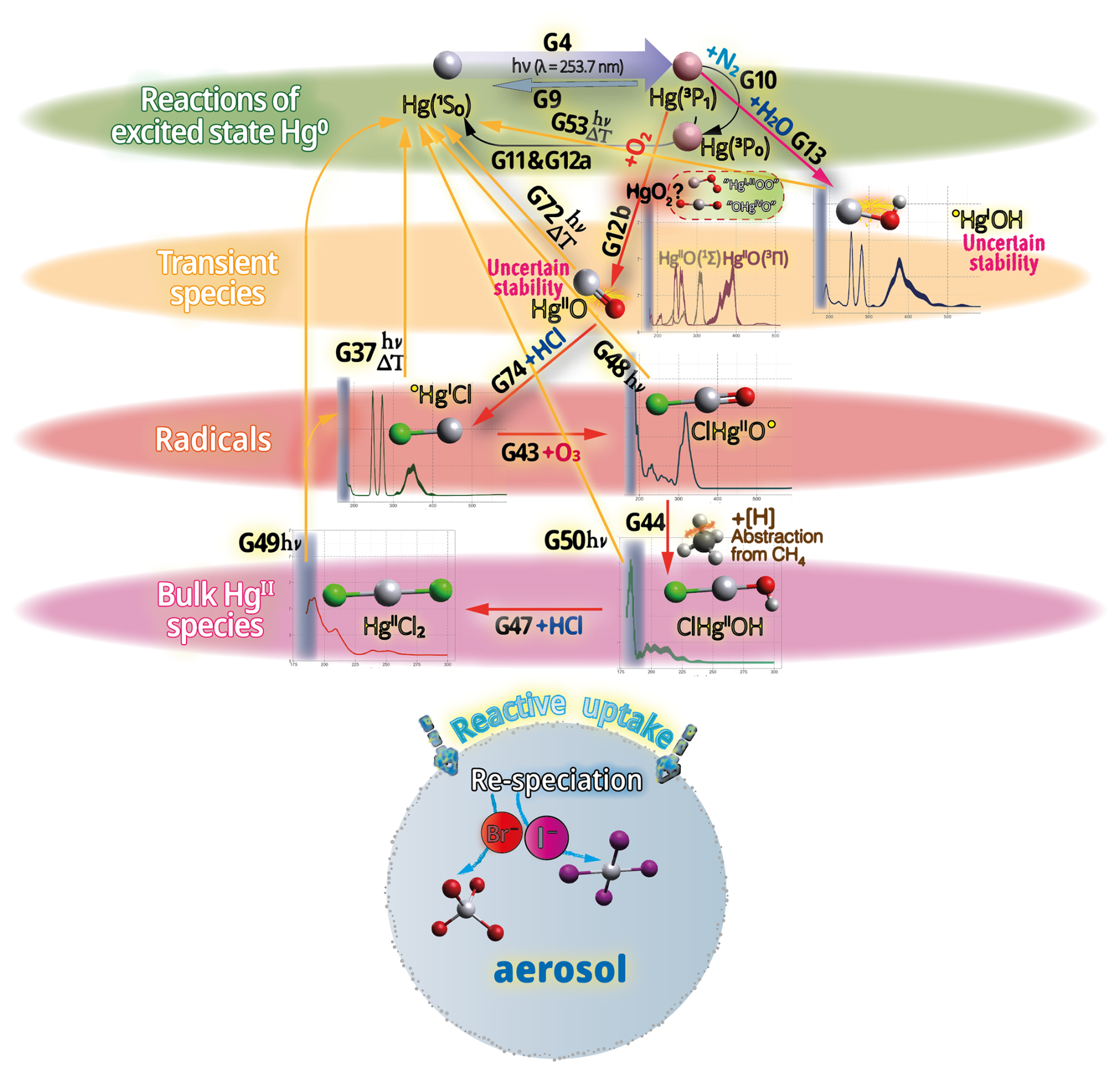

Figure 9 At approximately 35 km, the stratosphere begins to contain actinic radiation, which can electronically excite Hg (at 253.7 nm), but below it is absorbed by O₃ in the Hartley bands (with a maximum at 254 nm). Electronically excited Hg⁰ reacts primarily with O₂, with one of the exit channels leading to the formation of HgO via the intermediate OHg^IVO. Before HgO can fully decompose into elements, it reacts further via secondary HCl-driven fast chemistry to HgCl₂, the major constituent of Hg in the middle–upper stratosphere. A 2:1 steady state between HgCl₂ and Hg⁰ occurs because the former photo dissociates more slowly than photosensitized Hg oxidizes, both at significant rates (Saiz-Lopez et al. 2022). The reactive uptake in aerosols, followed by Hg^II complexation with the heavier halides, reflects the observed situation in the lower stratosphere (Murphy et al. 1998).

5.2 Organic species

5.2.1 Dimethylmercury

In addition to Hg⁰, “supertoxic” DMHg is another volatile Hg species that exists in nature (Siegler et al., 1999). DMHg has a boiling point below 100 °C, a high vapor pressure, and a Henry's law coefficient equivalent to that of Hg⁰ (Schroeder and Munthe, 1998). Both DMHg and MMHg⁺ species have been detected in ambient air (Lee et al., 2003; Bloom et al., 2005; Weiss-Penzias et al., 2018; Baya et al., 2015; Zhang et al., 2019a). DMHg has no known sources in the atmosphere. Its occurrence is due mainly to volatilization from surface waters, where it is transported by upwelling conditions from the deep sea, where it is formed under anoxic conditions (Conaway et al., 2009; Pongratz and Heumann, 1999). Polar sea ice harbors Hg-methylating microbes and is thought to be a source of DMHg that can be degassed as ice melts (Schartup et al., 2020). Recently, DMHg has been measured in marine air and corresponding surface water and has an air-sea gas flux that is $\mathrm{1}/\mathrm{30}$ of the magnitude of the simultaneously measured Hg⁰ flux (He et al., 2022). The atmospheric transformation of DMHg is the main source of atmospheric MMHg⁺ species (Sommar et al., 1997). DMHg vapor does not absorb actinic light (Terenin, 1934; Terenin and Prileshajewa, 1935) and is therefore not photolyzed in the planetary boundary layer, where it is only expected to be found (Sommar et al., 1996). DMHg appears to be prone to rapid gas-phase transformation and, depending on the products formed, could be an important source of atmospheric MMHg⁺ on a regional scale. However, in addition to MMHg⁺ species (Niki et al., 1983a; Niki et al., 1983b), inorganic Hg compounds (Thomsen and Egsgaard, 1986; Sommar et al., 1997) have also been reported as products of radical reactions with DMHg. Aware of its acute toxicity (Siegler et al., 1999), it has been more than a quarter of a century since any laboratory kinetic and reaction mechanistic studies of the atmospheric gas-phase chemistry of DMHg have been reported, and, in retrospect, some comments are worth making. There are three thermodynamically accessible bimolecular pathways that can potentially initiate the gas-phase transformation of DMHg, where X^• below denotes a radical oxidant:

$$\begin{array}{}\text{(G R76-G R78)}& {\mathrm{CH}}_{\mathrm{3}}\mathrm{Hg}{\mathrm{CH}}_{\mathrm{3}}+X^{\mathrm{•}}\begin{array}{l}⟶{\mathrm{CH}}_{\mathrm{3}}\mathrm{HgX}+{\mathrm{CH}}_{\mathrm{3}}^{\mathrm{•}}\\ ⟶{\mathrm{CH}}_{\mathrm{3}}\mathrm{Hg}{\mathrm{CH}}_{\mathrm{2}}^{\mathrm{•}}+\mathrm{HX}\\ ⟶{\mathrm{CH}}_{\mathrm{3}}{\mathrm{Hg}}^{\mathrm{•}}+{\mathrm{CH}}_{\mathrm{3}}X\end{array}.\end{array}$$

The existence of the CH₃Hg radical formed in the latter reaction was tentatively demonstrated in a matrix isolation study (Snelson, 1970). The small dissociation energy of the methylmercury bond of the radical (Kominar and Price, 1969), together with a predicted barrierless CH₃Hg^•→^•CH₃ + Hg reaction (Kallend and Purnell, 1964), suggests rapid decomposition to metallic Hg without time, e.g., a reaction with O₂ to form a methylmercury peroxyl radical (CH₃HgOO^•). In contrast, a composite reaction such as CH₃HgCH${}_{\mathrm{3}}+X^{\mathrm{•}}\to$ ${}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{X}+\mathrm{2}{\mathrm{CH}}_{\mathrm{3}}^{\mathrm{•}}$, which directly produces inorganic Hg, is endothermic and, therefore, less plausible. In a high-pressure study of the gas-phase reaction between atomic F and DMHg of low atmospheric relevance, ∼ 10 % of the reacted DMHg was reported to be converted to CH₃F via the above substitution reaction (McKeown et al., 1983). However, a static FT–IR study of the Cl-initiated gas-phase reaction in the presence and absence of O₂ at atmospheric pressure revealed the importance of the displacement reaction that generates CH₃HgCl. The remaining CH₃ group is converted to CH₃Cl in N₂ as a bath gas in a chain reaction that regenerates Cl atoms, whereas the end products of the group in air can be attributed to the self-reaction of the CH₃OO radical. The reaction CH₃HgCH₃ + ^•OH was studied with the same static method by photolysis of a mixture of CH₃HgCH₃, ethyl nitrite, and NO in air, which primarily followed the displacement reaction. The rate constant of ∼ $\mathrm{2}\times {\mathrm{10}}^{-\mathrm{11}}$ cm³ molecule⁻¹ s⁻¹ indicates that the lifetime of DMHg in the planetary boundary layer with respect to the OH channel active during the day is a few to tens of hours. In the nocturnally active DMHg $+{\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$ reaction, studied by fast flow discharge technique with $\mathrm{Hg}/\mathrm{CI}$–MS detection (Sommar et al., 1996) and a static long path FT–IR system (Sommar et al., 1997), both CH₃ groups contained in DMHg react. A small but significant yield of Hg⁰ was detected along with a product with $m/z$ = 78 (CH₃ONO₂) after the reaction of DMHg and ${\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$ under fast flow discharge conditions, indicating that substitution had occurred. In the DMHg + O study, ∼ 95 % of the Hg in the converted DMHg was recovered as HgO downstream of the injector in the fast-flow experiments. In the DMHg + ${\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$ batch reactor study, carbon and nitrogen mass balances ruled out the formation of MMHg⁺ entities, and no Hg compound other than HgO could be considered an end product. Experimental evidence for the tentative intermediate CH₃HgO^• (indicated in Fig. 10) is lacking. The rate constant of the nitrate radical reaction (Reaction G R78) evaluated in the temperature range 258–358 K can be described by the Arrhenius expression 3.2 × 10⁻¹¹ × exp[−(1760 ± 400)/T] cm³ molecule⁻¹ s⁻¹, and the reaction is fast enough to put the lifetime of DMHg during the night in the same time range as that for ^•OH-initiated degradation during the day (Sommar et al., 1997). To summarize this section, the degradation of DMHg in the atmosphere is illustrated in Fig. 10.

Figure 10 Schematics of the atmospheric fate of DMHg.

5.2.2 Monomethylmercury species

Although experimental data are lacking, gaseous MMHg⁺ species (e.g., MMHgCl) are expected to react with atmospheric radicals, which leads to demethylation similar to the process that occurs in the reactions of CH₃HgCH₃ and $\mathrm{OH}/\mathrm{Cl}$ radicals. However, the rate constant is likely lower, and the uptake of particles is more important for the atmospheric fate of MMHg⁺ species.

6 Redox transformations in the aqueous phase

6.1 Inorganic Hg species

Aqueous redox reactions of Hg^II complexes can include primary (intramolecular) processes involving direct electron transfer and secondary (intermolecular, usually bimolecular) reactions caused by reactive intermediates. Atmospheric aerosols serve as microreactors for redox Hg reactions (Lin and Pehkonen, 1999). Both oxidation and reduction occur in the aqueous phase. Since Hg²⁺(aq) has a rapid ligand exchange rate, the formation of Hg^II hydrated complexes does not limit the redox reaction rates and can therefore be treated separately as chemical equilibria. The aqueous speciation of Hg^II, where pH is often a critical parameter, is important for the reaction kinetics, not least for the reduction pathways. Thus, aerobic reduction pathways in principle require the formation of specific complexes, since Hg⁰ cannot be formed from Hg²⁺ by successive bimolecular (single-electron) reduction steps, since dissolved O₂ instantaneously re-oxidizes Hg^•+:

$$\begin{array}{}\text{(W) (R11)}& {\mathrm{XHg}}^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}\rightleftarrows {}^{\mathrm{•}}\mathrm{OOHgX}\rightleftarrows \mathrm{Hg}{X}^{+}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}.\end{array}$$

The overall forward rate constant for Reaction (W R11) is at the diffusion limit (k∼ 10⁹ M⁻¹ s⁻¹, Nazhat and Asmus, 1973). In contrast, Hg⁰ can be formed by fragmentation of a ligand bound to Hg^II (reductive elimination, van Loon et al., 2000). Such photo- or thermolabile Hg^II complexes are characterized by low-energy ligand-to-metal charge transfer (LMCT) excited states, which tend to induce internal redox processes leading to oxidation of a ligand and reduction of the mercuric ion. There is evidence that Hg²⁺ complexes can undergo both one-electron and two-electron LMCT. An example is mercuric oxalate, where 2e-LMCT is photoinduced and occurs as part of a concerted series of electron rearrangements (heterolytic cleavage of σ bonds in the complex), resulting in the oxalate ligand being eliminated as two molecules of CO₂ and the oxidation state of the metal ion decreasing by two units. This mechanism occurs without any detectable intermediates such as free radicals.

$$\begin{array}{}\text{(W R16a)}& \textcolor{red}{}\end{array}$$

As described in Sect. 8.1 and 8.4, 1e- and 2e-LMCT reactions produce isotopic effects, the specific fractionation of which can be used to identify the reaction mechanism. In addition to the quenching of triplet complex states, the presence of dissolved O₂ leads to the scavenging of radicals such as Hg^•+ produced by the 1e-LMCT mechanism, resulting in reoxidation to Hg²⁺ (Reaction W R11, Zhao et al., 2021). As previously noted (Pehkonen and Lin, 1998), in certain laboratory experiments, such as reduction experiments, sufficiently elevated Hg concentrations are employed such that the Hg⁰ formed exceeds its solubility, thereby existing predominantly in a colloidal form. Table 5 below outlines the potentially significant redox reactions occurring in the aqueous phase, which are then elaborated upon in the subsequent text.

6.1.1 Oxidation channels

The mass transfer (diffusion) of gas-phase Hg⁰ into typical size regimes of aerosols (radius of 0.1–10 µm) does not limit the rate of aqueous Hg⁰ oxidation. The concentration of dissolved Hg⁰ in a droplet is at a steady state governed by Henry's law (Lin and Pehkonen, 1998a).

Elemental mercury

Inorganic oxidants

Reaction W R1: ozone (O₃)

The presence of O₃ in atmospheric water is due mainly to the scavenging of gaseous O₃ ($k_{\mathrm{H}}^{\mathrm{cp}}=\mathrm{0.013}$ M atm⁻¹ at 298 K). An early study of the oxidation of Hg⁰ by O₃ in the aqueous phase was carried out by Iverfeldt and Lindqvist (1986) using a flow system in which 70–200 ppb O₃ was introduced. Their results suggested a conversion rate of 1 %–4 % h⁻¹ when applied to atmospheric conditions. Munthe and coworkers (McElroy and Munthe, 1991; Munthe, 1992) studied the ozone reaction with the mercurous cation in an acidic solution (pH = 1–3) in a stopped-flow system and with elemental Hg using the relative rate technique (sulfite as a reference compound, pH 5.2–6.2) and obtained pH-independent rate constants of (9.2 ± 0.9) × 10⁶ and (4.7 ± 2.2) × 10⁷ M⁻¹ s⁻¹, respectively.

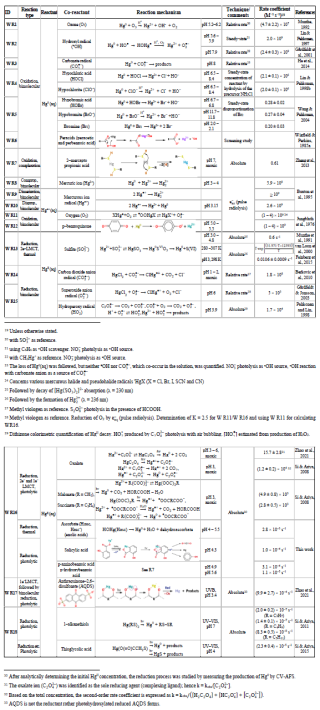

Table 5 Aqueous-phase redox chemistry.

Reaction W R2: hydroxyl radical (^•OH)

The OH radical in atmospheric water can come from the air ($k_{\mathrm{H}}^{\mathrm{cp}}=\mathrm{30}$ M atm⁻¹) or from aqueous-phase production via pathways including photolysis of H₂O₂, HONO, O₃ and NO${}_{\mathrm{3}}^{-}$ (Finlayson-Pitts and Pitts, 2000). The reaction rate of Hg⁰+^•OH in the aqueous phase was determined by Lin and Pehkonen (1997) using a steady-state technique with the photolysis of NO${}_{\mathrm{3}}^{-}$ as the ^•OH source and C₆H₆ as the ^•OH scavenger to 2.0 × 10⁹ M⁻¹ s⁻¹ at pH 5.6–5.9. Like the first step (Hg⁰+^•OH → ^•Hg^IOH), the second step, which is mediated by dissolved O₂ (Reaction W R11), is near the diffusion limit. Gårdfeldt et al. (2001) subsequently studied the same reaction at pH 7.9 but with the reaction between CH₃Hg⁺ and ^•OH as a reference but with similar results (2.4 × 10⁹ M⁻¹ s⁻¹).

Reaction W R3: carbonate radical (${\mathrm{CO}}_{\mathrm{3}}^{\mathrm{•}-}$)

In water, the carbonate system (HCO${}_{\mathrm{3}}^{-}$ and CO${}_{\mathrm{3}}^{\mathrm{2}-}$) can react with OH radicals to form strongly oxidizing carbonate radicals (${\mathrm{CO}}_{\mathrm{3}}^{\mathrm{•}-}$) in fast reactions (8.5×10⁶ and 3.9 × 10⁸ M⁻¹ s⁻¹, respectively). In a comparative study, He et al. (2014) studied the disappearance of Hg⁰ in aqueous solutions where NO${}_{\mathrm{3}}^{-}$ was photolyzed via UV–VIS in the absence and presence of CO${}_{\mathrm{3}}^{\mathrm{2}-}$ at pH = 8. When both NO${}_{\mathrm{3}}^{-}$ (0.23 mM) and CO${}_{\mathrm{3}}^{\mathrm{2}-}$ (2.75 mM) were present in the irradiated solutions (electron paramagnetic resonance spin trapping analysis detected the presence of ^•OH and ${\mathrm{CO}}_{\mathrm{3}}^{\mathrm{•}-}$), the rate of oxidation of Hg⁰(aq) (1.44 h⁻¹) was 8 times faster than that observed when only NO${}_{\mathrm{3}}^{-}$ (which produces ^•OH) was irradiated. The carbonate radical is a single-electron oxidant and reacts according to ${\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{CO}}_{\mathrm{3}}^{\mathrm{•}-}\to {\mathrm{Hg}}^{\mathrm{•}+}+{\mathrm{CO}}_{\mathrm{3}}^{\mathrm{2}-}$. In addition to identifying the carbonate radical as an effective oxidant of Hg⁰ dissolved in water alongside the hydroxyl radical, this study investigated the role of ¹Δ_g O₂ (singlet oxygen) as an oxidant for Hg⁰(aq). However, the latter species, an excited state of O₂, does not initiate any measurable oxidation. Notably, the absolute rate constant for Hg⁰ + ${\mathrm{CO}}_{\mathrm{3}}^{\mathrm{•}-}$ remains to be determined.

Reaction W R4: aqueous chlorine (HOCl/ClO⁻)

Aqueous chlorine is formed mainly by the scavenging of gaseous Cl₂ ($k_{\mathrm{H}}^{\mathrm{cp}}=$ 7.61 × 10⁻² M atm⁻¹ at 298 K) into the aqueous phase and the oxidation of chloride ions by ^•OH. Once incorporated into the aqueous phase, it dissociates to form $\mathrm{HOCl}/{\mathrm{OCl}}^{-}$ (pK_a=7.5) and Cl⁻, the former being the primary oxidant and increasing the solubility of total chlorine. It is a nocturnal oxidant, as both Cl₂ and HOCl are readily photolyzed by solar radiation. The prospects for Hg⁰ oxidation by aqueous chlorine were investigated by Kobayashi (1987) and Munthe and McElroy (1992). In the former, rapid dissolution of Hg was reported when a gas stream containing Hg⁰ was passed through a solution containing dissolved chlorine (HClO), while in the latter, Hg${}_{\mathrm{2}}^{\mathrm{2}+}$(aq) was used as a proxy for Hg⁰, whose oxidation was observed to be “relatively fast” in a solution containing HClO. A detailed kinetic study (Lin and Pehkonen, 1998b) of the reaction between Hg⁰ and $\mathrm{HClO}/{\mathrm{ClO}}^{-}$ was carried out using a steady-state method with chloramine as a reservoir of free hypochlorous acid formed by hydrolysis: NH₂Cl + H₂O → NH₃ + HClO. The turnover of Hg⁰ was studied in the pH range of 6.5–8.5 around the pK_a (HClO) to investigate the influence of HClO (aq) and ClO⁻(aq), which were found to be closely equivalent according to the rate constants for Hg⁰ + HClO and Hg⁰ + ClO⁻ of (2.09±0.06) × 10⁶ and (1.99 ± 0.06) × 10⁶ M⁻¹ s⁻¹, respectively. The products of both reactions (2 electrons are transferred) are chloride and hydroxide anions with a stoichiometry of 1:1 together with a mercuric cation, which rapidly forms a strong complex (logβ₁₁= 18.0).

Reaction W R5: aqueous bromine (HOBr/BrO${}^{-}/$Br₂)

Bromine has a higher $k_{\mathrm{H}}^{\mathrm{cp}}$ (0.725 atm M⁻¹) than chlorine does, but the disproportionation of Br₂ to $\mathrm{HBrO}/{\mathrm{BrO}}^{-}$ (pK_a=8.7) and Br⁻ is slow, and the equilibrium is shifted in favor of Br₂. In contrast, Br^+I is formed by the action of O₃ on bromide ions and exists in the presence of Cl⁻ largely as BrCl (Liu and Margerum, 2001). Aqueous bromine (Br₂, HOBr) oxidizes Hg⁰ only slowly (0.2–0.3 M⁻¹ s⁻¹, Wang and Pehkonen, 2004). However, BrCl is likely important, as it is used as an oxidant for Hg in current analytical methods, although the kinetics have not been investigated.

Organic oxidants

Reaction W R6: peroxides

H₂O₂ cannot oxidize Hg⁰ (aq) (Kobayashi, 1987) but participates in the metal-catalyzed oxidation of Hg^0,, as in Fenton's system. Fenton's reagent itself, Fe²⁺ + H₂O_2, produces OH radicals, for which Hg⁰, Fe²⁺, and H₂O₂ compete for oxidation. The latter reaction, H₂O₂+^•OH, produces the HO₂ radical, which propagates a chain reaction (Fenton's reaction) supported by Fe³⁺ acting as a catalyst to decompose H₂O₂ to O₂ and H₂O, during which a stable concentration of Fe²⁺ is produced as a source of ^•OH. Hg⁰ oxidation is most pronounced when the ferrous part of the Fenton reaction dominates over the ferric part, corresponding to a higher concentration of OH radicals (Liu, 2011). The –OOH functional group in organic hydroperoxides, like that in hydrogen peroxide, lacks the ability to oxidize Hg⁰, whereas that in peroxocarboxylic acids (peracetic and perbenzoic acid) seems to possess it, tentatively forming a mercuric carboxylate by a cyclic mechanism (Wigfield and Perkins, 1985b, a).

Reaction W R7: thiocarboxylic acids

Thiol compounds, as substituted carboxylic acids, including cysteine and glutathione, can oxidize Hg⁰(aq) thermally under anoxic conditions (Gu et al., 2011). For example, Zheng et al. (2013) reported that 2-sulfanylpropanoic acid in greater excess (1000:1) oxidized Hg⁰ at a rate of 2.18 ± 0.13 h⁻¹. The presence of an electron acceptor (such as a quinone) further increased the reaction rate. The reaction mechanism has been described as oxidative complexation. Hg⁰, which is polarizable, interacts with a thiol group, leading to ligand-induced oxidative complexation in which hydrogen participates in charge transfer (Cohen-Atiya and Mandler, 2003).

Mercurous radical species (^•Hg^IX)

Inorganic oxidants

Reaction W R11: oxygen (O₂)

The reaction between Hg^•+ and O₂ has been studied for a variety of ligands and over a range of pH values well into the alkaline range using pulse radiolysis (Nazhat and Asmus, 1973; Jungbluth et al., 1976; Fujita et al., 1975; Fujita et al., 1973; Liu et al., 1983; Pikaev et al., 1975). Mercurous species are formed by the reduction of corresponding mercuric species by the action of solvated electrons and H atoms derived from H₂O radiolysis: HgX₂ + ${\mathrm{e}}_{\mathrm{aq}}^{-}{\to }^{\mathrm{•}}$Hg^IX +  X⁻ and HgX₂ + H^•→^•Hg^IX + H⁺ + X⁻. All types of ^•Hg^IX species react rapidly (≥1 × 10⁹ M⁻¹ s⁻¹) with O₂(aq): ${\mathrm{Hg}}^{{}^{\mathrm{•}}+}+{\mathrm{O}}_{\mathrm{2}}{}^{\mathrm{•}}\mathrm{OO}{\mathrm{Hg}}^{+}{\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$, where the equilibrium is very strongly shifted to the right. In one case (X = CN, Jungbluth et al., 1976) the reaction takes place without the clear formation of a peroxyl radical intermediate. In an air-saturated solution (∼ 0.2 mM O₂), the lifetime of ^•Hg^IX is about 1 µs (Jungbluth et al., 1976).

Organic oxidants

Reaction W R12: quinones

Both ${\mathrm{Hg}}^{{}^{\mathrm{•}}+}$ and ^•OOHg⁺ are rapidly oxidized by benzoquinone (10⁹ and 10⁹ M⁻¹ s⁻¹, Jungbluth et al., 1976), which accepts an electron to form a semiquinone anion. Lalonde et al. (2001) observed that Hg⁰ is oxidized (∼ 0.6 h⁻¹) in UV-B-irradiated aqueous solutions containing both benzoquinone (32 nM) and chloride ions (0.5 M) without being able to fix the mechanism.

6.1.2 Reduction channels

Mercuric compounds (Hg^II)

Inorganic reductants

Reaction W R13: sulfite (${\mathrm{SO}}_{\mathrm{3}}^{\mathrm{2}-}$)

SO₂ dissolves in water ($k_{\mathrm{H}}^{\mathrm{cp}}=$ 1.36 M atm⁻¹) to form the weak acid H₂SO₃(aq), which can be deprotonated to ${\mathrm{HSO}}_{\mathrm{3}}^{-}$ and ${\mathrm{SO}}_{\mathrm{3}}^{\mathrm{2}-}$. The oxidation of sulfite to sulfate is rapid in the atmosphere and takes a few hours under typical oxygenated conditions in atmospheric droplets. ${\mathrm{SO}}_{\mathrm{3}}^{\mathrm{2}-}$ is a soft ligand that forms strong complexes with Hg²⁺ (Table 2), such as HgSO₃ and $[\mathrm{Hg}{\left({\mathrm{SO}}_{\mathrm{3}}\right)}_{\mathrm{2}}{]}^{\mathrm{2}-}$, the latter completely dominating under natural conditions where the sulfite content greatly exceeds that of Hg²⁺. The reduction of aqueous Hg^II by the sulfite system was first investigated by Munthe et al. (1991). $[\mathrm{Hg}{\left({\mathrm{SO}}_{\mathrm{3}}\right)}_{\mathrm{2}}{]}^{\mathrm{2}-}$ is stable, whereas HgSO₃ decomposes readily to Hg⁰ and sulfate with first-order rate constants of < 10⁻⁴ and 0.6 s⁻¹, respectively. Scott and co-workers (van Loon et al., 2001, 2000) carried out a thorough re-examination and confirmed that the bis-sulfite complex is thermally stable but that the reduction of HgSO₃, which is strongly temperature-dependent (k approximately quadruples with each 10 °C increase in temperature) and weakly pH-dependent, is more than 50 times slower than that reported by Munthe et al. (0.011 vs. 0.6 s⁻¹ at 25 °C). The reaction mechanism is intramolecular with 2e-LMCT and heterolytic cleavage of the Hg–S bond: ${\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{SO}}_{\mathrm{3}}^{\mathrm{2}-}\to {\mathrm{Hg}}^{\mathrm{II}}{\mathrm{S}}^{\mathrm{IV}}{\mathrm{O}}_{\mathrm{3}}\to {\mathrm{Hg}}^{\mathrm{0}}{\mathrm{S}}^{\mathrm{VI}}{\mathrm{O}}_{\mathrm{3}}\stackrel{{\mathrm{H}}_{\mathrm{2}}\mathrm{O}}{⟶}{\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{SO}}_{\mathrm{4}}^{\mathrm{2}-}$.

Reaction W R14: carbon dioxide anion radical (${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$)

The carbon dioxide radical (${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$) can be formed in nature by the oxidation of carboxylic acids (see above under oxalic acid). It is strongly reducing and occurs in anaerobic environments. Berkovic et al. (2010) studied the ${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$-mediated reduction of Hg²⁺ at low pH by laser flash photolysis of a dilute mixture of HgCl₂, formic acid, and sodium peroxydisulfate at 266 nm. The one-electron reaction ${\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}\to {\mathrm{Hg}}^{\mathrm{•}+}+{\mathrm{CO}}_{\mathrm{2}}$ is exothermic, with a rate constant of 1.8 × 10⁸ M⁻¹ s⁻¹. The Hg^•+ formed can only be further reduced to Hg⁰ in the absence of O₂.

Reaction W R15: superoxide anion/hydroperoxy radical (${\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}{/\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}$)

${\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}/{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$ (pK_a 5.5) is a one-electron reductant of Hg²⁺ to Hg^•+. Gårdfeldt and Jonsson (2003) determined the one-electron reduction potential for the pair HgCl${}_{\mathrm{2}}{/}^{\mathrm{•}}\mathrm{HgCl}$ vs. NHE at [Cl⁻] = 0.05 M to be −0.47 V, which, together with that for O${}_{\mathrm{2}}/{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$ vs. NHE of −0.155 V, gives an equilibrium constant for ${\mathrm{HgCl}}_{\mathrm{2}}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}{\leftrightarrows }^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{Cl}+{\mathrm{O}}_{\mathrm{2}}+{\mathrm{Cl}}^{-}$ of $\mathrm{5}\times {\mathrm{10}}^{-\mathrm{6}}$ at the aforementioned [Cl⁻]. Given that the rate constant for the reaction ^•Hg^ICl + O₂ is ∼ 10⁹ M⁻¹ s⁻¹ (Reaction W R11), the bimolecular rate constant between HgCl₂ and ${\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$ can be estimated to be 5 × 10³ M⁻¹ s⁻¹. Pehkonen and Lin (1998) studied the photoreduction of mercuric ions to Hg⁰ with nitrate or chloride as counterions in the presence of formic, acetic, or oxalic acid at neutral (7.0) and acidic (3.9) pH values in aerated solutions. Only in the presence of oxalic acid does significant photoreduction occur, and as in the later studies by Zhao et al. (2021) and Si and Ariya (2008), an increase in the reaction rate is observed with increasing ratios of oxalic acid to Hg^II. The reduction is also suppressed in the presence of Cl⁻. Photoreduction results in an exponential increase in H₂O₂ formation, which is due to the presence of hydroperoxyl radicals in solution ($\mathrm{2}{\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}\to {\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}+{\mathrm{O}}_{\mathrm{2}}$). In retrospect (see above), this follows from the homolytic decomposition of Hg(η²–C₂O₄) into radicals in an aerated solution (${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}+{\mathrm{O}}_{\mathrm{2}}\to {\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}+{\mathrm{CO}}_{\mathrm{2}}$) and does not necessarily mean that ${\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}/{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$ can reduce Hg^II to Hg⁰.

Organic reductants

In the atmospheric environment, Hg^II complexation by DOM plays a pivotal role in the redox chemistry of Hg (Åkerblom et al., 2015). The chemical-reducing effect of DOM (humic substances) on Hg^II has been recognized for nearly 50 years (Alberts et al., 1974). These heterogeneous macromolecular ligands contain not only building blocks that can form complexes with Hg^II but also redox-active aromatic chromophores that can photolytically convert Hg. The fractions of DOM contributing to Hg^II photoreduction include fulvic- and flavin-like fractions that contain more quinone and flavin moieties than usual (Yang et al., 2020a). Furthermore, DOM contains several functional groups that can reduce complex-bound mercuric ions to Hg⁰ by a 2e-LMCT reaction (Table 6).

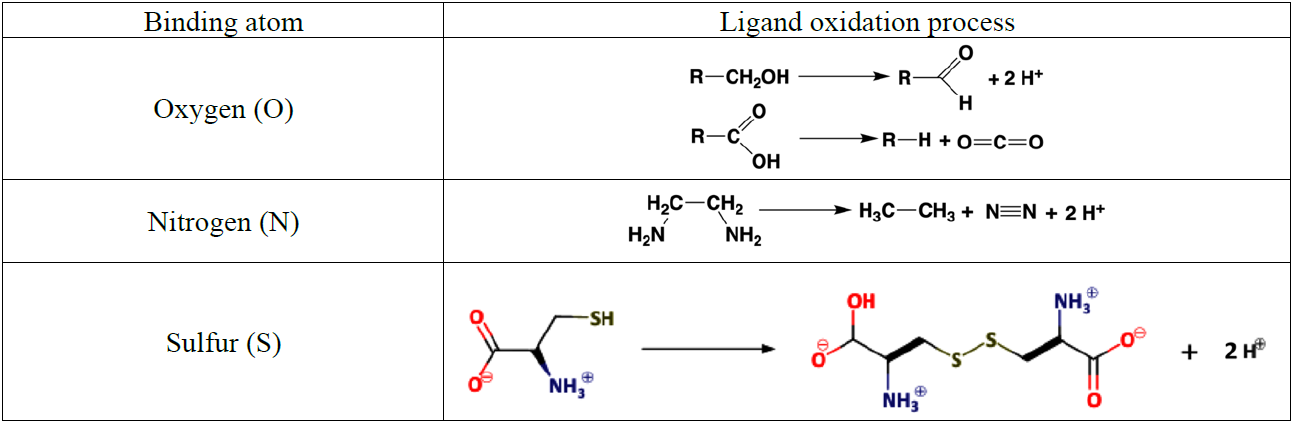

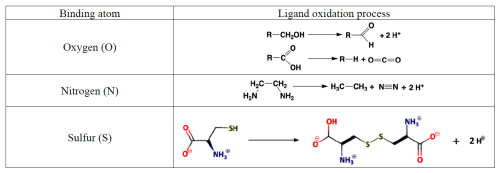

Table 6 Main functional groups of DOM that can (photo)reduce ligated Hg²⁺.

Reaction W R16: organic acids

The low-molecular-weight organic acids present in the atmosphere can reduce Hg^II to Hg⁰ in the presence of O₂. These include dicarboxylic acids, ortho-substituted aromatic carboxylic acids, and enolic acids. Since 1880 (Eder, 1880), the salt of the lightest dicarboxylic acid, oxalate, has been known to reduce Hg^II in daylight. Oxalic acid is formed from, e.g., ethylene or acetylene, by atmospheric oxidation over several reaction cycles (chemical aging, Warneck, 2003). Mercuric ions form a complex with oxalate in a 1:1 ratio (Hg(η²-C₂O₄)), characterized by log β₁₀=9.66, which is most photolabile under UV-B irradiation. Si and Ariya (2008) studied the kinetics and products of the photoreduction of Hg^II in a series of experiments with different concentrations of the lightest dicarboxylic acids, C₂–C_4, at an initial pH of 3.0 and a temperature of 296 ± 2 K, while the kinetic, product, and isotopic study of Zhao et al. (2021) involved the system Hg^II + oxalic acid with ${\mathrm{ClO}}_{\mathrm{4}}^{-}$ as a counterion in the pH range of 2.7–6.3 and a small temperature range of 295–303 K. The pH-resolved experiments show that in the ${\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{2}-}$, ${\mathrm{HC}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{-}$, and H₂C₂O₄ system, only the oxalate ion reduces Hg²⁺, with a $k_{{\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{2}-}}$ of 15.7 ± 2.8 M⁻¹ s⁻¹ at 295 ± 1 K. Si and Ariya (2018) reported a much larger bimolecular rate constant between Hg²⁺ and the total oxalic acid concentration of 1.2 × 10⁴ M⁻¹ s⁻¹ at pH 3.0. The magnitude is surprisingly large and is comparable to the rate constant between Hg²⁺ and HO${}_{\mathrm{2}}/{\mathrm{O}}_{\mathrm{2}}^{-}$ radicals (see below). When this higher rate constant, which is based on the total oxalic acid concentration, is implemented in regional air quality models, the impact is significant (Bash et al., 2014). However, with respect to the reaction mechanism, there is more consensus that it follows a branched route. Hg(η²–C₂O₄) undergoes photolysis followed by partial reductive elimination in one step (insensitive to the presence of O₂): Hg(η²-C₂O${}_{\mathrm{4}})\stackrel{h\mathit{\nu }}{⟶}$ Hg⁰ + 2 CO₂ and, in part, homolysis of a Hg–O bond, which initiates a chain reaction: Hg(η²-C₂O₄) $\stackrel{h\mathit{\nu }}{⟶}$ ${\mathrm{Hg}}^{{}^{\mathrm{•}}+}$ $+{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}$. Hg⁰ should form from the reaction of Hg^•+ with the bulk ligand ${\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{2}-}$, where Hg^•+ is reformed from the reaction between bulk Hg²⁺ and the oxalyl (${\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}$) or carbon dioxide anion (${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$) radical. The reduction to Hg⁰ in the chain reaction is inhibited by O₂, which reacts rapidly with both ${\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}$ and ${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$ and re-oxidizes Hg^•+ to Hg²⁺. Like dicarboxylic acids, aqueous solutions of aromatic ortho- and para-substituted carboxylic acids exposed to UV-B can oxidize Hg²⁺ to Hg⁰ via elimination of CO_2, and Hg${}^{\mathrm{2}+}\to$ Hg⁰ photoreduction is attenuated but not completely inhibited by the presence of dissolved O₂ and competing counterions. Previously, He et al. (2012) studied the aqueous photoreduction of Hg²⁺ coupled with a series of aromatic carboxylic acid derivatives in the absence of O₂ at pH 4.3 and suggested that the reaction proceeded via a radical mechanism. However, studies of the same reactants in our laboratory (unpublished results, shown in Table 5) have shown that Hg⁰ is formed even in the presence of dissolved O₂, suggesting the existence of an additional non-radical reduction pathway. We propose that this channel requires solvo-mercuration to an arylmercurial intermediate followed by photolytically induced 2e-LMCT as part of a concerted series of electron rearrangements, including cleavage of a Hg–C bond yielding Hg⁰, CO₂, and a decarboxylated aromatic as end products. Let us take p-aminobenzoic acid as an example.

$$\begin{array}{}\text{(R7)}& \textcolor{red}{}\end{array}$$

Photo-reduction has also been observed in the presence of dissolved O₂ when Hg²⁺ is bound mainly to the amino acid serine (HSer), similar to HgSer₂ (Motta et al., 2020b), which can be explained as the result of reductive elimination with CO₂ and 2-aminoethanol as by-products in addition to Hg⁰ and involves an intermediate with a photolabile Hg–C bond (Zhao et al., 2021). In cysteine-mediated photoreduction (Motta et al., 2020b; Zheng and Hintelmann, 2010b), the ligand is converted from a thiol to a disulfide (Table 6). Ascorbic acid, as a representative enolic acid, can readily reduce inorganic divalent Hg in aqueous solutions to Hg⁰. Studies in our laboratory have shown that the reaction is thermal and not affected by actinic light. When ascorbic acid is in excess ($>\mathrm{10}:\mathrm{1}$) relative to Hg²⁺, the reaction rate is not significantly affected by increasing ascorbic acid concentration. The reaction rate is highest in the pH range where the hydrogen ascorbate ion (HAsc⁻) is dominant and the hydrolysis of Hg²⁺ is not complete, i.e., typical pH values for atmospheric hydrometeors (≤ 5.5). Presumably, HgOH⁺ (aq) forms a reactive complex with HAsc⁻, Hg(HAsc)⁺, which is labile to the elimination of water in a heterolytic process, forming Hg⁰ and dehydroascorbate as the final products. Enols act as atmospheric intermediates, and it is unclear whether they are present in high concentrations, which makes them interesting reducing agents for atmospheric Hg²⁺. In any case, $k_{{\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{HAsc}}^{-}}$ is relatively high (∼ 0.17 min⁻¹, Reaction W R16c, Table 5).

Reaction W R17: hydroquinones and polyphenols

The quinonic (Zheng et al., 2012) and fulvic (Yang et al., 2020a) units in DOM act as key redox centers. How this happens at the molecular level is being investigated by studying model compounds that contain redox-active groups but lack other functional groups (Zhao et al., 2021). The simplest quinone forms a redox pair with the corresponding hydroquinone in the half-reaction.

$$\begin{array}{}\text{(R8)}& \textcolor{red}{}\end{array}$$

Combined with the half-reaction in Reaction (R3), this gives a ΔE⁰ > 0 for Hg²⁺ + C₆H₄(OH)₂→ Hg⁰ + C₆H₄(=O)₂ + 2 H⁺, i.e., thermodynamically feasible. Relatively slow reduction of Hg²⁺ to Hg⁰ by hydroquinone occurs in the dark in a dilute aqueous solution (8.2 ± 2.4) × 10⁻⁵ s⁻¹). These results are consistent with a reaction mechanism involving a hydroxyphenoxymercuric complex or via ipso-mercuration followed by electron shuttling and elimination of Hg⁰ and H₂O.

$$\begin{array}{}\text{(R9)}& \textcolor{red}{}\end{array}$$

The aqueous photochemistry of quinones is complicated and can involve both ground and excited state reactions as well as free radicals (Görner, 2019). With respect to the interaction of benzoquinone with Hg under actinic light, one study revealed significant oxidation (∼ 0.6 h⁻¹) of Hg⁰ in Cl⁻-enriched water (see above, Lalonde et al., 2001), whereas another study reported photoreduction of Hg^II→ Hg⁰ of about the same magnitude (∼ 0.8 h⁻¹) under anaerobic conditions and in the absence of strongly complexing inorganic ligands (Zhao et al., 2021). An anthraquinone (AQ) derivative (AQ-2,6-disulfonate) is an effective electron shuttle that facilitates electron transfer from metal-reducing bacteria (MRB) to Hg^II (Lee et al., 2018), as well as from Hg⁰ (aq) to organic thiols (R-SH) during oxidative complexation to form Hg(SR)₂ (Zheng et al., 2013). Zheng et al. (2013) reported that AQDS(aq) alone is unable to oxidize Hg⁰ or reduce Hg^II under dark and anaerobic conditions. AQDS-assisted biotic Hg^II reduction by the MRB Shewanella oneidensis MR-1 is associated with negative charge scavenging, which temporarily increases the content of reduced AQDS species, such as AQH₂DS and semiquinone radicals (Lee et al., 2018). The reduced species AQH₂DS alone is a potent reductant of Hg^II in the dark. On the other hand, Hg^II is efficiently reduced to Hg⁰ in a UV-B-irradiated aqueous solution containing dissolved AQDS (∼ 10⁻³ M⁻¹ s⁻¹). The reactive species is tentatively photohydrated AQDS (AQH₂(OH)DS), which interacts with Hg^II by forming a photolabile bidentate O–coordinated mercuric complex. In conjunction with a strong isotope effect (Sect. 8.4), the photoreaction is likely to occur via a paramagnetic intermediate (a mercurous semiquinone biradical complex). The reaction rate decreases to ∼ 0.2 h⁻¹ in the presence of dissolved O₂ (Zhao et al., 2021). Hg^II interacts with ortho-QH₂ moieties such as those in the natural polyphenols of humic substances and tannins (Jerzykiewicz, 2013). A direct reaction yields redox-active Hg^I complexes with ligands of semiquinone radical character that may eventually decompose into Hg⁰ (Jerzykiewicz et al., 2015). Reaction kinetic and mechanistic studies that are more applicable to the environment are not available.

Reaction W R18: thiols

Hg²⁺ and CH₃Hg⁺ bind extremely strongly to heavier hydrochalcogenide groups (such as RSH and RSeH) and other corresponding groups of reduced chalcogenides, such as sulfides and disulfides (Skyllberg, 2011). Most relevant is that both inorganic (e.g., H₂S, CS₂) and organic (CH₃SH, CH₃SCH₃) low-molecular-weight reduced sulfur compounds have short lifetimes (Warneck, 1988) and therefore have no effect on aqueous Hg speciation. It is questionable whether reduced sulfur/thiol groups associated with macromolecular organic compounds in aerosols influence internal Hg speciation. The photoreduction of divalent Hg by lighter aliphatic thiols is slow (< 10⁻⁷ s⁻¹, Si and Ariya, 2011), whereas that by thioglycolic thiols is slightly faster ($\mathrm{2.3}\times {\mathrm{10}}^{-\mathrm{5}}$ s⁻¹, Si and Ariya, 2015) but hardly significant in the atmosphere.

6.2 Organic mercury

6.2.1 Demethylation channels

Biogenically produced organo-Hg in the environment is almost exclusively methylated Hg, although there are few reports of the presence of ethyl Hg (Wu et al., 2023b), which must be derived from a natural source. However, only methylated Hg has been detected in air. As mentioned above, DMHg is a major source of MMHg⁺ compounds in the atmosphere through gas-phase degradation. Gaseous MMHg⁺ species (Lee et al., 2003) can potentially react homogeneously to inorganic Hg, but as MMHg⁺ species are only semi-volatile and have a high $k_{\mathrm{H}}^{\mathrm{cp}}$, they are more likely to be rapidly absorbed on aerosols. MMHg⁺ species have been detected in cloud water (Li et al., 2018; Weiss-Penzias et al., 2018), fog water (Weiss-Penzias et al., 2012), rainwater (Conaway et al., 2010; Won et al., 2019), and snow (St Louis et al., 2007). Photolytic demethylation of dissolved DMHg occurs in pure water (Chen et al., 2024) incubated with sunlight (${\mathrm{CH}}_{\mathrm{3}}\mathrm{Hg}{\mathrm{CH}}_{\mathrm{3}}\stackrel{h\mathit{\nu },+{\mathrm{H}}^{+}}{⟶}{\mathrm{CH}}_{\mathrm{3}}{\mathrm{Hg}}^{+}+{\mathrm{CH}}_{\mathrm{4}}$, ∼ 0.32 ± 0.07 d⁻¹, West et al., 2022). Acidolytic demethylation of DMHg to MMHg⁺ species is of very minor importance and occurs only at low pH (Maguire and Anand, 1976; Wolfe et al., 1973). A theoretical study of CH₃HgOH${}_{\mathrm{2}}^{+}$ and CH₃HgOH, which dominate the speciation of MMHg⁺ in natural waters without significant levels of Cl⁻ and reduced sulfur ligands, including DOM, indicated that CH₃HgOH${}_{\mathrm{2}}^{+}$ can be excited to the triplet state by sunlight and that this state dissociates into CH₃ and Hg^I radicals (Tossell, 1998). A room-temperature study of the photo-degradation of CH₃HgOH (aq) when irradiated by a Xe lamp with filter blocking wavelengths < 290 nm reported a rate constant of (2.2 ± 0.2) × 10⁻⁴ s⁻¹ (Gårdfeldt et al., 2003). Rapid indirect demethylation of MMHg⁺ species by a bimolecular process with the OH radical occurs at the limit of what diffusion allows ((9.83 ± 0.66) × 10⁹ M⁻¹ s⁻¹, Chen et al., 2003). In natural water, select reactive oxygen species, such as singlet oxygen (see above, Suda et al., 1993; Zhang and Hsu-Kim, 2010), have been suggested to cause Hg^II demethylation, but their reactivity has not been directly quantified. Instead, its presence has been suggested based on the results of added scavenger/promoter tests, some of which may yield misleading results for some water compositions (Han et al., 2017). Chen et al. (2003) concluded that OH-initiated demethylation is comparable to the rates of MMHg⁺ photodegradation reported in situ in natural waters. These researchers reported that, in addition to inorganic Hg^II, Hg⁰ was a by-product of OH-initiated degradation in an O₂-saturated system, presumably by homolytic substitution.

6.2.2 Methylation channels

The paucity of empirical data renders the budgets of tropospheric MMHg⁺ species highly uncertain. A recent estimate of the MMHg⁺ pool size is 5.5 Mg, associated with a lifetime of 1.9 d, of which one of the major sources is inferred to be in-cloud methylation (Wu et al., 2024b). The potential for atmospheric biotic methylation is considered limited, despite the presence of pathogens and bacteria in aerosols and hydrometeors, because Hg-methylating microbes (possessing two important methylation genes, hgcA and hgcB, Parks et al., 2013) usually thrive in anaerobic environments, in contrast to the distinctly oxic environment of atmospheric waters. However, many unknowns about the potential for Hg^II methylation under oxic conditions need to be resolved (Sonke et al., 2023). There have been extensive studies on the abiotic methylation of Hg²⁺ (Ullrich et al., 2001). Methylating agents that are important for MMHg⁺ formation in the atmosphere are oxygenated hydrocarbons containing a methyl group (Yin et al., 2012; Hammerschmidt et al., 2007). Some of them have properties that allow competitive photochemical reduction and methylation of Hg²⁺ (Yin et al., 2012). Earlier studies have investigated photochemical Hg²⁺ methylation by deep UV irradiation (Yin et al., 2012; Akagi et al., 1974; Hayashi et al., 1977), making it impossible to generalize these results to the lower atmosphere. The formation of MMHg⁺ species was observed in the dark in dilute Hg^II solutions (1 nM) containing an excess of acetic acid (100:1 M $/$ M), with an apparent first-order rate constant of 5.4 × 10⁻⁶ s⁻¹ in artificial rainwater (pH 4.9 Gårdfeldt et al., 2003). When the system is exposed to sunlight, photo-demethylation occurs, which counteracts MMHg⁺ formation mediated by acetic acid/acetate, and within hours, the MMHg⁺ concentration reaches a steady state (∼ 2.5 % of inorganic Hg^II). Hammerschmidt et al. (2007) noted that the average ratio of MMHg⁺ to reactive Hg^II measured in North American continental precipitation (2.5±0.6 %) agrees with the findings of the above laboratory study. Methylation takes place intramolecularly in the acetatic–mercuric complexes present in solution concerted with decarboxylation (Gårdfeldt et al., 2003; Yin et al., 2012; Akagi et al., 1974): ${\left[\mathrm{Hg}({\mathrm{CH}}_{\mathrm{3}}\mathrm{COO}{)}_{\mathrm{n}}\right]}^{\mathrm{2}-\mathrm{n}}\to {\mathrm{CH}}_{\mathrm{3}}{\mathrm{Hg}}^{+}+{\mathrm{CO}}_{\mathrm{2}}+(n-\mathrm{1}){\mathrm{CH}}_{\mathrm{3}}{\mathrm{COO}}^{-}$.

7 Multiphase transformations

Multiphase transformations address dynamics and chemistry at interfaces and media, such as aerosol particles and cloud droplets, which interact heterogeneously with gases and solute species. Despite a wealth of studies addressing the multiphase chemical or physical transformation of Hg under processes such as those under simulated post-combustion conditions, which undoubtedly pertain to interactions with certain environmental surfaces, the findings offer limited insight into the surface and heterogeneous atmospheric Hg chemistry. The subsequent chapter addresses the studies that have been identified as contributing meaningfully to the advancement of understanding in this domain.

7.1 Gas–particle partitioning and reactive gas uptake

The behaviors of gaseous Hg⁰ atoms and Hg^II molecules in interacting with the atmospheric condensed phase differ. The dominant Hg⁰ pool has limited water solubility, and the uptake of Hg⁰ vapor to aerosol surfaces is low, to the limited extent that it has been investigated. Gas-phase Hg^II molecules, “GOM”, have $k_{\mathrm{H}}^{\mathrm{cp}}$ several orders of magnitude greater than that of Hg⁰, favoring the liquid phase. The heterogeneous processes that allow GOM to be adsorbed reversibly or irreversibly, modified by ligand exchange, or dissociated to Hg⁰ by reduction on surfaces, are key parameters that need to be characterized to appropriately parameterize chemical transport models.

7.1.1 HgCl₂

Understanding the transformation from GOM to PBM through gas-phase processes (condensation, Sect. 5.1.4) and aerosol surface interaction (Sect. 4.2) is crucial for parameterizing deposition. Since the separation of GOM from PBM with current methods is tentative, the accuracy of studies of Hg^II distribution between the gas and condensed phases, performed by preconcentration in laboratory experiments with nebulized aerosols (Rutter and Schauer, 2007b, a) and in the field (Amos et al., 2012), is retrospectively ambiguous. Fitting observational data to an equilibrium $\mathrm{GOM}+{\mathrm{PM}}_{\mathrm{2.5}}\stackrel{\mathrm{1}/T}{⟺}\mathrm{PBM}$ according to a van't Hoff-type relationship ${\log }_{\mathrm{10}}\left({\mathrm{K}}_{\mathrm{gp}}^{-\mathrm{1}}\right)=a+b/T$ is conducted in models to calculate the volatilization of GOM from atmospheric aerosols, where K_gp (Eq. 9) is weighted by the inverse of the mass concentration of fine particulate matter (PM_2.5; Shah et al., 2021). The partitioning expression does not consider that the interaction between GOM and a surface is significantly influenced by the composition of the surface layer. HgCl₂(g) partitions among particles consisting of typical alkali metal salts such as chlorides, nitrates, and sulfates (Mao et al., 2021; Malcolm et al., 2009). To compensate, global Hg models treat the uptake of GOM onto sea salt particles separately as an irreversible first-order process parameterized by wind speed and humidity. The equilibrium studies conducted at atmospheric pressure do not provide insights into the dynamics of the system, as the experiments are limited by mass transport, which negates the possibility of obtaining quantitative information on reactive uptake. As an alternative (Liu et al., 2022), partition coefficients have been calculated for individual GOM species based on theoretical predictions of both adsorption and absorption (Wu et al., 2024a). The reactive uptake of HgCl₂(g) on surfaces representative of inorganic and organic primary and secondary atmospheric aerosols has recently been studied via the fast flow technique coupled with an ion drift chemical ionization mass spectrometer (ID-CI-MS). The reported data (Mao et al., 2021; Khalizov and Mao, 2023) are summarized in Table 7.

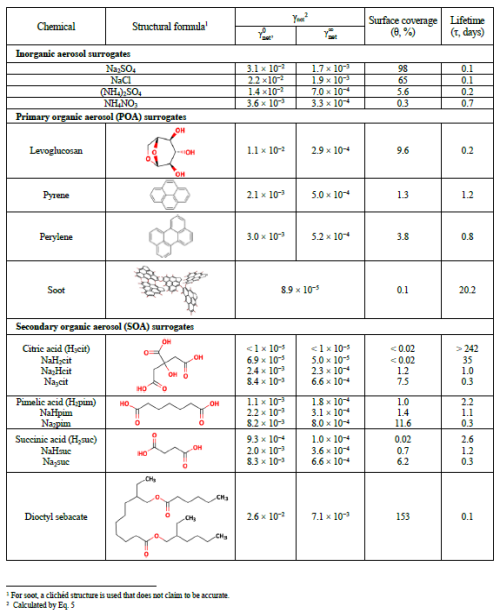

Table 7 Reactive uptake of HgCl₂(g) on surfaces.

The data in Table 7 are for dry surfaces, where ${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{0}}$ is the initial uptake coefficient, which is relevant throughout the lifetime of the aerosol, as the surface coverage by atmospheric HgCl₂ remains unchanged and low. In the presence of sea salt aerosols (> 0.6 µm, initially at pH 8) that dominate in marine air, where NaCl represents > 95 % of its mass, the lifetime of HgCl₂(g) is expected to be between 4 and 20 h depending on aerosol loading (Mao et al., 2021). When the relative humidity exceeds ∼ 75 %, a hygroscopic sea salt droplet is formed as the salt deliquesces, and a highly mobile surface phase in which Hg^II is equilibrated in ionic form as ${\mathrm{HgCl}}_{\mathrm{4}}^{\mathrm{2}-}$ may contribute to more rapid GOM loss in marine air (Holmes et al., 2009). Ammonium salts such as nitrates and sulfates are primarily found in secondary particles, typically in urban and agricultural–rural air. Although HgCl₂ uptake is lower here, its lifetime is comparable because of the higher particle number and the large surface area they generally represent. These semi-volatile ammonium salts do not occur in isolation but coexist with oxygenated organics formed through photochemical activity, resulting in the formation of secondary aerosols, which constitute the primary fraction of the atmospheric burden of organic aerosols (OAs, Jimenez et al., 2009). The acidity of secondary organic aerosols (SOAs), a dominant component of PM_2.5, affects HgCl₂ uptake by controlling the acid–base equilibria of characteristic chemical species such as aliphatic dicarboxylic acids, aromatic polycarboxylic acids, and other oxygenated multi-functional organics in aerosols. For the diprotic acids in Table 7, the reactivity becomes noticeable only after the first deprotonation step at pH 4.5–5.5. For the triprotic citric acid, activation occurs after the second step at pH 6.5. The adsorption of HgCl₂ on primary organic aerosol (POA) surfaces is significant in the presence of levoglucosan, an anhydrosugar, which is a fingerprint of fire activity. Nevertheless, the interaction between HgCl₂ and polyaromatic hydrocarbons (PAHs) derived from carbonaceous fuel combustion is more constrained, occurring between the electrophile HgCl2 and the π electrons delocalized over the aromatic fused ring skeleton. The observed adsorption on fresh soot, which is porous and graphitic with a high specific surface area, is more than 1 order of magnitude lower than that for the minor type of PAH studied (pyrene, perylene). If morphology affects uptake, so does the state of the surface phase, as a diester of sebacic acid (a close homolog of pimelic acid), octyl sebacate, a lubricant, is more reactive to HgCl₂ than the microcrystalline pimelic acid film is. The adsorption of HgCl₂ on mineral surfaces (dust aerosols) represented by iron (hydr)oxides has not been studied experimentally, but calculations indicate a partition coefficient (K_gp) for α-Fe₂O₃ that exceeds that for NaCl by 3 orders of magnitude (Tacey et al., 2018b). The studies listed in Table 7 were performed without observing redox chemistry (i.e., no Hg⁰was detected to be emitted from the HgCl₂-exposed surfaces when heated to 120 °C), but a combined study using FF-ID-CIMS and Raman spectroscopy revealed that exchange reactions between gaseous mercuric compounds are catalyzed by surfaces such that HgCl₂ and HgBr₂ molecules in the presence of a deactivated surface produce mixed BrHgCl molecules (Mao and Khalizov, 2021), which are also volatile. Owing to rapid exchange reactions, the prospect of accurately speciating GOMs by pre-concentration on filters and cation exchange membranes, as discussed previously (Sect. 3.1), is unlikely.

7.1.2 Hg⁰

A challenge in studying gas-phase- or liquid-phase-initiated reactions is the potential for side reactions and phase changes to occur during experiments. Thus, a portion of the loss of gas-phase Hg⁰ in laboratory experiments designed to study homogeneous oxidation (e.g., by O₃, Snider et al., 2008; ${\mathrm{NO}}_{\mathrm{3}}^{\mathrm{•}}$, Sommar et al., 1997) has been linked to a heterogeneous rate component (k_surf) occurring on new surfaces that form during experiments (product clusters undergoing particle growth in free suspension, Sect. 5.1.4) and/or on initially deactivated existing surfaces (reactor walls) that begin to catalyze Hg⁰ surface oxidation as deposits form (Sommar et al., 1997; Medhekar et al., 1979). For example, in a series of spherical reactors with varying surface-to-volume ratios ($S/V$), Pal and Ariya (2004b) reported the loss of Hg⁰ by reacting with excess O₃ in N₂ as follows:

$$\begin{array}{}\text{(11)}& \begin{array}{rl}& -d\left[{\mathrm{Hg}}^{\mathrm{0}}\right]/\mathrm{d}t=\left\{k_{\mathrm{gas}}+{\displaystyle \frac{S}{V}}\cdot k_{\mathrm{surf}}\right\}\cdot \left[{\mathrm{Hg}}^{\mathrm{0}}\right]\cdot \left[{\mathrm{O}}_{\mathrm{3}}\right]\\ & =k_{\mathrm{net}}\cdot \left[{\mathrm{Hg}}^{\mathrm{0}}\right]\cdot \left[{\mathrm{O}}_{\mathrm{3}}\right],\end{array}\end{array}$$

where k_gas (cm³ molecule⁻¹ s⁻¹) is the gas-phase reaction rate, $S/V$ (cm⁻¹), k_surf (cm⁴ molecule⁻¹ s⁻¹) is the surface rate loss, and [O₃] (molecules cm⁻³) is the gas-phase O₃ concentration. In the $S/V$ range of 0.28−0.93 cm⁻¹, k_net increased by 30 % simultaneously with the formation of particles (Snider et al., 2008) during the experiments, which started homogeneously. Using a fluorocarbon film smog chamber (9 m³, $S/V$ = 0.03 cm⁻¹), Rutter et al. (2012) studied the influence of SOA (yielding an ∼ 100-fold increase in the surface area of the system) and secondarily formed ^•OH (at ambient level due to added scavenger) generated from an irradiated mixture of O₃ and various biogenic and anthropogenic VOCs (at a level ∼ 1 order of magnitude greater than ambient) on the oxidation of Hg atoms (at a level ∼ 2 orders of magnitude greater than ambient). Neither Rutter et al. (2012) nor subsequent researchers (Lyman et al., 2022) have been able to identify evidence that interactions with photochemical smog particles significantly contribute to the oxidation of Hg⁰. Nevertheless, few studies concerning Hg⁰ uptake have been conducted with a sufficiently rigorous standard, employing techniques used in specific studies of heterogeneous processes to produce a kinetic formalism that can be related to atmospheric models. These studies, which were conducted with a coated-wall laminar flow tube reactor, focused on the light- and moisture-dependent uptake of Hg⁰ (detected by CV-AFS), which may be photocatalytic, on the major metal oxides (TiO₂, Fe₂O₃, FeOOH, and Al₂O₃) present in mineral dust aerosols (Kurien et al., 2017; Lee et al., 2022). The first three metal oxides have semiconductor properties with band gaps that allow photoexcitation in the UV-A (≤ 395 nm) and visible (≤ 590 nm) regions, while Al₂O₃, the second most abundant mineral oxide in the Earth's crust after SiO₂, is an insulator but has some thermal conductivity. It has been established for over half a century that Hg⁰ vapor in the presence of O₂ over an irradiated TiO₂ surface is consumed by reactive uptake (Kaluza and Boehm, 1971) via the following tentative mechanism:

$$\begin{array}{}\text{(R10a-g)}& \begin{array}{rl}& {\mathrm{TiO}}_{\mathrm{2}}\stackrel{h\mathit{\nu }}{⟶}{\mathrm{e}}_{\mathrm{CB}}^{-}+h_{\mathrm{VB}}^{+}\\ & {\mathrm{e}}_{\mathrm{CB}}^{-}+{\mathrm{O}}_{\mathrm{2}}\left(\mathrm{ads}\right)\to {\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}\left(\mathrm{ads}\right)\\ & h_{\mathrm{VB}}^{+}+{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\mid {\mathrm{OH}}^{-}\left(\mathrm{ads}\right)\to {\mathrm{HO}}^{\mathrm{•}}\left(\mathrm{ads}\right)+\left({\mathrm{H}}^{+}\left(\mathrm{ads}\right)\right)\\ & {\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{ads}\right)+{\mathrm{HO}}^{\mathrm{•}}\left(\mathrm{ads}\right)\to {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{OH}\left(\mathrm{ads}\right)\\ & {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{OH}\left(\mathrm{ads}\right)+{\mathrm{O}}_{\mathrm{2}}\left(\mathrm{ads}\right)\to \mathrm{HgO}\left(\mathrm{ads}\right)+{\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}\left(\mathrm{ads}\right)\\ & {\mathrm{HO}}^{\mathrm{•}}\left(\mathrm{ads}\right)+{\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}\left(\mathrm{ads}\right)\to {\mathrm{H}}_{\mathrm{2}}\mathrm{O}\left(\mathrm{ads}\right)+{\mathrm{O}}_{\mathrm{2}}\left(\mathrm{ads}\right)\\ & {\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}\left(\mathrm{ads}\right)+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}\left(\mathrm{ads}\right)\stackrel{{\mathrm{H}}^{+}}{⟶}{\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}\left(\mathrm{ads}\right)+{\mathrm{O}}_{\mathrm{2}}\left(\mathrm{ads}\right)\end{array}.\end{array}$$

When excited by light of a wavelength shorter than the band gap energy, the generation of electron–hole pairs (${\mathrm{e}}_{\mathrm{CB}}^{-}$, ${\mathrm{h}}_{\mathrm{VB}}^{+}$) occurs in the conduction and valence bands (Reaction R10a). The electrons and holes transported to the particle surface initiate redox chemistry by reacting with H₂O and O₂ molecules to form reactive oxygen species (ROS, Reactions R10b, c). The oxidation potential of ${\mathrm{h}}_{\mathrm{VB}}^{+}$ exceeds +2.27 eV in the TiO₂, Fe₂O₃, and FeOOH cases, which is sufficient to generate hydroxyl radicals from surface water (Reaction R11c) that can oxidize adsorbed Hg⁰ (Reaction R10d). The reported uptake coefficients are in the range of $<{\mathrm{10}}^{-\mathrm{10}}$ to > 10⁻⁴ (based on the Brunauer–Emmett–Teller surface area), with relative reactivities of Fe₂O₃ FeOOH < Al₂O₃ < TiO₂, where ${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{\infty }}$ without irradiation is below the detection limit. The uptake of Hg⁰ on iron (hydr)oxides is less than 10⁻⁸ under both UV and visible light and is inhibited by humidity, as is the case for Al₂O₃, which shows measurable uptake under UV irradiation (${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{\infty }}$ = 1.2 × 10⁻⁸). The photo-initiated uptake of Hg⁰ on TiO₂ is significant, especially under UV light at low humidity (${\mathit{\gamma }}_{\mathrm{net}}^{\mathrm{\infty }}$ > $\mathrm{3}\times {\mathrm{10}}^{-\mathrm{5}}$, diffusion-controlled limit). However, as with Al₂O₃, it shows reversibility (desorption of Hg⁰) in the presence of water vapor during darkness (Lee et al., 2022), whereas Hg⁰ exhibits almost irreversible binding to iron (hydr)oxides at the temperatures studied (<150 °C, Kurien et al., 2017). Based on limited published data, only under conditions of low humidity and very high mineral dust aerosol loading can the uptake of Hg⁰ be considered to have any effect on the atmospheric cycling of Hg⁰. Notably, there are no corresponding experimental data for HgCl₂ uptake on mineral dust surrogates.

The uptake of Hg⁰ on ice, which involves the migration of radioactive Hg isotopes into ice spheres in a packed bed flow tube exposed to a strong temperature gradient, can be described as reversible adsorption without significant solvation. The observations were in accordance with a Langmuir isotherm, where the adsorption equilibrium can be described thermodynamically by Bartels-Rausch et al. (2008):

$$\begin{array}{}\text{(12)}& RT\ln K=\mathrm{\Delta }{H}_{\mathrm{ads}}^{\mathrm{0}}T\mathrm{\Delta }{S}_{\mathrm{ads}}^{\mathrm{0}}=-\mathrm{28}\mathrm{000}+\mathrm{38}\cdot T,\end{array}$$

where K is the Langmuir absorption constant (Eq. 8), R is the gas constant, T is the absolute temperature, and $\mathrm{\Delta }{\mathrm{H}}_{\mathrm{ads}}^{\mathrm{0}}$ and $\mathrm{\Delta }{\mathrm{S}}_{\mathrm{ads}}^{\mathrm{0}}$ are the enthalpy and entropy of adsorption, respectively. Compared with $k_{\mathrm{H}}^{\mathrm{cc}}$ for Hg⁰ (0.18 at 5 °C), the Langmuir adsorption coefficient on ice, which is expressed in a dimensionless way, is much smaller even at temperatures lower than the freezing point of the metal (2.2 × 10⁻⁵ at 220 K), which is most relevant for polar regions and the upper troposphere. Therefore, in both atmospheric and polar environments, the uptake of Hg⁰(g) on ice surfaces is negligible.

7.2 Reduction of mercurial species on surfaces

Computational chemistry studies report that the adsorption of mercuric halides on dry-salt- or mineral-like surfaces reduces the energy required for reduction to Hg⁰ (Tacey et al., 2016) and that the reduction of HgCl₂ and HgBr₂ to Hg⁰on iron oxide aerosols requires the presence of actinic light (Tacey et al., 2018a). Breaking the first Hg–X bond is possible either thermally or photolytically, while the second requires photons with λ≤ 461 nm. To release Hg⁰ from the surface, an excitation energy of 2.59 eV (λ≤ 479 nm) is required in a photo-induced charge transfer process between the surface and the adsorbate.

The photoreduction of particle-bound Hg^II has been the subject of experimental investigations (Tong et al., 2013; Tong et al., 2014). In these experiments, aerosol surrogates doped with HgCl₂ were generated and dried in laboratory air and subsequently captured on filters, which were then exposed to light with three spectral options in a flow-through reactor. Photoreduction of NaCl aerosols occurs under actinic light (both UV and visible light, with approximately 2.5 % and 2.0 % of Hg^II reduced, respectively, during a 30 min exposure, normalized per 100 W m⁻² irradiation). However, the presence of iron species (mainly Fe^III rather than Fe^II) has been observed to exert some inhibitory effects (Tong et al., 2013). In contrast, photoreduction on carbon-based synthetic aerosols has been demonstrated to be more significant but also more variable. For example, Hg^II on adipic acid aerosols is reduced by 8 % (per same time unit and normalization as above), while on levoglucosan, it is less than 2 % (Tong et al., 2014). Notably, however, these experiments were carried out without O₂ in the carrier gas stream.

The reduction of Hg^II in ice in the presence of organics has been studied in an ice-coated flow tube at atmospheric pressure under irradiation with light between 300 and 420 nm (Bartels-Rausch et al., 2011). O₂-free ice matrices containing 60 nM Hg were doped with a stoichiometric excess (up to 50:1 M $/$ M) of either benzophenone (a strong photosensitizer), oxalic acid oxalate (forming photolabile Hg^II complexes), or humic acid (ditto photolabile complexes), which, upon irradiation, accelerated the release of Hg⁰, which was most rapid in the presence of benzophenone at high pH. The presence of O₂ (20 % in the gas stream), the introduction of sea-ice-like conditions, or a large drop in temperature (from 270 to 250 K) or pH (to 4) resulted in diminished photoreduction. The mechanism by which Hg^II reduction is sensitized by benzophenone is challenging to ascertain. One potential mechanism involves the dissociation of an excited state of the major species, Hg(OH)₂, which has been reported to be photolabile as a solute in water (Xiao et al., 1994). A controlled laboratory study of light-irradiated natural snow samples at a temperature of −10 °C revealed that the release of Hg⁰ follows first-order kinetics with a coefficient between 0.18 and 0.25 h⁻¹, corresponding to a natural lifetime of 4–5.6 h (Dommergue et al., 2007). However, no monitoring of Hg^II in the condensed phase has been conducted. Given that light does not penetrate the entire snowpack, it can be assumed that a Hg^II gradient toward depletion at the top is established.

Brominated mercurials that are present in the Arctic environment during AMDE may play a role in light-induced Hg re-emission from the cryosphere to the atmosphere (cf. Fig. 2). A computational study (Carmona-Garcia et al., 2025) suggested that, compared with HgBr₂ in the gas phase_, HgBr₂ in solution has an increased absorption cross section for wavelengths longer than 290 nm, whereas bromomercurate anions (Hg${}^{\mathrm{II}}{\mathrm{Br}}_{\mathrm{3}}^{-}$ and ${\mathrm{Hg}}^{\mathrm{II}}{\mathrm{Br}}_{\mathrm{4}}^{\mathrm{2}-}$) have a comparatively greater absorption in actinic light. The low-energy excited states of HgBr₂, Hg${}^{\mathrm{II}}{\mathrm{Br}}_{\mathrm{3}}^{-}$, and ${\mathrm{Hg}}^{\mathrm{II}}{\mathrm{Br}}_{\mathrm{4}}^{\mathrm{2}-}$ in solution are characterized by electronic transitions in which the electron density is mainly transferred from the Br atoms to the Hg atom, indicating a significant photoreductive character upon light absorption, leading to the generation of Hg^I species (^•Hg^IBr, ^•Hg${}^{\mathrm{I}}{\mathrm{Br}}_{\mathrm{2}}^{-}$, and ${}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}{\mathrm{Br}}_{\mathrm{3}}^{\mathrm{2}-}$) and a bromine atom. The photoreductive character is also recognized for the aforementioned Hg^I species in their electronically excited states, which plausibly dissociate via an LMCT mechanism with Hg⁰ as the product. The predicted peak photolysis constants for the polar spring (March, ∼ 80° N) are 3.9 × 10⁻⁶, $\mathrm{3.8}\times {\mathrm{10}}^{-\mathrm{4}}$ and 7.9 × 10⁻⁵ s⁻¹ for HgBr₂, Hg${\mathrm{Br}}_{\mathrm{3}}^{-}$ and ${\mathrm{HgBr}}_{\mathrm{4}}^{\mathrm{2}-}$, respectively.

For pure heterogeneous reduction, there is experimental evidence that SO₂(g) can reduce HgO(s) at room temperature via Hg${}_{\mathrm{2}}^{\mathrm{I}}$SO₄ (Zacharewski and Cherniak, 1987) to Hg⁰, HgS, and HgSO₄ as stable products (Scott et al., 2003) and that O₃(g) in the presence of actinic light can reduce ${\mathrm{HgCl}}_{\mathrm{2}}/{\mathrm{HgBr}}_{\mathrm{2}}$(s) to mercurous species (Ai et al., 2023, which may tentatively undergo ${\mathrm{Hg}}^{\mathrm{0}}/{\mathrm{Hg}}^{\mathrm{II}}$ disproportionation). In the latter exploratory study, single-particle reactors, 10–50 µm in size, synthesized from mercuric halides in single-walled carbon nanotubes were prepared to levitate during the experiments via optical tweezers. The turnover of HgX₂ by breaking a Hg–X bond was measured by time- and position-resolved Raman spectroscopy, which also showed that the decomposed X atom was bound to the carbon material (X = Cl, Br). Heterogeneous reactions of this type, i.e.,

$$\begin{array}{}\text{(R11)}& \begin{array}{rl}& {\mathrm{O}}_{\mathrm{3}}\stackrel{h\mathit{\nu }}{⟶}{\mathrm{O}}_{\mathrm{2}}+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\\ & {\mathrm{HgX}}_{\mathrm{2}}\left(\mathrm{s}\right)+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\to {}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}X(\mathrm{s})+{\mathrm{XO}}^{\mathrm{•}}(\mathrm{g})\\ & {\mathrm{XO}}^{\mathrm{•}}+\mathrm{O}{(}^{\mathrm{3}}\mathrm{P})\to X^{\mathrm{•}}+{\mathrm{O}}_{\mathrm{2}}\\ & {\mathrm{2}}^{\mathrm{•}}{\mathrm{Hg}}^{\mathrm{I}}\mathrm{X}\left(\mathrm{s}\right)\to {\mathrm{Hg}}_{\mathrm{2}}{\mathrm{X}}_{\mathrm{2}}\left(\mathrm{s}\right)⟶{\mathrm{Hg}}^{\mathrm{0}}\left(\mathrm{ads}\right)+{\mathrm{HgX}}_{\mathrm{2}}\left(\mathrm{s}\right)\end{array},\end{array}$$

may explain why KCl-coated denuders do not work as a robust quantitative method for measuring GOM in ambient air (Lyman et al., 2010). Since the gas-phase reaction HgX${}_{\mathrm{2}}+{\mathrm{O}/\mathrm{O}}_{\mathrm{3}}{\to }^{\mathrm{•}}$Hg^IX + XO^• (+ O₂) is endothermic (≥66 kJ mol⁻¹) and therefore unlikely, the results of a steady-state study (Tong et al., 2021) claiming gas-phase photoreduction of HgX₂ in the presence of O₃ and light can instead be attributed to the above-mentioned heterogeneous reactions. Additionally, voltammetry can provide valuable insights into the redox chemistry of mercury. Hg⁰ is frequently employed as the working electrode and has a high overpotential for the reduction of H₃O⁺ to H₂. This enables the utilization of standard potentials as negative as −1 V in acidic solutions and −2 V in basic solutions. The surface of the hanging mercury drop electrode (HMDE) can be readily renewed by extruding a new drop. In a study by Giannakopoulos et al. (2012), the interfacial adsorption mechanism of gallic acid onto HMDE was investigated, and a series of easily reducible Hg^II complexes with mono-, di-, or tridentate gallic acid ligation were identified.

7.3 Dark oxidation of Hg⁰ accelerated by freeze-concentration effects

Slow oxidation of dissolved Hg⁰ by O₂ occurs in aquatic systems in the presence of Cl⁻ ions (Amyot et al., 2005; Wang et al., 2023). However, upon freezing, most of the solutes are separated from the forming ice phase and concentrated in the remaining liquid at a significantly reduced pH (Bartels-Rausch et al., 2011). In experimental mimics of the micro-pockets of solutions that occur in ice, experiments in the presence of O₂, H₂O₂, and HONO each result in significant Hg⁰ oxidation. It has been postulated that protonated forms, $\mathrm{HO}-{\mathrm{OH}}_{\mathrm{2}}^{+}$ and ${\mathrm{ONOH}}_{\mathrm{2}}^{+}$, are responsible for oxidation processes, which can be classified as strongly exothermic on the basis of the provided thermodynamic data (O'Concubhair et al., 2012). Moreover, neither dilute H₂O₂ (aq) nor HONO (aq) will oxidize Hg⁰ (aq) to any significant extent at room temperature (Kobayashi, 1987).

7.4 Surface-catalyzed reduction of Hg^II in aqueous solution

In the presence of a solid phase of ferric (hydr)oxide and dissolved di- or monocarboxylic acids under oxic conditions, the reduction of Hg^II in aqueous solution to Hg⁰ occurs upon UV irradiation (Lin and Pehkonen, 1997). The systems studied for the photoreduction of Hg^II are goethite (α-FeOOH) + oxalate/formate, hematite (α-Fe₂O₃) + oxalate, and maghemite (γ-Fe₂O₃) + oxalate. The experiments with filtered Xe light were conducted with 10 µM HgCl₂, 1 mM organic acid, and 0.1 g L⁻¹ ferric hydr(oxide) suspension, with a starting pH of 3.9. During some of the experiments, the pH increased substantially, resulting in the dominance of oxalate over hydrogen oxalate. Unlike oxalate, formate alone is not capable of reducing Hg^II to Hg⁰ under actinic light. It requires irradiation in the deep UV by processes such as (Leonori and Sturgeon, 2019):

$$\begin{array}{}\text{(R12)}& \begin{array}{rl}& {\mathrm{Hg}}^{\mathrm{2}+}+\mathrm{2}{\mathrm{HCOO}}^{-}\rightleftarrows \mathrm{Hg}{\left(\mathrm{OOCH}\right)}_{\mathrm{2}}\stackrel{h\mathit{\nu }}{⟶}{\mathrm{Hg}}^{\mathrm{0}}+\mathrm{2}{\mathrm{CO}}_{\mathrm{2}}+{\mathrm{H}}_{\mathrm{2}}\\ & {\mathrm{Hg}}^{\mathrm{2}+}+{\mathrm{HCOO}}^{-}\rightleftarrows {\mathrm{Hg}}^{\mathrm{II}}(\mathrm{OOCH}{)}^{+}\stackrel{h\mathit{\nu }}{⟶}{\mathrm{Hg}}^{\mathrm{•}+}+\\ & {\mathrm{HCO}}_{\mathrm{2}}^{\mathrm{•}}\text{and}{\mathrm{Hg}}^{\mathrm{•}+}+{\mathrm{HCOO}}^{-}\to {\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{HCO}}_{\mathrm{2}}^{\mathrm{•}}\end{array}.\end{array}$$

One study described Hg^II reduction mediated by the carbon dioxide radical anion (${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$) generated from formic acid via photo-sensitization by visible light-excited naphthoquinone (Berkovic et al., 2012). Iron(III) complexes with formate and oxalate are photolabile under UV-A and visible, where a fast 1e–LMCT step generates Fe²⁺ and eventually ${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$, which initiates a chain process (Mangiante et al., 2017; Baxendale and Bridge, 1955):

$$\begin{array}{}\text{(R13)}& \begin{array}{rl}& \equiv {\mathrm{Fe}}^{\mathrm{III}}-\mathrm{OH}+{\mathrm{HC}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{-}|{\mathrm{HCOO}}^{-}\rightleftarrows \equiv {\mathrm{Fe}}^{\mathrm{III}}\\ & -{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{-}|\mathrm{OOCH}+{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\\ & \equiv {\mathrm{Fe}}^{\mathrm{III}}-{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{-}|\mathrm{OOCH}\stackrel{hv}{⟶}\equiv {\mathrm{Fe}}^{\mathrm{II}}+{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}|{\mathrm{HCO}}_{\mathrm{2}}^{\mathrm{•}}\\ & \equiv {\mathrm{Fe}}^{\mathrm{II}}\rightleftarrows \equiv +{\mathrm{Fe}}^{\mathrm{2}+}\text{and}{\mathrm{HCO}}_{\mathrm{2}}^{\mathrm{•}}\rightleftarrows {\mathrm{H}}^{+}+{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}\\ & {\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}\to {\mathrm{CO}}_{\mathrm{2}}+{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-},{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}+{\mathrm{O}}_{\mathrm{2}}\to {\mathrm{CO}}_{\mathrm{2}}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}\\ & \text{and}{\mathrm{H}}^{+}+{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}\rightleftarrows {\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}\to \mathrm{1}/\mathrm{2}{\mathrm{O}}_{\mathrm{2}}+\mathrm{1}/\mathrm{2}{\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}\\ & {\mathrm{Fe}}^{\mathrm{2}+}+{\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}\to {\mathrm{Fe}}^{\mathrm{III}}+{\mathrm{HO}}^{-}+{\mathrm{HO}}^{\mathrm{•}}\\ & {\mathrm{Hg}}^{\mathrm{II}}+{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}\left|{\mathrm{Fe}}^{\mathrm{2}+}\right|\equiv {\mathrm{Fe}}^{\mathrm{II}}\to {\mathrm{Hg}}^{\mathrm{I}}+{\mathrm{CO}}_{\mathrm{2}}|{\mathrm{Fe}}^{\mathrm{III}},{\mathrm{Hg}}^{\mathrm{I}}\\ & +{\mathrm{CO}}_{\mathrm{2}}|\equiv {\mathrm{Fe}}^{\mathrm{II}}\to {\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{CO}}_{\mathrm{2}}|{\mathrm{Fe}}^{\mathrm{III}}|\equiv {\mathrm{Fe}}^{\mathrm{III}}(\mathrm{red}.)\\ & \mathrm{2}{\mathrm{Hg}}^{\mathrm{I}}\rightleftarrows {\mathrm{Hg}}^{\mathrm{0}}+{\mathrm{Hg}}^{\mathrm{II}}(\mathrm{disprop}.)\\ & {\mathrm{Hg}}^{\mathrm{0}/\mathrm{I}}+{\mathrm{HO}}^{\mathrm{•}}\to {\mathrm{Hg}}^{\mathrm{I}/\mathrm{II}}+{\mathrm{HO}}^{-},{\mathrm{Fe}}^{\mathrm{2}+}+{\mathrm{HO}}^{\mathrm{•}}\to {\mathrm{Fe}}^{\mathrm{III}}\\ & +{\mathrm{HO}}^{-}\text{and}{\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}+{\mathrm{HO}}^{\mathrm{•}}\to {\mathrm{HO}}_{\mathrm{2}}^{\mathrm{•}}+{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\left(\text{ox.}\right).\end{array}\end{array}$$

The oxic reaction system described by Reaction (R13) reaction formulas contains a number of ROS with different designations, such as strongly reducing ${\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$ and strongly oxidizing HO^•, as extreme cases. One subsystem is Fenton's reagent (Sect. 6.1.1, Reaction W R6), which produces HO^•, for which each of the Hg${}^{\mathrm{0}/\mathrm{I}}$, Fe²⁺, and H₂O₂ competes to be oxidized. Except for the heterolytic photolysis of Hg(η²–C₂O₄), which produces Hg⁰ from Hg^II in a single step (Sect. 6.1.2, Reaction W R16), the remaining redox steps involving metals are of the single-electron type. The reduction of Hg^II occurs via reactions with ${\mathrm{HCO}}_{\mathrm{2}}^{\mathrm{•}}|{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$ nucleophiles (Sect. 6.1.2, Reaction W R14), which are both homogeneous and heterogeneous with dissolved and adsorbed ferrous species, respectively. A second-order homogeneous reaction coefficient of ∼ 120–313 M⁻¹ s⁻¹ has been determined in the near-neutral pH range, with Hg(OH)₂ and FeOH⁺ identified as the reactive species in solution (Amirbahman et al., 2013; Schwab et al., 2023). Under anoxic conditions, the rate of Hg⁰ production derived from surface-catalyzed reduction on hematite and goethite has been described by the expression k_het [≡ Fe^II][Hg(OH)₂], with k_het values of ∼ 89 and ∼ 78 M⁻¹ s⁻¹, respectively (Amirbahman et al., 2013). In an O₂-saturated, non-bubbled solution, a photo-stationary state between Hg^II and Hg⁰ occurs, indicating that the reduction pathways (Reaction R13 red.) are gradually balanced by oxidation pathways (Reaction R13 ox., Ababneh et al., 2006). In the absence of Hg⁰ removal, solubility limitations are easily exceeded during experiments (Lin and Pehkonen, 1997; Ababneh et al., 2006), resulting in the precipitation of colloidal Hg⁰. The removal of dissolved Hg⁰ by sorption on hydrous iron oxides, which is relevant here, is also documented (Richard et al., 2016). In the presence of competing anions, such as chloride, the rate of reduction decreases, in part owing to the formation of metastable, poorly soluble dimeric mercurous salts that compete with the disproportionation of Hg^I to Hg⁰ and Hg^II (Pasakarnis et al., 2013).

7.5 Field observations of photoreduction in precipitation, clouds, and fog

In precipitation and clouds, a strong correlation between Hg and total organic carbon was observed (Li et al., 2018; Åkerblom et al., 2015), suggesting that Hg–organic complexes are also important in aerosols. Authentic rain samples, where Hg–organic complexes dominate, present photoreduction rates ranging from 0.02−0.2 h⁻¹ (Yang et al., 2019; Saiz-Lopez et al., 2019; Fu et al., 2021). There have been a handful of measurements of Hg in cloud water (Li et al., 2018; Weiss-Penzias et al., 2018; Malcolm et al., 2003; Gerson et al., 2017; Huang et al., 2016a), but thus far, only a few studies on the photoreduction rate in this category of water exist (Li et al., 2018; Zhen et al., 2023; Gao et al., 2023). Photolysis rates in cloud water samples of 0.07–0.21 h⁻¹ measured in situ under actinic light and in the laboratory under UV (> 290 nm) light are consistent with those observed in precipitation. Whether the photoreduction rates observed in rain or cloud water are representative of atmospheric aerosols is questionable. Hg^II in snowfall or freshly fallen snow has been reported to be labile for photoreduction (Steffen et al., 2008; Faïn et al., 2013). In temperate urban and pristine rural snow, within 24 h, approximately 50 % (Lalonde et al., 2003; Lalonde et al., 2002) and, within 48 h, up to 90 % (Poulain et al., 2004) of the newly deposited Hg can be effectively recycled back to the atmosphere. The reduction is reportedly strong even under cloudy conditions and is not limited by light (Faïn et al., 2013). In general, less than 5 % of the Hg content of a snowpack is in the elemental form (Hg⁰), which is concentrated stratigraphically in the first few centimeters. Nevertheless, if the rates are implemented as a mean value (∼ 0.07 h⁻¹), determining the lifetime of atmospheric Hg against wet deposition, then the model-estimated wet deposition underestimates the observations by an average of 25 % globally. Current global chemistry and transport models (GMOS-Chem) consider photoreduction on particles with the pool of Hg^II complexed with organic ligands as the reactant (Shah et al., 2021).

8 Mercury isotope systematics and fractionation

Natural Hg contains seven stable isotopes with mass numbers of 196, 198, 199, 200, 201, 202, and 204. In the 1920s, significant separation of Hg into its isotopes was achieved through vaporization in a vacuum (Harkins and Mulliken, 1921; Mulliken, 1923; Brønsted and de Hevesy, 1921), a process that is conducted on a preparative scale through electromagnetic (Love, 1973) and photochemical (Vyazovetskii, 2012) methods. When the feed flow is in the form of DMHg, total gram quantities of highly enriched Hg isotopes can be obtained through cascade centrifugation (Babaev et al., 2010). The longest-lived radioisotope is ¹⁹⁴Hg at 444 years. Since it does not occur naturally, it cannot be used in the dating typical of ¹⁴C. Two additional unstable isotopes (¹⁹⁷Hg and ²⁰³Hg, with half-lives of 64.1 h and 46.6 d, respectively) are valuable for instrumental neutron activation analysis and radiolabeled Hg compounds because of their decay by emission of readily detectable γ rays. It was not until after the turn of the century, 80 years later, with the development of high-precision analytical instruments such as multi-collector inductively coupled plasma-mass spectrometry (MC-ICP-MS), that it became possible to measure differences in the naturally stable Hg isotopic compositions in the environment (Jackson, 2001; Lauretta et al., 2001). Natural processes, including redox reactions, complexation, sorption, precipitation, dissolution, evaporation, diffusion, and biological processes, can alter the isotopic composition, i.e., cause stable isotope fractionation (cf. Fig. 17). Stable isotope analyses can, therefore, provide a previously untapped source of valuable information on the sources and biogeochemical cycling of natural and anthropogenic Hg. Isotopic fractionation refers to the division of a sample into two (or more) parts with different ratios of “heavy” and “light” isotopes than the original ratio. In isotopic jargon, if one part contains more heavy isotopes, it is said to be “enriched”, while the other part is said to be “depleted”. Hg has extremely large isotopic variation in nature, which, when normalized by the relative mass difference between isotopes, approaches that of traditional light element isotopes (Wiederhold, 2015). However, the overlapping signals from different fractionation processes can be a major challenge in deciphering natural isotopic signatures when tracing sources. It is important to determine the Hg stable isotope fractionation for individual key processes, which can be accomplished, inter alia, through controlled laboratory and field experiments. Stable isotope variations are reported as relative values compared with a reference standard (NIST SRM 3133 Hg solution, Blum and Bergquist, 2007):

$$\begin{array}{}\text{(13)}& \begin{array}{rl}& {\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}=\mathrm{1000}\cdot \left[{\left({}^{\mathrm{xxx}}\mathrm{Hg}/{}^{\mathrm{198}}\mathrm{Hg}\right)}_{\mathrm{sample}}\right.\\ & \left./{\left({}^{\mathrm{xxx}}\mathrm{Hg}/{}^{\mathrm{198}}\mathrm{Hg}\right)}_{\mathrm{NIST}\mathrm{3133}}-\mathrm{1}\right],\end{array}\end{array}$$

where ${}^{\mathrm{xxx}}\mathrm{Hg}/{}^{\mathrm{198}}\mathrm{Hg}$ ($R^{\mathrm{xxx}/\mathrm{198}}$) is the ratio of the isotopes with mass numbers xxx and 198. The prevailing practice of expressing isotope ratios relative to the lightest stable isotope for each element is not applicable to Hg because of the rarity of ¹⁹⁶Hg (0.15 % occurrence). The standard unit for δ values is per mill (‰). δ²⁰²Hg expresses the total mass-dependent fraction (TMDF, containing contributions from conventional mass-dependent fractionation; hereafter, MDF and nuclear field shift (NFS) are described in Sect. 8.1), while the isotope anomalies caused by mass-independent fractionation, MIF, are expressed by capital deltas; Δ is defined as the difference between the measured δ value and that predicted from the measured δ²⁰²Hg value and the scale factor for the kinetic MDF (${\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}^{\mathrm{xxx}}$, where KIE is the kinetic isotope effect; see Sect. 8.1) and is approximated for δ values <10 ‰ according to

$$\begin{array}{}\text{(14)}& {\mathrm{\Delta }}^{\mathrm{xxx}}\mathrm{Hg}={\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}-{\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}^{\mathrm{xxx}}\cdot {\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg},\end{array}$$

which is expressed numerically for each relevant Hg isotope: Δ¹⁹⁶Hg $={\mathit{\delta }}^{\mathrm{196}}\mathrm{Hg}+$ 0.508⋅δ²⁰²Hg, Δ¹⁹⁹Hg =δ¹⁹⁹Hg $-\mathrm{0.252}\cdot {\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg}$, Δ²⁰⁰Hg =δ²⁰⁰Hg $-\mathrm{0.502}\cdot {\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg}$, Δ²⁰¹Hg =δ²⁰¹Hg $-\mathrm{0.752}\cdot {\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg}$, and Δ²⁰⁴Hg =δ²⁰⁴Hg $-\mathrm{1.493}\cdot {\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg}$.

The fractionation between two compounds A and B (assuming that A is a product of a reaction and that B is the remaining reactant) is expressed with the fractionation factor, α, which is defined as the ratio of the isotope ratios in the compounds:

$$\begin{array}{}\text{(15)}& \begin{array}{rl}& {\mathit{\alpha }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}=R_{\mathrm{A}}^{\mathrm{xxx}/\mathrm{198}}/R_{\mathrm{B}}^{\mathrm{xxx}/\mathrm{198}}=R_{\mathrm{A}}^{\mathrm{xxx}}/R_{\mathrm{B}}^{\mathrm{xxx}}\\ & ={\displaystyle \frac{\mathrm{1000}+{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{A}}}{\mathrm{1000}+{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{B}}}}.\end{array}\end{array}$$

The last term is obtained by substituting Eq. (13) into the first term of Eq. (15). Actual δ values are usually very close to unity. Therefore, it is usually more practical to use an enrichment factor:

$$\begin{array}{}\text{(16)}& \begin{array}{rl}{\mathit{\epsilon }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}& ={\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{A}}-{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{B}}=\mathrm{1000}\cdot \left({\mathit{\alpha }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}-\mathrm{1}\right)\\ & \cong \mathrm{1000}\cdot \ln {\mathit{\alpha }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}.\end{array}\end{array}$$

The last similarity is valid only for δ values less than 10 ‰. Substitute Eq. (14) into Eq. (16) and obtain

$$\begin{array}{}\text{(17)}& \begin{array}{rl}{\mathit{\epsilon }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}& \cong \left\{{\left({\mathrm{\Delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{A}}-{\left({\mathrm{\Delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{B}}\right\}+{\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}^{\mathrm{xxx}}\\ & \cdot \left[{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{A}}-{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{B}}\right].\end{array}\end{array}$$

Equation (17) expresses total fractionation during the process A → B, with the first term representing the MIF enrichment factor and the second term representing the total mass-dependent enrichment factor. Thus, the enrichment factor for MIF is written as a capital epsilon:

$$\begin{array}{}\text{(18)}& \begin{array}{rl}{E}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}& =\left\{{\left({\mathrm{\Delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{A}}-{\left({\mathrm{\Delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{B}}\right\}={\mathit{\epsilon }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{xxx}}\\ & -{\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}^{\mathrm{xxx}}\cdot {\mathit{\epsilon }}_{\mathrm{A}-\mathrm{B}}^{\mathrm{202}}.\end{array}\end{array}$$

Many kinetic processes can be described as Rayleigh fractionation, which is an irreversible process in an open system involving the progressive removal of a fraction of a trace substance from a larger reservoir. It is described by the following differential equation:

$$\begin{array}{}\text{(19)}& d\ln R^{\mathrm{xxx}}=\left({\mathit{\alpha }}^{\mathrm{xxx}}-\mathrm{1}\right)\cdot d\ln f_{\mathrm{R}}.\end{array}$$

If the fractionation factor is constant, the differential equation can be integrated directly into the expression:

$$\begin{array}{}\text{(20)}& R^{\mathrm{xxx}}/{\left(R^{\mathrm{xxx}}\right)}_{\mathrm{0}}=f_{\mathrm{R}}^{\left({\mathit{\alpha }}^{\mathrm{xxx}}-\mathrm{1}\right)},\end{array}$$

where ${\left(R^{\mathrm{xxx}}\right)}_{\mathrm{0}}$ is the isotope ratio of the initial reservoir (when f_R=1) and where R^xxx is the isotope ratio of the reservoir at a given time when the fraction of initial material remaining in the reservoir is defined by f_R. The following expression is often used to evaluate the fractionation factor:

$$\begin{array}{}\text{(21)}& \ln {\displaystyle \frac{\mathrm{1000}+{\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}}{\mathrm{1000}+{\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{0}}}}=\left({\mathit{\alpha }}^{\mathrm{xxx}}-\mathrm{1}\right)\cdot \ln f_{\mathrm{R}}.\end{array}$$

The process tends to enrich the heavier isotopes in the reservoir (α<1, normal kinetic isotope effect, KIE) rather than removing the heavier isotopes from the reservoir more rapidly (α>1, inverse KIE).

8.1 Conventional mass-dependent and mass-independent fractionation

The scaling factor β describes the relationship between the fractionation factors as follows:

$$\begin{array}{}\text{(22)}& {\mathit{\alpha }}^{\mathrm{xxx}}={\left({\mathit{\alpha }}^{\mathrm{202}}\right)}^{\mathit{\beta }},\end{array}$$

where β for mass-dependent equilibrium fractionation (β_EIE−MDF) and kinetic fractionation (β_KIE−MDF) are as follows (Young et al., 2002):

$$\begin{array}{}\text{(23)}& {\displaystyle }{\mathit{\beta }}_{\mathrm{EIE}-\mathrm{MDF}}={\displaystyle \frac{\mathrm{1}/m_{\mathrm{198}}-\mathrm{1}/m_{\mathrm{xxx}}}{\mathrm{1}/m_{\mathrm{198}}-\mathrm{1}/m_{\mathrm{202}}}}\text{(24)}& {\displaystyle }{\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}={\displaystyle \frac{\ln \left(m_{\mathrm{198}}/m_{\mathrm{xxx}}\right)}{\ln \left(m_{\mathrm{198}}/m_{\mathrm{202}}\right)}}.\end{array}$$

The equilibrium MDF resulting from the differences in zero-point vibrational energy (ZPE) distances and the kinetic MDF resulting from the differences in dissociation energies between the isotopologues and their respective effects can be expressed in two rules: heavier isotopes are preferentially concentrated in compounds with the highest force constant, where the element is most rigidly bound and has greater potential energy. Conversely, compounds enriched in lighter isotopes have weaker bonds and require less energy to break, so they preferentially enter chemical reactions and are enriched in the product (Criss, 1999). Combining kinetic and equilibrium MDF makes it possible to achieve a limit of approximately 10 ‰ fractionation (Sun et al., 2022).

Properties of nuclei, such as nuclear size and shape or the presence of non-zero nuclear spins, may trigger isotope fractionation that does not follow the expected MDF relationships. The nuclear field shift (NFS, Rosenthal and Breit, 1932) is the interaction of the nuclear volume with electrons (NVE, Schauble, 2007). It is highly relevant for very heavy metals, including Hg, Tl, Pb, and U. NFS involves a shift in the ground electronic energy of an atom or molecule due to differences in nuclear size and shape between isotopes. The shift caused by an odd (neutron number) nucleus scales non-linearly between the shifts of the even isotopes of the next highest and lowest atomic masses. The odd isotope electronic energy level is shifted toward the next lower even nucleus (odd–even staggering). Owing to its smaller size and greater surface charge density, the electronic energy of a light isotope is lower than that of a heavier isotope. The amount of shift is a product of two factors: the electron density at the nucleus and the charge, size, and shape of the nucleus and the change in the latter two between isotopes. Hg orbital electrons significantly overlap with the nucleus, whereas 5p, 5d, and 4f orbitals do not, although f electrons in inner shells have a smaller screening effect on 6s valence electrons (Bigeleisen and Wolfsberg, 1957). The lowest energy of a system occurs when the heavier isotopes of Hg are enriched in chemical species with the fewest s-electrons in the bonding or valence orbital. The largest shifts, therefore, occur when the number of Hg 6s electrons is greatly reduced by the formation of an ionic bond (to an electronegative element), while a covalent bond has less influence. Examples of Hg species in the former category are chloro- or aqua-complexes with high coordination numbers (e.g., [Hg(H₂O)₆]²⁺), while the latter includes soft ligands with typical linear bi-coordination (e.g., Hg(SH)₂ and (CH₃)₂Hg). The scale factor of nuclear volume fractionation (β_NFS) is defined as follows:

$$\begin{array}{}\text{(25)}& {\mathit{\beta }}_{\mathrm{NFS}}={\displaystyle \frac{\langle r_{\mathrm{198}}^{\mathrm{2}}\rangle -\langle r_{\mathrm{xxx}}^{\mathrm{2}}\rangle }{\langle r_{\mathrm{198}}^{\mathrm{2}}\rangle -\langle r_{\mathrm{202}}^{\mathrm{2}}\rangle }},\end{array}$$

where 〈r²〉 describes the mean-square nuclear charge radii of different isotopes. Coincidentally, MDF and NFS with ¹⁹⁸Hg, ²⁰⁰Hg, and ²⁰²Hg show almost identical β values, but ¹⁹⁹Hg, ²⁰¹Hg, ²⁰⁴Hg, and, to a lesser extent, ¹⁹⁶Hg show distinct non-mass-dependent signatures due to NFS. Only a small proportion of the NFS is mass-independent because it creates a deviation from MDF (Yang and Liu, 2015). The mass-dependent part of the two effects can be synergistic (increasing TMDF) or antagonistic (decreasing TMDE), with the former being dominant for Hg redox chemistry (Hintelmann and Zheng, 2011; Jiskra et al., 2012). The MDF scale is proportional to $\mathrm{1}/T^{\mathrm{2}}$, whereas the NFS scale is proportional to $\mathrm{1}/T$ and is more prominent than MDF for the Hg redox reactions studied (Schauble, 2007). Among the commonly measured isotopes 198–202, a minor to moderate level of MIF has been experimentally observed in the odd isotopes 199 (≤ 0.6 ‰) and 201 as a result of NFS. NFS has been described for equilibrium exchange reactions but has never been extended to kinetic processes. In contrast to the small magnitude observed in natural samples, the possibility has recently been suggested that nonequilibrium isotopic effects of NFS in photodissociation may give rise to a significant magnitude of MIF (Motta et al., 2020b).

The only effect that has been documented to lead to significant odd-mass-number Hg MIF (odd-MIF) in present-day surface ecosystems is the magnetic isotope effect (MgIE). MgIE is a purely kinetic effect triggered by the formation of a long-lived radical pair after a primary process that causes homolysis of a Hg-ligand bond upon photolytic excitation (Fig. 11). Among the stable isotopes of Hg, only ¹⁹⁹Hg and ²⁰¹Hg (odd mass numbers) have non-zero nuclear spin and momentum, with half-integer ($\mathrm{1}/\mathrm{2}$ and $\mathrm{3}/\mathrm{2}$, respectively) spins. MgIE arises when hyperfine coupling (HFC) acts on a spin-coherent solvent-separated radical pair after dissociation by changing the rate of intersystem crossing from singlet to triplet (S↔T) or vice versa (T↔S) in odd Hg isotopes. Radical pairing and MgIE are suppressed in mercuric complexes with strong spin–orbit coupling (containing bromine and iodine ligands), favoring spin mixing and to the ground state, while S-, Cl-, and C-bonded complexes with generally weak spin–orbit coupling favor strong MgIE (Motta et al., 2020a). If the radical pair is born in the triplet state (lower panel of Fig. 11), HFCs are induced, enriching odd isotopes in the resulting singlet state. The singlet radical pair can then recombine to the ground state, resulting in odd isotope enrichment in the reactant, expressed as (+)MgIE. When the radical pair is in the singlet state (top panel of Fig. 11), the overall effect is to deplete odd isotopes in the reactant, as expressed by (−)MgIE, because mainly the odd isotopes with the majority in the triplet radical pair dissociate into free radicals. A computational study has explained why the photodissociation of monomethyl Hg species in nature is observed to yield only (+)MgIE, whereas the photolysis of inorganic mercuric complexes may yield positive or negative MgIE, depending on the reaction conditions and the degree of complex ligation (Sect. 8.4).

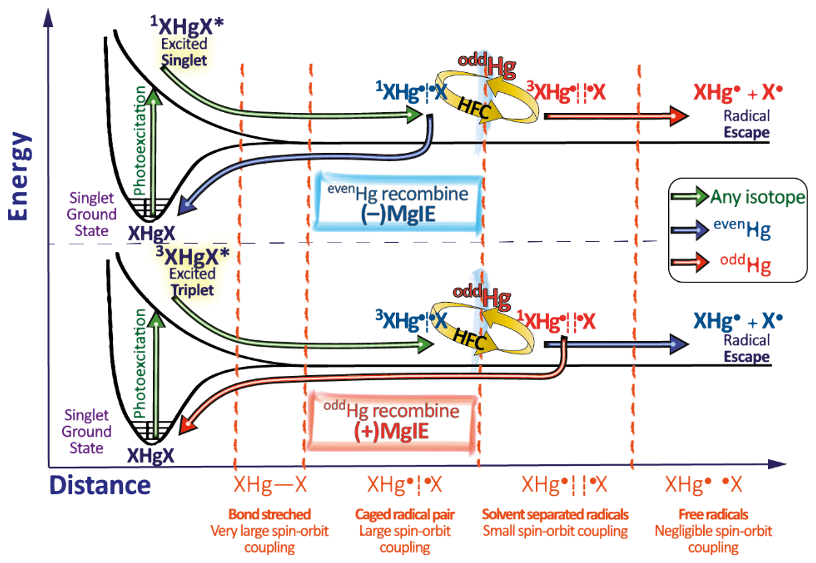

Figure 11 General scheme for the photolysis of a molecule to produce a spin-correlated radical pair (RP). The singlet and triplet RPs can be interconverted by intersystem crossing. Both the singlet and triplet RPs can escape from the solvent cage. Only the singlet RP can recombine. Adopted from Turro (1983) and Motta et al. (2020a).

Thus, odd-MIF results from both the MgIE and NFS mechanisms. MgIE is most effective in viscous solvents, where a “solvent cage” environment is possible (Turro, 1983). In addition, a seemingly enigmatic even-mass-number Hg isotope, MIF (even-MIF), has been observed in samples of atmospheric origin or deposition. However, analog atmospheric photochemical anomalous isotope fractionation is well known for the lighter (traditional) elements for which MIF (containing three or more stable isotopes), such as oxygen and sulfur, can be detected. However, understanding the underlying causes of multi-isotope anomalous fractionation is limited because investigations require detailed quantum mechanical calculations at the molecular isotope level, e.g., photodissociation. Recently, rock records have revealed significant even-MIF in the Archean atmosphere, which lacked an ozone (O₃) layer to filter UV-C from actinic light, suggesting that contemporary UV-C-induced atmospheric chemistry may be responsible for the coupled changes in even-MIF for both Hg and sulfur (Zerkle et al., 2020). Correlations between these entities have also been observed in marine aerosols in the Southern Hemisphere (Auyang et al., 2022).

MIF signatures as additional tracers

The isotopic measurement of Hg results in up to six useful isotopic signatures (δ²⁰²Hg, Δ¹⁹⁶Hg, Δ¹⁹⁹Hg, Δ²⁰⁰Hg, Δ²⁰¹Hg and Δ²⁰⁴Hg). In addition, pairs of these signatures have been utilized to distinguish between fractionation mechanisms. The relationship between these signatures is typically illustrated using a three-isotope plot. To interpret the experimental results satisfactorily, specific robust linear regression methods are recommended (Stephan and Trappitsch, 2023). On the basis of early results (Bergquist and Blum, 2007), it was assumed that photoreduction of Hg^II to Hg⁰ would result in a ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{201}}\mathrm{Hg}$ ratio of unity. Several investigated photoreactions exhibit just a ratio of 1 within the margin of error (refer to Table 9, Sect. 8.4). However, further data have shown that this is not always the case, as the slope depends on factors such as the complexing ligand and reaction conditions. Clearly, the odd-MIF signature for the photolysis of organomercurials is different from that stipulated for inorganic Hg. The photolytic degradation of MMHg⁺ species results in a variation in ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{201}}\mathrm{Hg}$ ranging from 1.17 to 1.38 depending on the reaction conditions (Bergquist and Blum, 2007; Chandan et al., 2015; Rose et al., 2015; Malinovsky et al., 2010). Compared with MgIE, NFS generally results in a much weaker MIF, with greater anomalous fractionation of ¹⁹⁹Hg than of ²⁰¹Hg, which approaches a ratio of ∼ 1.6. However, the NFS should be confirmed via alternative methods when the experimentally measured NFS is too limited to determine a definitive odd-MIF ratio (Motta et al., 2020b). Another commonly used parameter is ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathit{\delta }}^{\mathrm{202}}\mathrm{Hg}$, which describes the degree of odd-MIF in relation to TMDF. The even-MIF signature of Δ²⁰⁰Hg to Δ²⁰⁴Hg, which is negative in natural samples (air, rainfall, and fish), is discussed in Sect. 8.2.4.

8.2 Isotopic characteristics of atmospheric mercury

Figure 13 summarizes the magnitude of the isotopic observations reported in the literature on the main fractions of Hg in the atmosphere, namely gaseous Hg dominated by Hg⁰, particle-bound Hg, and Hg associated with hydrometeors (rain, snow, and water from clouds and fog). Here, δ²⁰²Hg, Δ¹⁹⁹Hg, and Δ²⁰⁰Hg are used to describe TMDF, odd-MIF, and even-MIF, respectively. The number of isotopically resolved samples has increased dramatically in recent years. Readers should consult the literature regularly to stay up to date. On the other hand, this development justifies revisiting the topic, even though it has been satisfactorily addressed in the recent past (Kwon et al., 2020). Notably, the spatial distribution of available data is heavily skewed toward North America, Europe, and East Asia, and observations from large parts of the world are missing (Fig. 13). However, as far as marine remote regions are concerned, recent oceanographic expeditions have contributed to an increasing amount of data. Further below, the in situ and laboratory experiments performed thus far to study the gas exchange of Hg⁰ between air and water, soil, and foliage in terms of isotope fractionation are discussed.

8.2.1 Gaseous Hg

The following part excludes an early series of measurements where the air was not filtered prior to sampling (Rolison et al., 2013). The referenced series of measurements should be considered TAM, not total gaseous mercury (TGM). TGM significantly affects δ²⁰²Hg (−3.75 ‰ to 1.52 ‰) and Δ¹⁹⁹Hg (−0.62 ‰ to 1.32 ‰) but is more limited to Δ²⁰⁰Hg (−0.22 ‰ to 0.11 ‰). Analogous to Hg^II deposited in biomass and fossil fuels such as coal (Sun et al., 2014), Hg⁰ in natural gas (Washburn et al., 2018) and in smoke from spontaneous combustion in coal fields (Sun et al., 2023) has strongly negative δ²⁰²Hg values. This differs from the majority of Hg⁰ in ambient air, which is isotopically heavy (often with positive δ²⁰²Hg values). Terrestrial background air (rural, subpolar, and forest in Fig. 13a) has higher δ²⁰²Hg⁰ values because it is modified by vegetation, which preferentially incorporates lighter isotopes of Hg⁰ into the foliage. Foliar uptake of Hg⁰ is discussed in more detail in Sect. 8.6.2. The estimate of atmospheric Hg⁰ dry deposition to vegetation has recently been revised and constrained to approximately 2300 Mg yr⁻¹ (Feinberg et al., 2022), and together with the large negative ε_{foliage–air} of the process, the global atmospheric Hg⁰ pool is estimated to have a δ²⁰²Hg mean of 0.5 ‰, in contrast to that of Hg⁰ from anthropogenic sources (global bulk mean of −0.7 ‰, Sun et al., 2019). Studies examining the vertical distribution of mercury (Hg⁰) concentrations from near the ground to above the canopy in different forest types reveal clear gradients averaging 10 % (Wang et al., 2022) and 20 % (Fu et al., 2016b) of ambient Hg⁰. Under stable conditions, such as during summer nights, Hg⁰ levels are strongly depleted below the canopy (Fu et al., 2016b; Mao et al., 2008; Poissant et al., 2008; Lan et al., 2012; Fu et al., 2019a). Thus, isotopic measurements of above-canopy air versus in-canopy air (Wang et al., 2022; Fu et al., 2016b) and daytime air versus nighttime air in forests (Kurz et al., 2020) show statistically significant differences (p<0.0) in δ²⁰²Hg⁰. For a deciduous forest in Northeast China, Fu et al. (2019a) reported that δ²⁰²Hg⁰ in biweekly air samples during the growing season was 0.35 ‰ to 0.99 ‰ higher than that during the dormant season. In a subtropical, perennial forest in southwestern China, where there is little seasonal variation in the photosynthetic activity of vegetation, the existing seasonal variation in δ²⁰²Hg⁰ (with an amplitude of 0.4 ‰) can be attributed to the influence of long-range anthropogenic emissions, which primarily occur during the warmer seasons. However, over the last 5–7 years, the air concentrations of Hg⁰ have decreased significantly in the two mentioned forest reserves due to reduced regional anthropogenic emissions, as evidenced by the median value of δ²⁰²Hg⁰ shifting from 0.42 ‰ to 0.46 ‰ and from 0.17 ‰ to 0.57 ‰. The marine δ²⁰²Hg⁰ data (n=112) are significantly lower (Wilcoxon test, p<0.01) than those from the forest (n=113). Coastal measurements in the Gulf of Mexico show that the marine-influenced air isotopically represents background air modified by Hg⁰ emitted from the sea after being formed in surface water by photoreduction (Demers et al., 2015). Measurements in the marine boundary layer of the offshore East China Sea indicated that airborne Hg⁰ is essentially a binary mixture of anthropogenic outflow from mainland China and air masses from the sea (significantly correlated δ²⁰²Hg⁰ and Δ¹⁹⁹Hg⁰vs. ${\mathrm{C}}_{{\mathrm{Hg}}^{\mathrm{0}}}^{-\mathrm{1}}$), with an extrapolated Δ¹⁹⁹Hg⁰ of −0.26 ‰ for the marine component. The extrapolated Δ¹⁹⁹Hg⁰ value agrees well with observations made in Hawaii with passive samplers (Szponar et al., 2020) as well as with the signatures of a larger number of samples from Mauna Loa (3397 m a.s.l.) in the free troposphere (Tate et al., 2023; Yamakawa et al., 2024).

The generally negative signature of Δ¹⁹⁹Hg⁰ in the background air indicates that Hg⁰ has been added to the pool subsequent to Hg^II photoreduction (of the variant that induces (+)MgIE in the reactant and complements it by depleting the product Hg⁰ isotopically for odd isotopes) in oceans and aerosols. This is supported by atmospheric Hg⁰ exhibiting ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{201}}\mathrm{Hg}$ slopes close to unity (Kwon et al., 2020), similar to aqueous photoreduction of inorganic Hg^II. However, not all photolytically controlled Hg⁰ re-emissions from terrestrial ecosystems contribute to negative Δ¹⁹⁹Hg⁰ values in the atmosphere. An analysis of gas exchange in a subtropical beech forest revealed bidirectional fluxes of Hg⁰, with uptake partially balanced by reemission of previously metabolized Hg^II. Photoreduction recirculates Hg⁰, contradicting a retro-flux of deposited Hg⁰ at the leaf surface (data in Fig. 18a). This re-emission is isotopically distinct in that it is enriched in odd isotopes compared with ambient air (Yuan et al., 2019b), indicating that leaf photoreduction induces (−)MgIE, as reported for Hg^II bound to organic ligands containing sulfur or nitrogen in low oxidation states (Motta et al., 2020b; Zheng and Hintelmann, 2010b). A mass balance based on isotope measurements indicates that, compared with the uptake of Hg⁰ from the air, re-emission from beech foliage gradually increases from emergence to senescence, accounting for an average of 30 % (Yuan et al., 2019b). Observations from a temperate deciduous forest revealed 0.06 ‰–0.09 ‰ higher Δ¹⁹⁹Hg⁰ values during the growing season than in winter, suggesting that foliar Hg⁰ efflux contributes to the atmospheric enrichment of odd Hg isotopes (Fu et al., 2019a).

The large spread of odd-MIF shown by Hg⁰ in polar air (Araujo et al., 2022; Yu et al., 2021; Sherman et al., 2010, Fig. 13a) is due to the portion of the collected data that includes Hg⁰ depletion events in the spring and Hg⁰ enhancement during the summer, when reemissions of Hg⁰ occur from the cryosphere. Figure 12 shows the isotopic compositions of airborne Hg fractionated into Hg⁰ and Hg^II (RM) during the Arctic spring (at three stations) compared with the corresponding data from a background station in the Pyrenees (Fu et al., 2021). With respect to Δ¹⁹⁹Hg, a dichotomy between the polar and temperate data is striking for both Hg⁰ and Hg^II(RM), in that montane oxidized Hg is enriched in a limited range (0.14 ‰ to 0.77 ‰), whereas polar Hg^II is depleted in a greater range (−2.15 ‰ to −0.18 ‰), with a complementary relationship existing for Hg⁰ (−0.31 to −0.16 ‰ versus −0.22 ‰ to 1.32 ‰). This relationship could be caused by surface layer airborne Hg being strongly influenced by the oxidation of Hg⁰ to Hg^II, which is controlled by halogen atoms during AMDEs, processes characterized by E¹⁹⁹Hg values of −0.37 ‰ and −0.23 ‰ for Cl^•-initiated and Br^•-initiated oxidation, respectively (Table 8, Sun et al., 2016). In this way, the remaining reactant is driven to a higher Δ¹⁹⁹Hg⁰ and the molecular products assume negative Δ¹⁹⁹Hg^II values. However, this interpretation is not corroborated by the measured Δ¹⁹⁹Hg/Δ²⁰¹Hg ratio of nearly unity in airborne Hg, which is more typically indicative of Hg^II photo-reduction (−MgIE) occurring in snow. It has been proposed that this process also operates in aerosols of the boundary layer, with Hg⁰ reemissions providing such a strong positive imprint that the entire boundary layer of the Hg⁰ pool becomes enriched in odd isotopes (Araujo et al., 2022). Isotopic measurements of Hg^II(g) separated from Hg^II(p) using CEM (cf. Sect. 3.1) have commenced and are anticipated to elucidate the mechanisms underlying the pronounced fractionation of odd isotopes in airborne Hg⁰ and Hg^II. Several such datasets are currently in preparation for publication. Furthermore, Hg⁰ in the Arctic during the dark period of the year and from the Antarctic Peninsula throughout the year (Yu et al., 2021) shares a consistently slightly negative Δ¹⁹⁹Hg⁰ with other background air (represented by montane air in Fig. 13a). In the late Arctic summer, minimum Δ¹⁹⁹Hg⁰ values (approaching −0.5 ‰) are observed uniformly without much variation from coastal stations around the Arctic Ocean, which are thought to result from photoreduction of cryospheric Hg^II, a substrate that has been strongly depleted of odd isotopes during months of long sunshine (Araujo et al., 2022).

Δ²⁰⁰Hg⁰ is generally negative for non-fossil/anthropogenic sources, while the remainder is significantly shifted to higher values (Wilcoxon t test, e.g., natural gas vs. arid data, p < 0.01). As mentioned above, even-MIF is generated exclusively by atmospheric chemical processes, which may be mainly limited to molecular Hg^I,II photolysis processes (Sun et al., 2022), of which Hg⁰ is a product. The marine and polar Δ²⁰⁰Hg⁰ data have the most negative values. For example, a recently published TGM record from Mauna Loa (not shown in Fig. 13a) in the Pacific Ocean has Δ²⁰⁰Hg values as low as −0.20 ‰ (Yamakawa et al., 2024). The polar pool as a unit significantly shifted toward lower Δ²⁰⁰Hg⁰ values than the forest pool did (Wilcoxon T test, p<0.05). One can only speculate as to the reason, but it should be mentioned in the context of a halogen-rich environment that any presence of Cl-initiated Hg⁰ oxidation in the gas phase will result in depletion of ²⁰⁰Hg in the reactant pool (E²⁰⁰Hg ∼ 0.06 ‰, Sun et al., 2016). Owing to its relatively limited range, ambient Δ²⁰⁰Hg⁰ and Δ²⁰⁴Hg⁰ are considered conservative tracers of atmospheric Hg⁰ deposition, and terrestrial surface and water Δ²⁰⁰Hg and Δ²⁰⁴Hg values can constrain the relative contribution of Hg⁰to Hg^IIdeposition. Throughout, a median value of −0.05 ‰ (IQR −0.02 ‰ to −0.08 ‰) of Δ²⁰⁰Hg⁰ was used to calculate this contribution to atmospheric transfer to soil (Δ²⁰⁰Hg^II∼0 ‰, Enrico et al., 2016; Zhou et al., 2021; Zheng et al., 2016) and oceans (Δ²⁰⁰Hg∼ 0.04 ‰, Jiskra et al., 2012). The quantitative AMDEs observed in Alaska are isotopically mass balanced in that the Δ²⁰⁰Hg^II in snow (−0.06 ‰) corresponds, within the measurement uncertainty, to that in ambient Hg⁰ (−0.05 ‰).

8.2.2 Aerosol-bound Hg

While Hg⁰ has a relatively long lifetime and Hg^II(g) has a short lifetime, the lifetime of particle-bound Hg (PBM, ${\mathrm{Hg}}_{\mathrm{p}}^{\mathrm{II}}$) reflects that of particles, which varies from days to months due to their size and composition. Isotopic analyses have been performed on airborne PM_2.5, PM₁₀, and TSP, as well as on particles in precipitation. Studies of urban air, regionally polluted air, and air associated with anthropogenic emissions (CFPP, traffic and waste incineration, etc.) are well represented and strongly biased toward Asia. As reviewed and discussed in Kwon et al. (2020), attempts to decipher the cause of seasonal variations in urban and industrial air are challenging in environments with a plethora of local and regional emission sources. However, primary particles from fossil fuel and biomass combustion inherit the clearly negative but highly variable δ²⁰²Hg^II(p) and the less negative Δ¹⁹⁹Hg^II(p) of the material. The large range in Δ¹⁹⁹Hg^II(p) (−0.93 ‰ to 1.5 ‰) around the origin depends on Hg^II(p) photoreduction with (+)MgIE, halogen-atom-initiated Hg⁰ oxidation or, more speculatively, Hg^II(p) photoreduction with (–)MgIE, driving the data to extremes. In a series of papers, including field measurements of particle-bound isotopic Hg in regionally polluted air (Huang et al., 2016b; Huang et al., 2019; Qiu et al., 2022; Zhang et al., 2022) and laboratory experiments (Huang et al., 2021; Huang et al., 2015), Chen and colleagues have focused on the effect of (+)MgIE photoreduction, which is accelerated in the presence of a particle surface liquid layer (wet haze) and water-soluble organic carbon as a reducing agent (Zhang et al., 2022). Several peripheral monitoring stations in China, primarily receptors of long-range particle transport, generally measure positive Δ¹⁹⁹Hg^II(p) values (Fu et al., 2019b). A strong anticorrelation between Δ¹⁹⁹Hg^II(p) (up to ∼ 1.2 ‰, but initially at near zero) and the concentration of particle-bound Hg, rationalized as caused by photo-produced Hg⁰ loss from aerosols, was observed in samples from these stations, with the major potential source area identified as northeastern China and the regions along the lower reaches of the Yangtze River to its mouth (Fu et al., 2019b). The results indicate that the globally modeled tropospheric lifetime of Hg^II against photoreduction in aerosols and clouds of nearly 2 weeks (Horowitz et al., 2017) is significantly shorter in East Asia, possibly because of a greater fraction of organic aerosols. As shown in Fig. 13b, there is a statistical anomaly in the PBM polar data for all reported isotopic signatures: positively shifted δ²⁰²Hg^II(p), negatively shifted Δ¹⁹⁹Hg^II(p), and negatively shifted Δ²⁰⁰Hg^II(p). It is represented in both Arctic (Araujo et al., 2022; Zheng et al., 2021) and Antarctic (Auyang et al., 2022; Li et al., 2020a) data in conjunction with AMDEs. In the High Arctic (∼ 83° N), there is good isotopic agreement between ambient Hg⁰ and PBM associated with nearly complete AMDEs, as would be expected. Moreover, for less quantitative oxidation, PBM is isotopically lighter than Hg⁰, analogous to kinetic isotope fractionation during oxidation and subsequent uptake of Hg^II(g) on particles (such as Arctic haze). As described above, halogen atom-driven gas-phase oxidation induces a negative Δ¹⁹⁹Hg^II(Sun et al., 2016; Auyang et al., 2022), which is consistent with the observed signature in PBM. The interpretation of Zheng et al. (2021) that gas-phase oxidation uniquely shapes isotopic fractionation has been challenged by Araujo et al. (2022), who instead consider (–)MgIE photoreduction in aerosols as the imprinting source. The Antarctic coast has shown uniquely high positive δ²⁰²Hg^II(p) values (up to ∼ 3 ‰ and anticorrelated with Δ¹⁹⁹Hg^II(p)) in air masses transported by katabatic winds from the continental shelf, where oxidation of Hg⁰ persists during summer (Li et al., 2020a). Under precipitation (Sect. 8.2.3), the high Δ²⁰⁰Hg^II values measured in southern Canada are addressed, noting that this also applies to the particulate fraction in precipitation, which is included in the rural PBM category (Fig. 13b).

8.2.3 Hg in precipitation

Measurements of Hg isotopes in precipitation samples (including fog and cloud water) have been reported at sites in the Northern Hemisphere (map in Fig. 13c), mostly in North America. Compared with the Hg⁰ and PBM samples, the precipitation samples presented the greatest scatter in both Δ¹⁹⁹Hg and Δ²⁰⁰Hg. Nevertheless, the isotopic distribution pattern in precipitation water is generally similar to that of PBM, which is scavenged in precipitation during rainout and washout processes. Precipitation in the vicinity of anthropogenic emission sources (such as CFPPs) tends to be isotopically distinct, with particularly negative δ²⁰²Hg^II values (Sherman et al., 2012). Precipitation from more pristine areas has a δ²⁰²Hg^II that is shifted in a positive direction (significant for marine, polar and rural categories, Wilcoxon t test, p < 0.01) compared with urban precipitation and precipitation near point sources. The general differences between Hg⁰ and precipitation/PBM in terms of MIF signatures (negative Δ¹⁹⁹Hg⁰ and Δ²⁰¹Hg⁰ vs. positive Δ¹⁹⁹Hg^II and Δ²⁰¹Hg^II and negative Δ²⁰⁰Hg⁰ and positive Δ²⁰⁴Hg⁰ vs. positive Δ²⁰⁰Hg^II and negative Δ²⁰⁴Hg^II, respectively) are explained by atmospheric redox processes (Auyang et al., 2022; Kwon et al., 2020). In the case of even-MIF, chlorine-atom-initiated gas-phase oxidation is known to induce a limited positive Δ²⁰⁰Hg^II in the product. However, its observed magnitude cannot explain the highest Δ²⁰⁰Hg^II measured in precipitation (Kurz et al., 2021; Chen et al., 2012; Yuan et al., 2022) in North America. Cai and Chen (2015) reported a trend toward increasing Δ²⁰⁰Hg^II in background precipitation as moving northward along the mid-latitudes of the Northern Hemisphere (∼ 20–45° N), but only with data from a unique station anomalous with greater statistical significance. A 1-year measurement north of Lake Ontario (Chen et al., 2012), separated by a full decade from measurements at the same site limited to the colder parts of the year (Yuan et al., 2022), has shown that precipitation in winter often contains high values of Δ²⁰⁰Hg^II (and, at the same time, strongly negative Δ²⁰⁴Hg^II values). During the full-year measurement in 2010, filtered precipitation samples presented a Δ²⁰⁰Hg^II in the range of 0.21 ‰ to 1.24 ‰, whereas during the colder months around the turn of the year 2020–21, the same category of samples contained between 0.25 ‰ and 1.19 ‰ and between −1.97 ‰ and 0.37 ‰ for Δ²⁰⁰Hg^II and Δ²⁰⁴Hg^II, respectively. During the last campaign, isotopic analysis was also performed on precipitation particles, which presented significantly lower positive Δ²⁰⁰Hg^II values (up to 0.37 ‰) and less negative Δ²⁰⁴Hg^II values (down to −0.84 ‰). Intermittently, the particle phase has the opposite sign to the solute phase in the same precipitation sample with respect to both odd- and even-MIF. This, together with a time series of unrelated odd-MIF and even-MIF trends during events with large fluctuations in these values, has been interpreted as the influence of the circumpolar vortex with varying contributions of tropospheric and stratospheric air, with the transport of the latter air masses explaining more extreme even-MIF values (Yuan et al., 2022). Compared with snow samples from the Canadian station north of Lake Ontario, rain samples from the Canadian station north of Lake Ontario generally have more moderately positive Δ²⁰⁰Hg^II values, which is consistent with precipitation observations in the mid-latitudinal USA (Kurz et al., 2021; Demers et al., 2013; Gratz et al., 2010; Sherman et al., 2015), Europe (Fu et al., 2021; Enrico et al., 2016), the Tibetan Plateau (Yuan et al., 2015), and the Pacific Ocean (Motta et al., 2019; Washburn et al., 2021). Although cloud water (Fu et al., 2021; Zhen et al., 2024) and fog water (Washburn et al., 2021) have been isotopically analyzed, there are no apparent differences between them or significant differences from rain samples. In cloud water, Hg speciation with increasing complexation with DOM has been shown to correlate with odd-MIF values (Zhen et al., 2024), which is consistent with the view that these mercuric complexes are photolabile. Polar precipitation samples (only those from AMDEs are reported in the literature, Araujo et al., 2022; Sherman et al., 2012; Zheng et al., 2021) consistently have slightly negative Δ²⁰⁰Hg^IIvalues, which differ from those of precipitation samples from all other provenances, which have positive median values. The reason for these observations is plausibly that oxidation is so advanced during these AMDEs that the Hg^II scavenged by precipitation approaches the same isotopic values as the Hg⁰ in the polar air before the AMDE.

8.2.4 Even-MIF (Δ²⁰⁰Hg/Δ²⁰⁴Hg) ratios in atmospheric samples

Early studies by Gratz et al. (2010) and Chen et al. (2012) revealed that MIF anomalies of even mass number isotope ²⁰⁰Hg are regularly present in atmospheric precipitation. Later, measurements (Demers et al., 2013) were also made at Δ²⁰⁴Hg, which is more challenging due to the limitations of ion beam collector designs (Blum and Johnson, 2017). The anomaly of Δ²⁰⁴Hg was generally larger and opposite to that of Δ²⁰⁰Hg. The Δ²⁰⁰Hg/Δ²⁰⁴Hg ratio has been calculated based on spatial averages and exclusively on precipitation samples, which are usually above measurement uncertainty. For example, a slope of −0.5 was previously reported (Blum and Johnson, 2017) and later adjusted to −0.4 (Kwon et al., 2020) using this method as more data became available. However, when all individual precipitation data up to 2020 were combined, Kwon et al. (2020) obtained a significantly lower regression slope of −0.24. Figure 14 shows the even-MIF data (Δ²⁰⁰Hg vs. Δ²⁰⁴Hg) binned into geographical regions (categorized as Hg⁰, rain/mist/cloud, PBM, RM, and snowfall samples). Linear regression of York-type Δ²⁰⁰Hg against Δ²⁰⁴Hg yields slopes between −0.07 and −0.53 for data grouped by site and category for data of statistical significance (p ≤ 0.05, indicated by ^*). When the global data grouped by sample type are analyzed separately, significant (p < 0.001${}^{***}$) slopes of −0.51 ± 0.02 (n = 45, Kurz et al., 2021; Yuan et al., 2022), −0.41 ± 0.03 (n = 108, Fu et al., 2021; Demers et al., 2015; Enrico et al., 2016; Sherman et al., 2012; Yuan et al., 2022; Demers et al., 2013; Donovan et al., 2013; Motta et al., 2019; Washburn et al., 2021), −0.29 ± 0.06 (n = 58, Fu et al., 2019b), and −0.11 ± 0.02 (n = 295, Fu et al., 2021; Kurz et al., 2020; Demers et al., 2015; Tate et al., 2023; Araujo et al., 2022; Enrico et al., 2016; Kurz et al., 2021; Demers et al., 2013; Yamakawa et al., 2017; Jiskra et al., 2019; Fu et al., 2016a; Wu et al., 2023a) are obtained for snowfall, rain and fog, particulate matter, and Hg⁰ respectively. The reaction mechanism triggering even-MIF could be photodissociation in the gas phase (Sun et al., 2022) or on surfaces (Fu et al., 2021). This should lead to varying degrees of fractionation depending on the species undergoing decomposition. As a result, the fractionation of atmospheric Hg^I and Hg^II species differs from one another, possibly explaining the divergent Δ²⁰⁰Hg $/{\mathrm{\Delta }}^{\mathrm{204}}$Hg values for Hg^II(aq), Hg^II(p), and Hg⁰(g).

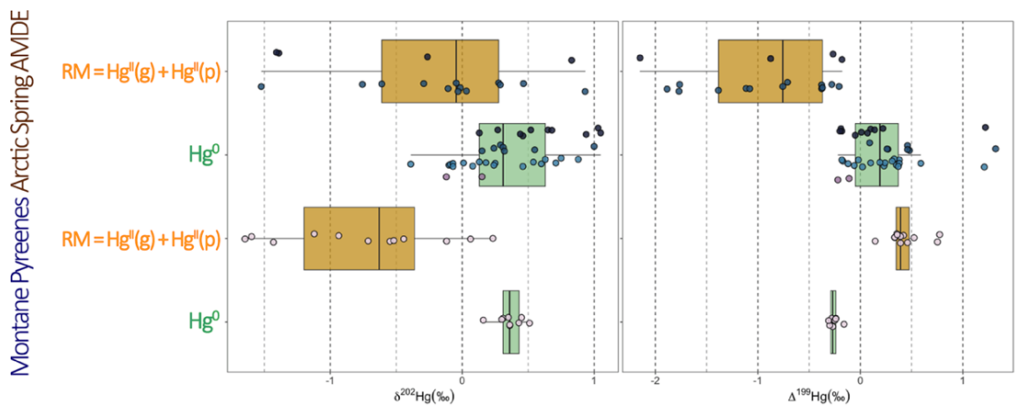

Figure 12 A comparison of the TMDF and odd-MIF signatures for atmospheric Hg⁰ and RM, measured during Arctic AMDEs and in the Pyrenees during winter, reveals notable contrasts.

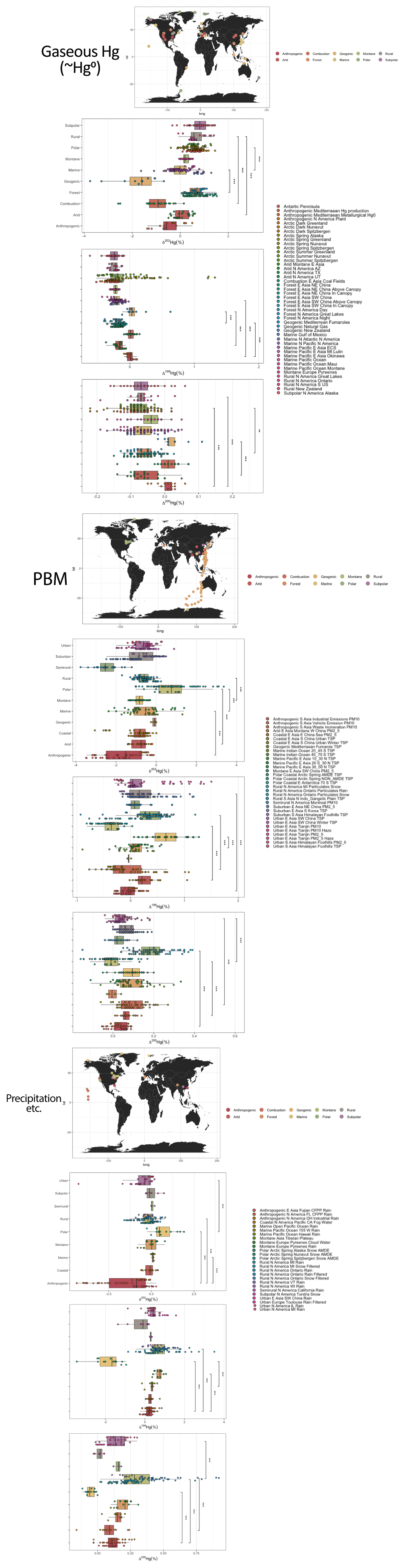

Figure 13 Global isotopic observations of gaseous Hg (∼ Hg⁰) (a), particulate Hg (PBM) (b), and Hg in precipitation (c) divided into δ²⁰²Hg (top), Δ¹⁹⁹Hg (middle), and Δ²⁰⁰Hg (bottom).

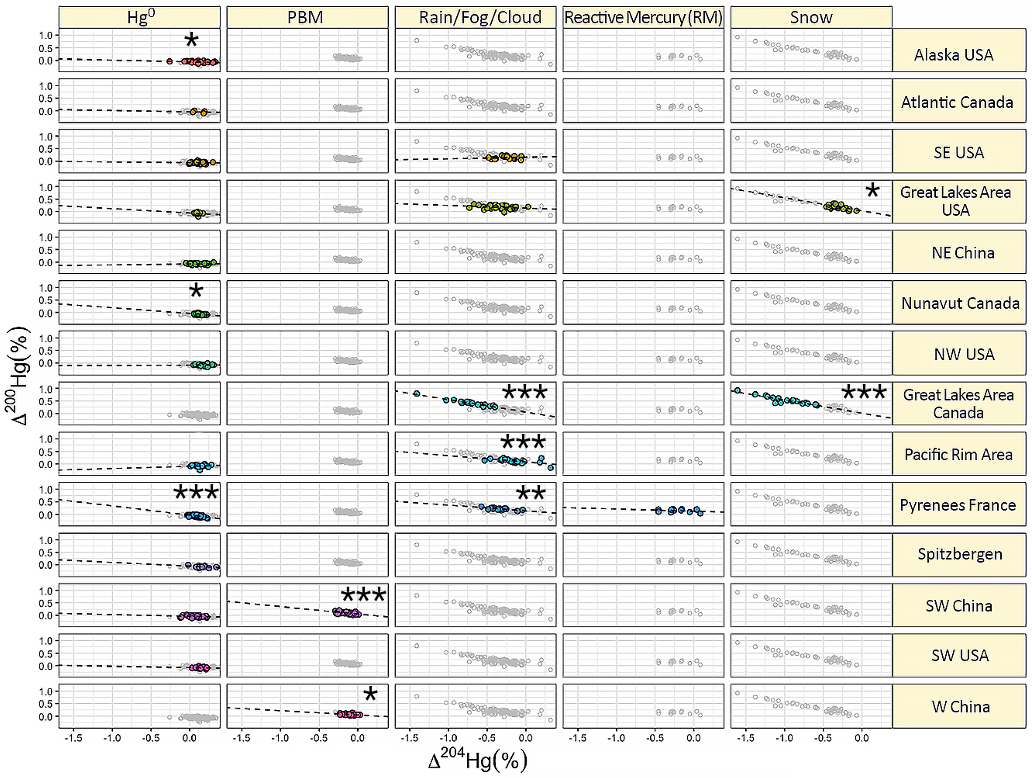

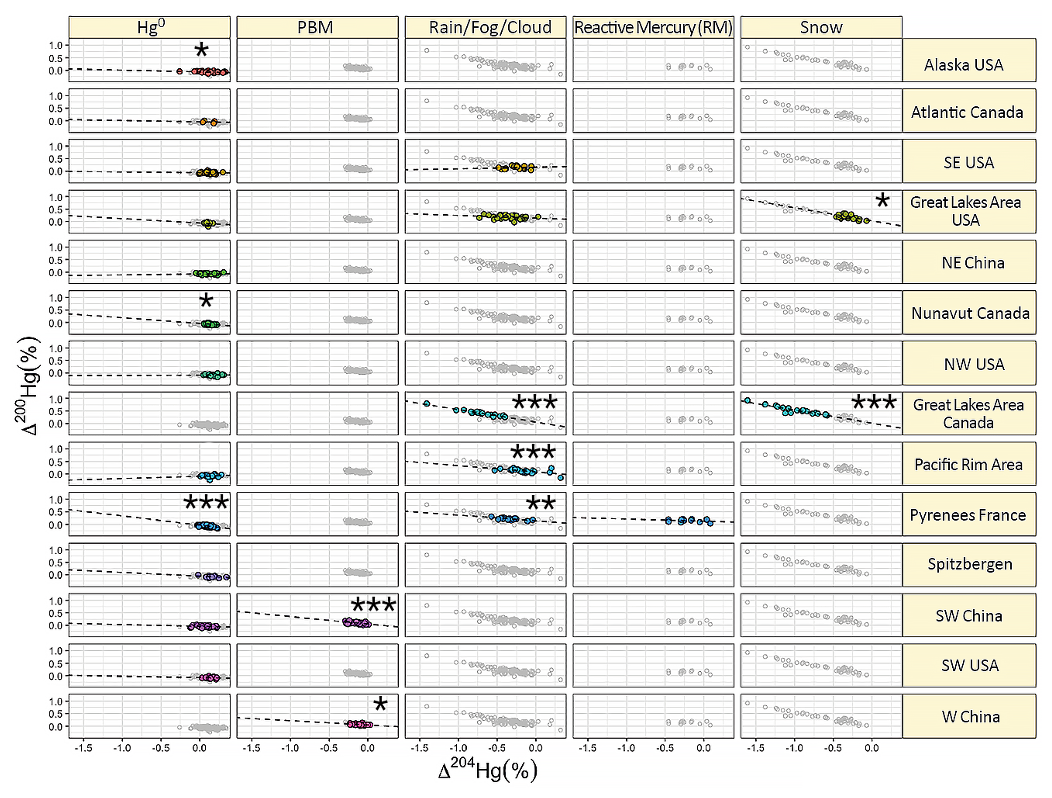

Figure 14 Global observations of even-MIF (Δ²⁰⁰Hg vs. Δ²⁰⁴Hg) by, from left, Hg⁰, PBM, rain/fog/cloud, reactive mercury (RM), and snow.

8.3 Isotope fractionation during gas-phase oxidation

Data on the stable isotopic fractionation of Hg during gas-phase chemical reactions are limited. However, in addition to the published studies on fractionation during the oxidation of Hg⁰ initiated by Cl and Br atoms (Sun et al., 2016) and during the oxidation of electronically excited Hg⁰ in the presence of synthetic air (Sun et al., 2022), the corresponding thesis provides additional data (Sun, 2018), which are highlighted here.

8.3.1 Ground-state Hg⁰ oxidation in air

Isotope fractionation during the oxidation of Hg⁰ vapor in the ground state has been studied for reactions initiated by Cl^•/Br^•/^•OH/O₃/BrO^• in air at 750 Torr and 298 K, as listed in Table 8. Figure 15 shows that the Br^• and ^•OH reactions produce a lighter isotope enrichment in the reactant Hg⁰, unlike the other reactions that follow KIE. This deviation from KIE occurs because the Hg⁰ to Hg^I step (Reactions G R1–G R3, Table 4) in the overall Hg⁰ to Hg^II oxidation is reversible. EIE is especially notable for the Br^• and ^•OH channels being affected by thermal and photolytic dissociation (Reactions G R14 and G R53), creating a cyclic replenishment of Hg⁰ at higher temperatures, as discussed in Sect. 5.1.2. EIE predicts the enrichment of heavier isotopes in species with a stronger bonding environment (e.g., HgBr₂, Hg(OH)₂, Schauble, 2007). However, at temperatures in the upper atmosphere and during AMDEs in polar regions, the rate of Reaction G R14a and G R53a becomes much lower, and the oxidation mechanism moves toward irreversibility, potentially leading to the dominance of KIE at lower temperatures. The chlorine-atom-initiated reaction already displays a KIE at 298 K, which is related to the relative thermal stability of the HgCl intermediate. All the atmospherically relevant reactions investigated (Cl^•, Br^•, and ^•OH) give rise to (+) odd-MIF, which is most pronounced for the Cl-initiated reaction (E¹⁹⁹Hg $=-$0.37 ‰) compared with the other reactions (E¹⁹⁹Hg $=-$0.23 ‰ and −0.18 ‰ for the Br and OH reactions, respectively). Analogous to ^•OH +^•OH recombination, which yields H₂O₂ in the gas phase (Velivetskaya et al., 2016; Velivetskaya et al., 2018), odd-MIF plausibly occurs due to MgIE triggered by radical–radical (^•Hg^IX + Y^•) interactions that occur during reactions, leading to the formation of XHg^IIY species. The diagnostic ratio of Δ¹⁹⁹Hg/Δ²⁰¹Hg ∼ 1.9, which is observed for the Hg⁰ + Cl^• system, differs significantly from the ratios reported for the photoreduction of Hg²⁺ complexes in water (Sect. 8.4.1).

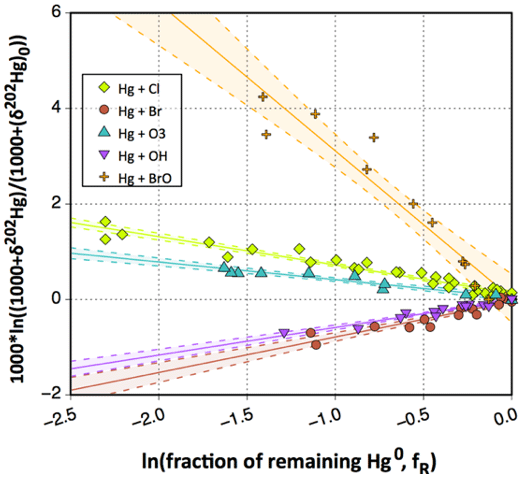

Figure 15 Linearized Rayleigh diagram for δ²⁰²Hg in Hg⁰ during Cl, Br, OH, O₃, and “BrO” oxidation experiments at ∼ 298 K showing normal and inverse KIEs. Each point represents a single experiment.

Table 8 Experimental fractionation factors determined in gas-phase oxidation studies. n/a = not applicable

8.3.2 Hg⁰ oxidation initiated by photosensitized reactions

Ancient rock samples show a significant occurrence of even-MIF in the Archean atmosphere (∼ 2.5 Ga, Zerkle et al., 2020), which lacked an O₃ layer to filter out deep UV light in the actinic zone. However, in the modern atmosphere, even MIF does not appear to occur significantly in Hg redox processes at the Earth's surface. The current atmospheric budget reveals notable imbalances between Δ²⁰⁰Hg in Hg emissions from and deposition to the Earth's surface (0.025 ± 0.032 ‰ vs. 0.073 ± 0.019 ‰, Fu et al., 2021). To maintain a steady state, even-MIF sources in the atmosphere are necessary. Studies have shown that UV-C-induced Hg⁰ vapor in the electronically excited state, Hg(³P₁), undergoes chemical transformation under both artificial (Mead et al., 2013) and modern (Sun et al., 2022) atmospheres, resulting in a large MIF of both odd and even Hg isotopes. There are claims (Blum and Johnson, 2017; Mead et al., 2013) that the ${\mathrm{\Delta }}^{\mathrm{200}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{204}}\mathrm{Hg}$ ratios found in nature are similar to those present in the glass housing of compact fluorescent lamps (CFLs). However, the Δ¹⁹⁹Hg^II, Δ²⁰⁰Hg^II, and Δ²⁰⁴Hg^II values in the CFL housing exhibit opposite signs to those observed in nature (cf. Figs. 13 and 14). Laboratory experiments have shown that the net oxidation of Hg⁰ by the reaction between excited-state Hg⁰ and atmospheric O₂, which is identical to the driving photosensitized reaction for the turnover of Hg⁰ in the upper stratosphere (Reaction G R12b counteracted by Reaction G R72, Table 4), scrambles the systematics of all Hg isotopes in an entirely mass-independent manner. These laboratory experiments and atmospheric samples show similar observations for the ${\mathrm{\Delta }}^{\mathrm{200}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{204}}\mathrm{Hg}$ ratio, suggesting that photodissociation is a potential chemical mechanism for triggering even-MIF in the atmosphere (Sun et al., 2022). This review outlines new findings on atmospheric Hg chemistry, supporting the fundamental importance of photodissociation processes (Sect. 5.1.2 and 5.1.4). In addition to the gas-phase, surface-mediated photolysis of mercurous halide species has also been proposed as a mechanism for generating even-MIF (Fu et al., 2021). However, theoretical challenges still need to be solved at the quantum mechanics level to generically expand our understanding of anomalous isotope effects for traditional and non-traditional elements (Lin and Thiemens, 2024). Further field and laboratory research in this area should be encouraged.

8.4 Isotope fractionation during aqueous-phase redox transformation

Hg transformation in the aqueous phase has been reviewed extensively, including stable Hg isotope studies (Hintelmann and Zheng, 2011). The present study does not focus on biotic processes, such as microbial reduction, methylation and demethylation, or phototrophic microbial reduction. Kritee et al. (2013) and Tsui et al. (2020) provide overviews of this field. The focus is on abiotic processes, excluding those involving coordination with macromolecular heterogeneous ligands such as DOM or fractions, and instead on low-molecular-weight ligands, including those with N–, O–, S–, or (pseudo)halide donors. This includes inorganic and organic ligands and oxidizing and reducing processes (Sect. 6).

8.4.1 Reduction

To recapitulate Sect. 8.1, in addition to MDF, isotopic effects in NFS and MgIE occur for Hg during chemical transformation in the aqueous phase. MDF and NFS are present in all reactions to varying magnitudes and in all mechanisms and have a thermodynamic nature. In contrast, MgIE is a kinetic effect and is indicative of spin-selective reactions involving a paramagnetic intermediate. Therefore, MgIE is the only isotope effect that detects the reaction mechanism. MgIE can be both thermally and photolytically induced and can be two-dimensional (+ or − depending on the reaction conditions, Zheng and Hintelmann, 2010b) or one-dimensional (exclusively +), depending on the identity of the Hg^II complex (Motta et al., 2020a). In cases where the spin-selective reaction can be induced thermally, the radical pair is generated almost exclusively as a singlet (Buchachenko, 2018), which is spin-forbidden to react (dissociate) further into products. For a singlet spin forbidden reaction compared to a triplet spin allowed reaction, the magnitude of the MgIE-MIF is more limited. However, many Hg^II complexes have a narrow energy separation of a variety of excited states, indicating that the intermediate radical pair can evolve into a triplet or singlet state. Studies of Hg²⁺ photoreduction in the presence of organic ligands (which consistently follow a pseudo-first-order kinetic pathway) have shown that, depending on the degree of Hg²⁺(aq) turnover, weak MIF is initially induced by NFS, and then, when most of the Hg²⁺(aq) has been converted, there is a shift to strong MIF induced by MgIE, the onset of which coincides with strong suppression of MDF (Motta et al., 2020b; Zheng and Hintelmann, 2010b). One explanation for why MgIE first appears closer to complete Hg^II reduction is, at least in part, that the termination radical–radical step when Hg⁰ is split off (in a bimolecular reaction, such as ${\mathrm{Hg}}^{+\mathrm{•}}+{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}/{\mathrm{CO}}_{\mathrm{2}}^{\mathrm{•}-}$ in the photoreduction of Hg(η²–C₂O₄)) is favored by a decreasing concentration ratio of oxidized Hg to bulk ligand (Zhao et al., 2021). As shown in Fig. 11, (−)MgIE is induced when the radical pair is generated in a singlet state, and (+)MgIE is induced when the excitation occurs in a triplet state. Ligand field strength, in combination with atomic orbital hybridization theory, has been used to illustrate MgIE in the (photo)reduction of Hg^II complexes. This phenomenon has been suggested to vary as a function of, among other things, the arrangement of the ligands around Hg²⁺, the coordination strength of the ligands, and the presence/absence of light along with its wavelength (Epov, 2011a, b). As discussed in Sect. 4.4, reduced S- and reduced N-containing groups are soft (strong field) ligands, whereas O-donating groups are hard (weak field) ligands. Epov (2011a) rationalized mercuric complexes with strong field ligands such as cysteine ($\mathrm{Hg}{\left(\mathrm{cys}\right)}_{\mathrm{2}}^{\mathrm{2}-}$) and ethylenediamine (Hg(en)²⁺) as bright singlets (i.e., in the presence of light) with sp hybridization at the central Hg atom in two binding orbitals. To undergo singlet–triplet evolution by hyperfine coupling between magnetic nuclei (¹⁹⁹Hg and ²⁰¹Hg) and electrons to a paramagnetic state, the orbital hybridization of Hg must change from sp-linear to sp²d-planar square so that the transfer of electrons from the soft ligand to Hg can be accomplished.

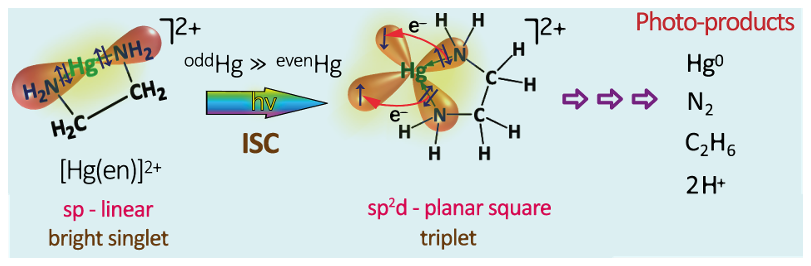

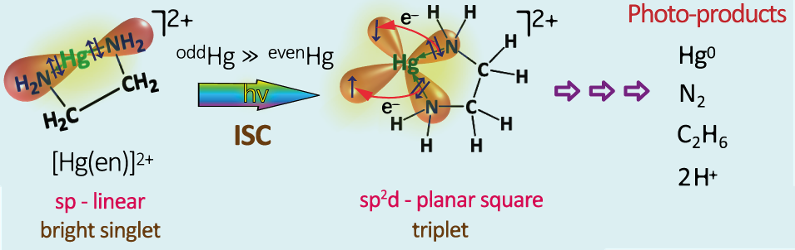

Figure 16 Mechanism proposed by Epov (2011b) for the photoreduction of Hg(en)²⁺ via a bright singlet excited complex undergoing intersystem crossing preferentially for the odd isotope to the closest triplet state, which can dissociate following a complex reaction.

Figure 16 shows the schematic for Hg(en)²⁺ + light, with (–)MgIE. It is postulated that mercuric complexes with O-binding ligands possess a bright triplet state that is more likely (spin allowed) to undergo Hg reduction via 1e-LMCT with an imprint of (+)MgIE.

For a change in the spin state to occur, spin–orbit coupling (SOC) must be induced, but if the SOC is elevated, spin relaxation or phosphorescence can be induced, which prevents the formation of a separating radical pair during dissociation, making MgIE less relevant (cf. Fig. 11). Coupling constants are known experimentally for only a few Hg-containing radicals (CH₃Hg^•, Karakyriakos and McKinley, 2004; ^•HgF, Knight et al., 1981; ^•HgCN, Knight and Lin, 1972; ^•HgH/^•HgD, Stowe and Knight, 2002). Recently, published theoretical electronic structure simulations have been performed on environmentally interesting Hg halides (Cl, Br, I) and pseudohalides (methanethiol). The study (Motta et al., 2020a) reported that the coupling for reactions involving ^•Hg^IBr and ^•HgI is so high that radical pair formation is inhibited, whereas for ^•Hg^ICl and CH₃SHg^I•, coupling is sufficient in the caged pair as well as at a low level in the separated pair geometries, allowing MgIE to form. Depending on the identity of the Hg–ligand bond that undergoes homolysis to a radical pair, either quadruple (X = Cl, S) or double (Y = C) degeneracy can occur between the low-lying electronically excited levels and the ground state in the HgX₂ and HgXY compounds, respectively, allowing the photoreduction of HgX₂ to exhibit (+)MgIE or (–)MgIE while that of HgXY (i.e., MMHgX) exhibits only (+)MgIE. This is based on the premise that the photolysis of MMHgX is exclusively by cleavage of the weaker Hg–C bond rather than the stronger Hg–X bond. (+)MgIE is most evident for the photoreduction of MMHg⁺ species, as its ³σσ* 1e-LMCT state is energetically separated from other excited states in the paramagnetic intermediate, leading to the maximization of MgIE (Motta et al., 2020a). Stable Hg isotopes provide insight into the dynamics and metabolism of inorganic and methylated Hg in biota. Exposure to the former results in subtle odd-MIF, with a Δ¹⁹⁹Hg $/$ Δ²⁰¹Hg ratio close to unity at sampling, while for the latter, this ratio is greater (∼ 1.3) with a large odd-MIF (up to ∼ 5 ‰ in fish, Li et al., 2022b).

From Table 9, which summarizes the isotopic effects quantitatively observed in aqueous-phase laboratory studies, MgIE can have different signs for the same reactant depending on the reaction conditions, as exemplified by the Hg–cysteine–light system. Depending on the degree of photoconversion, the reduction of Hg^II in the presence of water-soluble diesel soot (aromatic polyacids and humic-like structures) exhibits swings in the direction of MgIE (Huang et al., 2021). Another example of the impact of pH/complexation on the evolution of MgIE can be seen in the UV-C photodegradation of MMHg⁺ in acidic and alkaline (adjusted with NH₃) solutions. In the former, (+)MgIE is significant, but it is limited in the latter. For traditional elements with the same reaction mechanism, the strength development of MgIE depends on various factors, including viscosity, triplet sensitizer, and excited-state quenchers (Turro, 1983; Buchachenko, 2013). As seen in the laboratory experiments, both (+) and (–) net Hg MgIE were observed in samples related to the natural atmosphere, as previously reported in Section 8.2. The reaction conditions also affect the degree of turnover of the Hg reactant at which the onset of MgIE occurs, which incidentally does not correlate with a change in the overall reduction rate. To better interpret odd-MIF signatures and systematically elaborate the roles of reaction parameters (pH, presence of O₂, light wavelength, etc., Rose et al., 2015) in excited-state kinetic isotope effects, experimental research is needed. For example, dissolved O₂ is a well-known quencher of excited triplet states, but radical-O₂ reactions have also been described to induce significant MgIE (Pliss et al., 2019). For the photoreduction of Hg in the presence of multifunctional ligands (such as DOM), the stoichiometry (Hg:L ratio) has been shown to play an important role in the magnitude of MgIE induced. Zheng and Hintelmann (2009) observed an E¹⁹⁹Hg optimum (5 %) in anoxic photo-experiments with the DOM fraction from Dorset Lake, Ontario. This optimum is associated with a ligation mode in which all S-bonding functional groups are saturated by Hg²⁺ cations, increasing the proportion of Hg–O bonds and the ratio of bright triplets to bright singlets, thus making the MgIE increasingly positive. As the Hg:L ratio is further increased, the reduction rate (driven by Hg–O complexes) is significantly affected. The triplet–singlet spin evolution is limited to fewer HgL radical pairs, resulting in a lower −E¹⁹⁹Hg (Epov, 2011a). In contrast to freshwater DOM, photo experiments with Hg^II in the presence of DOM extracted from marine phytoplankton yield (–)MgIE during reduction (Kritee et al., 2018).

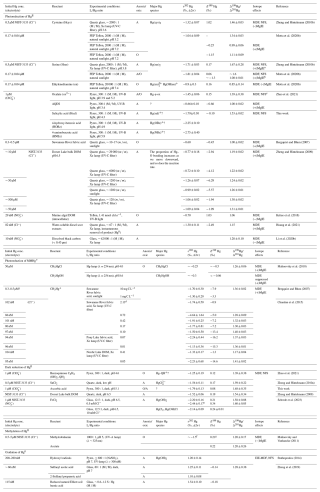

Table 9 Experimental fractionation factors determined for a variety of Hg redox transformations.

^a Appears at 4 h photoreduction and beyond with a ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{201}}$Hg of 1.10–1.18. ^b Onset of (+)MgIE at f_R= 0.40−0.76 depending on reaction conditions. ^c A single experiment (anoxic, pH 6) on oxalate indicates (+)MgIE at f_R=0.11. ^d MMHg/organic bound reduced sulfur (M $/$ M). ^e Refers to a closed system. ^f Applies to dark conditions; under UV-A irradiation demethylation gradually counteracts MMHg⁺ formation. ^g Potentially explained by photodegradation of MMHg⁺.

As shown in Table 9, photoreduction of Hg²⁺ often, but by no means always, is associated with high odd-MIF. For macromolecular entities such as DOM and fulvic acids and a selection of smaller organic ligands that use O–, N–, and S– donor atoms to complex with Hg²⁺, MgIE is initially induced in the photoreduction process, whereas for the amino acid serine, MgIE is triggered only after a significant turnover of Hg²⁺, the onset of which varies significantly depending on the reaction conditions (Zheng and Hintelmann, 2010b; Motta et al., 2020b). The experimental Δ¹⁹⁹Hg/δ²⁰²Hg data are described to follow the same trajectory, regardless of when MgIE kicks in during serine-assisted photo-reduction. When oxalic acid was screened with a single light experiment (anoxic, pH 6, f_R=0.11), (+)MgIE was observed; anoxic time series experiments with UV-B irradiation at pH 3.9 and 5.2 revealed no evidence of MgIE in the range investigated down to f_R= 0.01. This is evidence that Hg oxalate complexes can be directly photodegraded by homolysis (Hg(η²−C₂O${}_{\mathrm{4}})\stackrel{h\mathit{\nu }}{⟶}{\mathrm{Hg}}^{\mathrm{•}+}+{\mathrm{C}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{4}}^{\mathrm{•}-}$) as well as heterolysis (Hg(η²−C₂O${}_{\mathrm{4}})\stackrel{h\mathit{\nu }}{⟶}$ Hg + 2 CO₂). Heterolytic photoreduction does not induce MgIE but results in NFS with limited (−)odd-MIF, as is the case for ligation with the substituted aromatic carboxylic acids shown in the table. This also applies to thermal (dark) reduction by a unimolecular (e.g., Hg−QH${}^{+}\to$ Hg⁰ + Q + H⁺) or bimolecular (e.g., Hg²⁺ + Sn${}^{\mathrm{2}+}\to$ Hg⁰ + Sn^IV) processes. Although NFS is a general isotopic effect, its magnitude depends on the shift in the 6s orbital electron density, which is greater for a redox reaction than for ligand exchange or evaporation. In turn, ionic Hg complexes have greater NFS than more covalent complexes upon reduction to Hg⁰. NFS typically produces a characteristic Δ¹⁹⁹Hg/Δ²⁰¹Hg slope of ∼ 1.54 to 1.66, as determined from experimental studies and theoretical calculations. However, the application of linear regression to NFS odd-MIF data (Δ¹⁹⁹Hg vs. Δ²⁰¹Hg) is limited in several cases because the observations are distributed over such a small range that they approach the scale of the corresponding analytical precision. Table 9 gives 2 standard deviations of the slope of the linear fits using York's regression, and the uncertainty is so large that it does not allow a definitive Δ¹⁹⁹Hg/Δ²⁰¹Hg ratio to be determined. In these cases, it has been suggested that a better indicator of NFS is instead to confirm that the patterns of Hg isotope fractionation observed mimic the odd–even staggering pattern of nuclear charge radii (Motta et al., 2020b). The description of NFS is limited to equilibrium fractionation (Eq. 25) and predicts, similar to EIE-MDF (Eq. 23), the enrichment of heavier isotopes in the oxidized fraction of the red–ox pair. Calculations performed for a series of Hg^II complexes, both binary and heterogeneous, containing simple hard and soft ligands relative to Hg⁰, show that NFS makes the most significant contribution to ε²⁰²Hg (ranging in total from 46 to 85 % at 25 °C; Jiskra et al., 2012). The expected mass-independent enrichment E¹⁹⁹Hg_NFS can be calculated based on the calculation of ε²⁰²Hg_NFS, using the scale factors β_KIE−MDF and β_NFS (Jiskra et al., 2012):

$$\begin{array}{}\text{(26)}& \begin{array}{rl}{E}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{NFS}}& ={\mathit{\epsilon }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{NFS}}\cdot \left({\mathit{\beta }}_{\mathrm{NFS}}-{\mathit{\beta }}_{\mathrm{KIE}-\mathrm{MDF}}\right)\\ & \approx -\mathrm{0.2}\cdot {\mathit{\epsilon }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{NFS}}.\end{array}\end{array}$$

Reduction by Fe^II and p-substituted benzoic acids results in one of the highest magnitudes of experimentally observed kinetic MDF (Table 9). The former system has been studied anoxically as both an open and closed system (Schwab et al., 2023), where the fractionation is of the Rayleighian model (kinetic) and equilibrium type, respectively. The closed system permits overprinting with the signature of isotopic equilibrium fractionation between Hg⁰ and hydrolyzed Hg²⁺, which has been consistently determined in two independent studies to be −2.63 ‰ (Wang et al., 2021) and −2.44 ‰ (Schwab et al., 2023), respectively. As demonstrated below, the magnitude of the equilibrium isotope enrichment factor (ε²⁰²Hg) between Hg⁰ and thiol-bound Hg^II is significantly lower (1.1–1.6 ‰), which is related to the lower vibrational energy of Hg–S bonds than that of Hg–O/Cl bonds.

8.4.2 Oxidation

To the extent that isotopic effects in aqueous-phase Hg⁰ oxidation have been studied in the laboratory, it has been observed that oxidized Hg becomes isotopically heavier than the reactant. The observed fractionation does not conform to the Rayleigh model, but it is consistent with EIE in a closed system. Consequently, the isotope ratio of the product(s) linearly approaches that of the reactant at the beginning of the reaction. An example of atmospherically relevant oxidation is the rapid reaction with ^•OH (Reaction W R2, generated by photolysis of ${\mathrm{NO}}_{\mathrm{3}}^{-}$) with ε²⁰²Hg = 1.20 ± 0.14 ‰ (Stathopoulos, 2014). Experiments with thiol-substituted carboxylic acids in the dark produced similar fractionation results (Table 9, Reaction W R7). Additionally, NFS produces a small odd-MIF signal that consistently acts in the opposite direction of mass-dependent fractionation (Zheng et al., 2019). The reason for observing EIE despite the continuous oxidation of Hg⁰ without any indication of reversibility in the form of back reactions has been attributed to the rapid exchange of Hg isotopes between the remaining Hg⁰ and the formed Hg^II complexes (Wang et al., 2020). There is currently debate surrounding the mechanism by which this exchange occurs (Wang et al., 2020, 2021; Zheng et al., 2019). In the presence of humic acid, the oxidation of dissolved Hg⁰ exhibits two kinetic regimes where the EIE is not fully established in the initial regime (Zheng et al., 2019). KIE-MDF during dark reduction in the presence of DOM and EIE-MDF during dark oxidation caused by humic acid results in fractionation in the same direction and magnitude, so unmasking the controlling redox process from isotopic measurements can be difficult.

8.5 Isotope fractionation during complexation, sorption, and surface-catalyzed reduction

8.5.1 Processes interfacing the aqueous phase

Theoretical computations of EIE based on the MDF and NFS generally agree with experimentally determined fractionation factors for complexation. Competitive complexation of Hg^II between one of the typical hard ligands HO⁻ and Cl⁻ and a soft ligand in the form of a thiol resin results in a lighter isotopic signature of the sulfur-bound Hg^II pool (ε²⁰²Hg values of −0.62 ‰ and −0.53 ‰, respectively), which is related to increased covalent bonding and electron density in the 6s Hg orbital (Wiederhold et al., 2010). For the sorption of dissolved Hg^II on α-FeOOH, the observed isotopic fractionation (ε²⁰²Hg ∼ −0.4 ‰) is exclusively determined by the process in solution, where a vanishingly small pool (<0.1 %) of isotopically lighter cations is in equilibrium with a bulk of neutral Hg^II molecules, with only the former being sorption active (Jiskra et al., 2012). Equilibration and kinetic fractionation have been reported to describe the precipitation process of β-HgS and HgO, respectively, from an initially acidic solution, with ε²⁰²Hg values between the precipitate and the supernatant being −0.63 ‰ and −0.32 ‰, respectively (Smith et al., 2015). Like adsorption on goethite, the observed fractionation during the precipitation of metacinnabar is interpreted as an effect of solution chemistry, in this case, a transition from O– to S– bonding for Hg^II. In addition to the homogeneous-phase reduction of Hg^II by Fe^II in aqueous solutions (Table 9), the heterogeneous-phase reduction of Hg^II by surface-bound (adsorbed Fe^II on goethite/boehmite) or structural Fe^II (magnetite ${\mathrm{Fe}}^{\mathrm{II}}{\mathrm{Fe}}_{\mathrm{2}}^{\mathrm{III}}{\mathrm{O}}_{\mathrm{4}}$, Schwab et al., 2023, and siderite/green rust FeCO₃, Wang et al., 2021) has been studied isotopically. As shown in Table 10, the isotopic fractionation in heterogeneous reduction is closely related in magnitude to that of homogeneous fractionation by Fe^II (Table 9), except in the case of magnetite (whose iron structure is present in different oxidation states), which has a much more limited TMDF and MIF (ε²⁰²Hg = −1.38 ‰ and E¹⁹⁹Hg = 0.13 ‰, respectively). All these processes, when determined with confidence, demonstrate Δ¹⁹⁹Hg/Δ²⁰¹Hg ratios within the range of 1.56 to 1.62, which indicates that the observed MIF (E¹⁹⁹Hg in the range of 0.13 ‰ to 0.34 ‰) is caused by NFS.

8.5.2 Processes interfacing the gas phase

Section 8.4.1 and Table 9 refer to a study of Hg^II photoreduction of aqueous diesel soot, which includes experiments with a stationary soot phase mixed with HgCl₂ on a quartz plate over which a slow flow of Ar gas passes, as discussed below (Huang et al., 2021). In comparison, photoreduction in aqueous- and solid-phase diesel soot shows equivalent enrichment of heavier isotopes in the Hg reactant of 1.26 ‰–1.75 ‰. This value overlaps with the values typical of Hg redox chemistry (Table 9). In contrast to the aqueous phase, the photoreduction in the solid phase shows a continuous strong MIF (this time, positive MgIE induced in the Hg⁰ product) throughout the reaction, whereas in the latter case, a large MIF of the opposite sign occurs after only ∼ 60 % of the reaction. Furthermore, the reduction rate increases with increasing carrier gas humidity. The photo-triggered MgIE is highest when the carrier gas is dehumidified but decreases rapidly as the RH increases (Table 10).

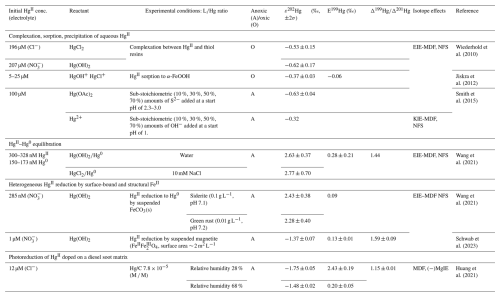

Table 10 Experimental fractionation factors determined for Hg^II complexation, sorption, surface-catalyzed reduction, and processes interfacing the gas phase.

8.6 Isotopic fractionation during air–surface Hg⁰ gas exchange

The interaction between atmospheric Hg and the Earth's reservoirs has been discussed only briefly in Sect. 3.2, as this area has recently been covered by a literature review (Sommar et al., 2020). Importantly, the gas exchange of volatile Hg is bidirectional. Consequently, the net flux of Hg over an ecosystem may represent a delicate balance between opposing processes, including deposition/uptake versus re-emission. The end members of Hg exchange between the surface (biosphere, pedosphere, lithosphere, hydrosphere, and cryosphere) and atmosphere are all isotopically distinguishable (Liu et al., 2024). A combination of bulk measurements and analysis of stable Hg isotopic compositions enables separation of the contributions from atmospheric Hg^II and Hg⁰ deposition, as well as local partitioning between Hg⁰ deposition and re-emission. The isotopic composition of atmospheric Hg is presented and discussed in Sect. 8.2. In addition to the data, an updated compilation of complementary isotopic Hg data for reservoirs that are in contact with the atmosphere and thus can undergo gas exchange has been produced during the preparation of this review (Liu et al., 2024). In the following, we express absolute deposition with negative values and vice versa for emission throughout.

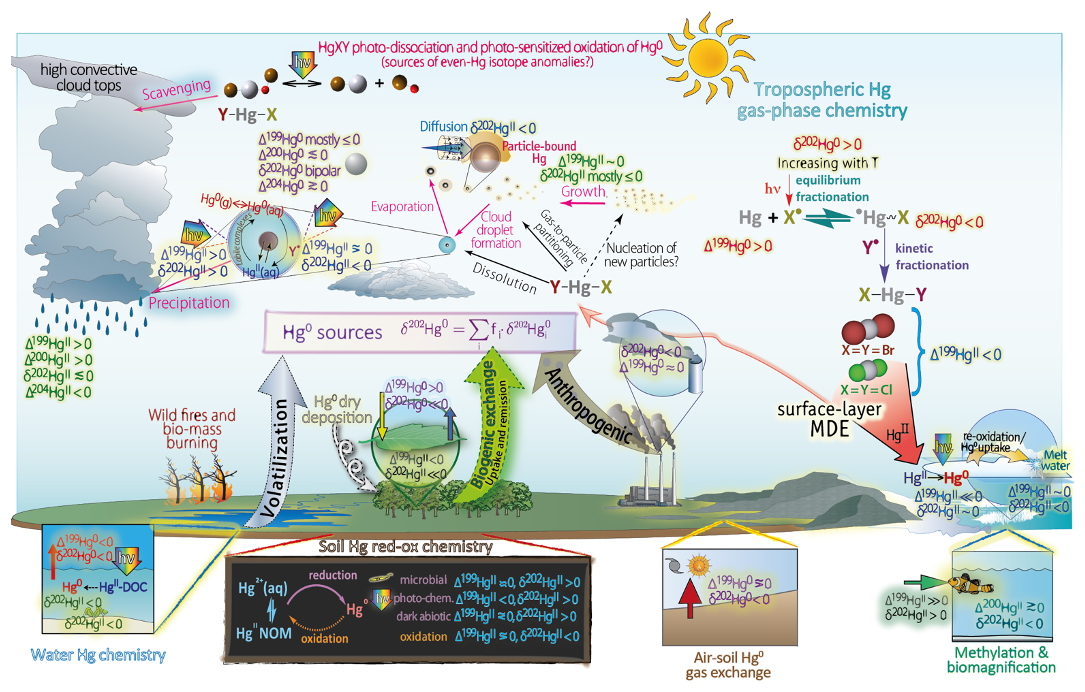

Figure 17 Schematic illustration showing key biogeochemical Hg processes in Earth's surface reservoirs and their associated Hg isotope fractionation along with corresponding isotopic composition observations focused on the atmosphere. Section 8.2 addresses the isotopic characteristics of atmospheric mercury. The existing isotopic information on the gas-phase and water-phase redox transformations of mercury is presented in Sect. 8.3 and 8.4, respectively. Section 8.5 and 8.6 describe isotopic fractionation in heterogeneous chemical processes and processes involving Hg⁰ gas exchange between the atmosphere and the Earth's surface reservoirs, respectively.

8.6.1 Mixing and fractionation modeling of Hg⁰ deposition and post-depositional processes

Deposition

Isotope-based modeling by binary (e.g., Eq. 27) and ternary mixing with MDF, odd-MIF, and even-MIF signatures of atmospheric Hg⁰ and other Hg pools as end members has been applied to distinguish the fraction of Hg⁰ deposition via vegetated surfaces (Wang et al., 2020b, 2019b; Enrico et al., 2016; Obrist et al., 2017; Li et al., 2022a, 2023a, 2023b), soil (Zheng et al., 2016; Obrist et al., 2017; Wang et al., 2019b, 2020a), water (Jiskra et al., 2021; Zhang et al., 2023a), throughfall (Wang et al., 2020b), and snow run-off (Douglas and Blum, 2019), estimated to be 60 %–90 %, 32 %–105 %, 50 %–85 %, 34 %–82 %, and >75 % of total deposition, respectively. As a proxy for atmospheric Hg⁰, foliage/litter Hg has been used as an end-member in mixing modeling of Hg⁰ inputs to soil (Demers et al., 2013; Jiskra et al., 2015; Zhang et al., 2013), runoff (Jiskra et al., 2017), and stream water (Woerndle et al., 2018), which may introduce bias because a significant fraction of the gross air Hg⁰ incorporated as Hg^II in foliage is re-emitted after photoreduction (Yuan et al., 2019b). The contribution of Hg⁰ deposition to vegetation Hg uptake is greatest in foliage, followed by branches, bark, stems, and roots (Wang et al., 2020b; Liu et al., 2021a; Sun et al., 2017). The new Hg isotope evidence has demonstrated that Hg throughfall via the canopy and along stems, which was previously assumed to be derived mainly from wet and dry deposition of atmospheric RM (Wright et al., 2016), contains a larger proportion of Hg excreted from biomass, where it originated mainly from Hg⁰ uptake followed by translocation. The isotope mixing formula is used to determine the proportions of different isotope sources in a mixture, the simplest form of which is as follows:

$$\begin{array}{}\text{(27)}& \begin{array}{rl}& {\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{mix}}=f_{\mathrm{1}}\cdot {\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{1}}\\ & +f_{\mathrm{2}}\cdot {\left({\mathit{\delta }}^{\mathrm{xxx}}\mathrm{Hg}\right)}_{\mathrm{2}}{f}_{\mathrm{1}}+f_{\mathrm{2}}=\mathrm{1}.\end{array}\end{array}$$

Post-deposition

Isotopic and concentration measurements of Hg⁰ jointly in near-surface air and surface pore air/water, in addition to other isotopic data, allow the inference of processes by mass balance or Rayleigh-type models at the air–soil interface and in the surface soil (Jiskra et al., 2019; Li et al., 2023a; Yuan et al., 2021; Chen et al., 2023). For poorly drained boreal organic soil horizons (Histosols), in contrast to Podzols, mixing modeling indicates significant reductive loss (24 %–33 %) to the atmosphere by abiotic reduction (Jiskra et al., 2015). A further multi-process model is presented here, which is designed to elucidate the dynamic evolution of post-depositional Hg (>90 % from litterfall) on the subtropical forest floor over a 500-year period (Yuan et al., 2020). The results indicate that photolytic and microbial reduction processes exert an influence during the initial few years but are subsequently superseded by dark redox processes (exhibiting NFS) in the compost, where Hg^II finally becomes inert at depths of > 10 cm in the horizon after approximately 420 years. Studies of forest soils in different climatic zones have shown that microbial reduction (ε²⁰²Hg = −0.4 ‰, E¹⁹⁹Hg ≈ 0, Kritee et al., 2007) plays a dominant role (Yuan et al., 2021; Chen et al., 2023), which, for rainforests, can explain up to 90 % of the Hg^II reduction in the upper soil horizon (Yuan et al., 2023b). In an open boreal peatland, photoreduction dominated the post-depositional process, accounting for the transformation of 30 % of the annually deposited Hg (Li et al., 2023a).

8.6.2 Enclosure and related flux measurements

Experimental investigations employing dynamic flux chambers (DFCs) have been conducted in both ambient and controlled environments with the objective of elucidating the isotopic dynamics of Hg⁰ exchange between the atmosphere and vegetation at the branch level (Yuan et al., 2019b; Chen et al., 2023), as well as between air and soil (Yuan et al., 2021; Chen et al., 2023; Zhu et al., 2022; Zhang et al., 2020), water (Zhang et al., 2023a), and snow (Sherman et al., 2010). For this application, in addition to traditional chambers (Demers et al., 2013; Chen et al., 2023; Zhu et al., 2024), a type was used that produces a uniform surface friction velocity over flat ground to couple with ambient shear conditions to scale to the ambient flux (Yuan et al., 2021, 2023b; Lin et al., 2012). The surface–atmosphere Hg⁰ flux is the result of complicated bidirectional processes, including Hg⁰ efflux from the surface and direct atmospheric Hg⁰ deposition.

Deposition and sink processes

When direct Hg⁰ deposition is measured absolutely and isotopically with a DFC, enrichment factors for TMDF (ε²⁰²Hg${}_{\mathrm{air}/\mathrm{surface}}$) and odd-MIF (E¹⁹⁹Hg${}_{\mathrm{air}/\mathrm{surface}}$) may be calculated via a linearized Rayleigh fractionation model (Zhu et al., 2022; Mariotti et al., 1981):

$$\begin{array}{}\text{(28)}& \begin{array}{rl}& {\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}{\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{air}}^{\mathrm{0}}={\mathit{\epsilon }}^{\mathrm{202}}{\mathrm{Hg}}_{\text{surface-air}}\cdot \ln \left(c_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}/c_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)\\ & {\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}{\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{air}}^{\mathrm{0}}=E^{\mathrm{199}}{\mathrm{Hg}}_{\text{surface-air}}\cdot \ln \left(c_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}/c_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)\end{array},\end{array}$$

where c represents the concentration, and the indices air and DFC refer to the air entering and exiting the DFC, respectively. Alternatively, Eq. (28) is applied to extract ε²⁰²Hg_{surface–air} using measurements of $c^{{\mathrm{Hg}}^{\mathrm{0}}}$ and δ²⁰²Hg⁰ at two pristine sites with and without vegetation (Enrico et al., 2016) or using daytime vs. nighttime segregated ambient air data at the same site (Jiskra et al., 2019). When direct deposition is measured isotopically with a DFC, the residual Hg⁰ in the chamber outlet shifts to be preferentially isotopically heavier, with a large but variable discrimination observed over soils (ε²⁰²Hg_soil–air = ∼ 0 ‰ to −5.8 ‰, Chen et al., 2023; Yuan et al., 2023b; Zhu et al., 2022) and over vegetation (ε²⁰²Hg${}_{\text{foliage–air}}=\sim$ −1 ‰ to −4.2 ‰, Yuan et al., 2019b; Enrico et al., 2016; Demers et al., 2013; Jiskra et al., 2019; Chen et al., 2023). Deposition in contact with any surface does not result in a significant change in Δ¹⁹⁹Hg⁰, unlike the situation with δ²⁰²Hg⁰.

Information on the sink processes of Hg⁰ in the soil can be obtained by pursuing measurements of isotopic Hg⁰ in the soil pore air under sub-ambient concentration regimes. In tundra (Jiskra et al., 2019) and peatlands (Li et al., 2023a), the isotopic differences between ambient Hg⁰ and pore gas Hg⁰, whose concentrations is sub-ambient (∼ 0.4–∼ 0.6 and ∼ 0.2–∼ 0.7 ng m⁻³) and therefore mediate Hg⁰ net diffusion into the substrate via Eq. (28), have been linked to DOM-driven anaerobic oxidation in soil water exhibiting EIE (Zheng et al., 2019). Investigations of the Hg⁰ level in the pore air of forest soils provide a mixed picture, ranging from sites with highly depleted air (Obrist et al., 2014) to sites with up to 10 times enriched pore air (Yuan et al., 2019a) compared with the ambient concentrations above. In subtropical (Yuan et al., 2019a) and subalpine (Chen et al., 2023) forest soils, the concentration of Hg⁰ in pore air is typically higher than that in near-surface ambient air and shows seasonal isotopic variations (TMDF and odd-MIF), suggesting complexity in Hg⁰ gas exchange between air and soil. In tropical forest soils, pore air shifts from being nearly ambient during the rainy season to being markedly sub-ambient during the dry season (Yuan et al., 2023b). To resolve Hg⁰ flux partitioning here, a combination of DFC measurements of net fluxes and forced unidirectional efflux, soil pore air, and Hg isotopic composition in forest soil depth profiles are employed as inputs into isotope mass balance models based on odd-MIF (Yuan et al., 2021). Net fluxes measured by DFC are interpreted as a ternary mixing of deposition, Hg⁰ losses from the surface soil via Hg^II photoreduction, and a term generated by Hg redox processes (dark/microbial reduction vs. oxidation) in the organic soil horizon. Although associated with considerable uncertainties, the estimated gross deposition to the forest floor is between −7.8 and −1.8 ng m⁻² h⁻¹ for the subtropical site (Yuan et al., 2021); between −6.7 and −4.4 ng m⁻² h⁻¹ for the tropical site (Yuan et al., 2023b), depending on the season; and between −4.9 and −2.0 ng m⁻² h⁻¹ for the subalpine site, depending on the type of forest floor (Chen et al., 2023).

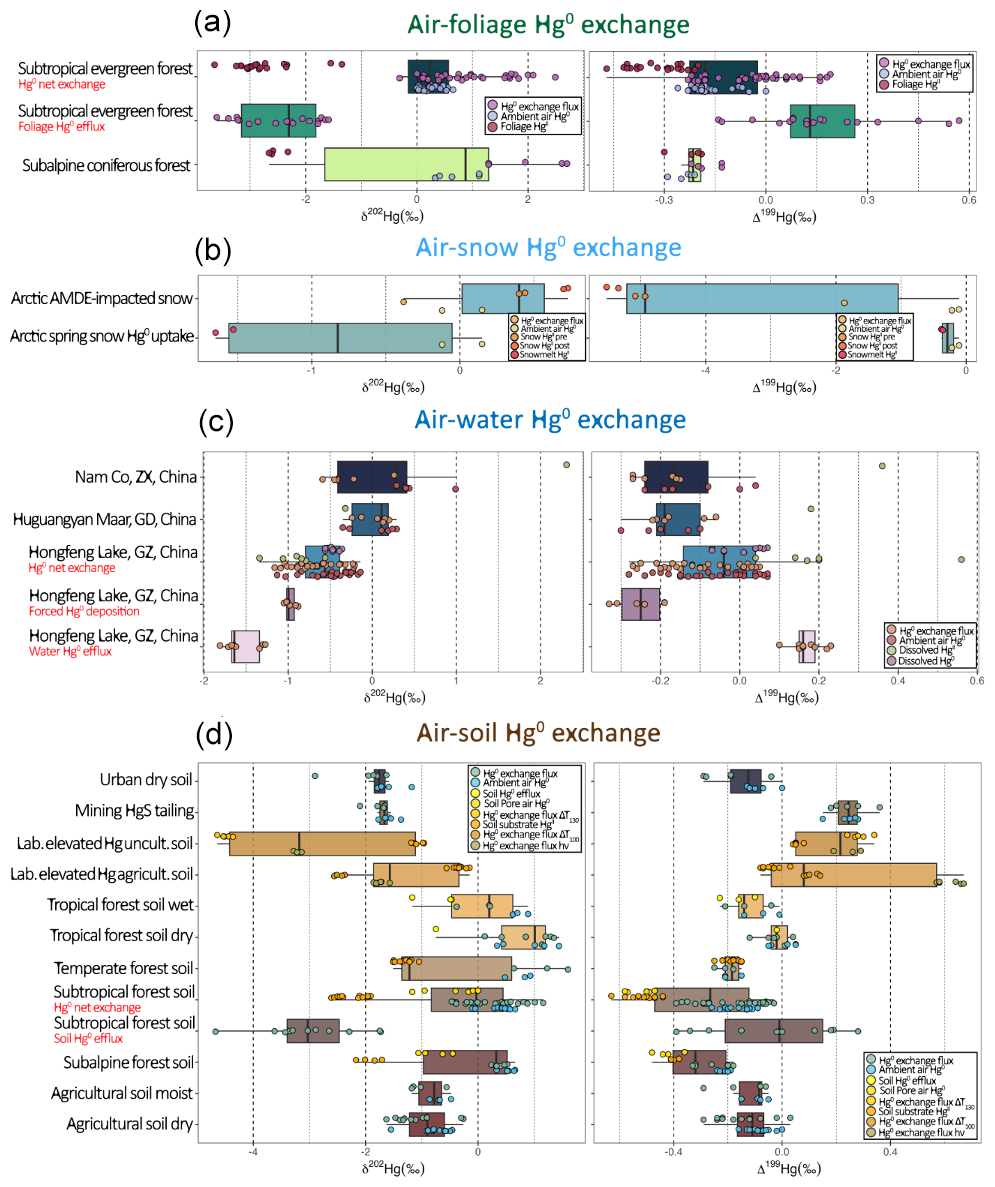

Figure 18 Statistical summary of observations from isotopic studies of Hg⁰ exchange between the atmosphere and various groups of surface reservoirs on Earth. In the air–foliage group, data were taken from Yuan et al. (2019b) and Chen et al. (2023). For the air–snow group, data were taken from Sherman et al. (2010) and Douglas and Blum (2019). For the air–water group, data were taken from Zhang et al. (2023a, 2021a). For the air–soil group, data were taken from Zhang et al. (2020), Zhu et al. (2022), Yuan et al. (2021, 2023b), and Chen et al. (2023).

Foliar oxidation of Hg⁰ drives its reactive uptake and is the most important step in the accumulation of initially Hg⁰ uptake by plants (Liu et al., 2021b). Direct bio-oxidation from Hg⁰ to Hg^II has been traced to heme enzymes that catalyze the degradation of H₂O₂, specifically to a ferryl (O = Fe^IV) catalase radical cation complex (Ogata and Aikoh, 1984) that swiftly oxidizes Hg⁰ (1.4 × 10⁴ M⁻¹ s⁻¹, Wigfield and Tse, 1986):

$$\begin{array}{}\text{(R14)}& \begin{array}{rl}& {\mathrm{H}}_{\mathrm{2}}{\mathrm{O}}_{\mathrm{2}}+\langle {\mathrm{Fe}}^{\mathrm{II}}-E^{\mathrm{•}+}⟶{\mathrm{Fe}}^{\mathrm{III}}-E\rangle \\ & \to {\mathrm{H}}_{\mathrm{2}}\mathrm{O}+\langle \mathrm{O}={\mathrm{Fe}}^{\mathrm{IV}}-E^{\mathrm{•}+}\leftrightarrow \mathrm{O}={\mathrm{Fe}}^{\mathrm{III}}-E\rangle \\ & {\mathrm{Hg}}^{\mathrm{0}}+\langle \mathrm{O}={\mathrm{Fe}}^{\mathrm{IV}}-E^{+\mathrm{•}}\leftrightarrow \mathrm{O}={\mathrm{Fe}}^{\mathrm{III}}-E\rangle \\ & +\mathrm{2}{\mathrm{H}}^{+}\to {\mathrm{Hg}}^{\mathrm{2}+}+\langle {\mathrm{Fe}}^{\mathrm{II}}-E^{+\mathrm{•}}\leftrightarrow {\mathrm{Fe}}^{\mathrm{III}}-E\rangle +{\mathrm{H}}_{\mathrm{2}}\mathrm{O}\end{array},\end{array}$$

where E represents the heme group attached to the enzyme, which can provide an electron, reducing the formal oxidation number of iron from 5 to 4. Divalent Hg readily binds to soft functional groups on the enzyme as soon as it is formed. MDF fractionation during oxidation of the absorbed isotopically light Hg⁰ causes the product pool to be heavier than the reactant, which is consistent with observations that Hg^II incorporated into leaf shoots is only slightly lighter than Hg⁰ in ambient air. Notably, in contrast to the Hg pool in the leaf shoots, the Hg in the growing foliage of the current year shifted rapidly in the first months toward clearly negative δ²⁰²Hg^II signatures, the causes of which have been discussed elsewhere (Yuan et al., 2019b).

In contrast to the observations regarding the air modified by interactions with soil and foliage, the residual Hg⁰ in the outgoing air is significantly lighter than that in the incoming air (${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{air}}^{\mathrm{0}}$ ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}=\mathrm{0.38}$ ‰), as observed by DFC, for deposition regimes over freshwater surfaces (Zhang et al., 2023a). This may be interpreted as the dissolved Hg⁰(aq) being consumed by oxidation, whereby the rapid exchange of Hg isotopes between the remaining Hg⁰ and the formed Hg^II (Sect. 8.4.2) causes the former, which is partially returned to the gas phase, to exhibit a more negative δ²⁰²Hg⁰. In surface waters, photolytic re-reduction is also possible, which can be used for determining the isotopic composition of dissolved Hg⁰ (Zhang et al., 2021a).

During colder seasons with limited solar radiation, there is a small but persistent net Hg⁰ dry deposition over the snow-covered Arctic interior tundra (Obrist et al., 2017), whose interstitial snow air has sub-ambient concentrations (0.69 vs. 1.07 ng m⁻³) with comparatively more positive δ²⁰²Hg⁰ values (1.08 vs. 0.77 ‰, Jiskra et al., 2019). Using the exclusion method, this trajectory may reflect Hg⁰ uptake by ground lichens (Olson et al., 2019). Compared with the hinterland snowpack (∼ 50 ng m⁻²), the Arctic coastal snowpack has regionally much higher Hg^II pools (>2000 ng m⁻²), which are characteristically released as an ionic pulse in the runoff during snowmelt. High Hg^II concentrations in the coastal marine cryosphere are partially explained by AMDEs (described in Sect. 3.2, Douglas et al., 2017). However, coastal AMDE deposition is mostly re-emitted as Hg⁰ to the atmosphere before snow melts (see below). In contrast, the pulse in runoff appears to be related mainly to the reactive uptake of Hg⁰ on marine snow, which is rich in halogen compounds and other reactive species (see Sect. 7.3) (Douglas et al., 2017). In support of the significant reactive uptake of Hg⁰ on salt-laden snow, analogous odd-MIF signatures between ambient air Hg⁰ and snowmelt Hg^II have been reported (Δ¹⁹⁹Hg values documented in Fig. 18b, Douglas and Blum, 2019).

Net exchange, source processes, and flux partitioning

Owing to the length of time (typically a few days) required to accumulate sufficient Hg to perform isotopic analysis, samples from a DFC measurement are a composite of periods of net emission and net deposition, unless the Hg⁰ concentration in the inlet is manipulated so that emission or deposition becomes persistent within the chamber. The TMDF and odd-MIF signatures from DFC measurements in ambient air (“net Hg⁰ exchange”) are calculated as follows (Zhu et al., 2022):

$$\begin{array}{}\text{(29)}& \begin{array}{rl}& {\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{exchange}}^{\mathrm{0}}=\left({\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}\cdot c_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}-{\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{air}}^{\mathrm{0}}\cdot c_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)/\\ & \left({\mathrm{c}}_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}-{\mathrm{c}}_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)\\ & {\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{exchange}}^{\mathrm{0}}=\left({\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}\cdot c_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}-{\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{air}}^{\mathrm{0}}\cdot c_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)/\\ & \left(c_{\mathrm{DFC}}^{{\mathrm{Hg}}^{\mathrm{0}}}-c_{\mathrm{air}}^{{\mathrm{Hg}}^{\mathrm{0}}}\right)\end{array}.\end{array}$$

In the special case of using Hg-free air (zero air) to feed the DFC, ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}$ and ${\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}$ can be determined. The enrichment factors during net Hg⁰ exchange and emission are calculated using the following set of equations:

$$\begin{array}{}\text{(30)}& \begin{array}{rl}& {\mathit{\epsilon }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{exchange}}={\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{exchange}}^{\mathrm{0}}-{\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{surface}},\\ & E^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{exchange}}={\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{exchange}}^{\mathrm{0}}-{\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{surface}}\\ & {\mathit{\epsilon }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emission}}={\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}-{\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{surface}},\\ & E^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{emission}}={\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}-{\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{surface}}\end{array}.\end{array}$$

In a series of light-, temperature-, and substrate-moisture-controlled laboratory experiments with untilled (forest) and tilled (agricultural) soils, both with elevated Hg levels, enclosed in a DFC fed with Hg-free air, large Hg⁰ fluxes (≥ 500 ng m⁻² h⁻¹) were unanimously associated with the most negative ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emisson}}^{\mathrm{0}}$ values (−2.9 ‰ to −2.2 ‰ and −4.4 ‰ to −4.2 ‰ for agricultural and forest soils, respectively) when substrates were exposed to elevated temperatures in the dark (100–130 vs. 40 °C), while treatments with light, moisture, or a combination of both at room temperature produced more moderately negative ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emisson}}^{\mathrm{0}}$ values (−2.1 ‰ to −1.6 ‰ and −3.3 ‰ to −2.6 ‰ for agricultural and forest soils, respectively, Zhang et al., 2020). E¹⁹⁹Hg_emission of agricultural and forest soils displays a value of approximately 0.2 ‰, and ${\mathrm{\Delta }}^{\mathrm{199}}\mathrm{Hg}/{\mathrm{\Delta }}^{\mathrm{201}}\mathrm{Hg}$ was ∼ 1.55 for the temperature controls, suggesting that the treatment caused Hg⁰ loss propelled by the thermally driven reduction in Hg^II in the dark (Sect. 8.4.1). In the light and light–moisture exposure controls, the substrates differed in terms of the observed E¹⁹⁹Hg_emission, which for agricultural soils was 0.67 ‰ to 0.76 ‰ (mean) and for forest soils of a small magnitude both positive and negative (−0.03 ‰ to 0.18 ‰, mean). The E¹⁹⁹Hg_emission dichotomy may be interpreted as derived from a composite with Δ¹⁹⁹Hg contributions from both (−)MgIE- and (+)MgIE-induced Hg^II photoreduction pathways, almost completely dominated by (−)MgIE processes (Hg^II bound to, e.g., N- and S-containing ligands) for agricultural soils and for forest soils with a larger contribution from (+)MgIE processes (Hg^II bound to, e.g., O-containing ligands), balancing odd-MIF fractionation from (−)MgIE processes. However, the agricultural soil placed under water (rice paddy) photoemits Hg⁰ characterized by a negative Δ¹⁹⁹Hg⁰ (${\mathrm{\Delta }}^{\mathrm{199}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}=-\mathrm{0.38}\pm \mathrm{0.18}$ ‰, Zhang et al., 2024), which is indicative of all observed Hg^II photoreduction in natural freshwaters studied in the laboratory as well as in situ.

A field study with DFC of cultivated or managed soils measured exchange fluxes (an MDF Rayleigh model yielded a 10 %–27 % contribution from deposition), which revealed net Hg⁰ emissions (fraction) associated with average ε²⁰²Hg_exchange of −1.1 % to −0.1 ‰ and −1.6 % to −0.2 ‰ and average _{E199Hgex values} of −0.27 % to −0.13 ‰ and 0.00 % to 0.14 ‰ for rural and urban soils, respectively. The above enrichment factors and E¹⁹⁹Hg_exchange ≈ E²⁰¹Hg_exchange indicate that the emitted Hg⁰ comes mainly from the pool produced by photoreduction. The air concentration positively influences the magnitude of deposition in soils so that at a critical concentration level (compensation point), the net flux tends to change direction. This is reflected in the apparent ε²⁰²Hg_exchange, which varies with the ambient Hg⁰ concentration (Zhu et al., 2022). Analogous to laboratory experiments, in situ experiments on the subtropical forest floor have revealed that soil emissions of Hg⁰ are strongly negative ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}$ (mean −3.0 ‰, Yuan et al., 2021), while the magnitude of ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{emission}}^{\mathrm{0}}$ for the tropical rainforest floor is much smaller but still negative (mean −0.7 ‰, Yuan et al., 2023b). E¹⁹⁹Hg_emission for subtropical forest soils exhibits positive values for all seasons over a considerable range (mean 0.1 ‰–0.7 ‰), whereas for rainforests, E¹⁹⁹Hg_emission is consistently positive, albeit to a lesser extent (mean 0.2 ‰–0.3 ‰). Limited negative ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{exchange}}^{\mathrm{0}}$ values (mean values of −0.26 ‰, −0.54 ‰, −0.07 ‰ and −0.09 ‰) and consistently positive E¹⁹⁹Hg_exchange values (mean values of 0.42 ‰, 0.23 ‰, 0.39 ‰ and 0.30 ‰) are observed in net Hg⁰ gas exchange experiments over subtropical (Yuan et al., 2021), tropical (Yuan et al., 2023b), subalpine (Chen et al., 2023), and temperate (Demers et al., 2013) forest soils, respectively. In conclusion, bare or cultivated soils result in a greater degree of MDF isotope fractionation associated with Hg⁰ gas exchange with the atmosphere than forest soils do, where the effects of photic and thermal processes are limited by canopy shading. Temporally extensive chamber measurements conducted globally over the forest floor indicate net emissions (Yuan et al., 2019a). For the first three forest soil studies mentioned above, the DFC dataset also contains sufficient isotope data to enable the modeling of net flux partitioning into gross emission and gross deposition.

Re-emissions of Hg⁰ from perennial foliage of three beech species show an average positive ε²⁰²Hg_emission and E¹⁹⁹Hg_emission of 0.6 ‰ and 0.3 ‰, respectively. The studied net exchange of Hg⁰ between foliage and air for montane evergreen deciduous (Yuan et al., 2019b) and spruce (Chen et al., 2023) forests is mostly on the uptake side, which indicates that ${\mathit{\delta }}^{\mathrm{202}}{\mathrm{Hg}}_{\mathrm{DFC}}^{\mathrm{0}}$ is generally more positive than that of ambient air (Fig. 18a, mean shift of 0.72 ‰ for the latter site). The presence of bidirectional fluxes is, however, reflected in the observation that the E¹⁹⁹Hg_exchange for both sites is consistently positive (mean 0.08 ‰ and 0.13 ‰, respectively), albeit modestly, due to a contribution from Hg⁰ emissions resulting from (−)MgIE-induced photoreduction.

Isotopic studies of air–snow Hg⁰ interactions and post-depositional processes have typically been conducted in the Arctic (Araujo et al., 2022; Sherman et al., 2010; Zheng et al., 2021; Jiskra et al., 2019; Obrist et al., 2017; Douglas and Blum, 2019), with occasional studies at mid-latitudes (Kurz et al., 2021; Yuan et al., 2022). Hg in aging snowpacks exhibits by far the most extensive distribution of Δ¹⁹⁹Hg^II among Earth's surface reservoirs, with observations of Δ¹⁹⁹Hg progression reported in both positive (Kurz et al., 2021) and negative (Sherman et al., 2010; Zheng et al., 2021; Douglas and Blum, 2019) directions relative to fresh snow. As discussed in Sect. 8.2.1, the larger Δ¹⁹⁹Hg spread observed in polar airborne Hg (Hg⁰ and RM) than in, for instance, high-altitude air from mid-latitudes can be attributed to the influence of AMDEs (during spring after sunrise and during summer) on a significant proportion of the collected polar data. Snow(fall) during the polar night is characterized by positive or near-zero Δ¹⁹⁹Hg signatures, as is the case for most global precipitation data (Fig. 13c), while the Δ¹⁹⁹Hg values of polar Hg⁰ for the same period are all slightly negative, which is consistent with the global Hg⁰ background pool (Fig. 13a). Only sporadic isotopic DFC measurements have been conducted over snow, yet ample measurements of polar air and snow as end-members still offer an understanding of air–surface Hg⁰ exchange following Hg^II deposition associated with AMDE. A seminal set of isotope data (Sherman et al., 2010) demonstrating a substantial odd-MIF triggered because of Hg^II photoreduction in snow was obtained from samples collected during a 9 d AMDE at the Alaskan Arctic coastline in conjunction with periods of minimal snowfall carrying high concentrations of scavenged Hg^II (0.5 ± 0.4 µg L⁻¹; Johnson et al., 2008). Fresh snow, surface snow, and drifting snow presented, in order, rapidly increasing negative Δ¹⁹⁹Hg^II values of −0.95 ‰ to −1.20 ‰, −2.41 ‰ to −2.63 ‰, and −3.84 ‰ to −5.08 ‰, which, according to Rayleigh fractionation, can correspond to 5 %–30 %, 35 %–50 %, and 65 %–75 % photoreduced Hg^II, respectively. A chamber measurement was conducted on AMDE-impacted drifting snow that had undergone substantial photoreduction (Δ¹⁹⁹Hg ∼ −5.0 ‰) for 10.5 h of sunlight. The total DFC throughput, including the Hg⁰ emissions corresponding to 6 % of the total Hg^II in the snow plot (whose Δ¹⁹⁹Hg^II dropped to ∼ −5.4 ‰), exhibited a Δ¹⁹⁹Hg⁰ of −1.87 ‰. Mid-latitude snow (MI, USA), derived from polar vortex-transported air masses originating in AMDE-affected subarctic regions, shows, when Δ¹⁹⁹Hg is plotted against δ²⁰²Hg, a regression of −3.32 ± 1.19 (Kurz et al., 2021), which, given the uncertainty in the line fit, appears to agree well with the corresponding regression of data from the Alaska DFC snow experiment of −3.44 ± 0.70 (Sherman et al., 2010).

Perennial data from the Canadian High Arctic show that Hg^II deposited on snow during the most frequent phase of AMDEs just after polar sunrise until early May, which is partly characterized by low temperatures and Arctic haze, has a significantly greater susceptibility to photoreduction and loss as Hg⁰ (up to 60 %) than that deposited later (<20 %, Zheng et al., 2021). As previously stated in Sect. 5.1.4, airborne Hg^II originating from High Arctic AMDEs undergoes rapid conversion to the particle phase between March and April, whereas unconverted GOM remains the dominant form between May and June. The cause of the reactivity of deposited Hg^II is unclear (Sherman et al., 2010; Kurz et al., 2021). It has been speculated that components of Arctic haze, such as black carbon, that cause photoreactivity of particulate Hg^II are the cause of the observed (−)MgIE signature (Zheng et al., 2021), which is supported by water-phase experiments with Hg^II and dissolved black carbon (Table 9, Li et al., 2020b). Concurrently, the restricted Hg^II reduction observed in Arctic snow toward the conclusion of spring is consistent with concurrent observations of substantial reactive uptake of Hg⁰ (see above; Douglas and Blum, 2019), indicating that the snowpack then contains species with a predominant oxidative capacity. However, during snowmelt on the inland tundra, net Hg⁰ deposition is disrupted by shifts in the isotopic signatures of snow interstitial air to those indicative of photoreduction, with Δ¹⁹⁹Hg values decreasing to −1.37  ‰ in snow and −0.62  ‰ in snow interstitial air, which are consistently lower than those in ambient air (−0.23 ± 0.06 ‰). In contrast to Arctic snow, snow sampling in the U.S. Great Lakes area (with the exceptions noted above) generally results in increasing positive Δ¹⁹⁹Hg^II values (up to 3.51 ‰) in aging snow (Kurz et al., 2021). Indicative of (−) and (+) MgIE triggering photoreduction, respectively, the snow data from coastal Alaska (Sherman et al., 2010; Douglas and Blum, 2019) and the Great Lakes region (Kurz et al., 2021) show steeper Δ¹⁹⁹Hg $/$ δ²⁰²Hg trajectories than is the case for any of the well-studied Hg^II complex photoreductions in the laboratory (Tables 9 and 10), leaving the question of which snow Hg^II complexes are involved.

The mean MIF values (Δ¹⁹⁹Hg^II and Δ²⁰⁰Hg^II) in the pools of fresh and seawater are between the mean values of global atmospheric Hg⁰ and wet precipitation. However, the variation is particularly pronounced for Δ¹⁹⁹Hg^II in coastal seawater, lakes, and river water (Liu et al., 2024). After three different categories of lakes with DFC were studied, a Δ²⁰⁰Hg isotope mass balance model was used to partition the overall net emission fluxes into gross emission and deposition fluxes, which ranged from 2.1 to 4.2 ng m⁻² h⁻¹ and from −2.3 to −1.2 ng m⁻² h⁻¹, depending on the lake (Zhang et al., 2023a). Hg⁰ gross deposition exceeds the measured wet deposition across these lakes and accounts for 56 %–85 % of the total deposition (Feng et al., 2022). The anomalous observation of preferential deposition of heavier Hg isotopes over water has already been discussed. The results of the volatilization experiments of dissolved Hg⁰ in water indicate an MDF enrichment factor (ε²⁰²Hg${}_{\text{air–water}}^{\mathrm{0}}$) of −0.45 ‰ and a negligible E¹⁹⁹Hg${}_{\text{air–water}}^{\mathrm{0}}$ (Zheng et al., 2007). Emission-controlled experiments for one of the lakes yielded E¹⁹⁹Hg_emission of −0.38 ‰ and ε²⁰²Hg_emission of −0.31 ‰, which are subject to large uncertainties, with a resulting E¹⁹⁹Hg${}_{\text{emission}}/{\mathit{\epsilon }}^{\mathrm{202}}$Hg_emission trajectory of 1.26 ± 0.72, which is within the margin of error for Hg^II photoreduction mediated by fulvic acids (1.15 ± 0.07, Bergquist and Blum, 2007). The isotopic tracing of the formation of dissolved Hg⁰ in peat-covered groundwater from Hg^II in rainwater (1.24 ± 0.68) has also suggested that this process is the same type of photoreduction (Li et al., 2023a). The E¹⁹⁹Hg_exchange was between −0.76 ‰ and −0.32 ‰, with the highest absolute value for a clear mountain lake fed mainly glacial water, indicating that (+)MgIE photoreduction plays an important role, as has been shown early in laboratory experiments on natural freshwater (Bergquist and Blum, 2007; Zheng and Hintelmann, 2009). The observed substantial positive Δ¹⁹⁹Hg^II shift of the sampled lake surface waters relative to Hg^II in precipitation can be interpreted as an effect of partial photoreduction of Hg^II. However, other sources, including MMHg photodegradation, have been suggested (Chen et al., 2016). As discussed in Sect. 4.2, Hg⁰ emissions from the ocean represent a primary source of Hg in the atmosphere. However, the isotopic signatures of this emission source remain largely unknown. In the absence of in situ sampling, photoexperiments with Hg^II in the presence of DOM extracted from marine phytoplankton produce (−)MgIE during reduction, in contrast to freshwater DOM (Kritee et al., 2018).

9 Future perspectives

9.1 Theoretical chemistry contributions and challenges

This examination of the advancements made in our comprehension of the mercury cycle in the troposphere and stratosphere reveals iterative interactions among three distinct branches of atmospheric chemistry (modeling, field measurements, and laboratory measurements). Advances in computational chemistry have made seminal contributions to our understanding of gas-phase Hg^(I,II) molecules in terms of their geometries, energies, UV–VIS spectra, and reaction kinetics. The treatment of strong relativistic effects, which largely determine the chemistry of Hg-containing species, is crucial for accurate results. Ab initio thermochemical calculations for atmospheric Hg species are performed at a higher level of theory, which incorporates core–valence electron correlation and coupled-cluster methods. This approach yields a significantly improved accuracy of ≤ 4 kJ mol⁻¹, in accordance with high-quality experimental data. However, significant uncertainties in the estimates of the binding strength and thermal and photolytic stability of ^•Hg^II (Sect. 5.1.2) remain, limiting the ability to assess the occurrence and significance of iodine-induced Hg⁰ oxidation in the troposphere and lower stratosphere, as has been suggested from atmospheric observations (Murphy et al., 2006; Lee et al., 2024).

Compared with ab initio thermodynamics, the calculation of ab initio kinetics is a much more challenging task, for which transition state theory (TST) and RRKM theory are often used for barrier and non-barrier bimolecular reactions, respectively. More flexible methods (e.g., variational TST) are now applied to optimize the position of the transition state (TS) by varying it along the reaction coordinate to minimize the free activation energy, which more accurately estimates the rate than traditional TST, which assumes a single, fixed TS that irreversibly leads to products. The calculation of TS energies is more challenging than the calculation of energies of relative minima (metastable species) because of the involvement of extended bonds where the electronic wave function is less dominated by a single electronic configuration. Obtaining a correct barrier energy is crucial for calculating reliable rate constants, as a bias of ∼ 4 kJ mol⁻¹ in the barrier height can lead to an error of nearly an order of magnitude in the resulting rate constant (Ariya and Peterson, 2005; Ariya et al., 2009).

For gas-phase reactions (Sect. 5), calculated rate constants have been presented and compared with those experimentally determined in the laboratory. The level of agreement varies from relatively good (≤ 30 % as Reactions G R1–G R3) to inconsistent (Reactions G R20a, b and G R22). Owing to the complex shape of their potential energy surfaces, the rates of assumed key reactions such as Reactions (G R27), (G R45), and (G R63) are inherently difficult to constrain theoretically (Sect. 5.1.4) and thus require empirical verification, preferably using PLP-LIF or similar techniques. A direct reaction between water vapor and YHg^IIO^• has recently been proposed for Y = OH (Reaction G R60, Saiz-Lopez et al., 2022). If this reaction is realized with the given rate expression in models, it will result in the conversion of essentially all HOHg^IIO^• to the completely stable Hg(OH)₂ in the tropics. This type of reaction also requires empirical verification and should be given priority in laboratory experiments.

9.2 Laboratory measurement techniques and limitations

The absolute determination of rate constants experimentally with pulsed laser-assisted methods (reaction times typically <0.1 ms), such as PLP-LIF, is more easily facilitated when secondary reactions are negligible and therefore does not contribute to the measured values. In general, absolute determination is conducted by obtaining pseudo-first-order conditions, whereby the more stable reactant is present in a density more than 10-fold that of the other reactant. However, for Hg, this method is viable only for studies that are conducted at elevated temperatures (typically ≥100 °C). At atmospheric temperatures, the relatively low vapor pressure of Hg⁰ (in comparison to, for instance, DMHg) precludes the possibility of such experiments. Despite the challenges for Hg⁰, a flow PLP-LIF system has many advantages, including the ability to measure the rate coefficient over a wide range of temperatures and pressures and to test the effect of a change in the bath gas (third body). Nevertheless, to exploit these advantages, alternative methods have been used in which the Hg species is not in excess, but in which the excess is X = Cl and Br when the reaction Hg + X^•+M is studied, while it is instead Y = O₃, NO₂, NO, and O₂ when the interaction between ^•Hg^IBr and Y is studied. In the study of the former reaction type, X^• is present in excess, but its concentration decreases over time owing to the rapid three-body recombination of the species into X₂ and M. This results in additional Hg⁰ exponential decay. To achieve a fit to the observed Hg⁰ time profiles, rate coefficients must be obtained through numerical integration. This requires monitoring both the X^• and Hg⁰ time profiles using LIF, with the absolute concentration of X atoms known with precision. The experimental measurements of the rate coefficients for the Hg + X^•+M reaction by Donohoue et al. (2005, 2006) are in accordance with the findings of theoretical computational studies.

The conversion of ^•Hg^IBr by bimolecular elimination reduction (Reactions G R18 and G R20b; Wu et al., 2020; Wu et al., 2022), addition (oxidation assisted by M [Reaction G R20a]; Wu et al., 2020), or abstraction (Reaction G R22, Gómez Martín et al., 2022) is constrained by the capacity to generate sufficiently high densities of ^•Hg^IBr through the gas-phase photolysis of HgBr₂ in deep UV. Because the vapor pressure of HgBr₂ is low (less than one-tenth that of Hg⁰), it is necessary to keep the HgBr₂ source at least 30 °C and the flow tube reactor at least 10 °C higher to prevent vapor condensation. A higher temperature increases the thermal dissociation of ^•Hg^IBr; therefore, a large excess of Y is required for the ^•Hg^IBr + Y reaction to dominate the conversion of ^•Hg^IBr. In the context of laboratory experiments necessitating deep UV irradiation, it is essential to consider that oxygen atoms are formed through the partial photolysis of O₃ and NO₂, thereby enabling O(³P) to react with ^•Hg^IBr (O + HgBr^• → Hg + BrO^•, Reaction G R23). Experiments to study the reactions of ^•Hg^IBr with NO₂ and O₃ will inevitably result in the observation of a partially reversible oxidation process. This is due to the occurrence of secondary chemistry, including Reactions (G R14), (G R23), (G R24), and (G R29), which take place concurrently with the title Reactions (G R20) and (G R22). Furthermore, to elucidate the influence of secondary chemistry on the observed ^•Hg^IBr disappearance, a comprehensive series of experiments must be conducted, with pressure, temperature, [^•Hg^IBr], [Y], and [O] as variables. This necessitates numerical modeling to isolate the individual rate constants. While the laboratory study of ^•Hg^IBr + O₃ gives an experimental rate constant for the Reaction (G R22) that is in good agreement with computational predictions (Castro Pelaez et al., 2022), experimental kinetic data for ^•Hg^IBr + NO₂ (Reaction G R20), which must be decoupled into termolecular oxidation (Reaction G R20a) and reduction (Reaction G R20b) reactions, respectively, indicate that computational methods overestimate the rate constants for both channels (Wu et al., 2020). Later, experimental investigations revealed that Reaction (G R20) cannot fully account for observations but that significant losses of ^•Hg^IBr must occur via side reactions, probably involving Reaction (G R23), which was unexplored at the time. These intractable shortcomings present a challenge to validating a majority of the proposed reaction steps by computational quantum chemistry in the atmospheric Hg redox cycle, including YHg^IIO^• chemistry, through experimental means. As requested by theoretical chemists (Edirappulige et al., 2023) and modelers (Shah et al., 2021), better rate constants are needed for YHgO^•+ CH₄ and YHgO^•+ CO reactions, especially for Y = Br and OH, to better assess the atmospheric fate of YHgO^•, i.e., whether YHgO^• will be mainly reduced or form closed-shell Hg^II compounds under different atmospheric conditions. As a workaround in the absence of experimentally determined rate constants, Khiri et al. (2020) proposed efforts to perform molecular dynamics simulations via computationally more sophisticated variational TST with multidimensional tunneling.

Many of the proposed key gas-phase Hg species lack experimental characterization (such as spectral proofs). The main method for studying such gas-phase molecules has been spectroscopy after preparation by matrix isolation, which has thus far been used to study the products of photochemical reactions of excited Hg atoms, e.g., O₃ (Butler et al., 1979), O₂ (Andrews et al., 2023), H₂ (Wang and Andrews, 2005b), H₂O (Wang and Andrews, 2005a), F₂ (Wang et al., 2007), and OF₂ (Andrews et al., 2012), in a matrix host of solid Ar and Ne at a cold (typically 4–7 K) surface. Section 5.1.4 has already described some of the isolated molecules of interest, namely Hg(OH)₂ (Wang and Andrews, 2005a) and the fluorine analog of YHg^IIO^• (Andrews et al., 2012). Other studies involve mercury halide molecules (Loewenschuss et al., 1969) and their adducts (Tevault et al., 1977). The reaction mechanism for the formation of Hg(OH)₂ tentatively involves insertion as a first step: Hg(³P) + O₂ + H₂→ (OHgO)* + H₂→ HOHgOH, where OHgO (${}^{\mathrm{3}}{\mathrm{\Sigma }}_{\mathrm{g}}^{-}$) is implicitly indicated as a reactive intermediate (cf. Reaction G R12, although, unlike the analogous complexes for the other Group 12 metals, OZnO and OCdO, it has yet to be identified by IR spectra, Chertihin and Andrews, 1997). Apart from MS experiments of the laser desorption ionization and time-of-flight type with solid HgO as the source and detection of (HgO)_x clusters in the gas phase (Jayasekharan and Sahoo, 2014), there is one early (Butler et al., 1979) and one recent (Andrews et al., 2023) matrix study of the products of the Hg(³P) + O₂ system, where both ¹⁶O₂ and ¹⁸O₂ were used as reagents. The former experiments required co-deposition of Hg with 0.5 % to 5 % O₃ in excess of Ar under deep UV photolysis for oxidation to occur, while the latter experiments used laser-ablated Hg atoms energetic enough to form oxygen atoms when deposited in a cryogenic matrix doped with 0.3 % ¹⁶O₂ or ¹⁸O₂, which reacts upon annealing to form O₃ and a series of HgO_x species (x=1 to 3). The observed fundamental harmonic vibrational frequencies in different cryogenic matrices for the simple oxide Hg–O are in the range of 500–600 cm⁻¹, as predicted by high-level calculations (Shepler and Peterson, 2003; Peterson et al., 2007), indicating the presence of a weakly ionic molecule. This is also true for HgO₂ and HgO₃, which have superoxide (Hg${}^{\mathrm{•}+}{\mathrm{O}}_{\mathrm{2}}^{\mathrm{•}-}$) and ozonide (Hg${}^{\mathrm{•}+}{\mathrm{O}}_{\mathrm{3}}^{\mathrm{•}-}$) characteristics, respectively (Andrews et al., 2023). Notably, the study did not isolate linear mercury dioxide, OHgO, and evidence for this species remains weak. Nevertheless, this species is included as a metastable adduct in the Reaction (G R12) scheme, the key reaction for Hg⁰ turnover in the stratosphere, whose complex potential energy surface forms the basis of ab initio kinetic calculations. In these calculations (Saiz-Lopez et al., 2022), the energy of the Hg–O bond is assumed to be 27.3 kJ mol⁻¹, which is significantly higher than the most recently published high-level calculation values (Peterson et al., 2007; Cremer et al., 2008). Increased activity and innovation in advanced experimental studies characterizing key species and reactions are needed to verify models of atmospheric Hg chemistry that currently appear overly reliant on computational chemistry. The innovation could be, for example, finding a laboratory method to capture the temporal behavior of HgO (perhaps generated by the spin-allowed Hg(¹S) + O(¹D) reaction or by reacting DMHg with O(³P)) in the presence of gas-phase coreactants (with reference to Reactions G R73 and G R74), performing a detailed study of Reactions (G R8) and (G R12), or finding a synthetic route to matrix-isolate species such as BrHgO^• from laser-ablated Hg atoms.

9.3 Model validation and observational gaps

Current limitations and challenges in accurately measuring speciated atmospheric mercury (Gustin et al., 2024; Sect. 3.1) mean that the basis for verifying models in detail is insufficient, despite reliable measurements of Hg⁰ in air and Hg^II in wet deposition. Nevertheless, some models have been developed by including KCl-denuder-based Hg^II measurements in the reference material (Shah et al., 2021; Fu et al., 2024), which are known to suffer from low bias, and others (Saiz-Lopez et al., 2020, 2025), which seem to stick strictly to RM data for validation or include KCl-denuder-based Hg^II measurements corrected according to Marusczak et al. (2017); consequently, the evaluation is qualitative (Shah et al., 2021) and consistently fails to simulate the magnitude of recurring episodes of highly oxidized mercury originating in the free troposphere (underestimation by up to several hundred percent, Elgiar et al., 2025; Gustin et al., 2023). In Sect. 3.2, we highlighted the discrepancies that exist in terms of the atmospheric budget and the fluxes into and out of it. Particularly, new model results concerning the importance of the stratosphere are inconsistent with existing empirical data and require further elaboration, as does the stratospheric chemistry discussed above. Recent observations have shown that there are abundant anthropogenic emissions of reactive halogens (e.g., Br₂ and BrCl) over continental, densely populated areas of South and East Asia that also have high Hg emissions. This is now beginning to be modeled as a key component of the regional atmospheric Hg redox cycle (Fu et al., 2024), but more field measurements are needed for confirmation. The artisanal and small-scale gold mining sector is currently the largest source of anthropogenic Hg⁰ emissions to the atmosphere globally. However, emission estimates using bottom-up approaches, such as emissions inventories, are highly unconstrained (Cheng et al., 2023). Independent techniques, such as top-down constraints in the form of inverse modeling of atmospheric observations, are plausibly necessary to ensure the accuracy of these estimates (Sommar et al., 2020).

The difficulties of accurately determining the speciation of Hg^II in atmospheric water through equilibrium modeling and thus identifying the pool of reducible complexes have been described (Sect. 4.3). Additionally, the potential for simulating the gas–particle distribution of atmospherically oxidized Hg has been explored (Sect. 7.1.1). Stable isotope data have been analyzed to constrain Hg redox chemistry in the atmosphere (Song et al., 2024; Zhen et al., 2024), but there are profound knowledge gaps that require state-of-the-art theoretical and experimental investigations. Section 8.2 describes the isotopic composition of atmospheric samples, a pool generally consisting of filtered air divided into PBM and gaseous mercury (∼ Hg⁰) and precipitation samples, including those of cloud and fog water. The isotope measurements on RM, which were also performed, are briefly presented here (Fu et al., 2021). With a measuring line consisting of a CEM (Hg^II(g)), a filter (Hg^II(p)) and a trap consisting of halogen-impregnated activated carbon (Hg⁰) in series, the analysis shows that the three groups are clearly isotopically separated from each other and that the resulting samples can thus provide further insights into atmospheric processes (Xuewu Fu, personal communication, 2025). The discovery, made over a decade ago, that atmospheric samples contain a significant level of the even-mass-number isotope MIF with seasonal and geospatial variations has been a source of both benefit and puzzlement for scientists (Sect. 8.2.3 and 8.2.4). As even Hg MIF variation is limited to samples from a few localities thus far (compare Figs. 13 and 14), Δ²⁰⁰Hg and Δ²⁰⁴Hg in the environment are considered conservative tracers because of their generally narrow range, and values of Δ²⁰⁰Hg and Δ²⁰⁴Hg on the land surface and in water confine the relative contribution of Hg⁰ to the Hg^II exchange process with the atmosphere. Nevertheless, the underlying chemical processes that give rise to anomalous MIF and the atmospheric conditions that facilitate its occurrence remain to be elucidated in greater detail. In addition to laboratory-based investigations, future field experiments that report vertical profiles of isotopic Hg⁰ and Hg^II in the atmosphere may prove invaluable in further constraining the sources of even-MIF.

Appendix A

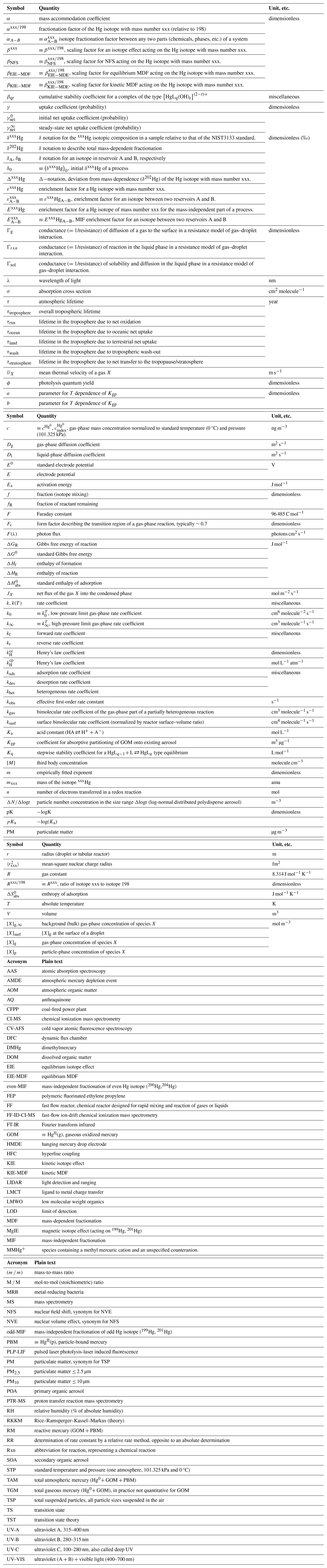

Table A1 List of symbols and acronyms.
