Carbonate content and stable isotopic composition of atmospheric aerosol carbon in the Canadian High Arctic

The carbon cycle in the Arctic atmosphere is important in understanding abrupt climate changes occurring in this region; 2 years of measurements (summer 2016 to spring 2018) of carbonaceous aerosols at the High Arctic station Alert, Canada, showed that, in addition to organic carbon (OC) and elemental carbon (EC), carbonate carbon (CC) was episodically but not negligibly present. The relative abundances of CC in total carbon (TC) ranged from 0 % to 65 %, with an average of approximately 11 % over the entire period. Also, there was a strong correlation of CC with aerosol Ca²⁺, which is associated mostly with soil dust and, to a lesser extent, sea salt aerosol. Based on this and the analysis of air mass back trajectories (AMBTs), we infer two possible sources of CC in the Arctic total suspended particles (TSPs). The major one is the erosion and resuspension of limestone sediments, particularly in the semi-desert areas of the northern Canadian Arctic. Another potential minor source of CC is marine aerosol, including calcified marine phytoplankton shells (coccoliths) introduced into the atmosphere via sea-to-air emission.

The CC content significantly influenced the stable carbon isotopic composition (δ¹³C) of TC. The higher the CC content, the higher the δ¹³C values, which is consistent with the strong ¹³C enrichment in carbonates. Therefore, carbonates in Arctic TSPs must be taken into account not only in isotopic studies using δ¹³C analyses but also when assessing the impact of carbonaceous aerosols on the Arctic climate.

1 Introduction

The Arctic is a dynamically changing region that is significantly affected by climate change (England et al., 2021). Aerosols are one of the factors influencing the climate, but their effects are subject to significant uncertainties (Carslaw et al., 2013). The uncertainties in radiative forcing are primarily associated with carbonaceous aerosols, mostly composed of organic carbon (OC). In contrast, a smaller fraction consists of elemental carbon (EC), which is equivalent to optically determined black carbon (BC) (Petzold et al., 2013).

Organic aerosols, i.e., OC in the atmosphere, generally have a cooling effect on the climate (Stjern et al., 2016), except for the part called brown carbon (Laskin et al., 2015). On the other hand, EC or BC has a warming effect, both in the atmosphere (Liu et al., 2020) and on snow surfaces (Flanner et al., 2007), especially important in the Arctic. In addition, EC and BC measurements are also used to determine the mass absorption cross-section (MAC), a fundamental input to radiative transfer models (Mbengue et al., 2021). The MAC is season- and station-specific (Savadkoohi et al., 2024), making it one of the parameters affecting the influence of aerosols on climate. If either EC or BC is determined inaccurately, the MAC factor will be subsequently biased as well (Chen et al., 2021). Therefore, detailed knowledge of the composition of carbonaceous aerosol in the Arctic is crucial for improving our understanding of their impacts on the climate changes in this region.

Recent atmospheric studies from Tajikistan (Chen et al., 2021) and Tibet (Hu et al., 2023) indicate a significant contribution of carbonates in total suspended particles (TSPs), which may have a significant effect on the determination of OC and EC (or BC). Those areas are characterized as arid desert regions with sparse vegetation, large amounts of unconsolidated sediments, and a lack of soil moisture, with wind erosion playing an important role in the aeolian processes such as atmospheric transport and dust deposits. Arctic regions are affected by long-range transport of dust and also receive contributions of dust locally (Groot Zwaaftink et al., 2016; Sharma et al., 2019; Sirois and Barrie, 1999). They have a desert, semi-desert, or arid character in some cases (Pushkareva et al., 2016). Recently high-latitude dust sources have been described as a significant climate and environmental factor (Kawai et al., 2023; Kawamura et al., 1996; Meinander et al., 2022). It is reported that carbonate-rich dust also has a slightly positive effect on radiative forcing, although this is lower than that of BC (Chen et al., 2021; Raman et al., 2011). High Arctic semi-desert aerosols have been described as potentially important reservoirs of soil organic matter (Muller et al., 2022); however, the influence of carbonates on the atmosphere in these regions has not yet been systematically studied. Investigation of the ion balance of November to May fresh snowfall at the Arctic site Alert over a 3-year period (Toom-Sauntry and Barrie, 2002) led to the conclusion that missing carbonate (especially in November and May) is the most likely cause of the ion imbalance. In addition to dust, it is hypothesized that a source of carbonates in summer Arctic aerosols may be marine microorganisms from sea spray, as reported by Mukherjee et al. (2020) based on calcium analyses.

In recent years, carbon in aerosols has also been subject to analyses of the stable isotopic composition (δ¹³C) as a method for studying atmospheric processes (Gensch et al., 2014; Huang et al., 2006). Several studies within the Arctic have also employed δ¹³C analysis to study carbonaceous aerosols. Specifically, at the Canadian Alert station, studies investigating δ¹³C changes in the EC (Rodríguez et al., 2020; Winiger et al., 2019) and springtime δ¹³C changes in the total carbon (TC) (Narukawa et al., 2008) have recently been published.

Carbonates are strongly enriched in ¹³C, with relatively positive δ¹³C around zero, and can thus affect δ¹³C values in the TC of TSP aerosols, as demonstrated by Chen et al. (2016) for Asian desert dust. In the Arctic region, observed higher aerosol δ¹³C values in atmospheric aerosols are often attributed to dissolved particulate organic matter from marine aerosol sources, while the influence of carbonates is ignored (Gu et al., 2023). We hypothesized that the influence of carbonates on Arctic aerosols is not negligible. In this study, we present 2 years of carbonaceous aerosol observations at Alert, focusing on carbonate content and the isotopic composition of δ¹³C of TC.

2 Experiments

2.1 Measurement site and sampling

TSP samples were collected at the WMO Global Atmosphere Watch Observatory at Alert, Nunavut, Canada (82°27^′03.0^′′ N, 62°30^′26.0^′′ W; 210 m a.s.l.). The Alert site represents a remote Arctic area located on the northeastern tip of Ellesmere Island, which is 817 km from the North Pole (Fig. 1). The site has been used for research on atmospheric aerosols since the mid-1980s (Barrie and Barrie, 1990). In terms of carbonaceous aerosols, BC has been measured at the station for decades (Sharma et al., 2004, 2017). Later, Rodríguez et al. (2020) reported EC and OC results from TSPs between March 2014 to June 2015, with a focus on EC analyses.

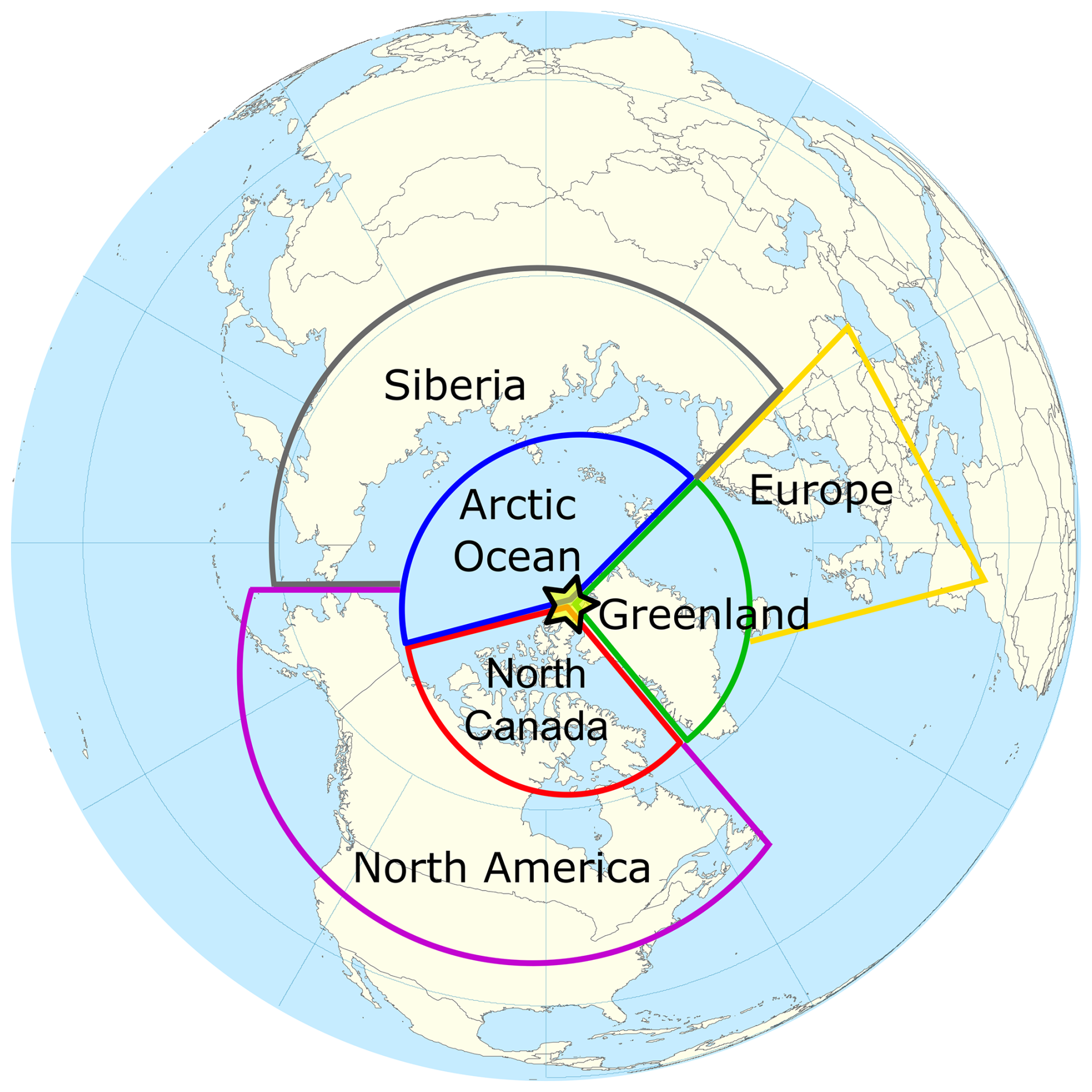

Figure 1 Map of the site position (asterisk) and geographical boundaries for dominant source regions of backward air mass trajectories (Arctic Ocean – blue, Greenland – green, northern Canada islands – red, North America – purple, Siberia – gray, and Europe – yellow). Background map by Wikimedia Commons/Public Domain.

For this study, TSP samples were collected from 13 June 2016 to 16 April 2018 using a high-volume sampler on pre-baked (450 °C, 12 h) quartz fiber filters (20×25 cm, PALL, 2500QAT-UP). During this period, a total of 93 samples were collected at weekly intervals. The sampled filters were placed in clean glass jars with Teflon-lined caps and stored in a freezer before the chemical analyses.

2.2 Analyses

To obtain the TSP mass concentration, each filter was weighed before and after sampling, and resulting concentrations were corrected for the corresponding field blank filter. Subsequently, we analyzed the samples by means of two methods to measure the carbonaceous components, with the outputs shown in Fig. 2.

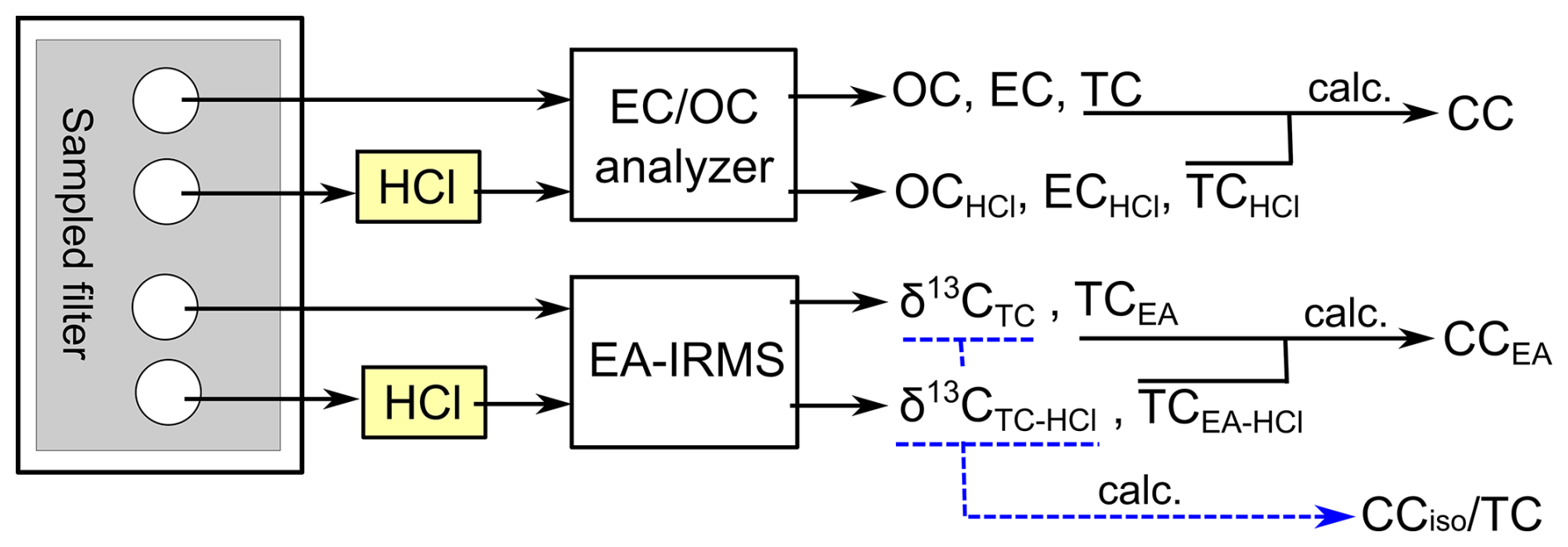

Figure 2 Diagram showing the method for the measurements of carbonaceous components in quartz fiber filter samples.

Contents of OC, EC, and total carbon (TC) were determined using a Sunset semi-continuous analyzer (Sunset Laboratory Inc., Tigard, OR, USA; Bauer et al., 2009) operated in offline mode. Samples with a diameter of 16 mm (area: 2.01 cm²) were analyzed by means of the Improve_A temperature protocol: step [gas] temperature (°C)/duration (s) – helium (He) $\mathrm{140}/\mathrm{120}$, He $\mathrm{280}/\mathrm{120}$, He $\mathrm{480}/\mathrm{120}$, He $\mathrm{580}/\mathrm{120}$, He-O₂ (Ox.) $\mathrm{580}/\mathrm{120}$, He-Ox. $\mathrm{740}/\mathrm{120}$, He-Ox. $\mathrm{840}/\mathrm{210}$ (Chow et al., 2007). The split point between OC and EC was determined based on laser beam (660 nm) transmittance measurements through the filter during analysis, and raw data were subsequently evaluated using RTCalc726 software (Sunset Laboratory Inc.). The same EC/OC analysis was performed after exposing the aerosol filters to HCl vapors overnight in a desiccator. From the difference between TC and TC_HCl, the content of carbonate carbon (CC) was calculated, which is discussed further in Sect. 2.3.

The same samples were further analyzed for the stable carbon isotopic composition (δ¹³C) of TC by means of the method described in more detail elsewhere (Vodička et al., 2022). Briefly, filter cuts (2.01 cm²) were placed in tin cups, inserted into the elemental analyzer (EA, Flash 2000), and heated to 1000 °C in a helium atmosphere. At this temperature, carbonaceous compounds are evolved and catalytically oxidized to CO₂, which was isolated on a packed gas chromatograph and then measured for TC by a thermal conductivity detector and finally transferred into the isotope ratio mass spectrometer (IRMS; Delta V, Thermo Fisher Scientific) via a Conflo IV interface for the analyses of ¹³C $/$ ¹²C ratios. An external standard, acetanilide (supplied by Thermo Electron Corp.), with a δ¹³C of −27.26 ‰ compared to the Vienna Pee Dee Belemnite (VPDB), was used to obtain calibration curves for total carbon (TC) and its isotopic values. Subsequently, we determined the δ¹³C of TC using Eq. (1) in relation to the international standard VPDB.

$$\begin{array}{}\text{(1)}& {\mathit{\delta }}^{\mathrm{13}}\mathrm{C}\left(\mathrm{‰}\right)=\left[{\left({}^{\mathrm{13}}{\mathrm{C}/}^{\mathrm{12}}\mathrm{C}\right)}_{\mathrm{sample}}/{\left({}^{\mathrm{13}}{\mathrm{C}/}^{\mathrm{12}}\mathrm{C}\right)}_{\mathrm{standard}}-\mathrm{1}\right]\cdot {\mathrm{10}}^{\mathrm{3}}\end{array}$$

In this manner, δ¹³C_TC, corresponding to delta TC values on the filter, and δ¹³C_TC−HCl, representing delta values on filters after exposure to HCl vapor, were analyzed. The standard deviation of δ¹³C measurements based on triplicate sample analysis was 0.03 ‰.

Through these analyses, we obtained TC from two independent analytical techniques. We observed good agreement between the TC value measured by the EC/OC analyzer and those measured by the EA (r= 0.98). We also obtained a good agreement even after HCl treatment of the filters (r= 0.98) (Fig. S1 in the Supplement). The slightly higher TC concentrations using the EA (2 %) may be due to the use of a higher maximum temperature (1000 °C vs. 840 °C) for sample release.

2.3 Characteristics of carbonate carbon (CC)

Concentrations of CC, one of the key variables of this study, were calculated from the difference in TC before and after HCl fumigation (Eq. 2).

$$\begin{array}{}\text{(2)}& \mathrm{CC}=\mathrm{TC}-{\mathrm{TC}}_{\mathrm{HCl}}\end{array}$$

Equation (2) defines CC or nominal CC. This procedure is probably not able to analyze all carbonates (Baudin et al., 2023), but, quantitatively, this method leads to the analysis of at least 90 % of the carbonates in samples (Karanasiou et al., 2011). Figure 3 shows thermograms from OC–EC analyses of a selected sample without HCl treatment (purple curve) and after HCl treatment (green curve). As shown in Fig. 3, the largest material loss can be seen at the temperature step EC2, but, for other samples, we observed the largest material losses in the EC1 and OC4 regions as well. These are temperature steps during which we should expect the release of carbonate carbon (CC) (Cavalli et al., 2010; Chow et al., 1993). On the other hand, removal of carboxylic acids (e.g., acetic or oxalic acid) can be expected at temperature steps OC2 and OC3 (Hasegawa, 2022). Exposing samples to HCl can also affect the transformation of organic matter, which is then released at higher temperatures. Therefore, the thermogram after fumigation may not reflect only the expected CC loss (Jankowski et al., 2008). We also analyzed several carbonate and oxalate salt standards as a control (Fig. S2). The thermogram of the sample with a pronounced peak in the EC2 region (Fig. 3) was most similar to that of CaCO₃ (Fig. S2a). Hence, it can be assumed that the significant peaks, removed by HCl in the EC2 region of the thermogram, are carbonate in origin. Nevertheless, it cannot be excluded that some of the prominent CC peaks in the OC4 region are also from oxalates, as also confirmed by additional analyses of CaCO₃ and potassium oxalate monohydrate standards before and after HCl fumigation (Fig. S2b). The nominal CC may contain other minor carbon components. Here, however, it should also be noted that the reported values of oxalates in the Arctic (see, e.g., Feltracco et al. (2021), Svalbard) are an order of magnitude lower than the CC values we analyzed.

Figure 3 Example of EC/OC analysis of untreated (purple thermogram) and treated sample with HCl fumigation (green thermogram) by means of Improve_A temperature protocol. The vertical dashed black line shows a change in the use of He and the He-Ox mixture in the analysis. The vertical dashed green and purple lines show the automatic determination of the split point between OC and EC. Sample no. Alert-63 was collected from 15 to 22 May 2017.

It is worth noting here that, if we did not analyze CC, it would be determined as either OC or EC based on the thermogram and automatic determination of the split point (Fig. 3). For both EC and OC, we calculated the percentage of mass removed by HCl fumes as CC using Eqs. (3) and (4).

$$\begin{array}{}\text{(3)}& {\displaystyle }{\mathrm{EC}}_{\mathrm{removed}}\left(\mathit{\%}\right)=\left(\mathrm{EC}-{\mathrm{EC}}_{\mathrm{HCl}}\right)/\mathrm{EC}\cdot \mathrm{100}\text{(4)}& {\displaystyle }{\mathrm{OC}}_{\mathrm{removed}}\left(\mathit{\%}\right)=\left(\mathrm{OC}-{\mathrm{OC}}_{\mathrm{HCl}}\right)/\mathrm{OC}\cdot \mathrm{100}\end{array}$$

In this way, we found that the CC contribution was, on average, 25 % (ranging from 0 % to 81 %) EC and 12 % (ranging from 0 % to 46 %) OC, which would have been inaccurately determined if we had not assessed the CC contribution. On a relative basis, EC concentrations were more biased in all seasons (Fig. S3).

Analyses for CC were performed by two independent methods (EC/OC and EA instruments, Fig. 2), and the resulting CC values show acceptable agreement (Fig. S4). Figure S4 shows that CC values based on analyses from the EC/OC analyzer may be slightly underestimated. However, unless otherwise stated, CC values calculated from EC/OC analyses are discussed in this study.

2.4 Estimate of δ¹³C values of CC

The δ¹³C analyses of TC and TC_HCl allowed us to estimate δ¹³C of CC. Here, we calculate the δ¹³C values of released CC on HCl fumigation using the following reaction and the isotopic mass balance equation (Eq. 5), being similar to the calculation in Kawamura and Watanabe (2004):

TC + HCl → CO₂ (carbonate carbon) + TC_HCl,

$$\begin{array}{}\text{(5)}& {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}}=f\cdot {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{CC}}+\left(\mathrm{1}-f\right)\cdot {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}-\mathrm{HCl}},\end{array}$$

where f means a fraction of CC in TC. From Eq. (5), we derived the formula for calculating δ¹³C_CC (Eq. 6).

$$\begin{array}{}\text{(6)}& {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{CC}}=\left({\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}}-\left(\mathrm{1}-f\right)\cdot {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}-\mathrm{HCl}}\right)/f\end{array}$$

The δ¹³C_CC values were reasonable for a CC content in the TC of approximately above 20 % (Fig. S5). When f (CC contribution) is high, δ¹³C_CC values are close to zero, supporting the fact that CC is mainly composed of carbonate, such as CaCO₃. However, when the f values are low, the δ¹³C_CC values are highly scattered, indicating that the carbon released (removed) by HCl is not only carbonate carbon but also contains various types of carbon including semi-volatile organic acids or unknown species. In the case of organic acids, δ¹³C values can be as high as −10 ‰ (e.g., Wang and Kawamura, 2006) or positive due to unknown isotope fractionation during analytical processing. Highly scattered values may also be due to potential analytical errors in EA-IRMS measurements when f is sufficiently small. If the CC contribution were to be zero, Eq. (6) would lead to division by zero. This may also be the cause of bias and the scattering of δ¹³C_CC values with low CC contributions (Fig. S5).

2.5 Carbonate estimation from isotopic composition

We used the isotopic mass balance between δ¹³C_TC and δ¹³C_TC−HCl as an alternative and probably more accurate method to determine carbonate content (CC_iso) in TC. The CC_iso/TC (f_iso) calculation is based on the assumption that the δ¹³C of carbonates is around 0 ‰, with an approximate range +5 ‰ to −5 ‰, and that no other compounds are present in this range. We used Eq. (5), where δ¹³C_TC and δ¹³C_TC−HCl are known, and δ¹³C_CC is given by three different values, covering an approximate range of carbonates (+5 ‰, 0 ‰, −5 ‰).

If

$$\begin{array}{}\text{(7)}& {\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{CC}}=\mathrm{0},f=\mathrm{1}-\left({\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}}/{\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}-\mathrm{HCl}}\right),\end{array}$$

while

$$\begin{array}{}\text{(8)}& \begin{array}{rl}{\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{CC}}& =+\mathrm{5},\mathrm{or}-\mathrm{5},f=\left({\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}}-{\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}-\mathrm{HCl}}\right)\\ & /\left({\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{CC}}-{\mathit{\delta }}^{\mathrm{13}}{\mathrm{C}}_{\mathrm{TC}-\mathrm{HCl}}\right).\end{array}\end{array}$$

The f_iso value is then an average calculated from the three f values obtained from Eqs. (7) and (8).

2.6 Auxiliary data

Air mass back trajectories (AMBTs) were calculated using the National Oceanic and Atmospheric Administration (NOAA) HYSPLIT model (Stein et al., 2015) at 500 m a.g.l. using a run time of 168 h in GDAS (Global Data Assimilation System) with 0.5° resolution for each sampling day. For subsequent analyses, we divided the air masses into six sectors, as depicted in Fig. 1.

Meteorological data at 5 min resolution for temperature (T), wind speed (WS), and wind direction (WD) were provided by Environment and Climate Change Canada. Only WDs between 14 November 2016 and 16 January 2017 were obtained from the NOAA website (https://psl.noaa.gov/arctic/observatories/alert/, last access: 12 June 2024). For the purpose of this study, complementary mean values of T and WS were calculated in relation to each sample.

The WD and WS data were used to create wind roses using Zefir software (Petit et al., 2017) and were used in combination with the AMBT data to determine the predominant aerosol origin for each sample. All wind roses and AMBTs by HYSPLIT are shown in the supplementary data.

The water-soluble ions (Ca²⁺, Mg²⁺, Na⁺) were measured using ion chromatography (761 Compact IC, Metrohm, Switzerland). For this purpose, the filtered samples were extracted twice with 10 mL of ultrapure water using an ultrasonic bath for 15 min, and the aqueous extracts were filtered using a disc filter (Millex-GV, 0.22 µm, Millipore).

3 Results and discussion

3.1 Carbonaceous aerosol composition

Time series of TC, OC_HCl, EC_HCl, and CC mass concentrations are shown in Fig. 4. An overview of results is provided for the seasonal variations from 2016 to 2018 in Table 1 and Fig. S6. An average TC concentration over the entire measurement period was 0.219±0.147 µg m⁻³ (median of 0.186 µg m⁻³; deviation due to one sample with a concentration of 1.22 µg m⁻³, Fig. 4a). The average TC contribution in the aerosol mass ranged from 5 % to 14 % (Table 1). Seasonally, the highest mass concentrations of TC, OC_HCl, and EC_HCl were found in winter and/or spring (Fig. S6, Table 1).

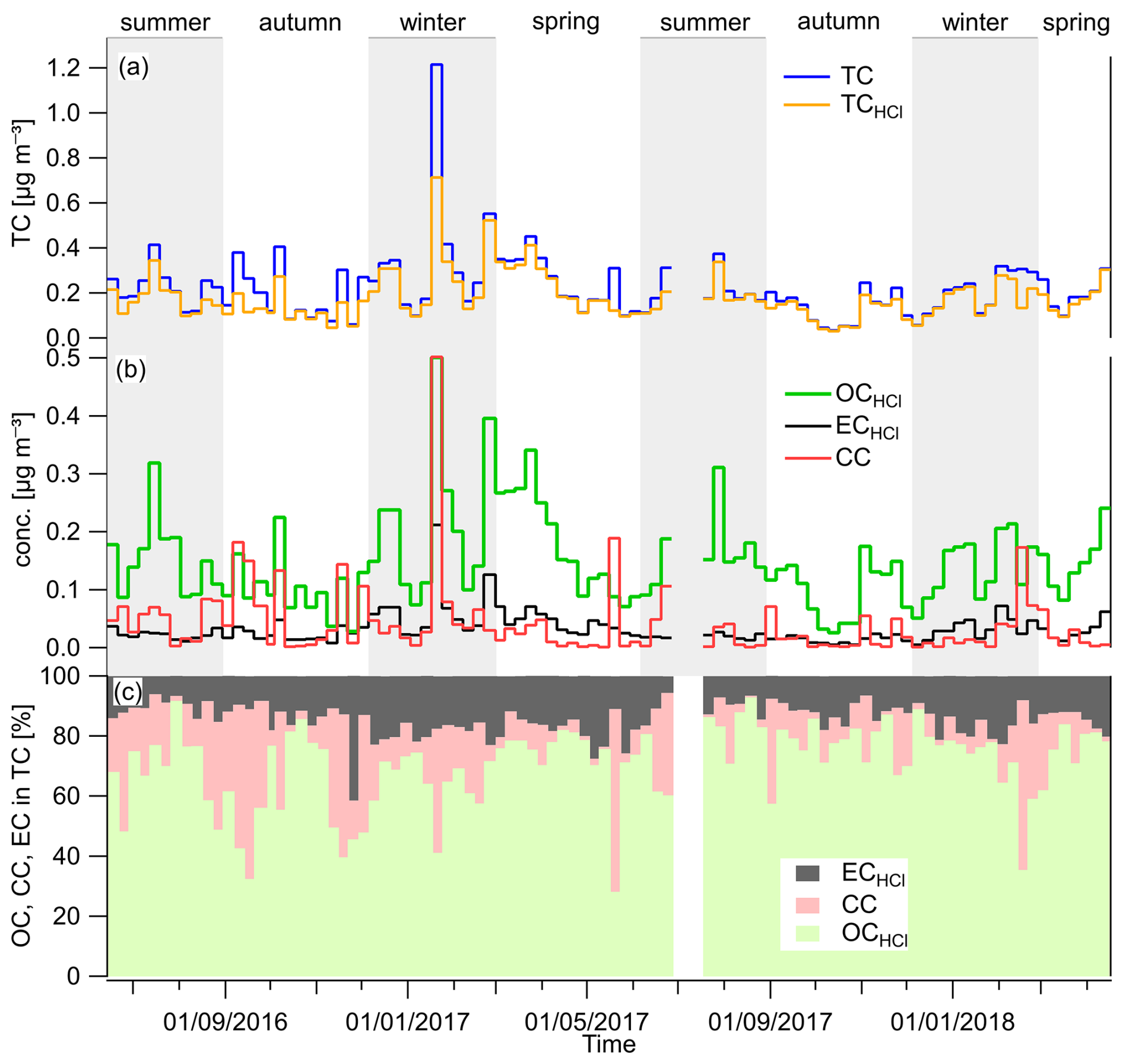

Figure 4 Time series of (a) TC mass concentrations before and after HCl treatment of samples; (b) OC, EC, and CC mass concentrations; and (c) their relative contributions to TC in the Alert TSP aerosols.

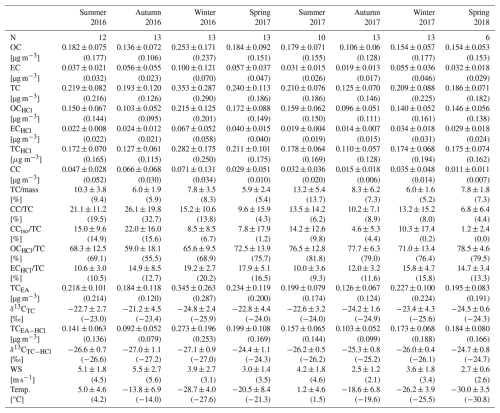

Table 1 Seasonal averages  ± standard deviations (medians in parentheses) of different variables in TSPs at Alert site.

The fact that EC_HCl corresponds to realistic elemental carbon concentrations is demonstrated by comparison with the study of Rodríguez et al. (2020), in which EC in TSPs was analyzed during 2014–2015. They reported seasonal EC concentrations that are similar to our observed EC_HCl, while their CC was part of the OC due to the use of a different temperature protocol (EnCan-Total-900) during the OC/EC analysis. However, Rodríguez et al. (2020) did not quantify the contribution of CC to TC.

Concentrations of OC_HCl dominate in all seasons (Figs. 4b and 5) but present seasonally different correlations with ambient temperature. Especially in summer, we observe a significant positive correlation (r= 0.73) between OC_HCl concentrations and temperature (Fig. S7a). A similar relationship was also observed, e.g., at the subarctic station Pallas (Friman et al., 2023), suggesting a biogenic origin of summertime organic aerosols in Arctic areas (Moschos et al., 2022). In contrast, we observe negative correlations between OC_HCl and ambient temperature in winter ($r=-\mathrm{0.15}$, insignificant) and spring ($r=-\mathrm{0.43}$). A year-round similar trend was observed for EC_HCl ($r=-\mathrm{0.39}$, Fig. S7b), supporting previous studies that highlight, in particular, the anthropogenic contributions to Arctic aerosol during the polar night (Moschos et al., 2022). However, for CC, we observe no significant dependence on temperature (r= 0.09, Fig. S7c).

Figure 5 Seasonal contributions of CC, EC_HCl, and OC_HCl to TC. The boxes correspond to the interquartile range (IQR; 25th and 75th percentile), with the median represented by the inner solid line. The whiskers correspond to the inner fence range (1.5 ⋅ IQR), triangles are outliers, and the mean is represented by the large filled circle.

Time series of TC before and after HCl fumigation (Fig. 4a) show that the amount of carbon removed in the form of CC is neither negligible nor large. However, both mass concentrations of CC (Fig. 4b) and its relative contributions (Fig. 4c) show that the CC is often larger than the EC_HCl contribution. Specifically, CC concentrations were highest during both the autumn of 2016 and the summer of 2016 and 2017 (Fig. S6c), which were also reflected in the relative contributions to TC (Table 1, Fig. 5).

It is worthwhile to understand the origin of CC. During summer, the contribution of biogenic aerosols (a potential source of oxalates) is highest, while the landscape is least covered by snow, making the situation favorable for resuspension of soils eroded from rocks, including carbonates. A potential source of carbonates may come directly from the Canadian Arctic land region, where limestone sediments are reported to be abundantly present (Groot Zwaaftink et al., 2016; Not and Hillaire-Marcel, 2012; Phillips and Grantz, 2001). Another likely source of carbonate is marine aerosols as marine organisms contribute carbonate to the sea (Stein et al., 1994). In the context of wind directions and the effect on δ¹³C, the origin of CC is further discussed in Sect. 3.2.

3.2 Stable carbon isotopic composition

Removal of CC by HCl fumigation has a significant effect on the measurements of the δ¹³C isotopic values of TC (Figs. 6 and 7). Figure 6 shows seasonally resolved δ¹³C values for HCl-treated (red) and untreated (gray) samples. We observed significant changes in all seasons, except for the spring of 2017 and 2018. Here, it is interesting to mention a link with Narukawa et al. (2008), who reported changes in the δ¹³C of TC values for HCl-treated samples between winter and spring at the Alert site. Narukawa et al. (2008) show significantly higher δ¹³C values in spring than in winter and related this to the possible contribution of carboxylic acids (especially oxalic acid). During our observations, the differences in the average values of the δ¹³C of TC (HCl treated vs. untreated) were also significant (see red boxes in Fig. 6 and Table 1). Winter and spring δ¹³C values after HCl treatment in this study (Table 1) are similar to those presented by Narukawa et al. (2008) for the year 2000. Thus, this study confirms that this is a long-term phenomenon that is likely to occur annually.

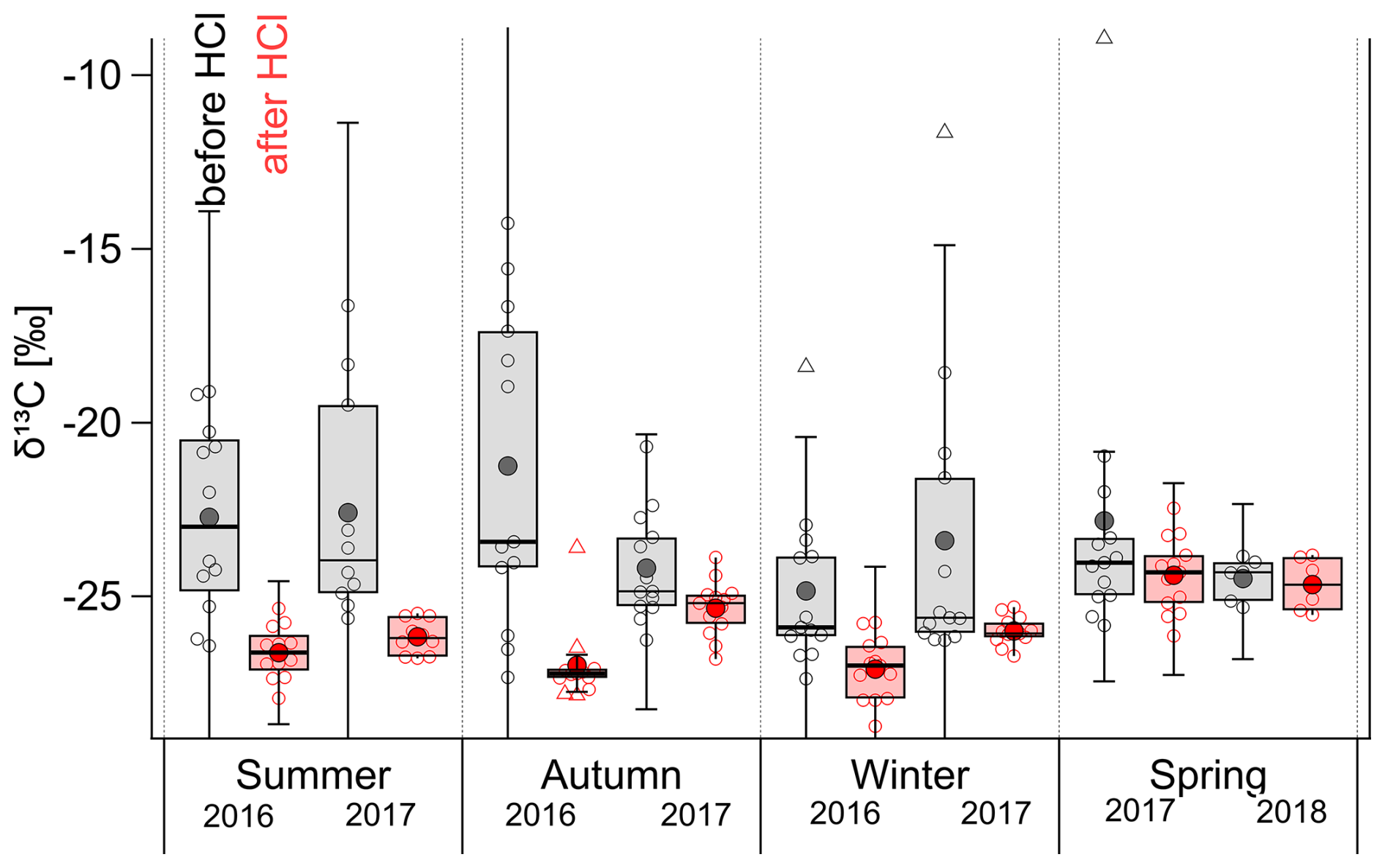

Figure 6 Seasonal variations in the δ¹³C of TC of untreated (gray) and HCl-treated (red) TSP samples at the Alert site from summer 2016 to spring 2018. The boxes correspond to the interquartile range (IQR; 25th and 75th percentile), with the median represented by the inner solid line. The whiskers correspond to the inner fence range (1.5 ⋅ IQR), triangles are outliers, and the mean is represented by the large filled circle.

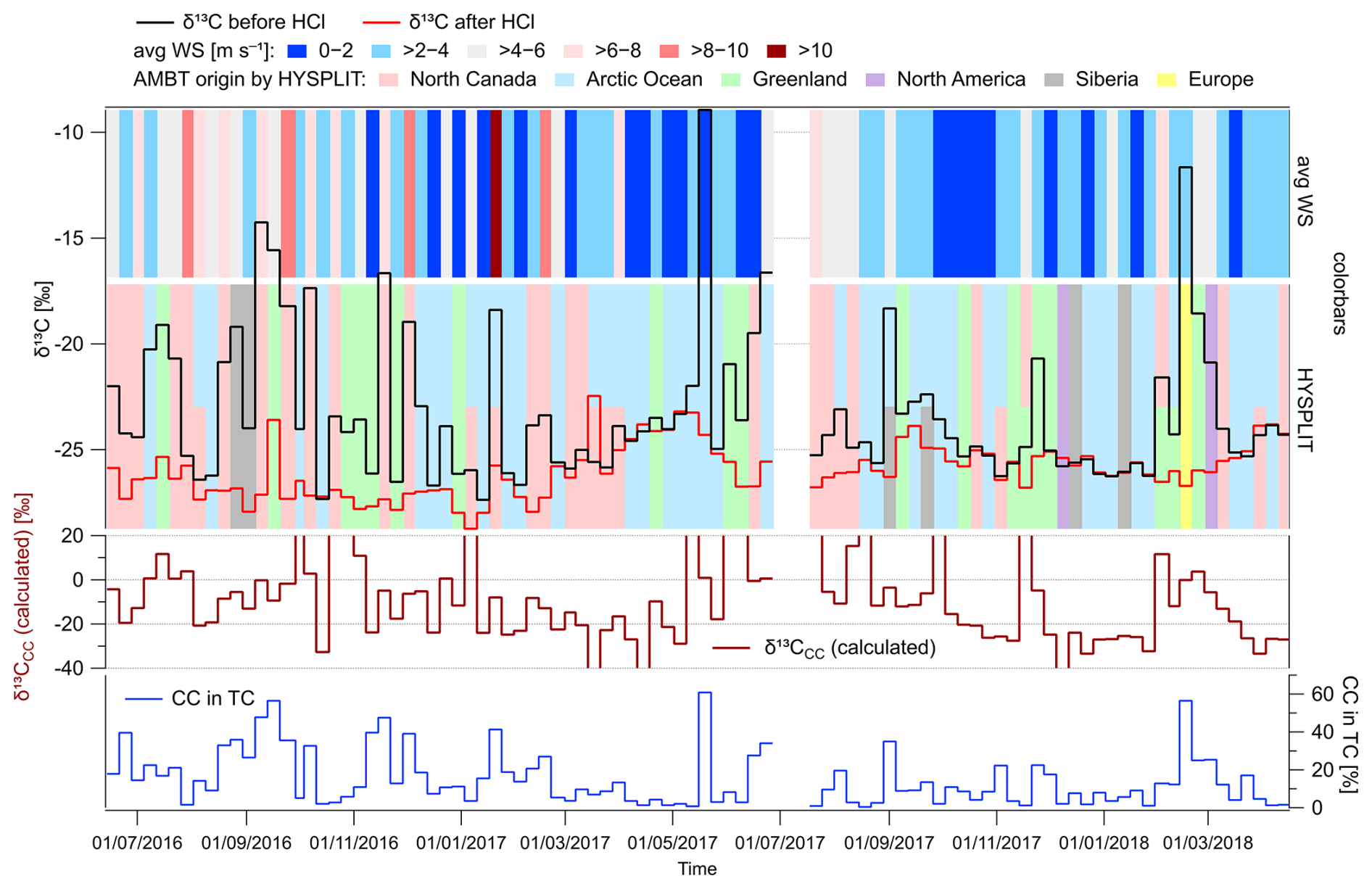

Figure 7 Time series of isotopic composition (δ¹³C) of TC before and after HCl treatment of samples (upper part), with color bars representing average wind speed (top) and origin of AMBTs based on HYSPLIT model and divided to regions as shown in Fig. 1 (middle part). Time series of the calculated δ¹³C_CC (outliers less than −40 ‰ and more than +20 ‰ not depicted) and contribution of CC in TC (bottom).

In addition, measurements of δ¹³C in OC, pyrolytic carbon (POC)–CC, and EC, performed at Environment Canada Toronto Laboratory using the ECT9 temperature protocol (Huang et al., 2006, 2021) for the fine-particle (PM₁) samples collected around 2003, support the fact that a noticeable fraction of CC occurs during the summer months, as indicated by the relatively more positive δ¹³C of the POC–CC fraction (Fig. S8). Carbonate from eroded rocks in terrestrial environments usually generates large particles, and so the CC content in PM₁ should be lower than that in TSPs. Consequently, the δ¹³C TC in PM₁ is expected to be relatively less positive compared to that in TSPs. Therefore, Fig. S8 suggests that the impact of CC on δ¹³C TC is an annual phenomenon occurring over decadal periods. The tendency towards relatively more positive δ¹³C in summer OC fractions also suggests the presence of minor salt oxalates or potassium or magnesium carbonates, which are released at 550 °C or lower, as shown in Fig. S2. In the time series in Fig. 7, we observed episodes with significant differences in δ¹³C values, alternating over short periods. The comparison of the δ¹³C of TC and TC mass concentrations for both HCl-untreated and treated samples shows insignificant correlation (Fig. S9). However, we found a significant, though not strong, correlation of δ¹³C with wind speed (Fig. S10) (r= 0.36) and a negative correlation after HCl fumigation ($r=-\mathrm{0.32}$ for δ¹³C_TC−HCl vs. wind speed). Concentrations of CC were also positively correlated with wind speed (r= 0.48, Fig. S10), indicating that wind has an effect on this aerosol component. Therefore, we compared the δ¹³C time series with average wind speeds and prevailing AMBTs from the HYSPLIT model (see colored bars in Fig. 7), which were divided into six regions, as shown in Fig. 1.

The large differences in δ¹³C values (or relatively more positive δ¹³C_TC values) can be divided into three categories. The most frequent differences were observed during periods of stronger winds (average WS above 4 m s⁻¹) associated with the prevailing back trajectories from the northern Canada region. These episodes can be found mainly in the summer and autumn of 2016 and the summer of 2017. Such conditions favor dust resuspension, which may also contain limestone, known to be abundant in this region (Not and Hillaire-Marcel, 2012; Phillips and Grantz, 2001). The presence of a peak in soil dust carbonates in late summer/early autumn is consistent with multidecadal aerosol aluminum observations at Alert (Sharma et al., 2019; Sirois and Barrie, 1999). These observations also indicate a peak in soil dust aerosol in the spring month of May (Sharma et al., 2019).

Second, in late February–March 2018, we observed significant enrichment of ¹³C, which may be linked to long-range transport (LRT) from and/or over Europe, Greenland, and North America (Fig. 6). Sources of carbonate, in this case, may be, for example, calcifying marine phytoplankton (Monteiro et al., 2016), abundant in the North Atlantic (Okada and Honjo, 1973). Another possibility is the volcanic and subarctic semi-desert areas in Iceland (Arnalds et al., 2016).

The third case is a δ¹³C difference observed during lower wind speeds coming from the Arctic Ocean or Greenland. This also includes the sample taken between 15–22 May 2017, whose thermograms are shown in Fig. 3 and which was most enriched in ¹³C carbon. A recent study by Gu et al. (2023), which reports observations of summer carbonaceous aerosols in the Arctic Ocean, is relevant in this context. The aforementioned authors also observed relatively more negative δ¹³C values of TC, but, in this case, they did not consider the enriched ¹³C carbon as a carbonate contribution; instead, they associated it with an input of fresh marine particulate organic carbon (MPOC) (Verwega et al., 2021). MPOC is formed by the conversion of inorganic carbon by marine phytoplankton through photosynthesis in the ocean surface layer (Descolas-Gros and Fontugne, 1990), and this carbon can be partially released into the atmosphere as marine aerosol (Ceburnis et al., 2016). We cannot exclude the influence of MPOC on the TSPs taken at the Alert station, but, instead, the specific EC/OC thermogram (Figs. 3, S2) shows an influence of CaCO₃. The presence of carbonates in surface seawater and their interference with organic coatings have been known about for decades (Chave, 1965). Dissolved CO₂ in the oceans consists mainly of inorganic substances, which are bicarbonates (HCO${}_{\mathrm{3}}^{-}$; > 85 %) and carbonates (ca. 10 %), and their content varies with temperature, pH, salinity, and other parameters (Zeebe, 2012). Carbonate, in the form of CaCO₃, is generally supersaturated in surface seawater, but its precipitation may be limited due to dissolved organic matter (Chave and Suess, 1970). In addition to common inorganic reactions due to dissolved CO₂, the carbonate cycle is also influenced by marine life. Phytoplankton such as coccolithophores (e.g., Emiliania huxleyi) could also contribute to the formation of carbonates (Smith et al., 2012). These organisms produce calcified shells called coccoliths, which are about 2–25 µm across (Monteiro et al., 2016). While these microfossils are mostly deposited on the seabed, they are also likely to be released into the atmosphere with marine aerosol from the upper sea layers. Such a potential introduction of coccolith fragments by sea spray aerosol into the atmosphere is reported by Mukherjee et al. (2020) for the Arctic summer. Whether through MPOC or inorganic carbon, this phytoplankton influences the fractionation of ¹³C carbon (Holtz et al., 2017).

Coccolith microfossils contain enriched calcite with δ¹³C values around 0 ‰ (McClelland et al., 2017). Limestone sediments in the Canadian Arctic are even more enriched, with δ¹³C values ranging from 2 ‰ to 8 ‰ (Beauchamp et al., 1987). After estimating δ¹³C_CC (see Sect. 2.4), we observed that, with a high CC abundance in TC, the calculated δ¹³C_CC values are also seen around 0 ‰ (Figs. 7 (bottom), S5). This suggests that, when the TC contains a larger contribution of CC (suppose above 20 %), it can be assumed that a significant portion of the nominal CC is derived from limestone. However, the uncertainties in the determination of δ¹³C_CC, mentioned in Sect. 2.4, primarily due to the low CC contributions in TC, likely prevent the distinction of whether the carbonates are from sediment resuspension or marine calcified shells. Some insight, however, can be obtained from the AMBT analysis discussed earlier.

Finally, Fig. 8a confirms a strong dependence of δ¹³C_TC on the CC content in TC (r= 0.79). The direct dependence of δ¹³C_TC on CC mass concentration is even stronger (r= 0.85 after excluding one outlier, Fig. S11). Furthermore, we calculated the fractions of CC for individual samples via isotope mass balance (using δ¹³C with a CC value of zero as the endmember; see Sect. 2.5.) and found that, overall, the calculated results were approximately 5 % lower than the measured CC/TC, with less scatter. In addition, we observed an excellent correlation between the δ¹³C of TC and the calculated fraction of CC, with r= 0.96, as shown in Fig. 8b, indicating that more than 92 % of the variation in the δ¹³C of TC can be explained by the dependency on the fraction of CC.

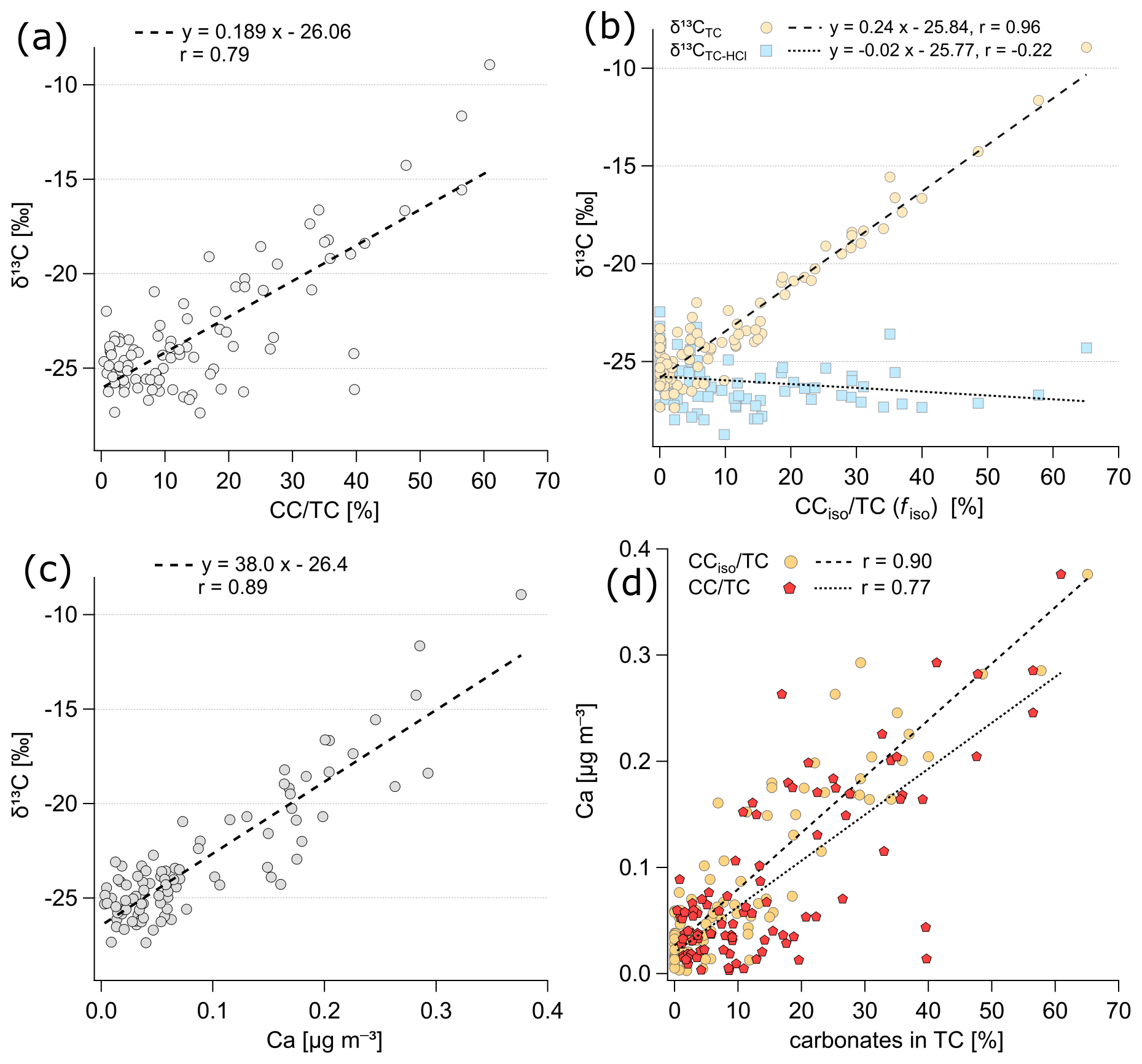

Figure 8 Dependence of (a) δ¹³C_TC on the percentage contribution of CC in TC, (b) δ¹³C_TC and δ¹³C_TC−HCl on the calculated fraction of CC_iso in TC, (c) δ¹³C_TC on Ca mass concentrations, and (d) Ca mass concentrations on percentage contribution of CC and CC_iso in TC.

Further support for the influence of the δ¹³C of TC in favor of carbonates is provided by its strong correlation with calcium (r= 0.89, Fig. 8c). Calcium is also strongly correlated with CC contributions in TC, with r= 0.90 for Ca vs. CC_iso/TC (Fig. 8d). Apportionment of Ca amongst aerosol sources at the Alert site (Sharma et al., 2019), using multidecadal observations and positive matrix factorization analyses, showed that, on average, for the periods of both November to February and March to May, Ca was associated (84 % and 85 %, respectively) with windblown dust or soil and (12 % and 8 %, respectively) with sea salt aerosol.

We also investigated the possible contribution of carbon from magnesium carbonate. Magnesium was strongly correlated with sodium (r= 0.91, Fig. S12), indicating its primary link to marine aerosol. In contrast, we observed no relationship between Mg and Ca; this dependence was strongly scattered (Fig. S12). Overall, the results indicate that the main contribution of CC, which strongly influences the δ¹³C of TC, is mainly CaCO₃. If there is a contribution of magnesium carbonate, it is rather episodic.

These results thus provide evidence that the CC content in aerosols, mostly of soil origin and, to a lesser extent, marine origin, strongly influences the δ¹³C isotopic composition of TC in the Arctic atmosphere. Further research at different Arctic sites could reveal whether the non-negligible presence of CC in the TSP is the case only in the northern Canada region or a phenomenon observed in larger parts of the Arctic.

4 Summary and conclusions

We found that the aerosol CC (i.e., carbonate carbon) fraction in Arctic TSPs at the Alert site is not negligible. The relative abundances of CC in TC ranged from 0 % to 60 %, with an average of 11 % over the entire measurement period. On average, 25 % (range: 0 % to 81 %) of EC and 12% (range: 0 to 46 %) of OC was identified here as nominal CC. The influence of CC removal from the sample was also significantly reflected in the isotopic composition of the δ¹³C of TC. The effect of CC on δ¹³C was particularly pronounced in the summer of 2016 and 2017, as well as during the autumn of 2016 due to strong local Arctic dust transport. In contrast, the effect of removing of CC on δ¹³C was lowest in spring. Thus, CC content in TSPs at Alert can sometimes strongly influence the δ¹³C values of aerosols.

Based on the thermograms from EC/OC analyses and the calculated δ¹³C_CC, whose values were around 0 ‰ at high CC contributions to TC, we conclude that the major part of CC is derived from carbonates. Additionally, based on the isotope mass balance calculation (using 0 ‰ as δ¹³C_CC), an excellent dependency between the δ¹³C of TC and the calculated fraction of CC (r= 0.96) is observed, supporting the fact that most of the variations in the δ¹³C of TC were due to the contribution of CC. Based on the AMBT analyses, we identified two possible carbonate sources. The first is eroded and resuspended limestone sediments in the northern Canadian region. The second source may be calcareous shells (coccoliths) produced by marine phytoplankton and transported from both the Arctic Ocean and the North Atlantic Ocean. However, the hypothesis of these sources requires further detailed research.

In general, when analyzing the δ¹³C of TC in coarse aerosol or aerosols laden with dust, it must be taken into account that the resulting values may be strongly influenced by CC content. If CC is not removed prior to EC/OC analysis, CC may be mistakenly identified as EC during Improve_A analysis. This could, for example, affect modeling of the effect of carbonaceous aerosols on the Arctic climate as EC (or black carbon) has a warming effect on the atmosphere, while CC has a lower warming effect.
